Cruise Control Systems: Description
Cruise control system consists of a cruise control unit, vacuum actuator, 2 brake switches, a clutch switch, cruise control switch, cruise control main switch and a speed sensor located in instrument cluster.

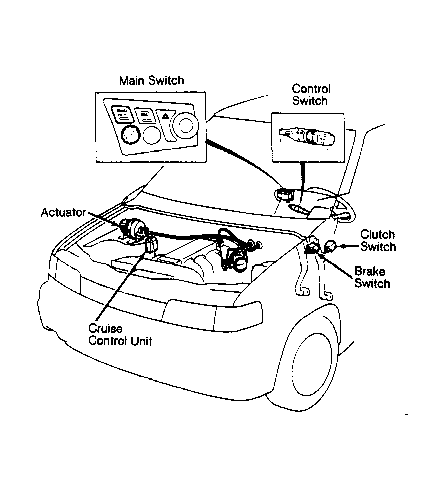

Cruise control unit is located in engine compartment. See Fig 1 . Cruise control main switch, located on dash, is used to turn system on and off. Cruise control switch located on steering column controls SET, COAST and RESUME functions, and is used to set or adjust desired speed. System will not operate at speeds under 25 MPH.
