Removal & Installation

Wrap tape around end of screwdriver. Carefully pry main switch out of door with screwdriver. Disconnect electrical connector. To install, reconnect electrical connector. Press main switch into door until lock tabs engage. See Fig 1.

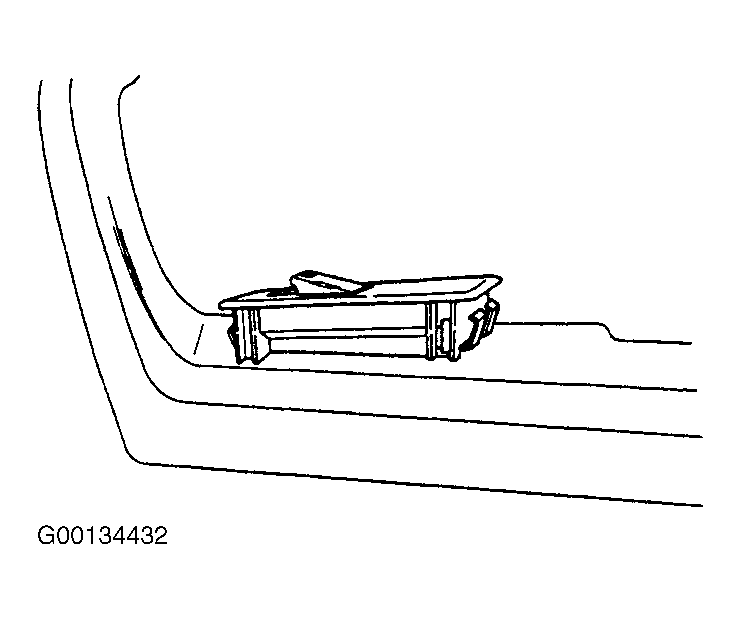

Fig 1: Removing Power Windows Main Switch

Courtesy of MAZDA MOTORS CORP.

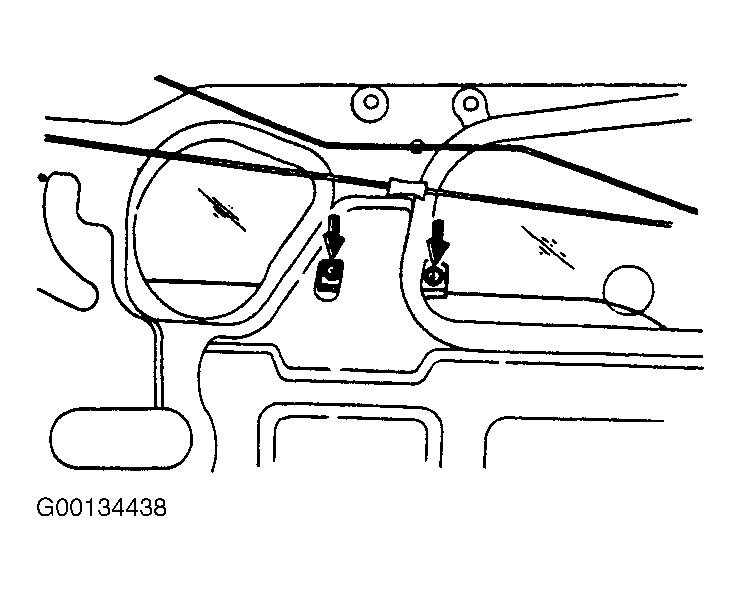

Fig 2: Locating Glass Attaching Bolts

Courtesy of MAZDA MOTORS CORP.
