Heater System: Testing: Blower

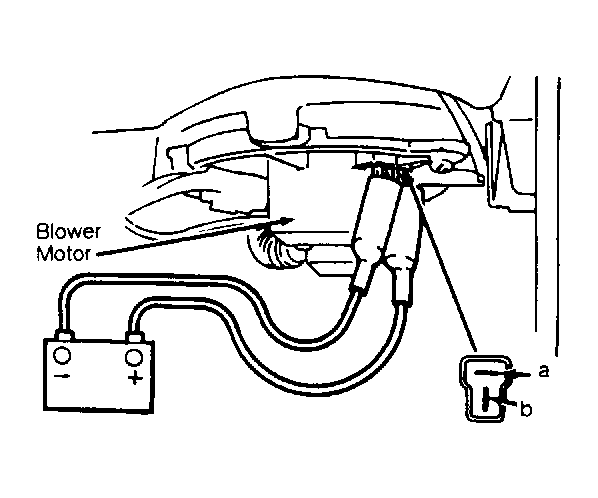

Remove glove box. Disconnect blower motor connector. Ensure blower motor runs when connecting battery voltage to terminal "a" and grounding terminal "b". See Fig 1. If blower motor does not run, it must be replaced.
Remove glove box. Disconnect blower motor connector. Ensure blower motor runs when connecting battery voltage to terminal "a" and grounding terminal "b". See Fig 1. If blower motor does not run, it must be replaced.
