Blower Resistor Assembly

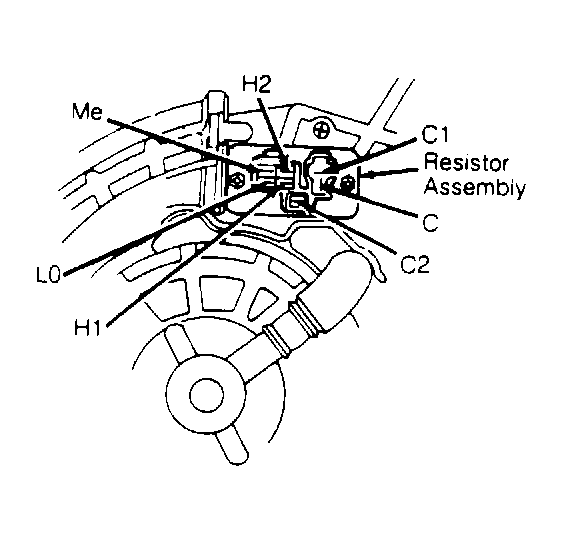

Check resistance between terminals as specified in BLOWER RESISTOR ASSEMBLY TEST table. See Fig 1. If resistance is not as indicated, replace blower resistor.
BLOWER RESISTOR ASSEMBLY TEST
| Terminals |
Resistance (Ohms) |
| C1-C2 |
0 |
| C-C1 |
0.05 |
| C2-H1 |
0.05 |
| C2-H2 |
0.38 |
| C2-Me |
1.00 |
| C2-LO |
2.38 |
Courtesy of MAZDA MOTORS CORP.
