OEM Ground Distribution: Grounds

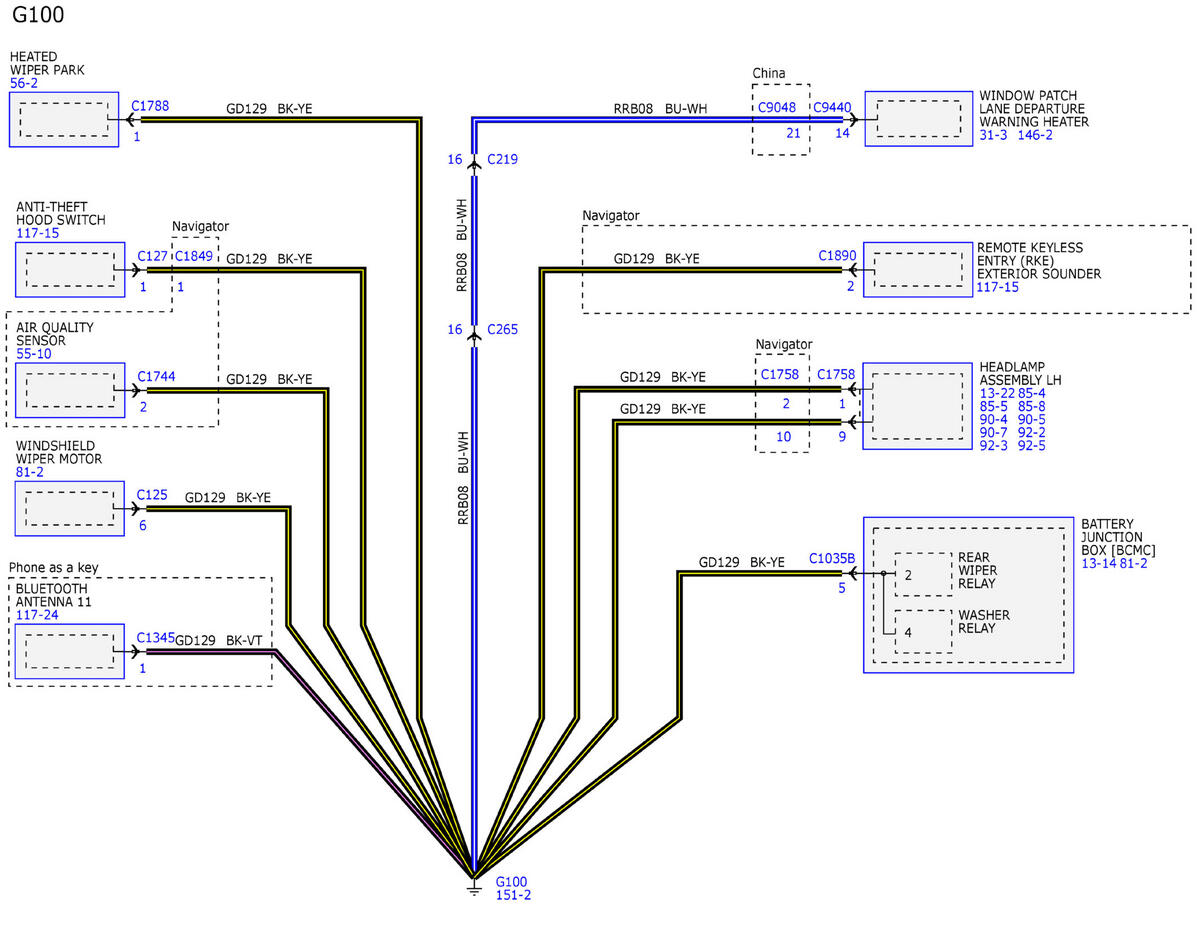

GFDWR266118Courtesy of FORD MOTOR COMPANY

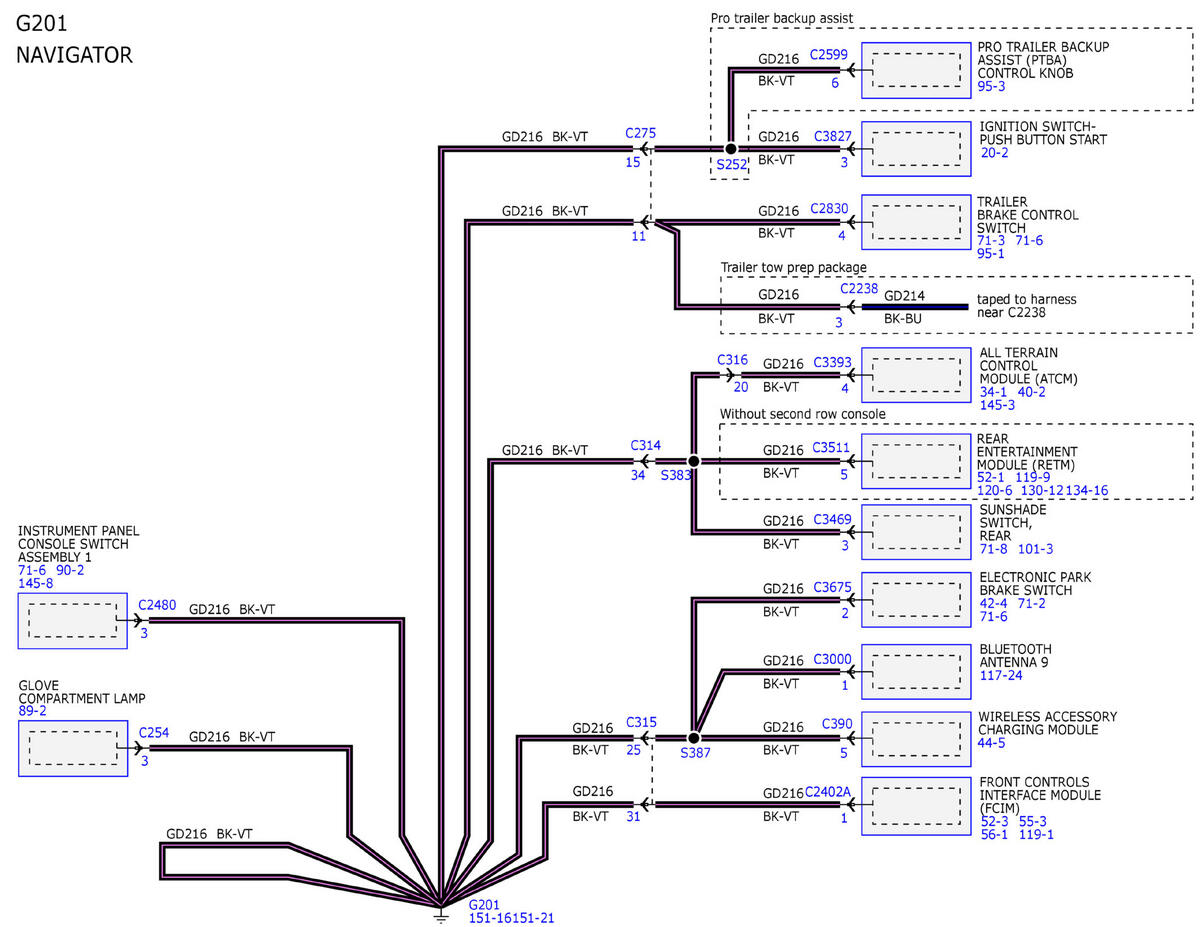

GFDWR266119Courtesy of FORD MOTOR COMPANY

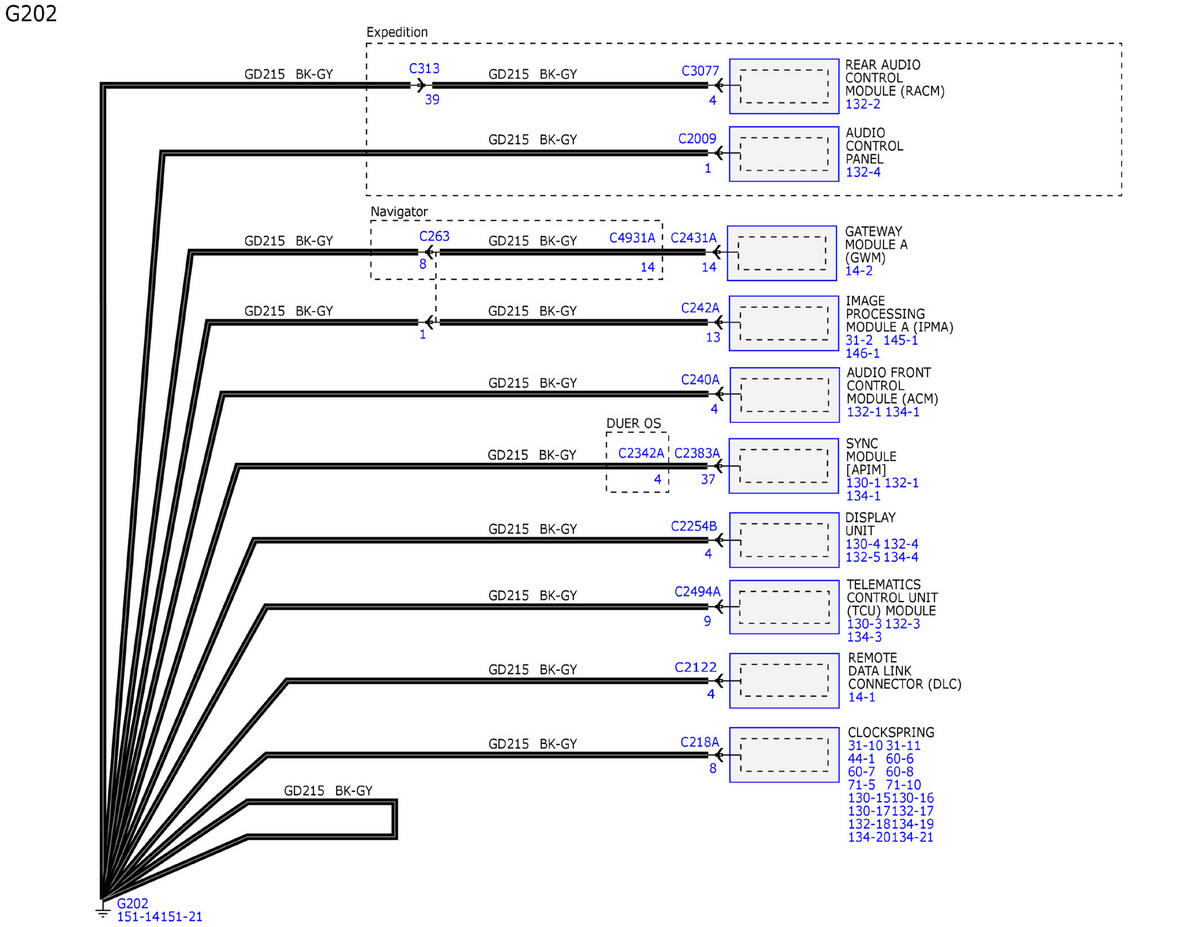

GFDWR266120Courtesy of FORD MOTOR COMPANY

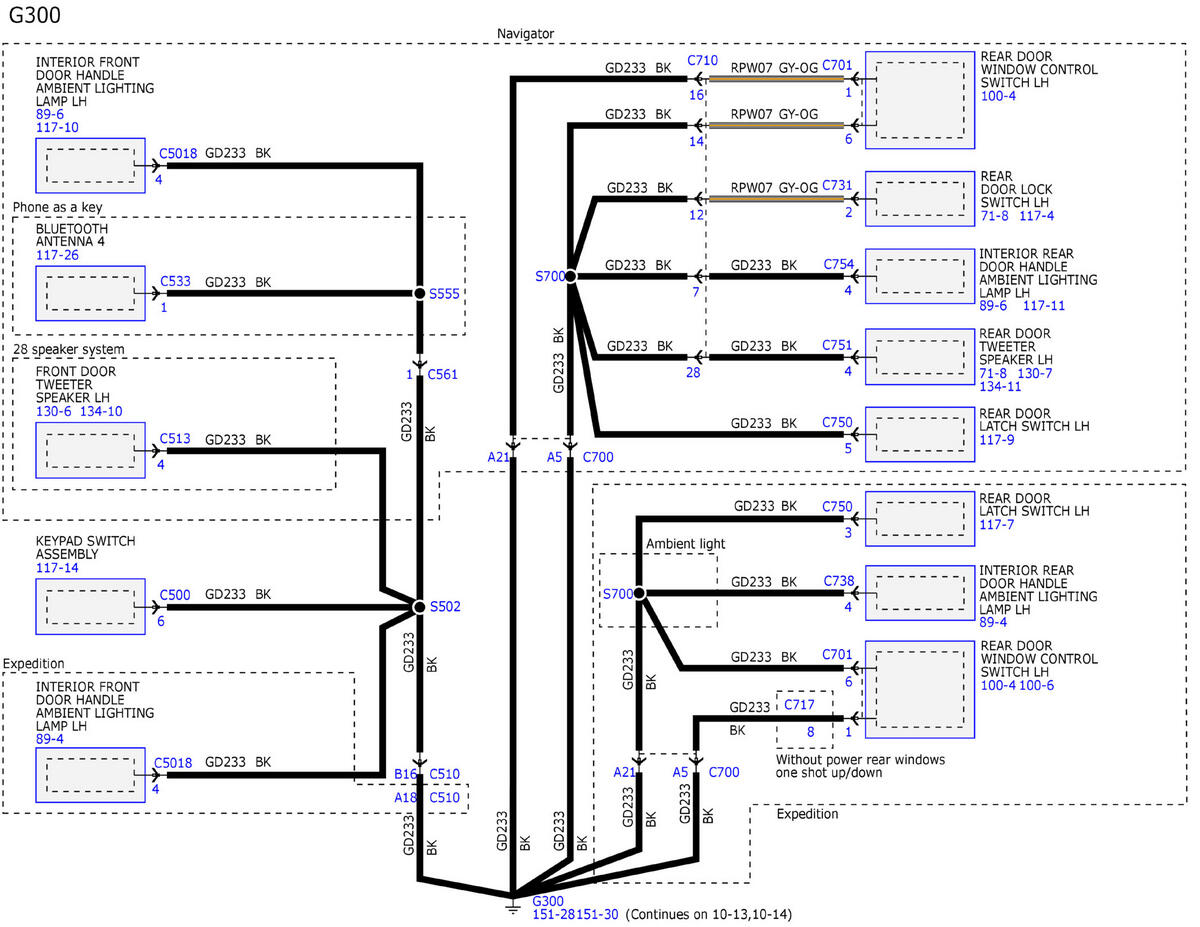

GFDWR266121Courtesy of FORD MOTOR COMPANY

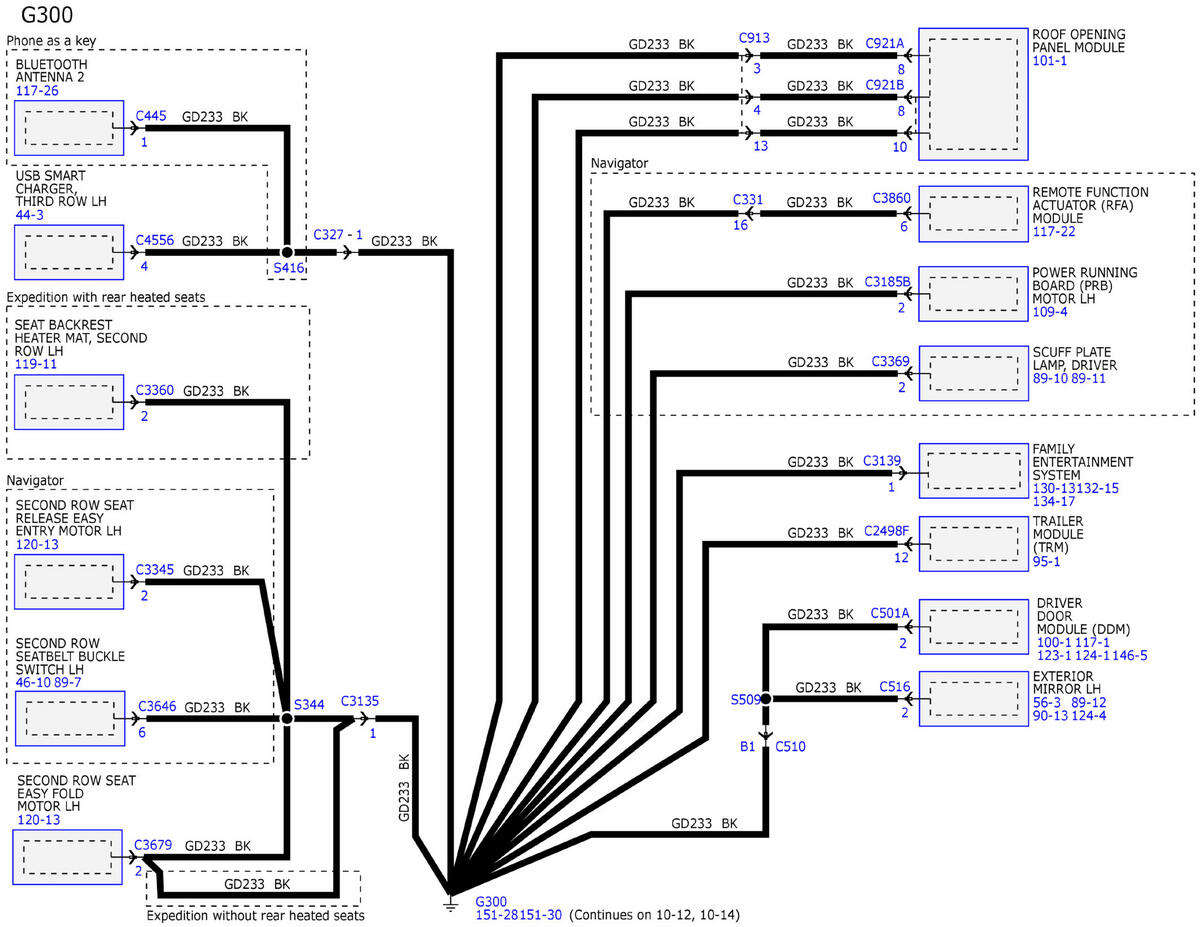

GFDWR266122Courtesy of FORD MOTOR COMPANY

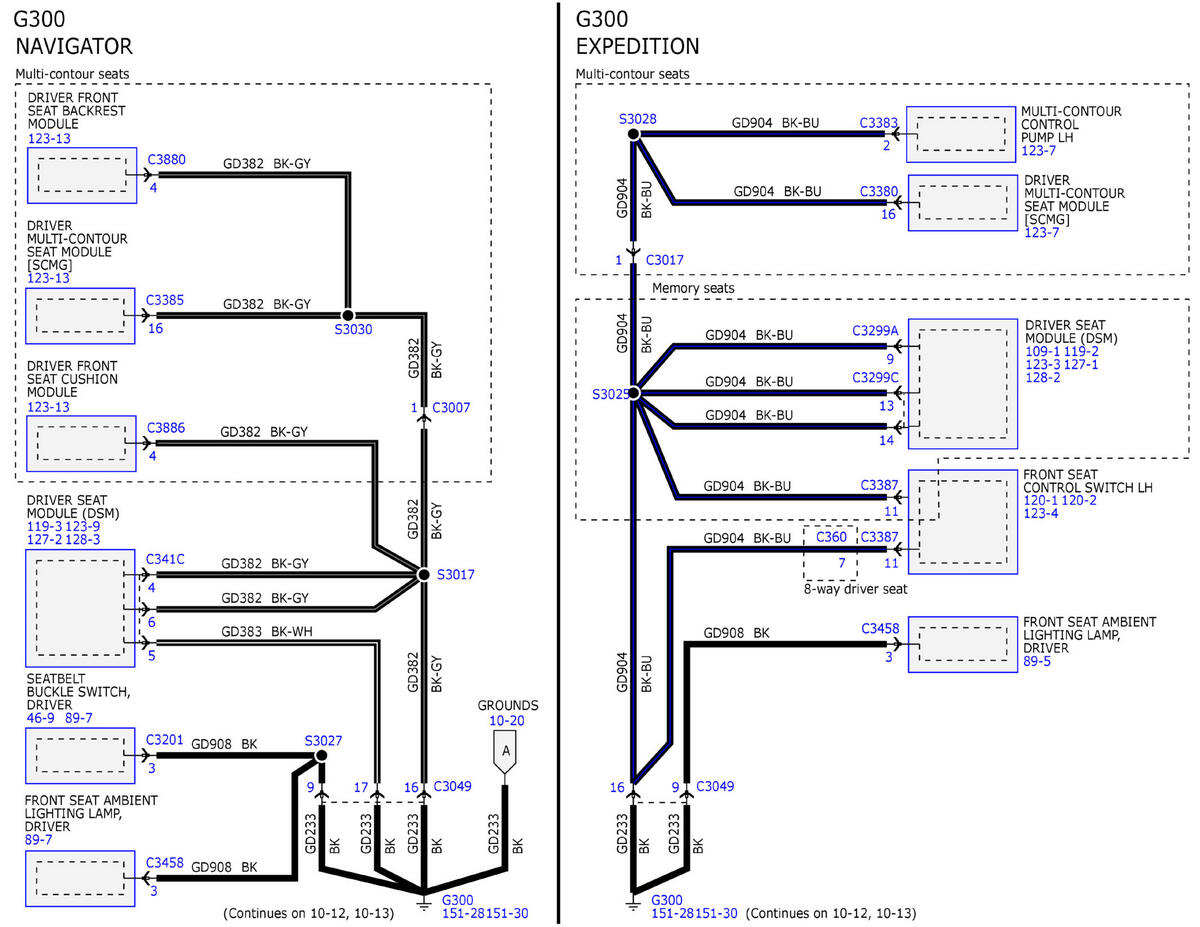

GFDWR266123Courtesy of FORD MOTOR COMPANY

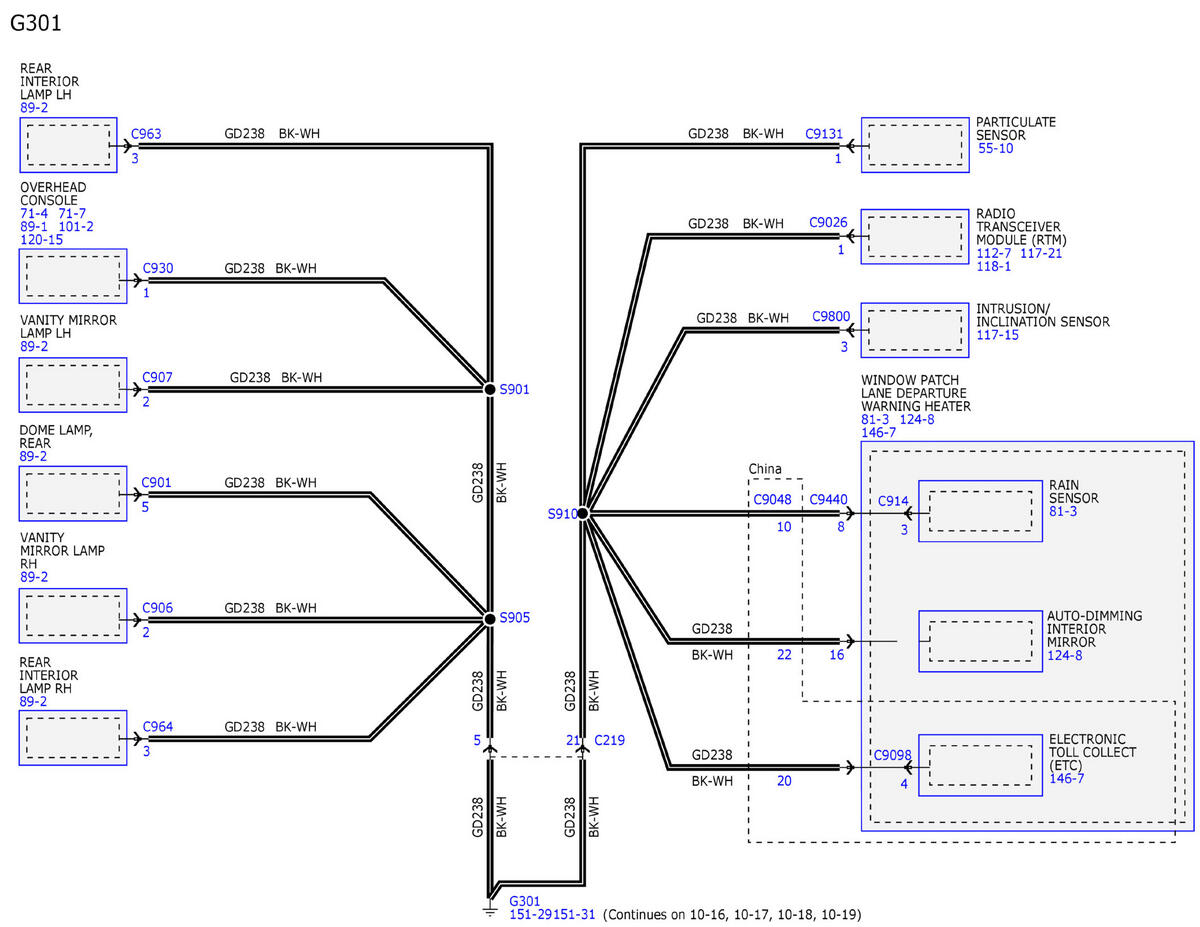

GFDWR266124Courtesy of FORD MOTOR COMPANY

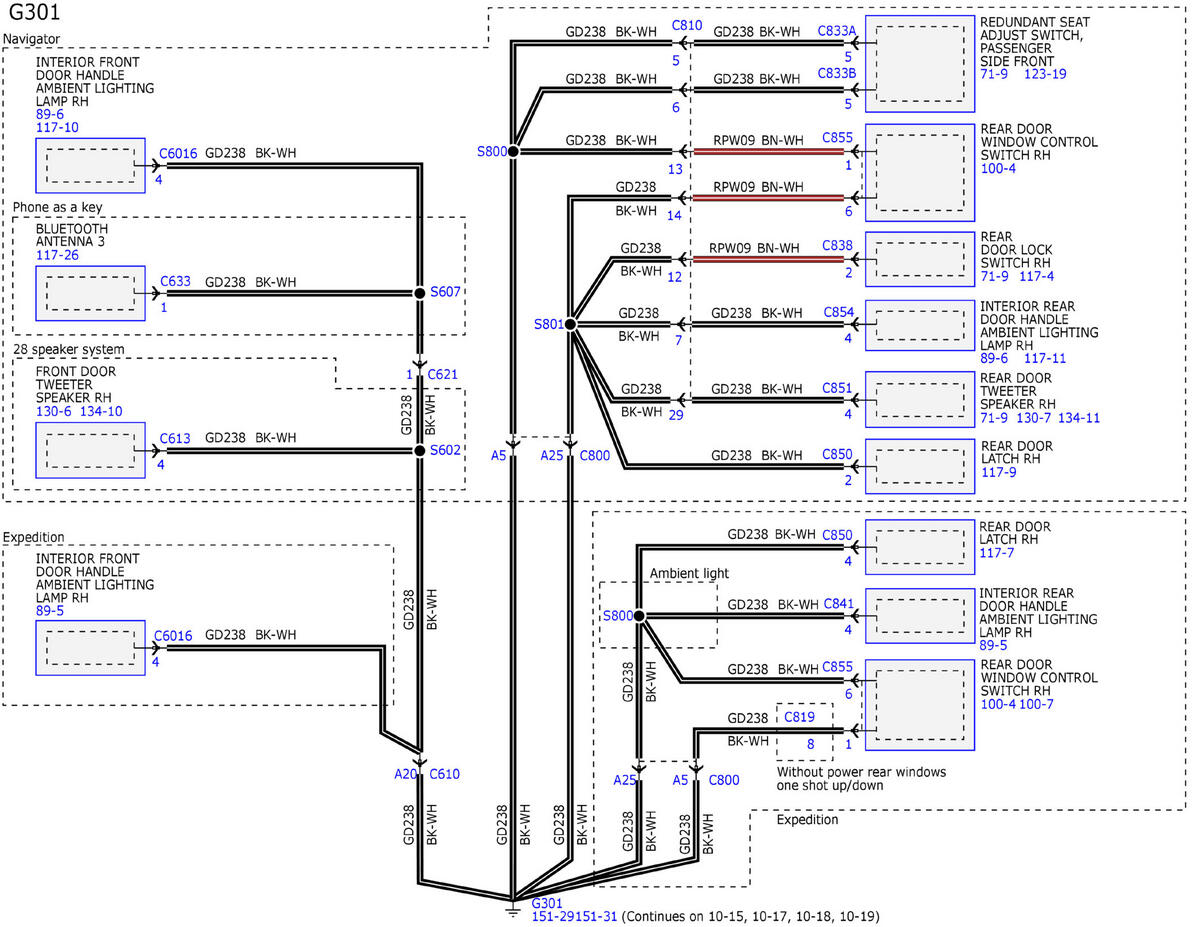

GFDWR266125Courtesy of FORD MOTOR COMPANY

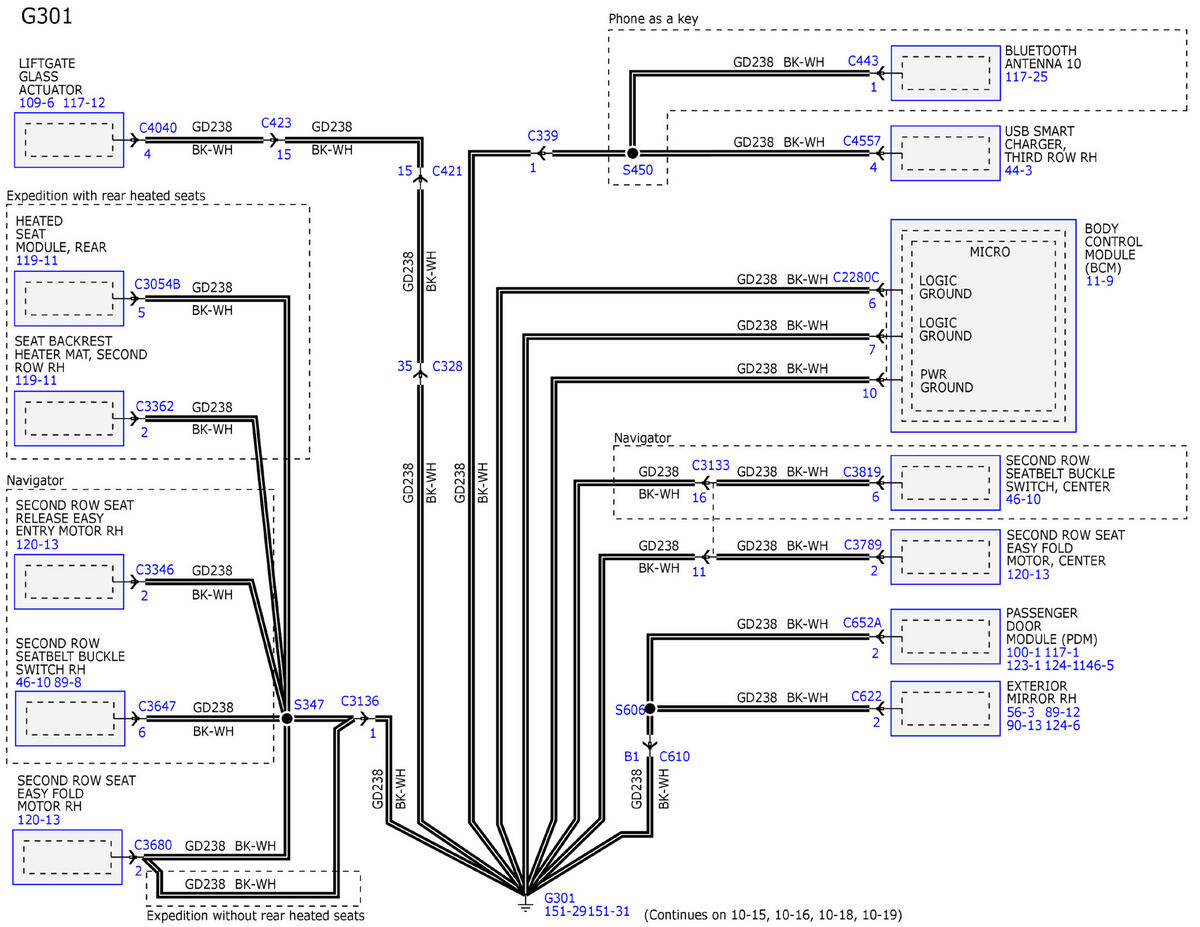

GFDWR266126Courtesy of FORD MOTOR COMPANY

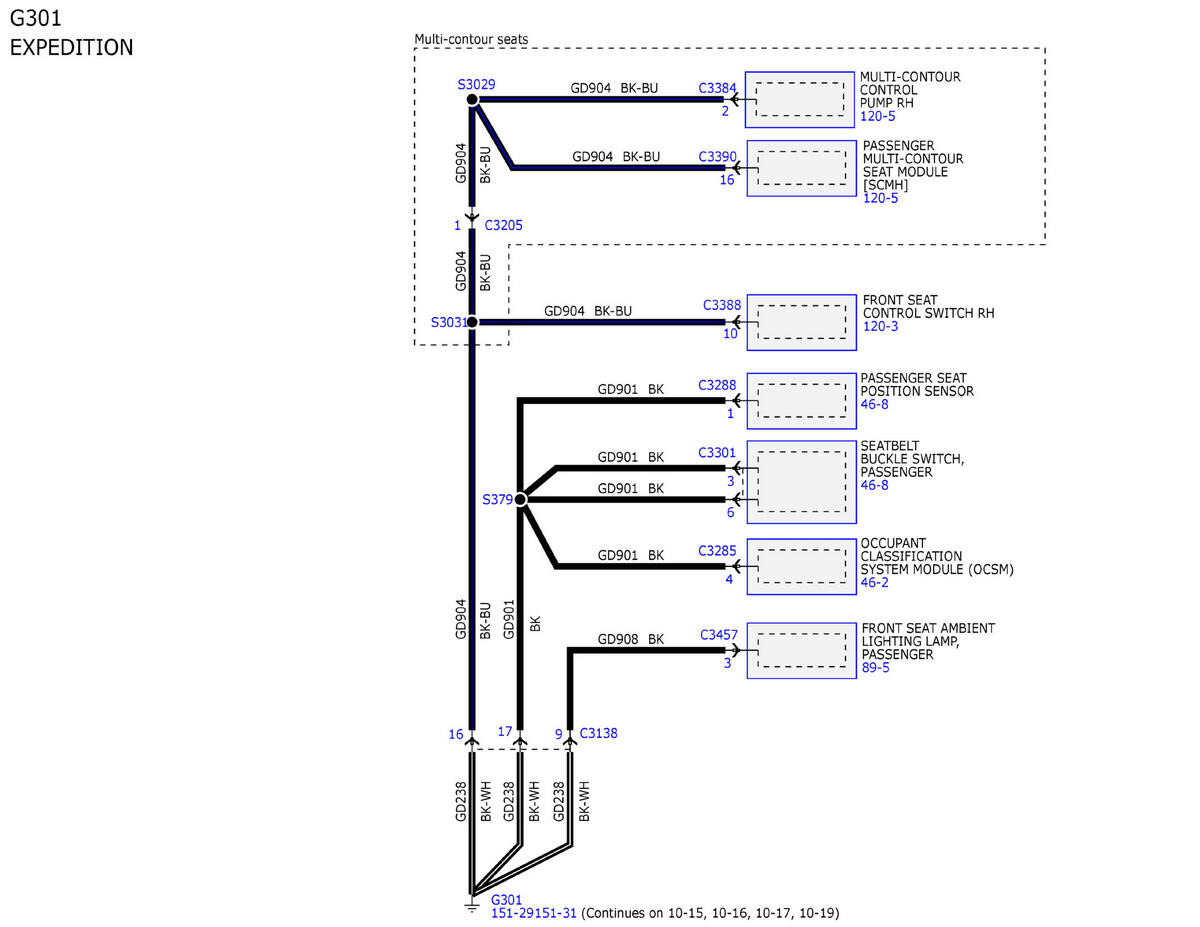

GFDWR266127Courtesy of FORD MOTOR COMPANY

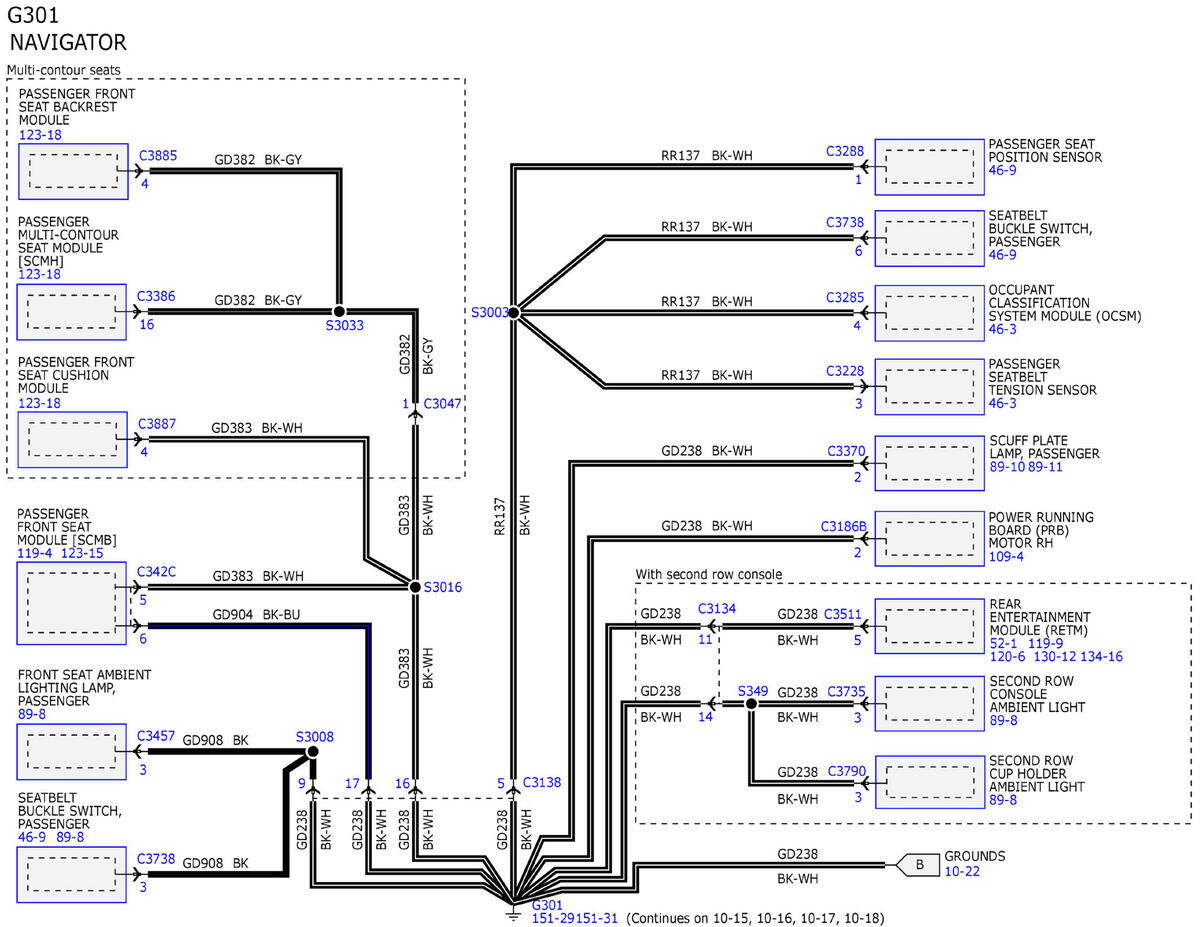

GFDWR266128Courtesy of FORD MOTOR COMPANY

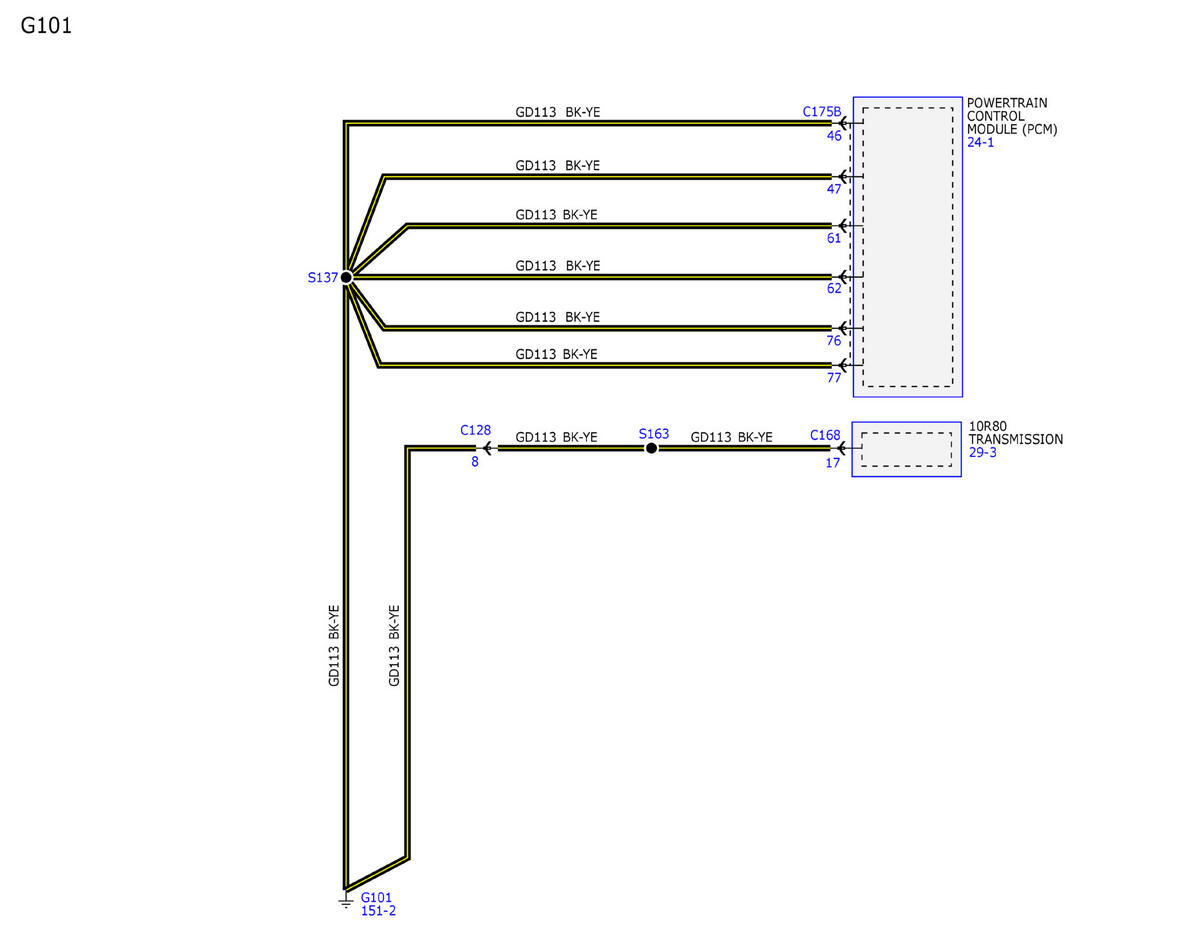

GFDWR266129Courtesy of FORD MOTOR COMPANY

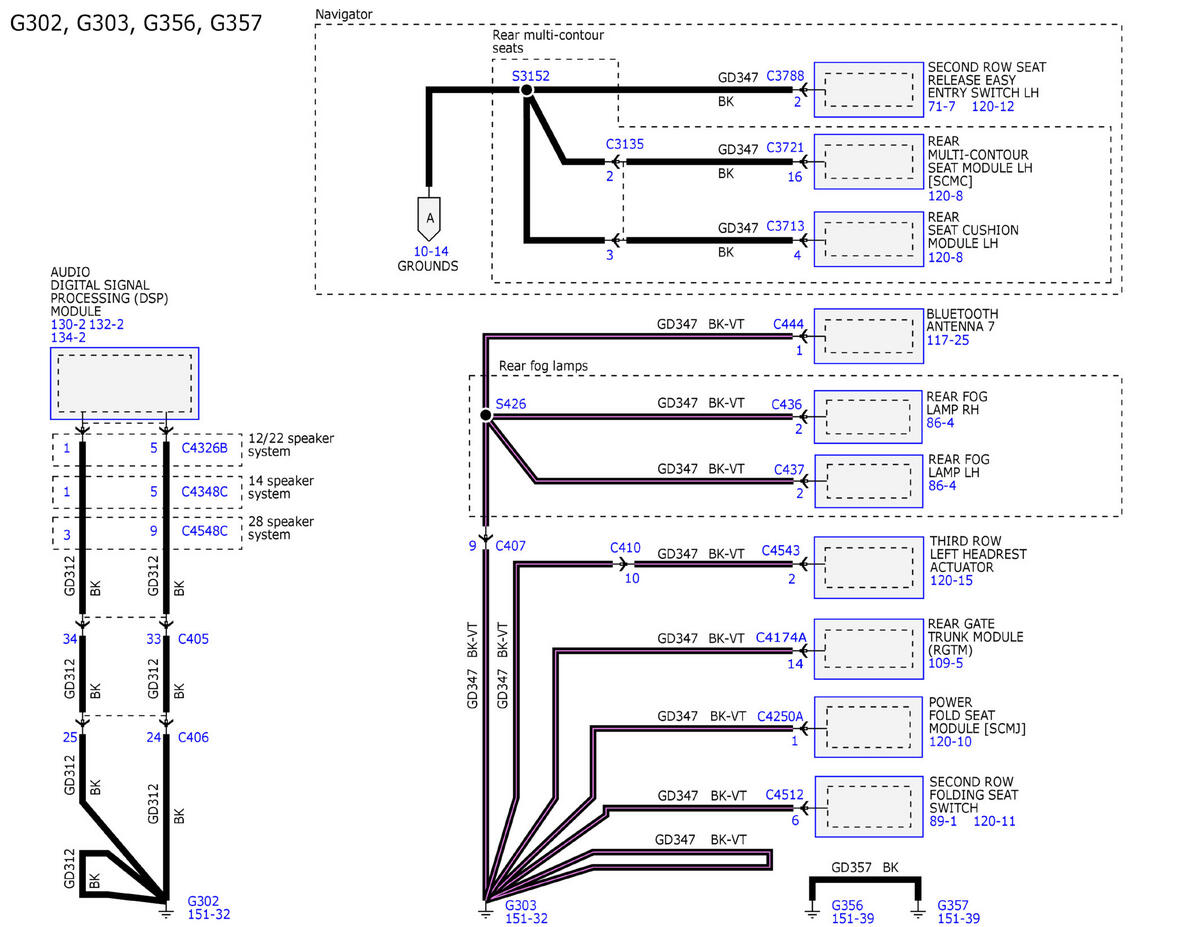

GFDWR266130Courtesy of FORD MOTOR COMPANY

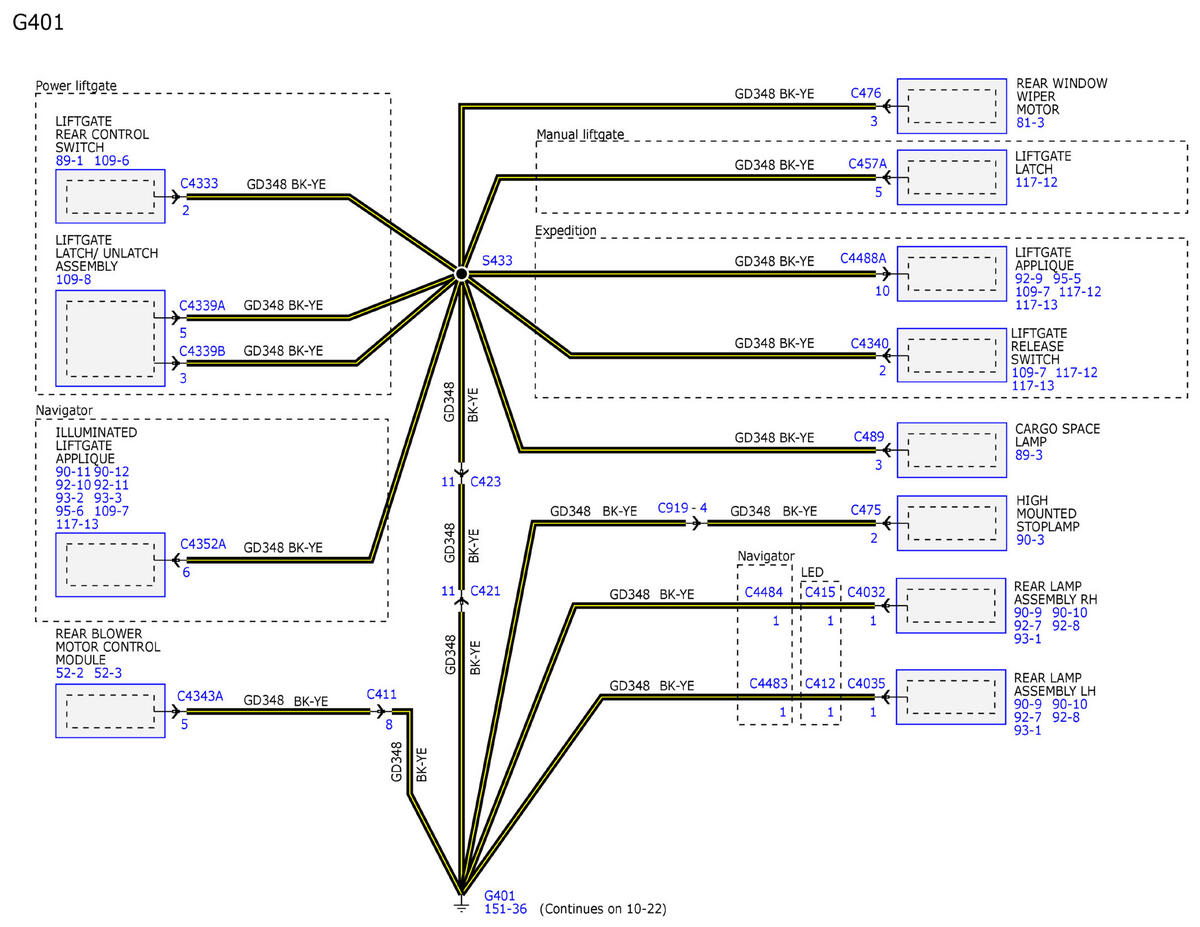

GFDWR266131Courtesy of FORD MOTOR COMPANY

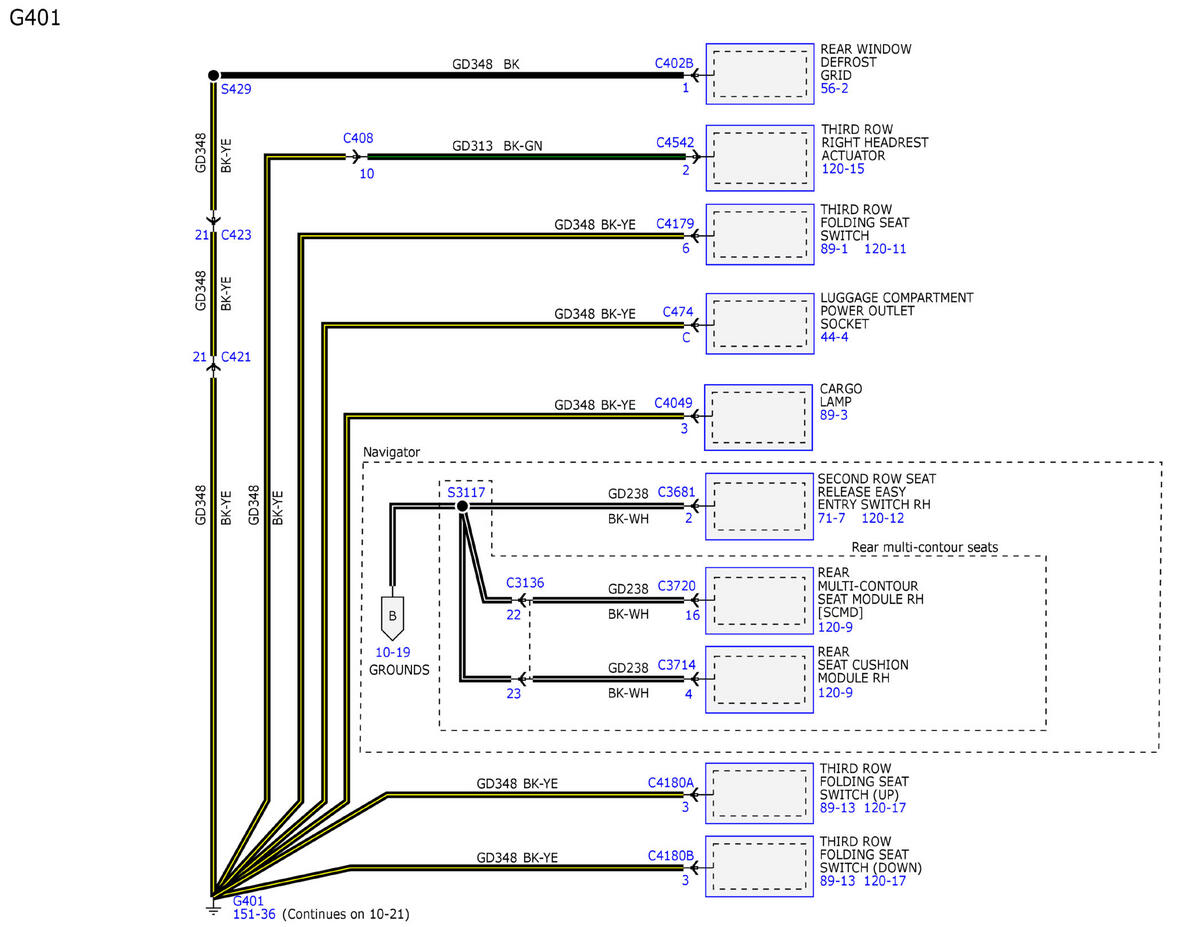

GFDWR266132Courtesy of FORD MOTOR COMPANY

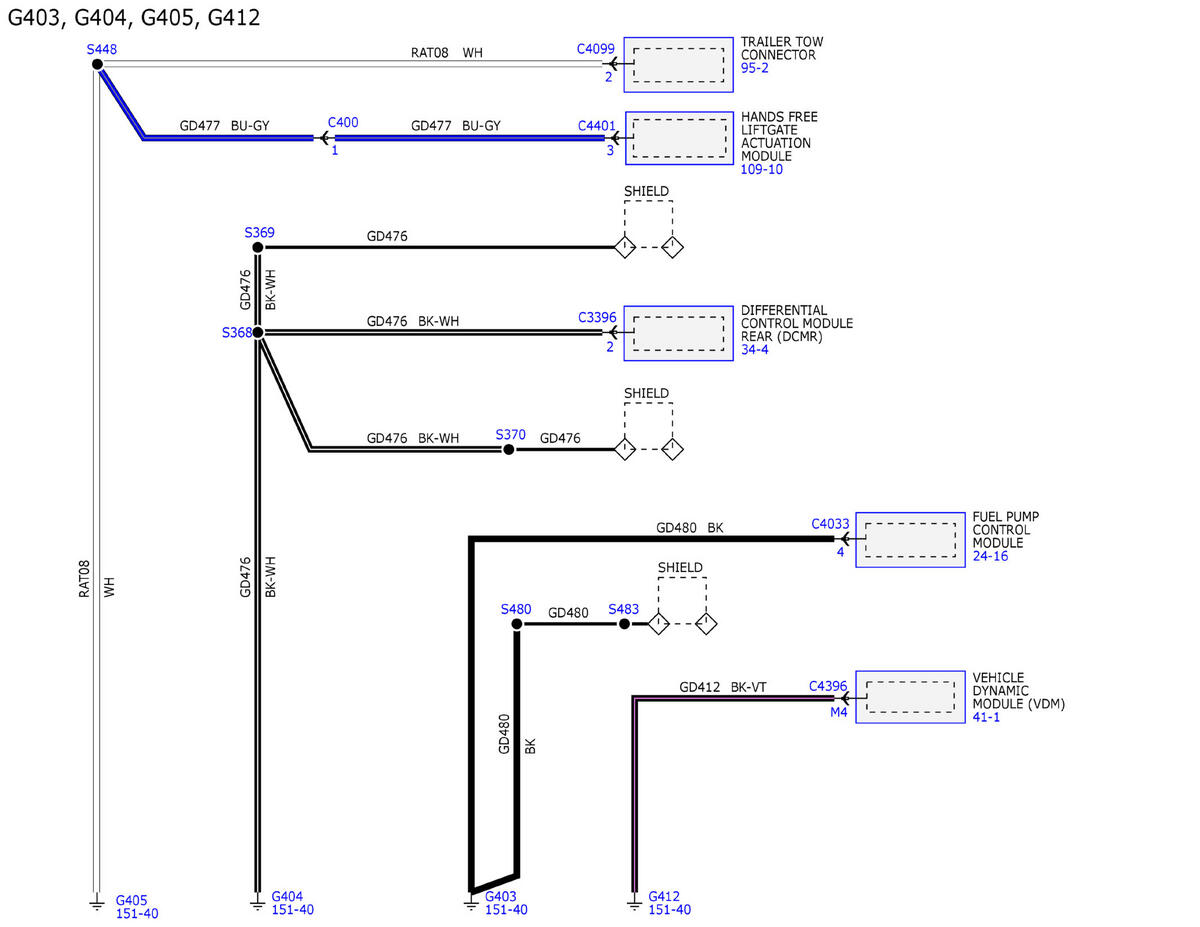

GFDWR266133Courtesy of FORD MOTOR COMPANY

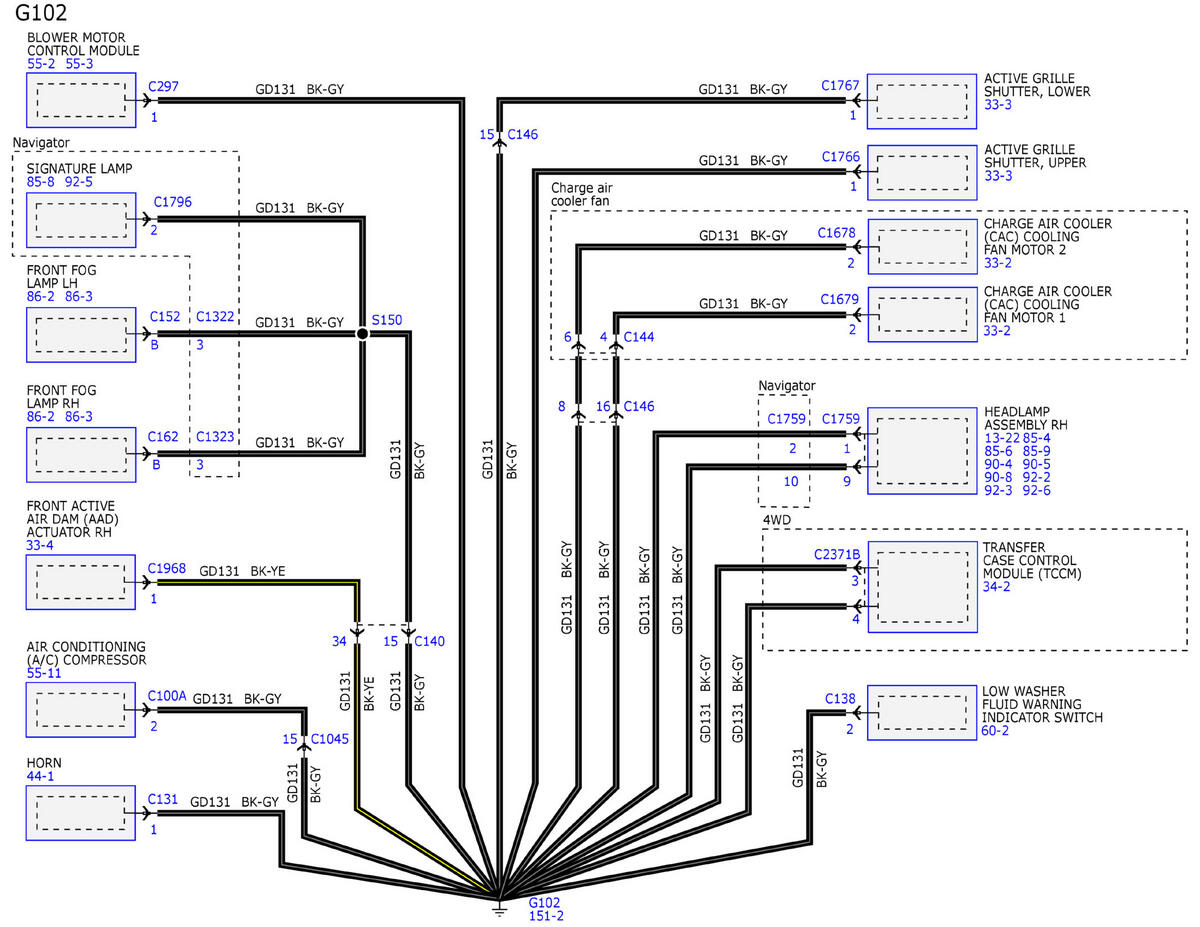

GFDWR266134Courtesy of FORD MOTOR COMPANY

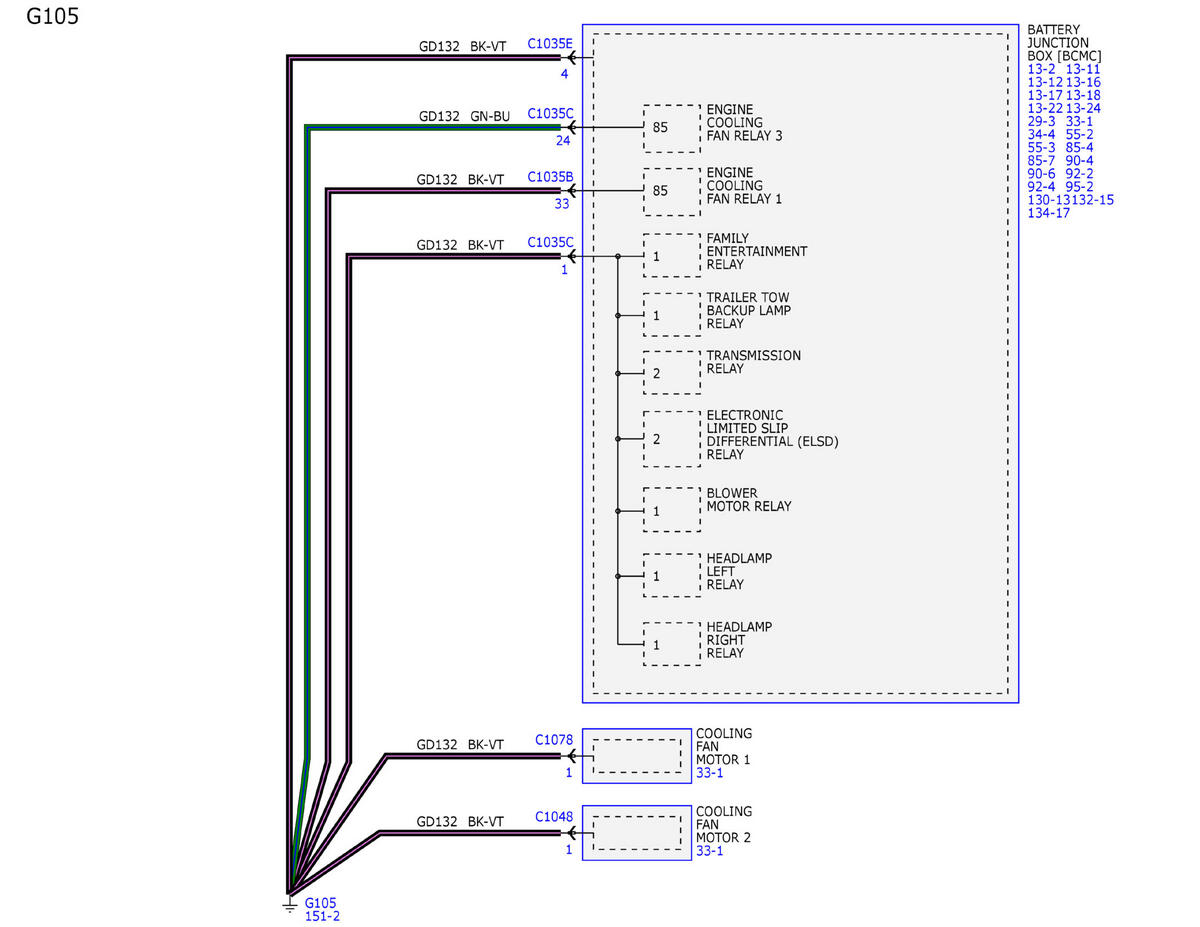

GFDWR266135Courtesy of FORD MOTOR COMPANY

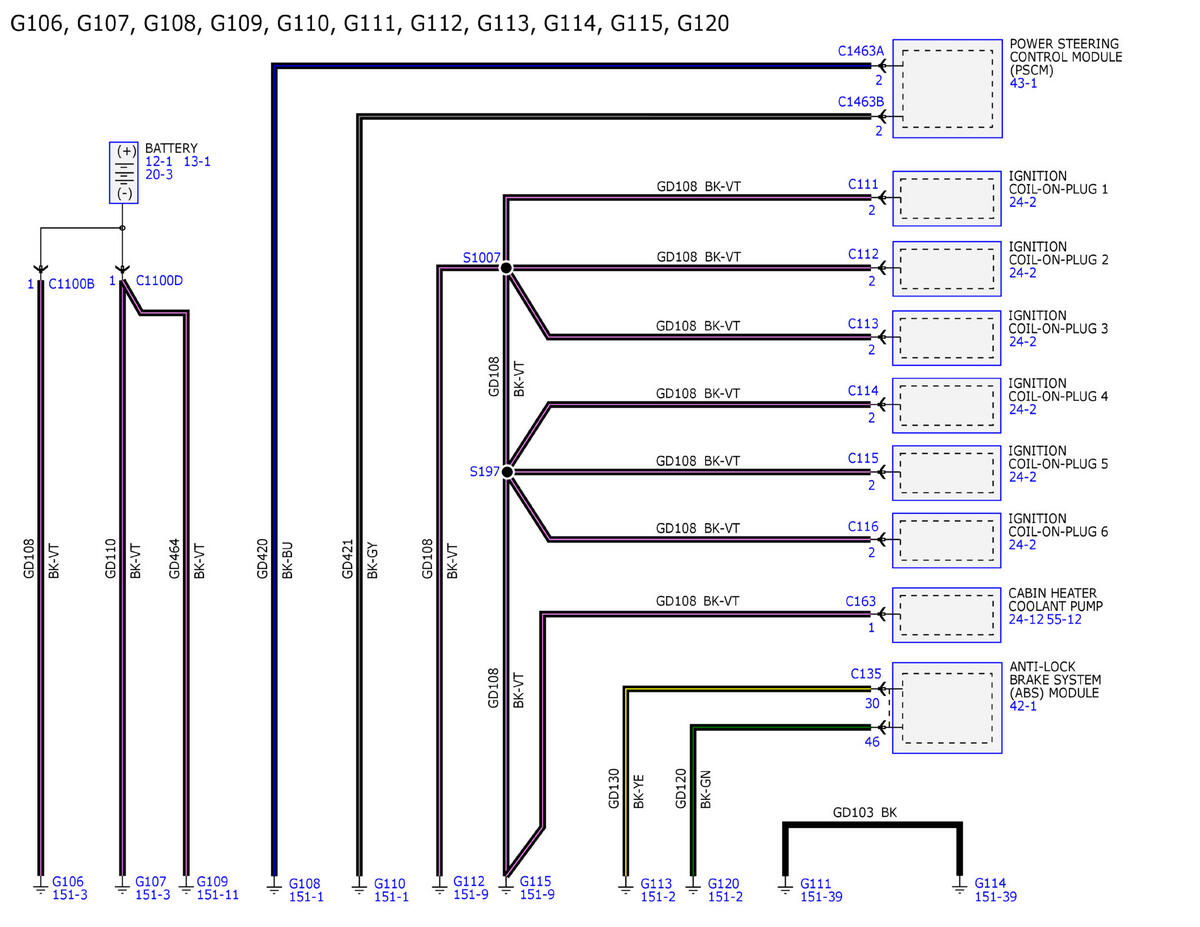

GFDWR266136Courtesy of FORD MOTOR COMPANY

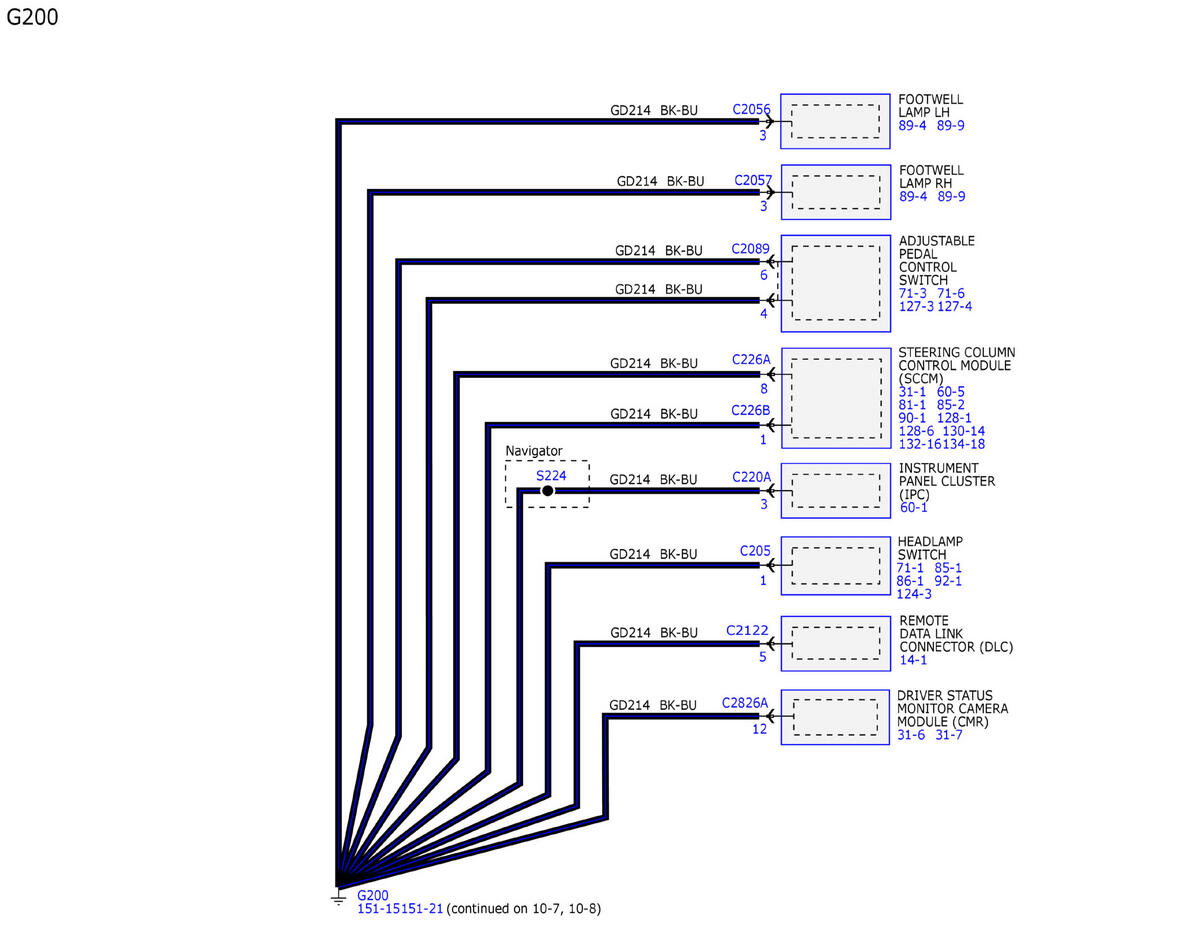

GFDWR266137Courtesy of FORD MOTOR COMPANY

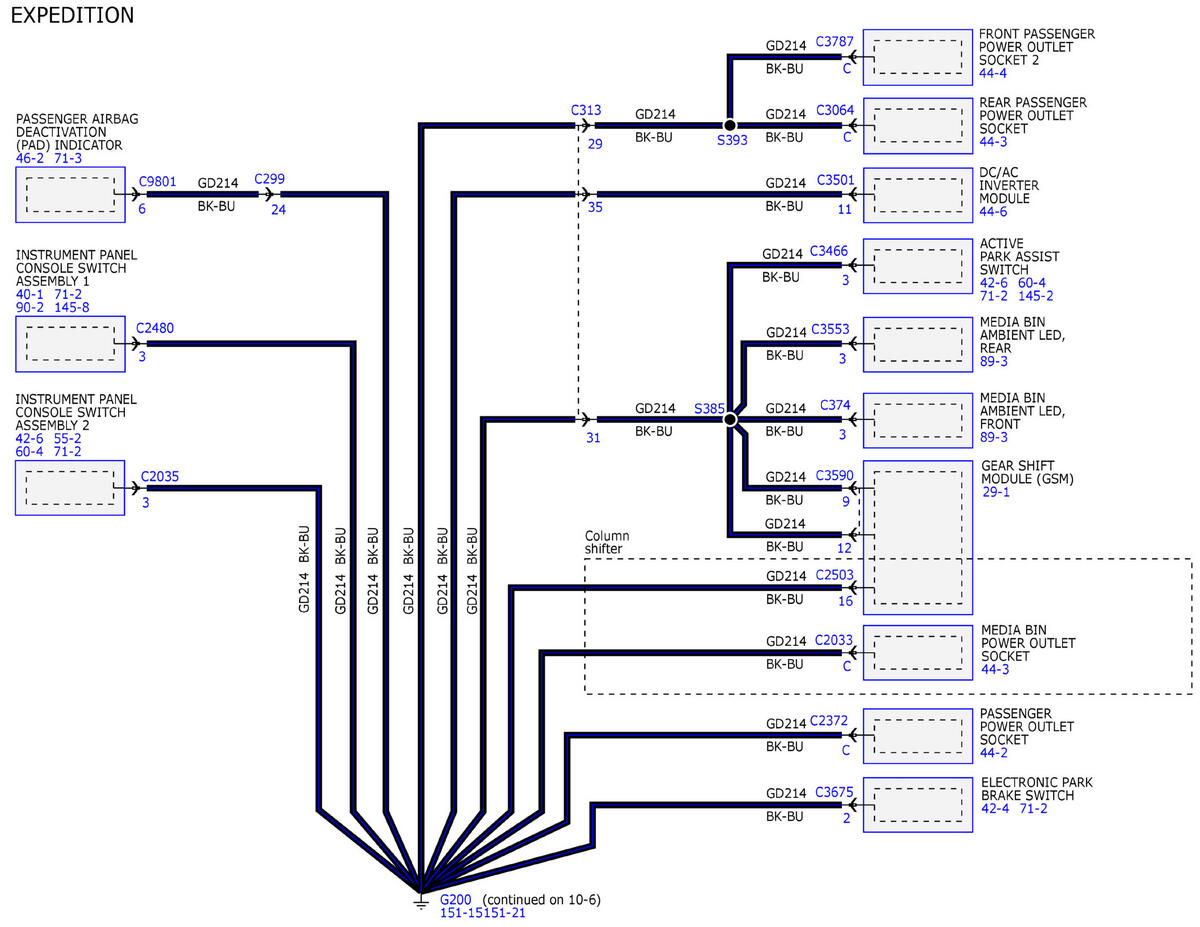

GFDWR266138Courtesy of FORD MOTOR COMPANY

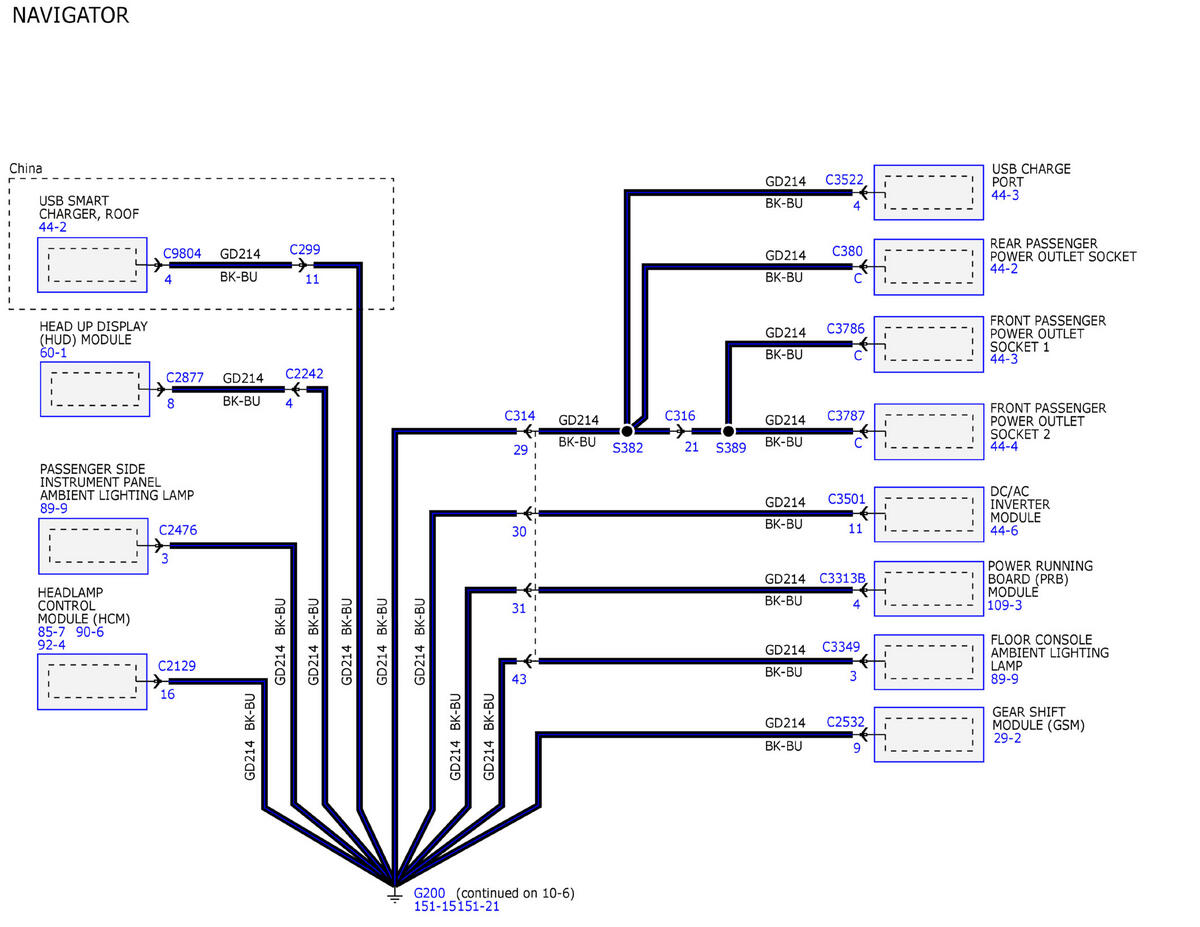

GFDWR266139Courtesy of FORD MOTOR COMPANY

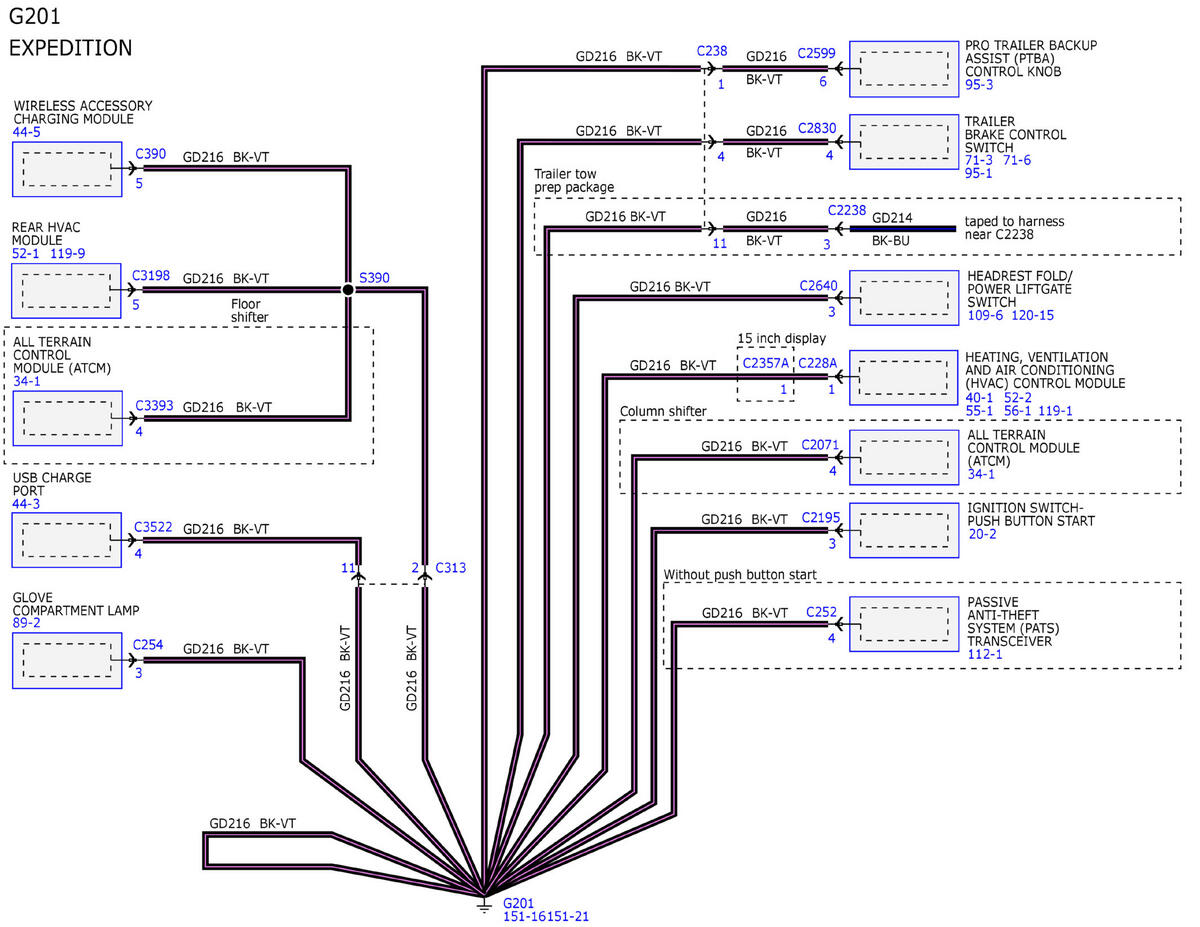

GFDWR266140Courtesy of FORD MOTOR COMPANY
