Component Testing

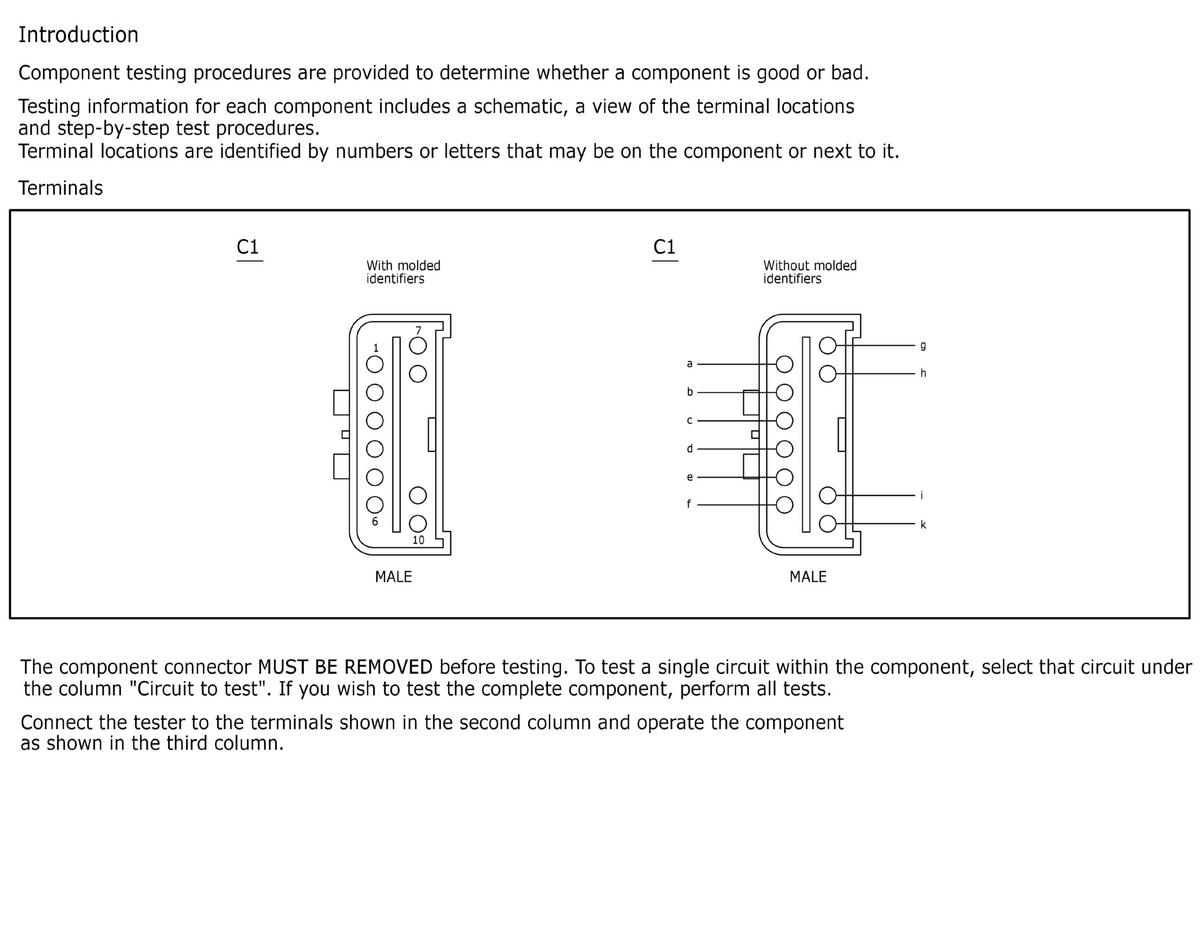

Fig 1: Component Testing - Introduction
GFDWR218970Courtesy of FORD MOTOR COMPANY

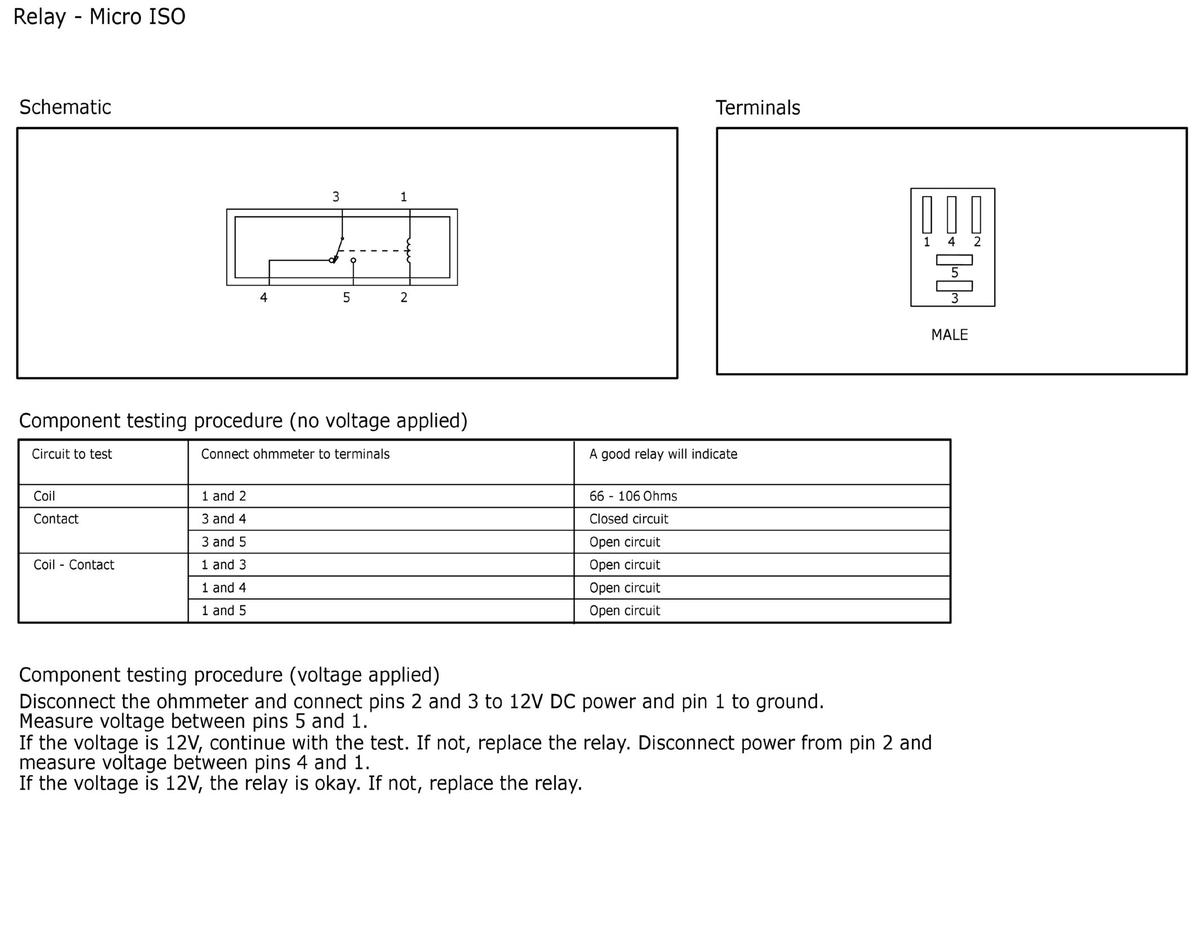

Fig 2: Relay - Micro ISO Component Testing
GFDWR218971Courtesy of FORD MOTOR COMPANY

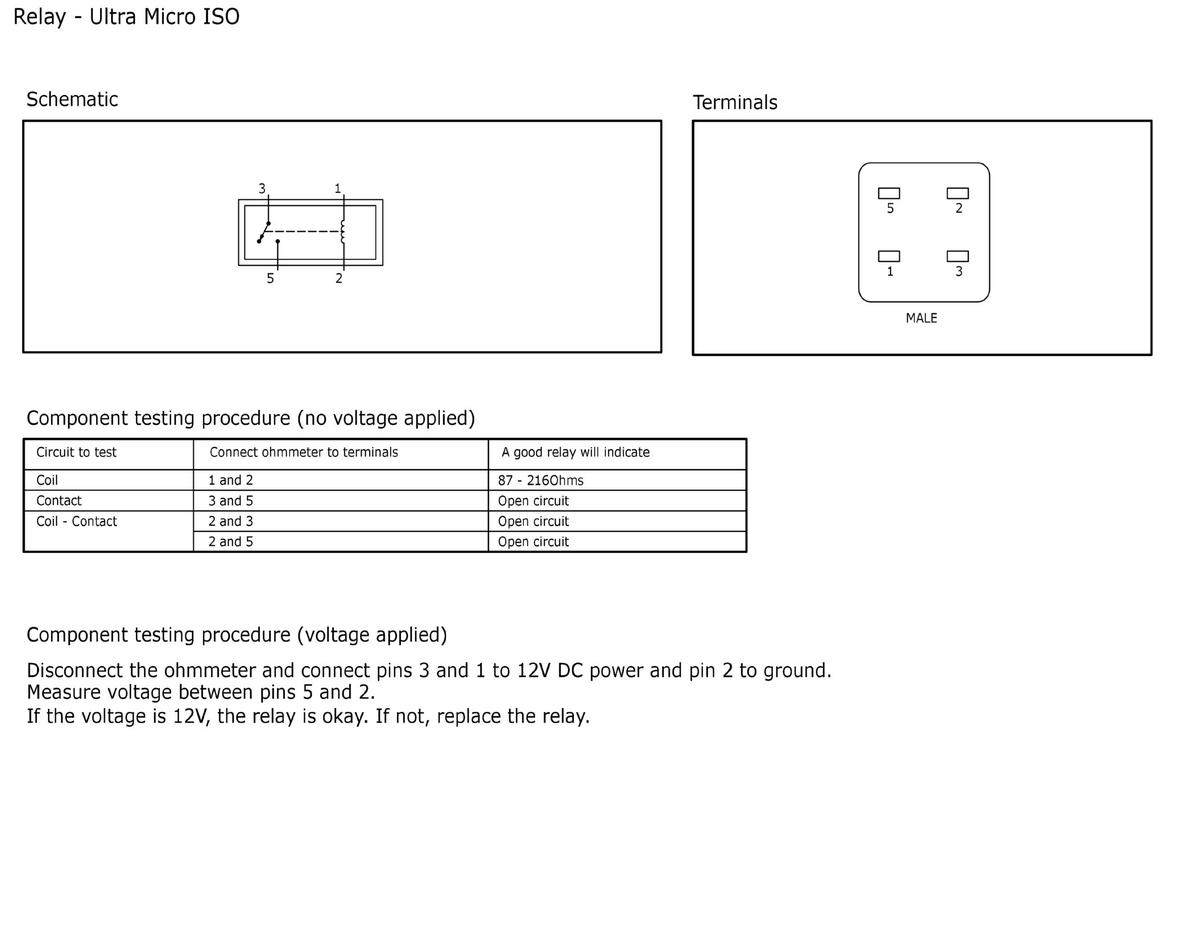

Fig 3: Relay - Ultra Micro ISO Component Testing
GFDWR218972Courtesy of FORD MOTOR COMPANY

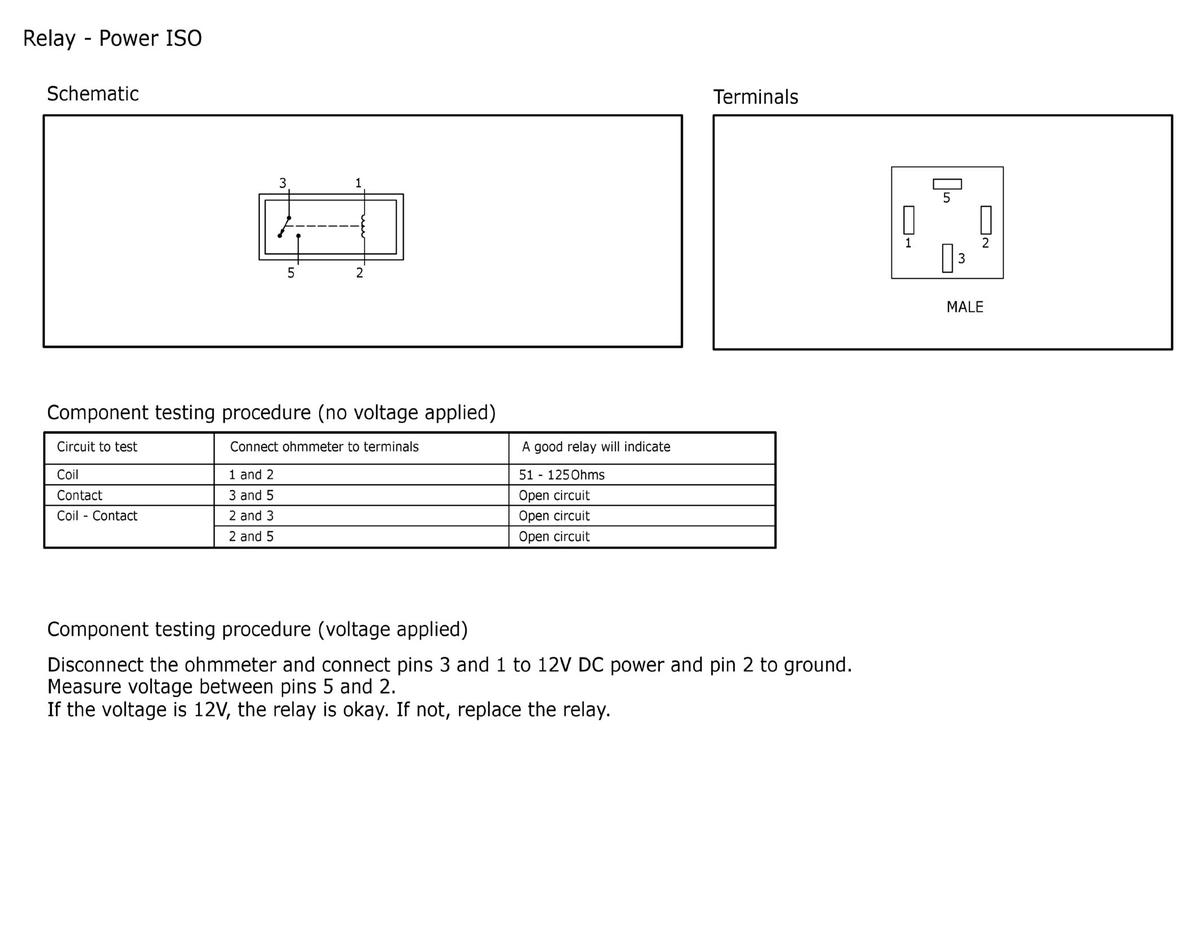

Fig 4: Relay Power ISO Component Testing
GFDWR218973Courtesy of FORD MOTOR COMPANY
