Transfer Case Input Shaft Seal: Installation

NOTE: Apply petroleum jelly to the outer circumference of the oil seal.

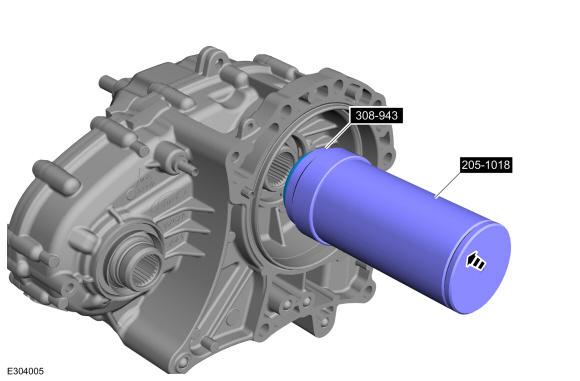

Use Special Service Tool: 205-1018 Installation Tube., 308-943 Installer, Input Seal.

Courtesy of FORD MOTOR COMPANY
Install the transfer case. Refer to: Transfer Case .
