Transmission Controls

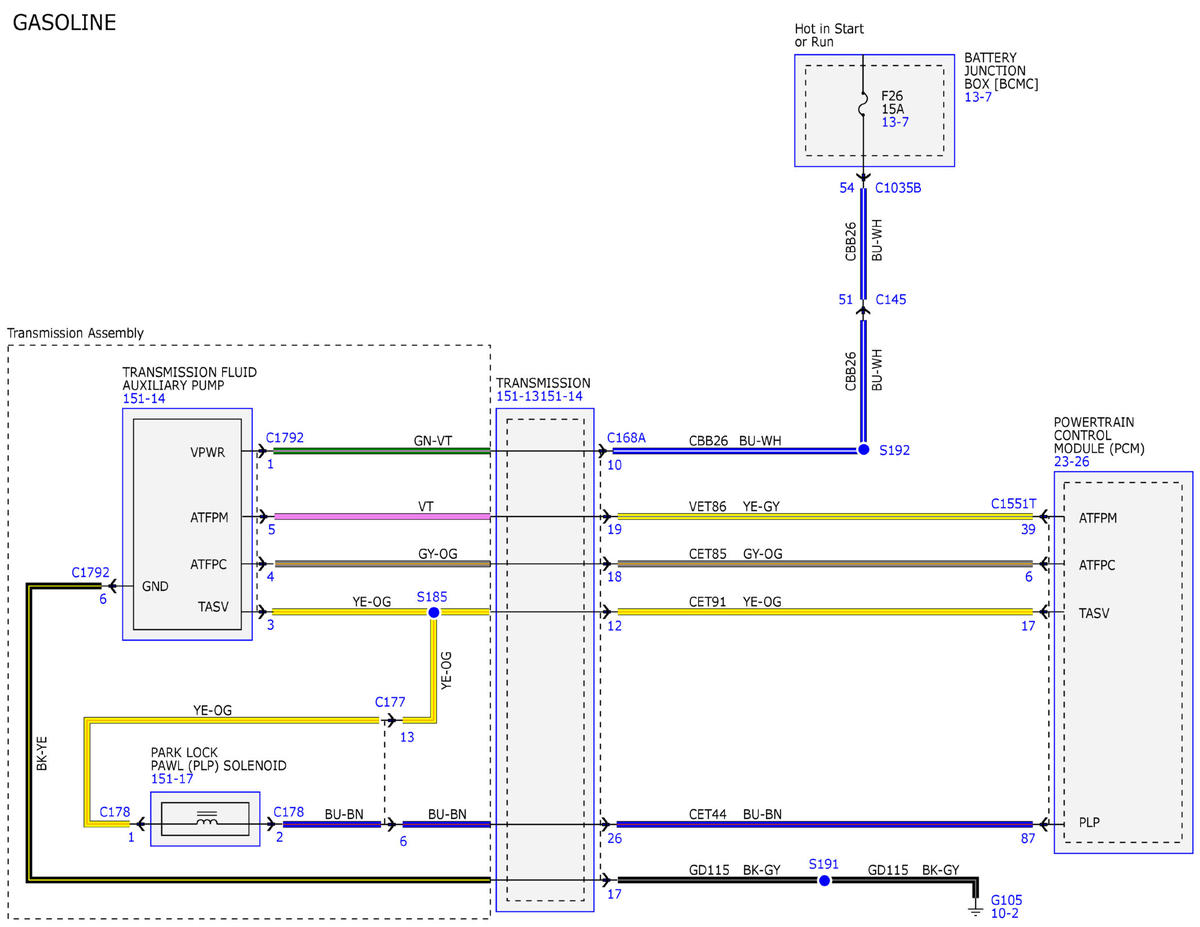

Fig 1: Transmission Controls Wiring Diagram (1 Of 10)
GFDWR111227Courtesy of FORD MOTOR COMPANY

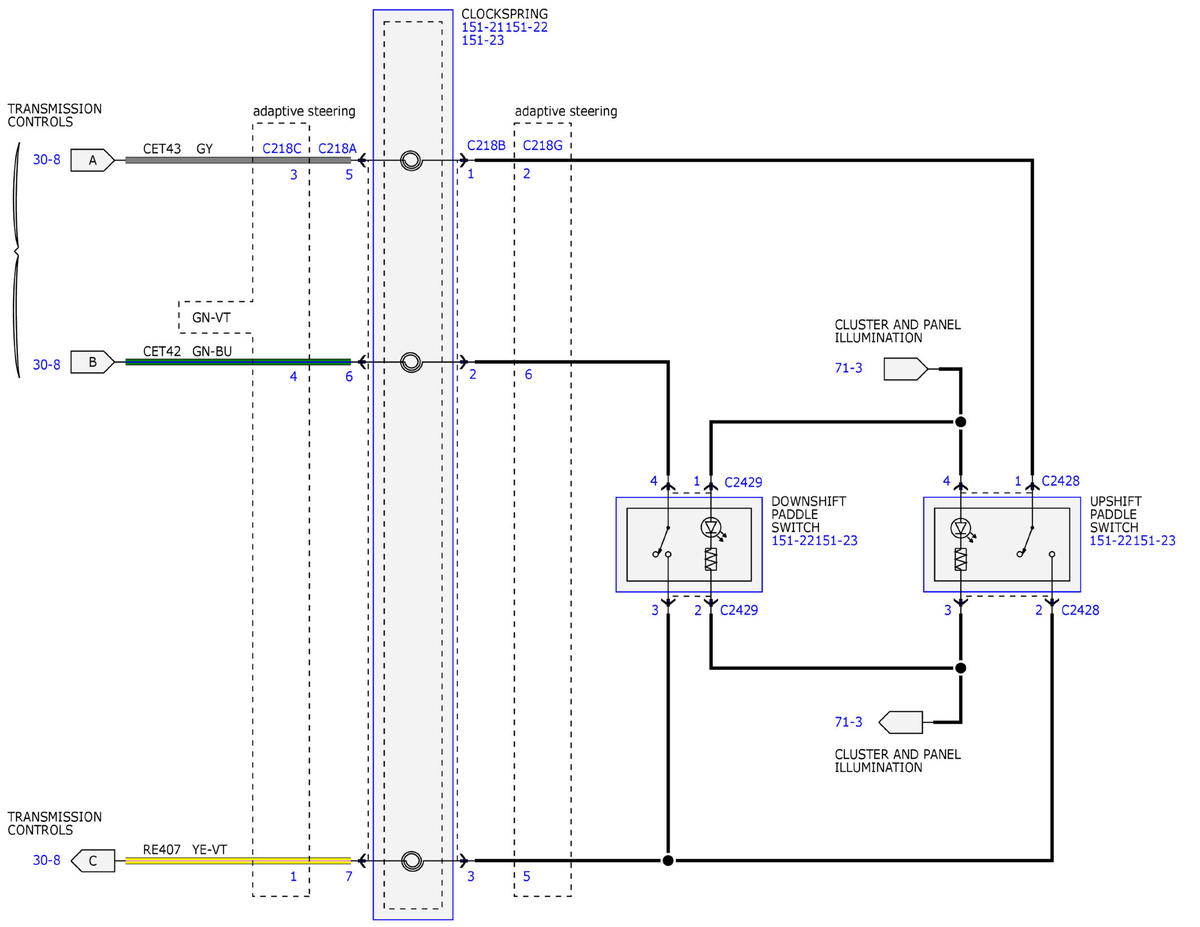

Fig 2: Transmission Controls Wiring Diagram (2 Of 10)
GFDWR111228Courtesy of FORD MOTOR COMPANY

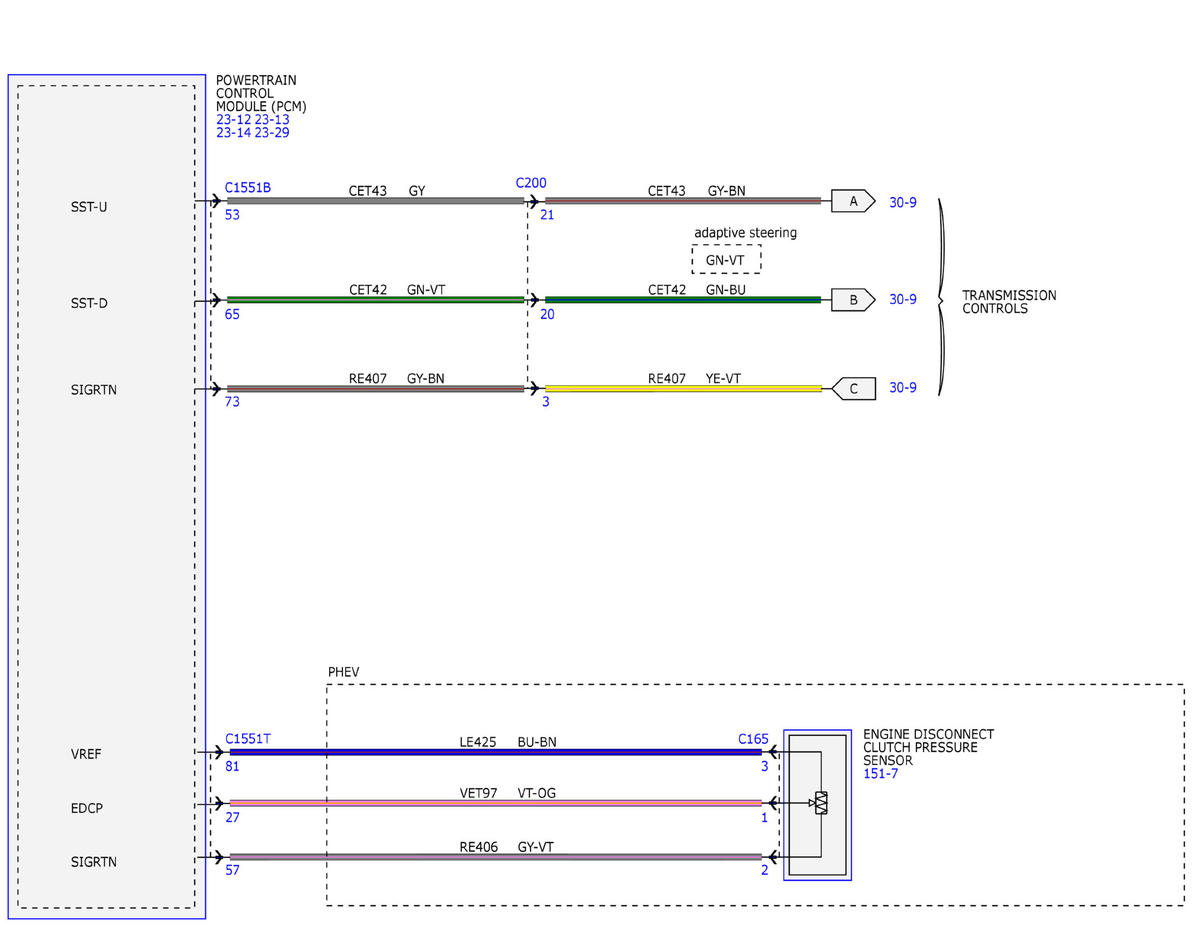

Fig 3: Transmission Controls Wiring Diagram (3 Of 10)
GFDWR111229Courtesy of FORD MOTOR COMPANY

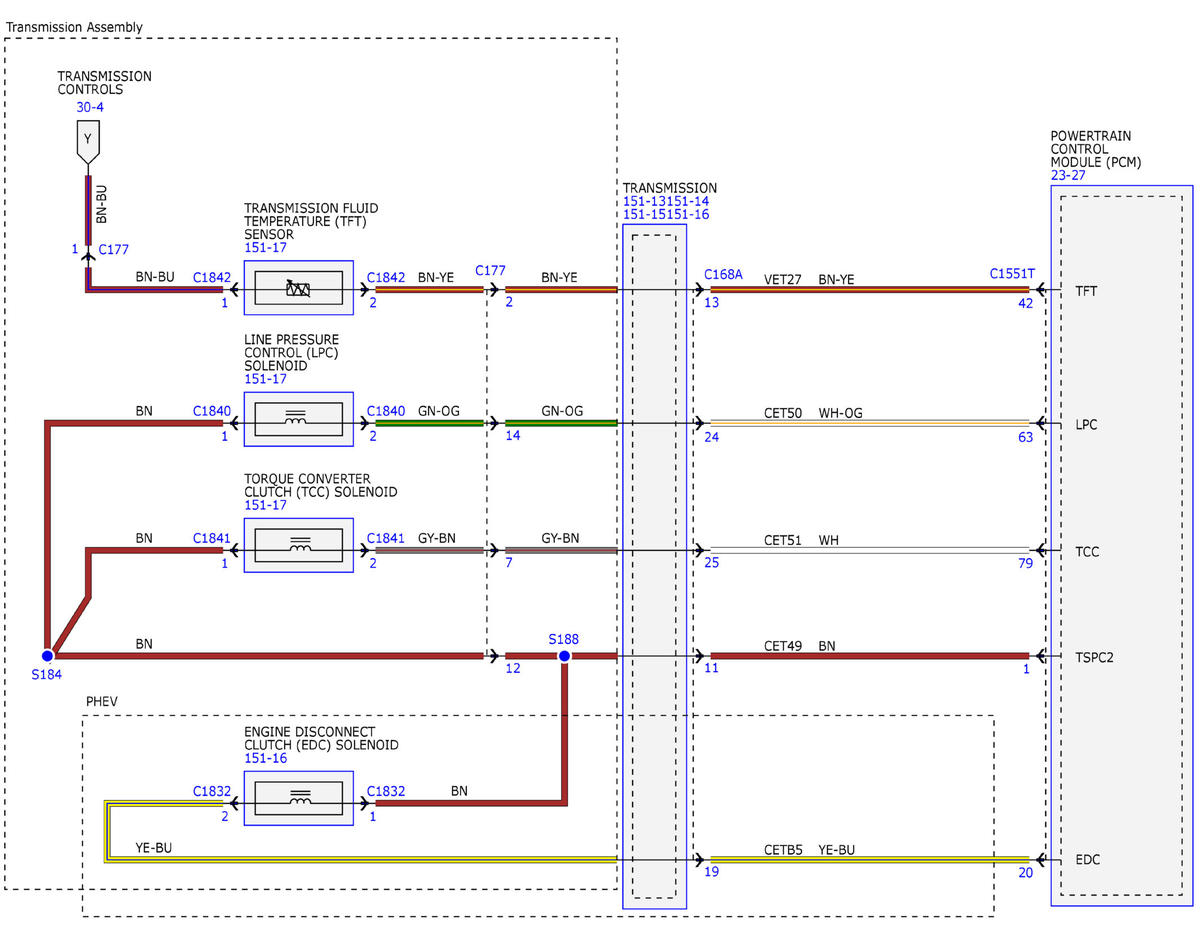

Fig 4: Transmission Controls Wiring Diagram (4 Of 10)
GFDWR111230Courtesy of FORD MOTOR COMPANY

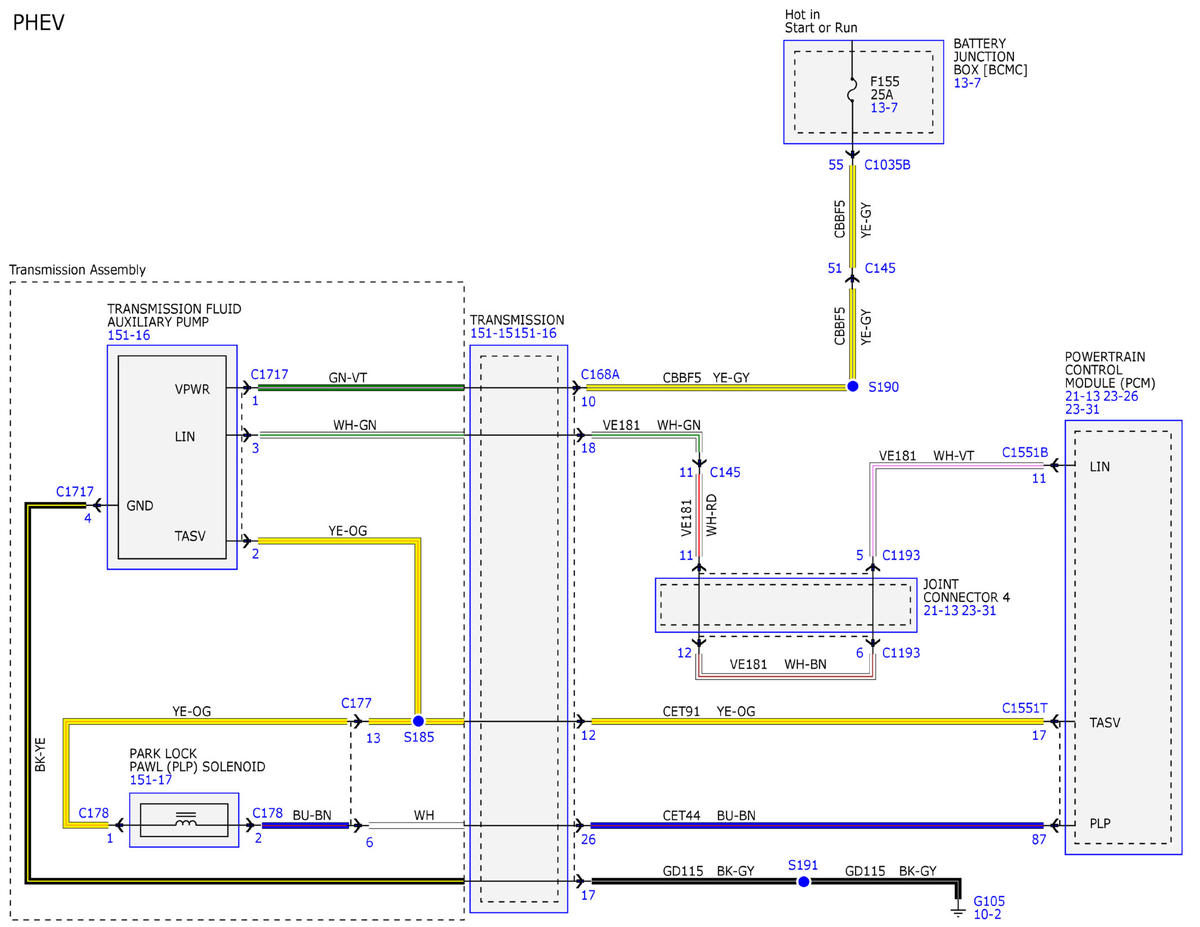

Fig 5: Transmission Controls Wiring Diagram (5 Of 10)
GFDWR111231Courtesy of FORD MOTOR COMPANY

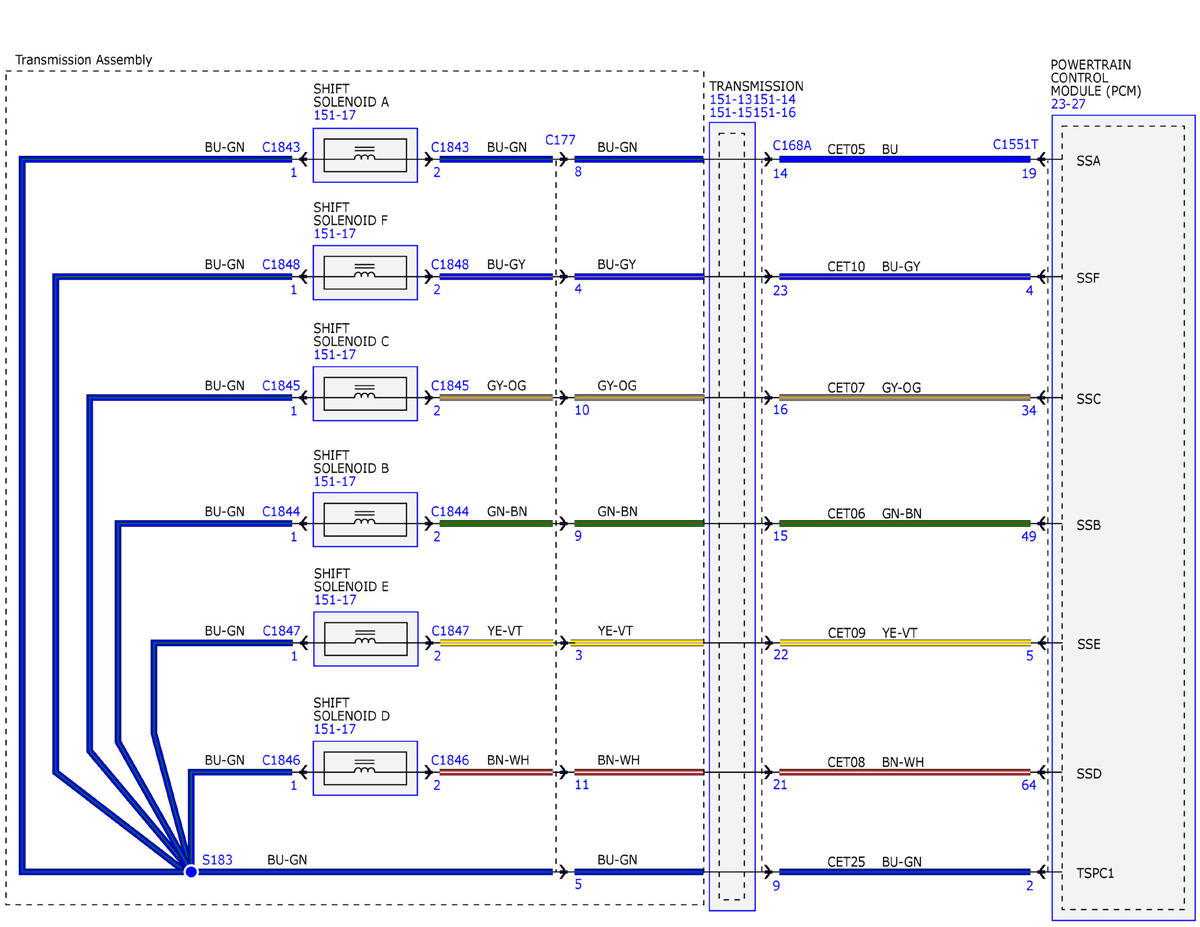

Fig 6: Transmission Controls Wiring Diagram (6 Of 10)
GFDWR111232Courtesy of FORD MOTOR COMPANY

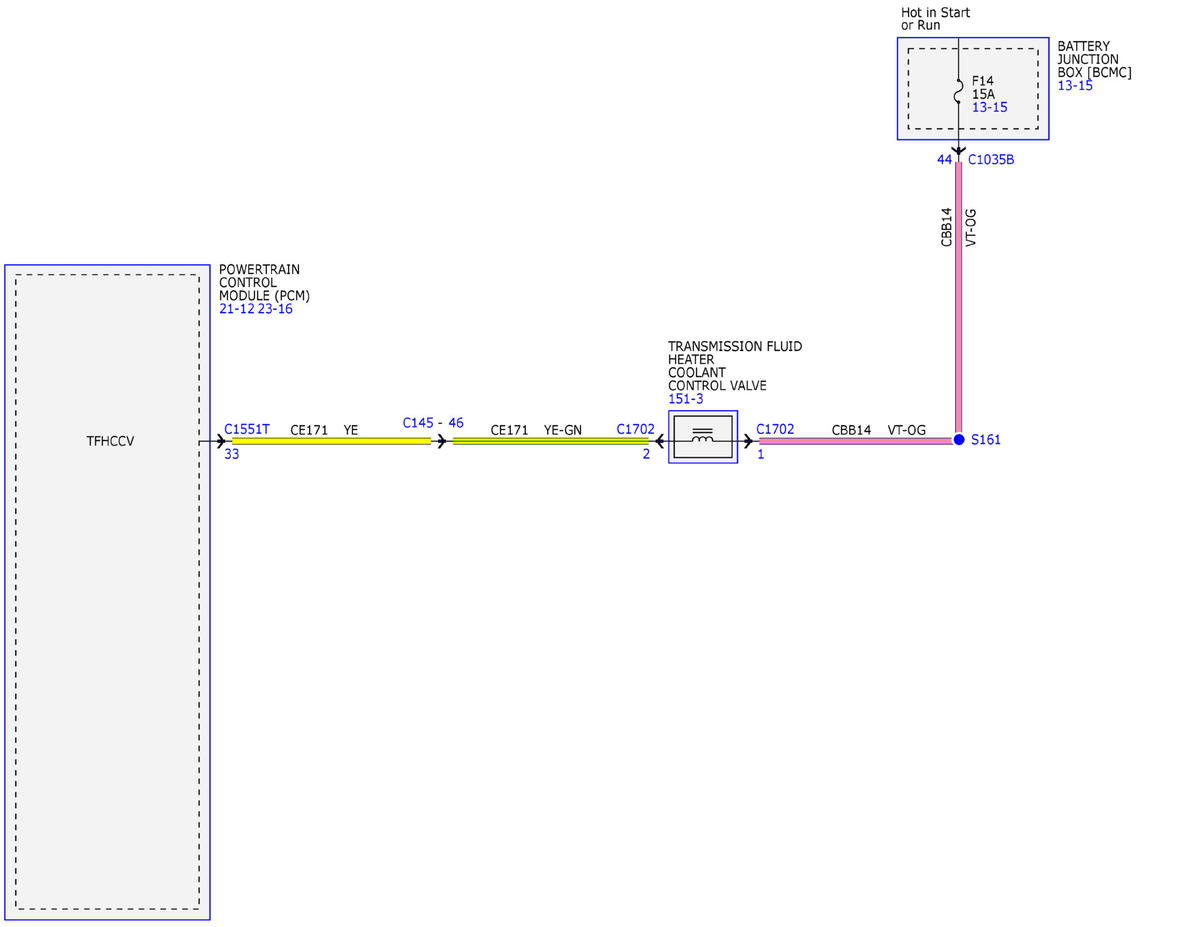

Fig 7: Transmission Controls Wiring Diagram (7 Of 10)
GFDWR111233Courtesy of FORD MOTOR COMPANY

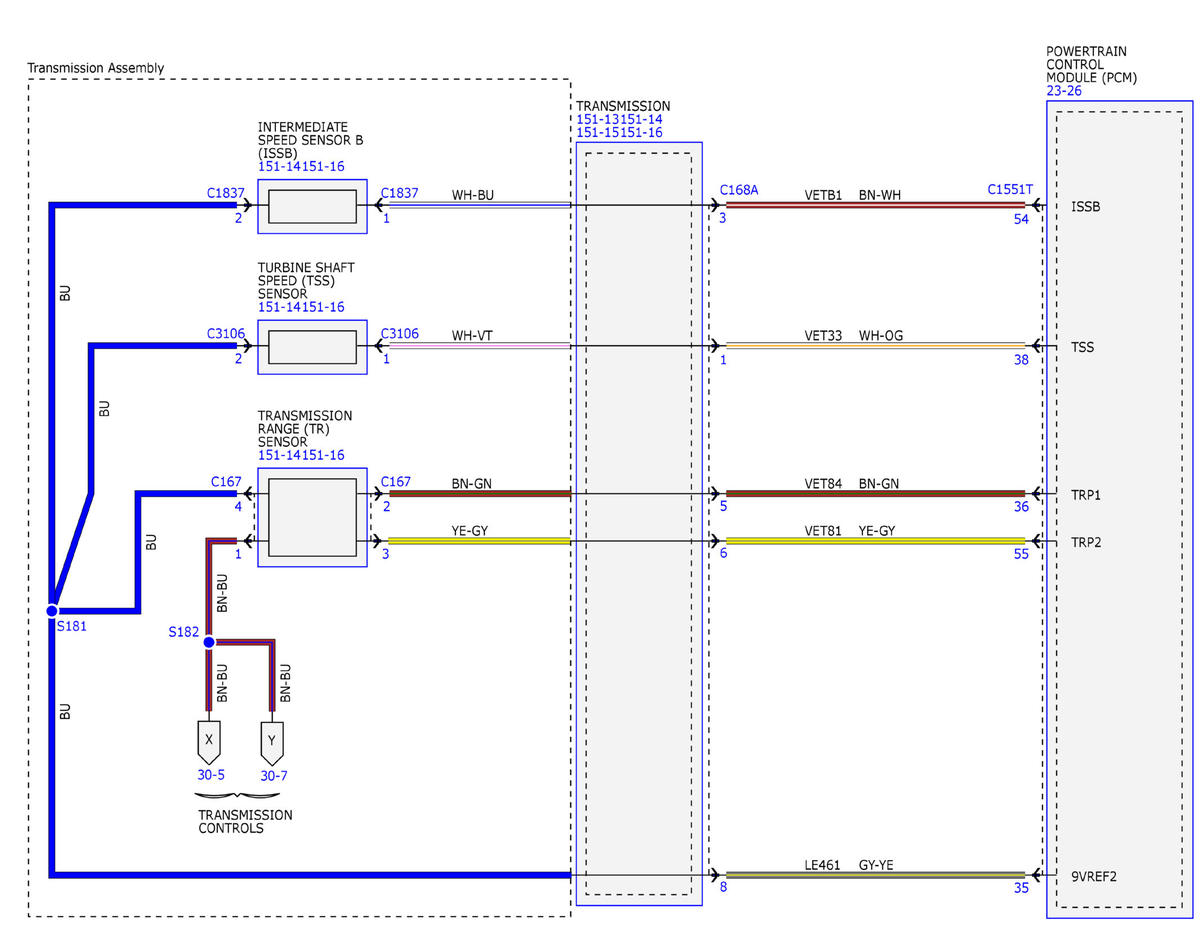

Fig 8: Transmission Controls Wiring Diagram (8 Of 10)
GFDWR111234Courtesy of FORD MOTOR COMPANY

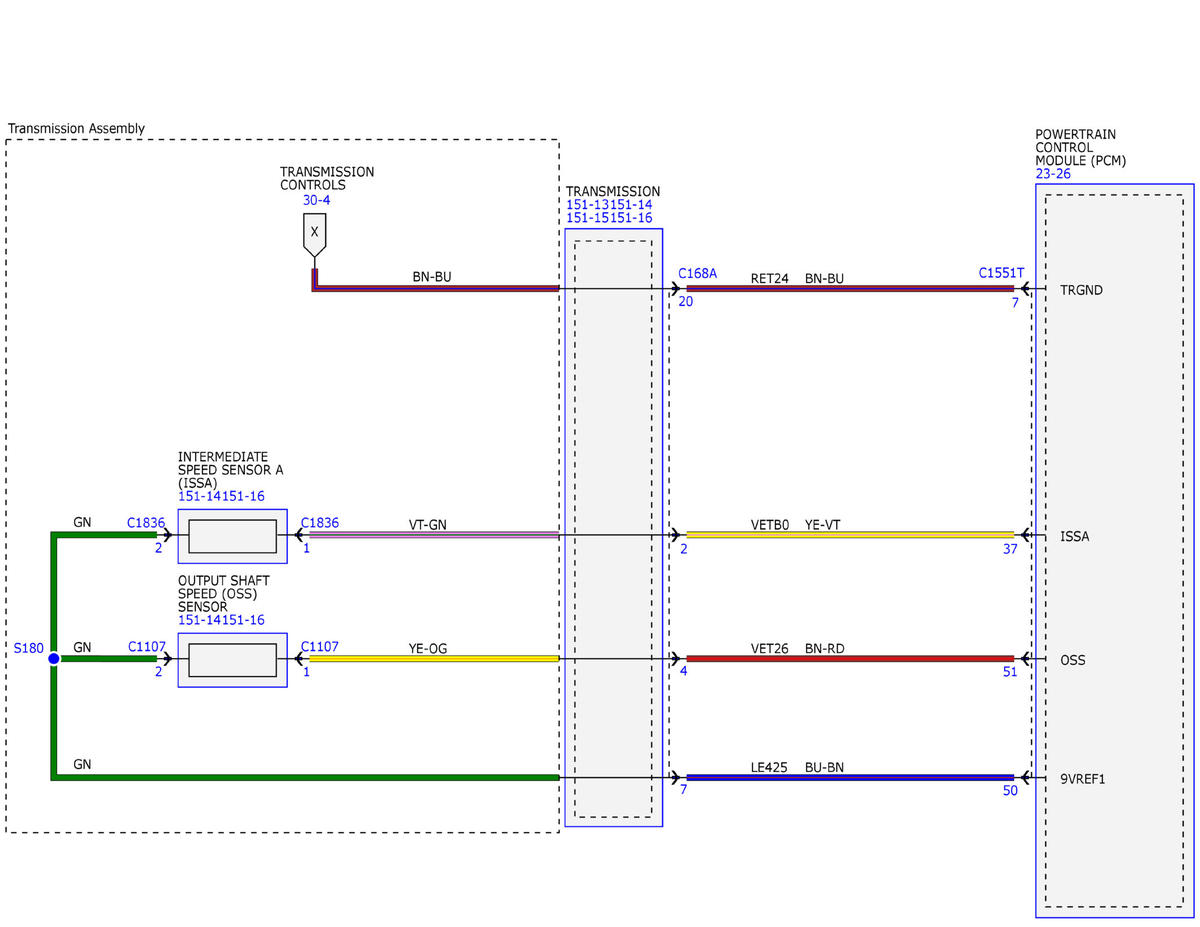

Fig 9: Transmission Controls Wiring Diagram (9 Of 10)
GFDWR111235Courtesy of FORD MOTOR COMPANY
Fig 10: Transmission Controls Wiring Diagram (10 Of 10)
GFDWR111236Courtesy of FORD MOTOR COMPANY
