Starting System

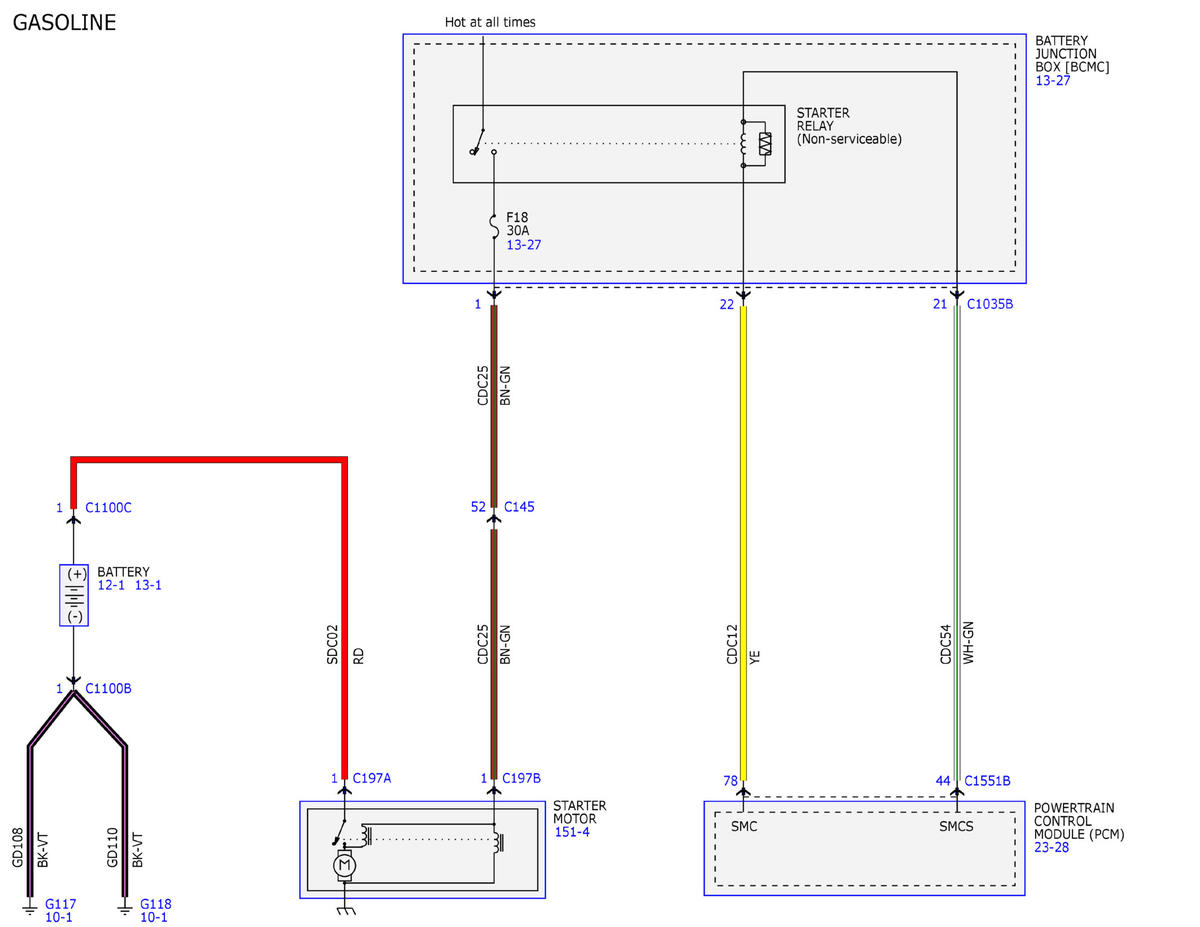

Fig 1: Starting System Wiring Diagram (1 Of 4)
GFDWR111204Courtesy of FORD MOTOR COMPANY

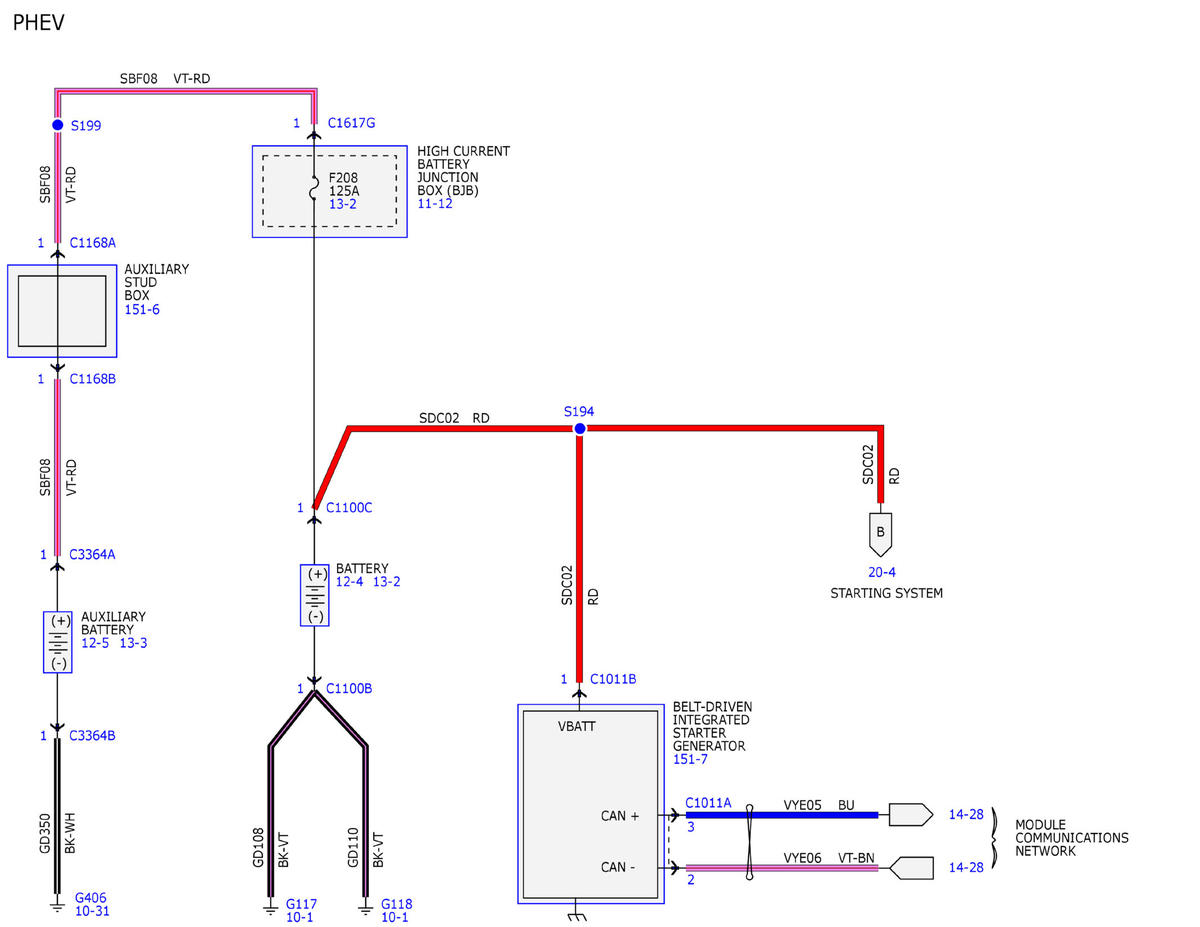

Fig 2: Starting System Wiring Diagram (2 Of 4)
GFDWR111205Courtesy of FORD MOTOR COMPANY

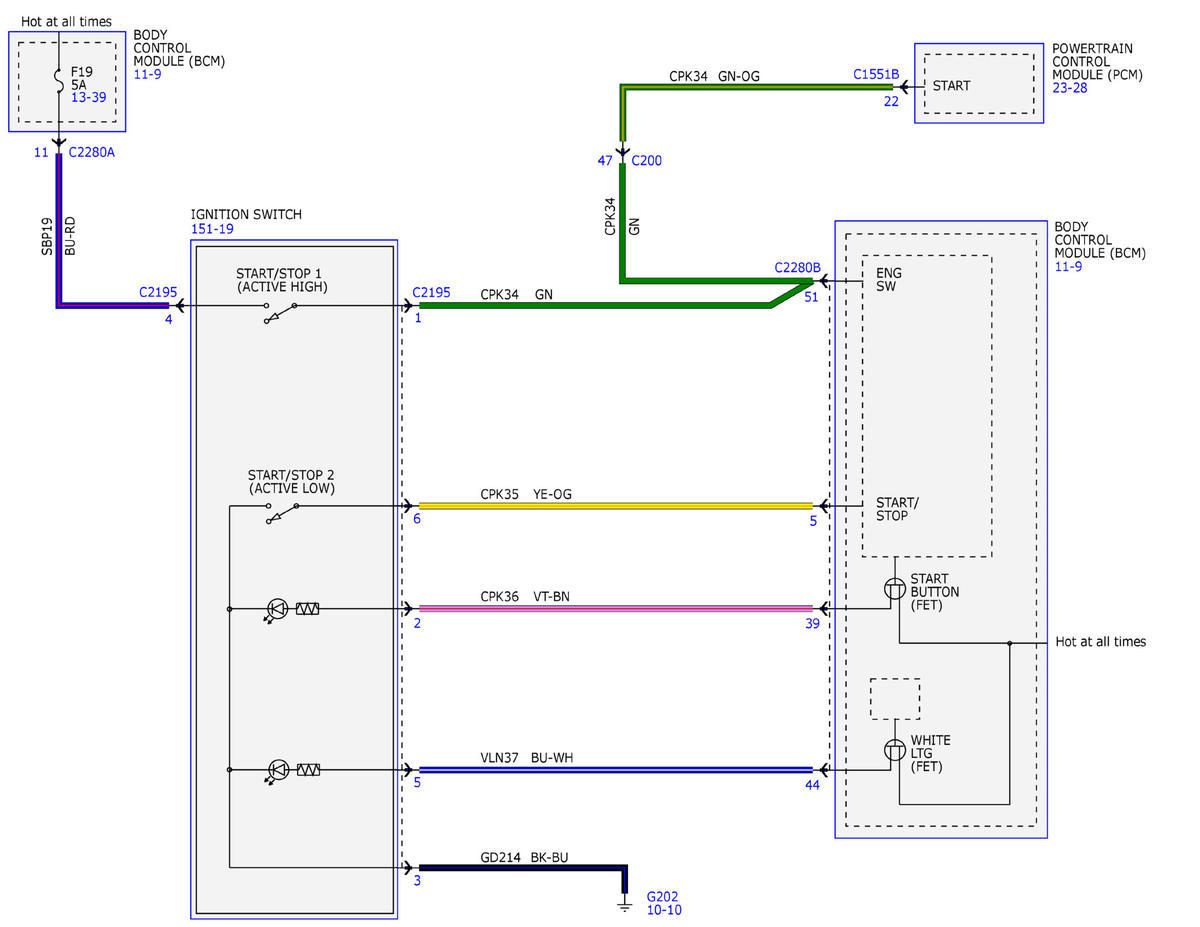

Fig 3: Starting System Wiring Diagram (3 Of 4)
GFDWR111206Courtesy of FORD MOTOR COMPANY

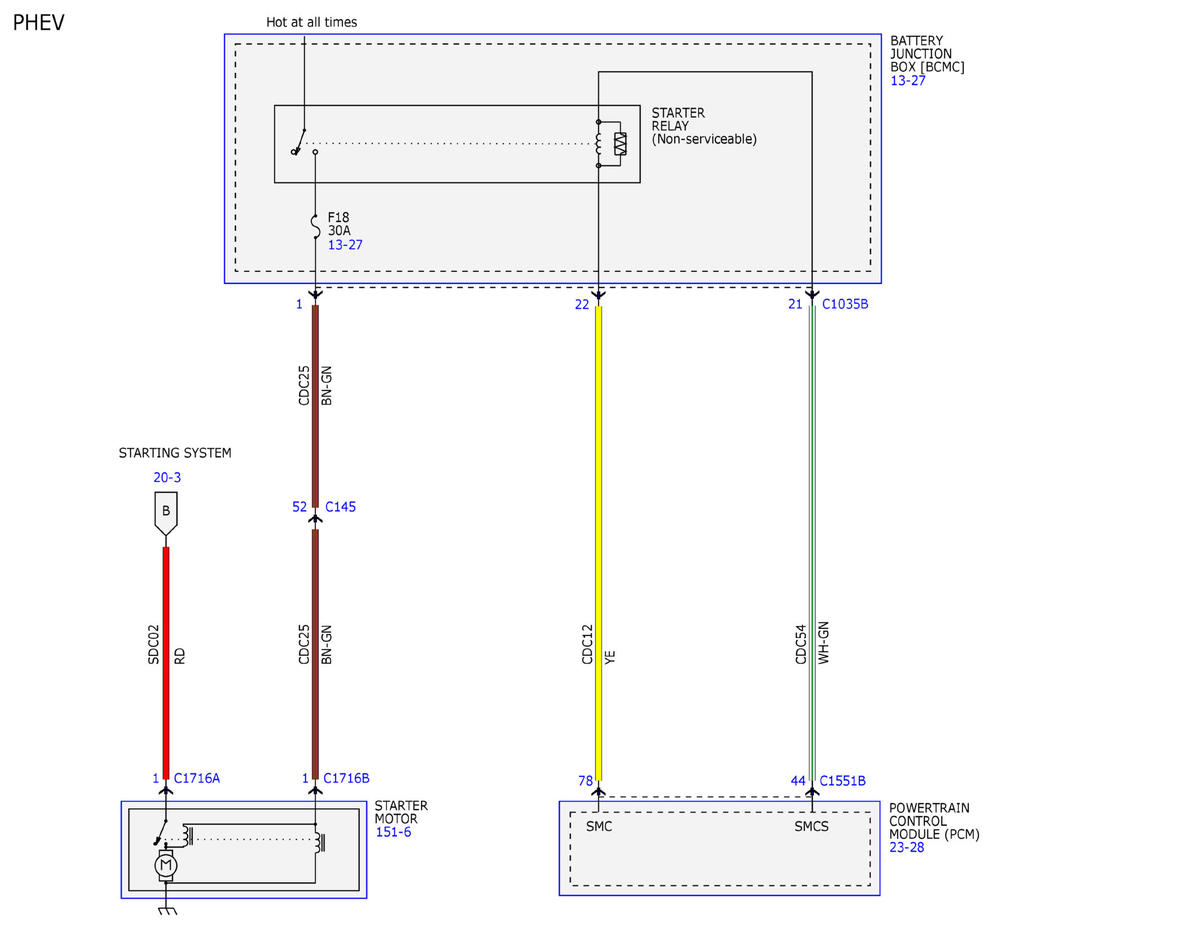

Fig 4: Starting System Wiring Diagram (4 Of 4)
GFDWR111207Courtesy of FORD MOTOR COMPANY
