Remote Keyless Entry And Alarm

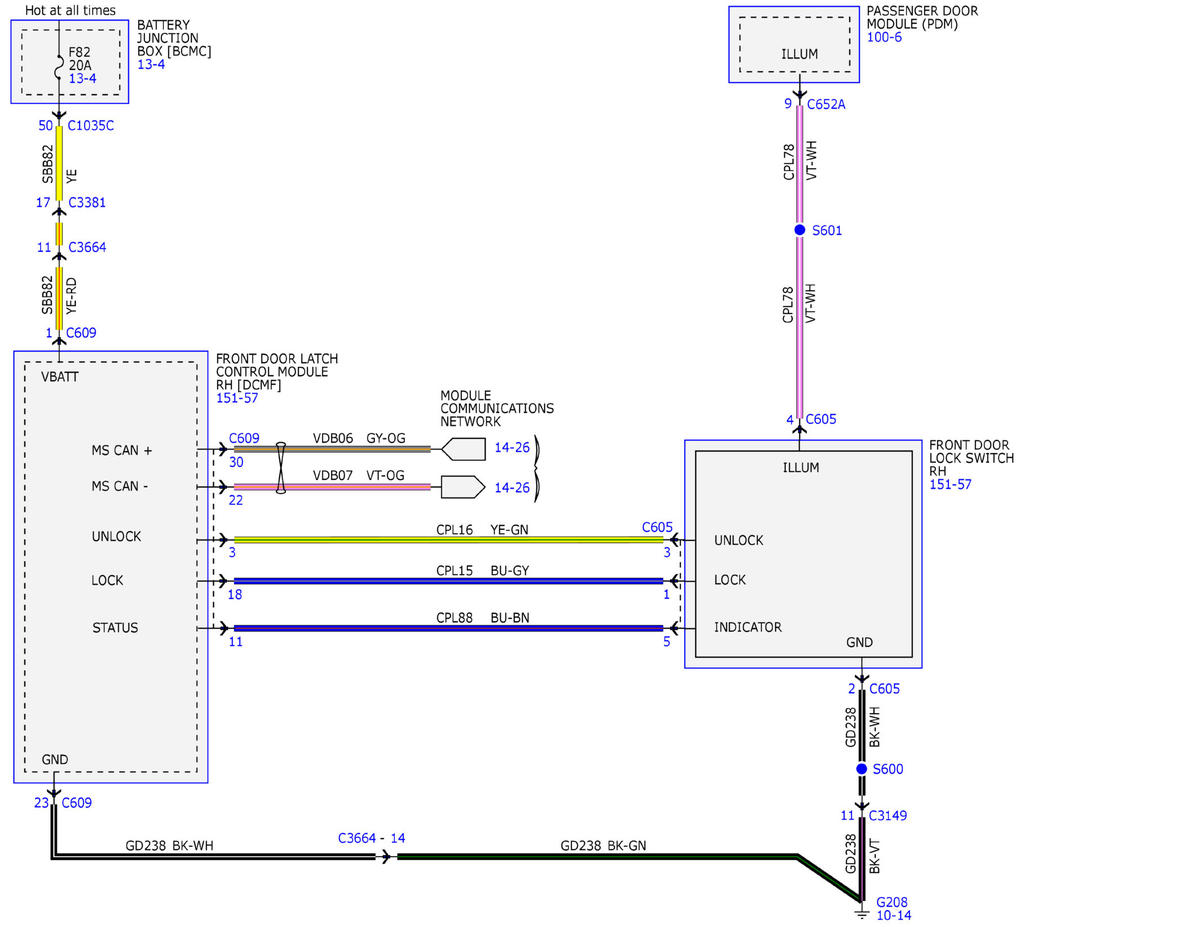

Fig 1: Remote Keyless Entry And Alarm Wiring Diagram (1 Of 28)

GFDWR111170

Courtesy of FORD MOTOR COMPANY

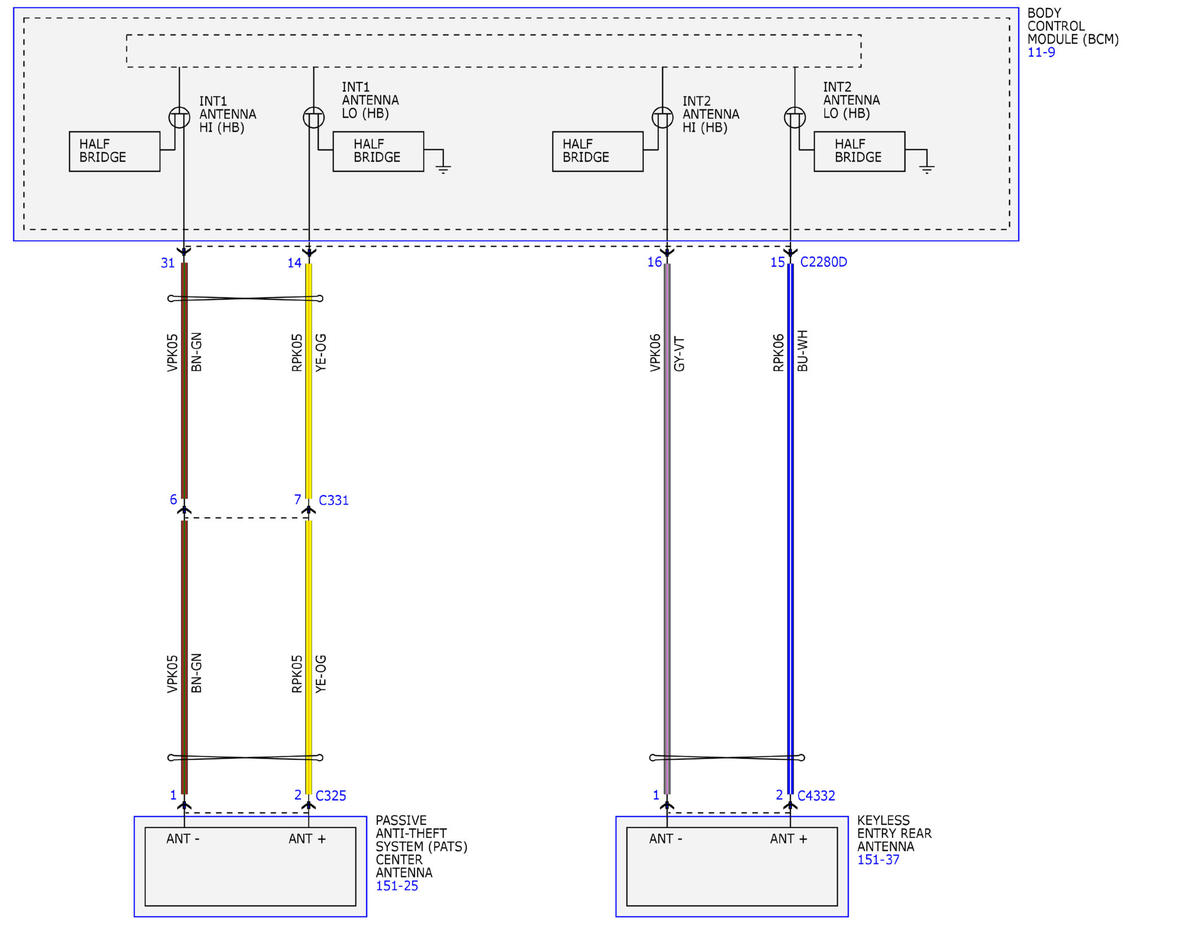

Fig 2: Remote Keyless Entry And Alarm Wiring Diagram (2 Of 28)

GFDWR111171

Courtesy of FORD MOTOR COMPANY

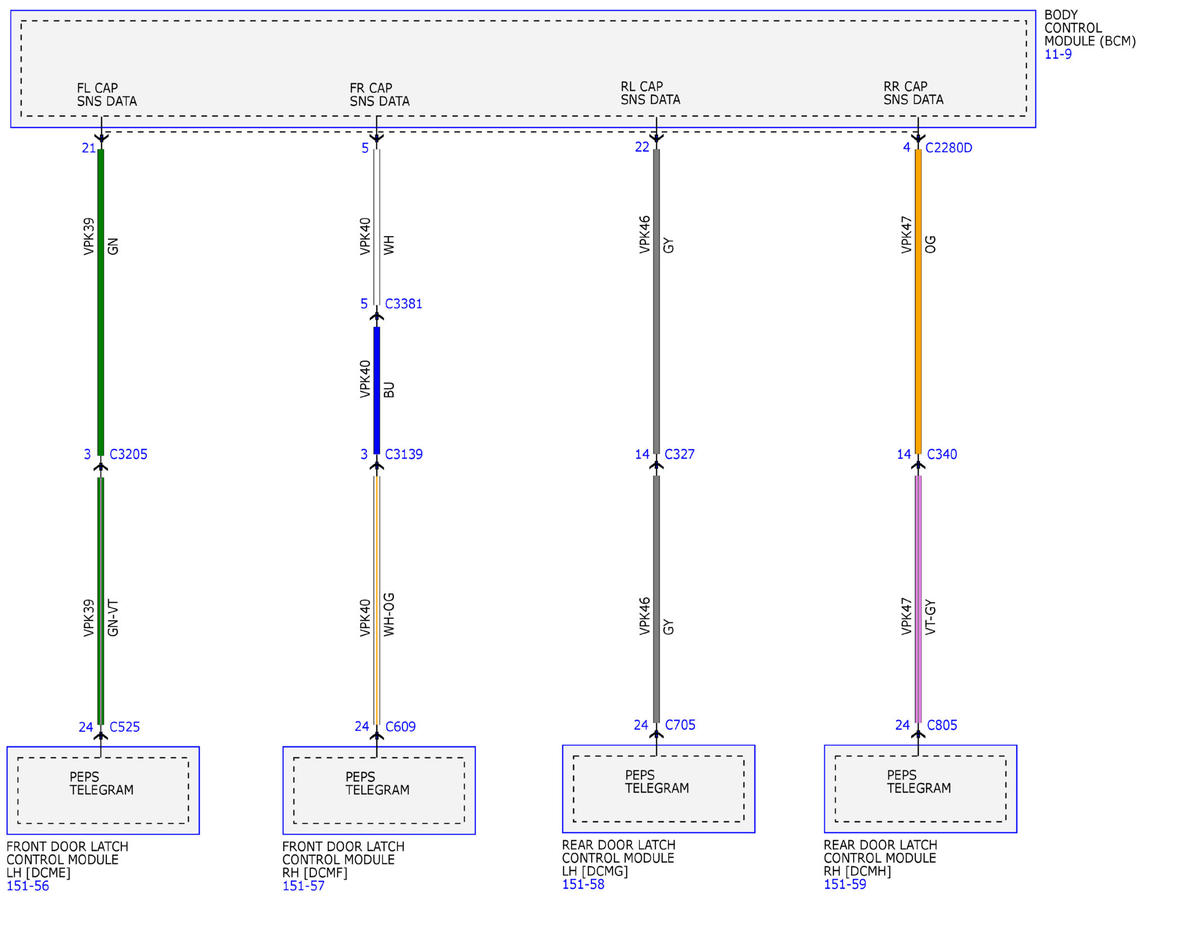

Fig 3: Remote Keyless Entry And Alarm Wiring Diagram (3 Of 28)

GFDWR111172

Courtesy of FORD MOTOR COMPANY

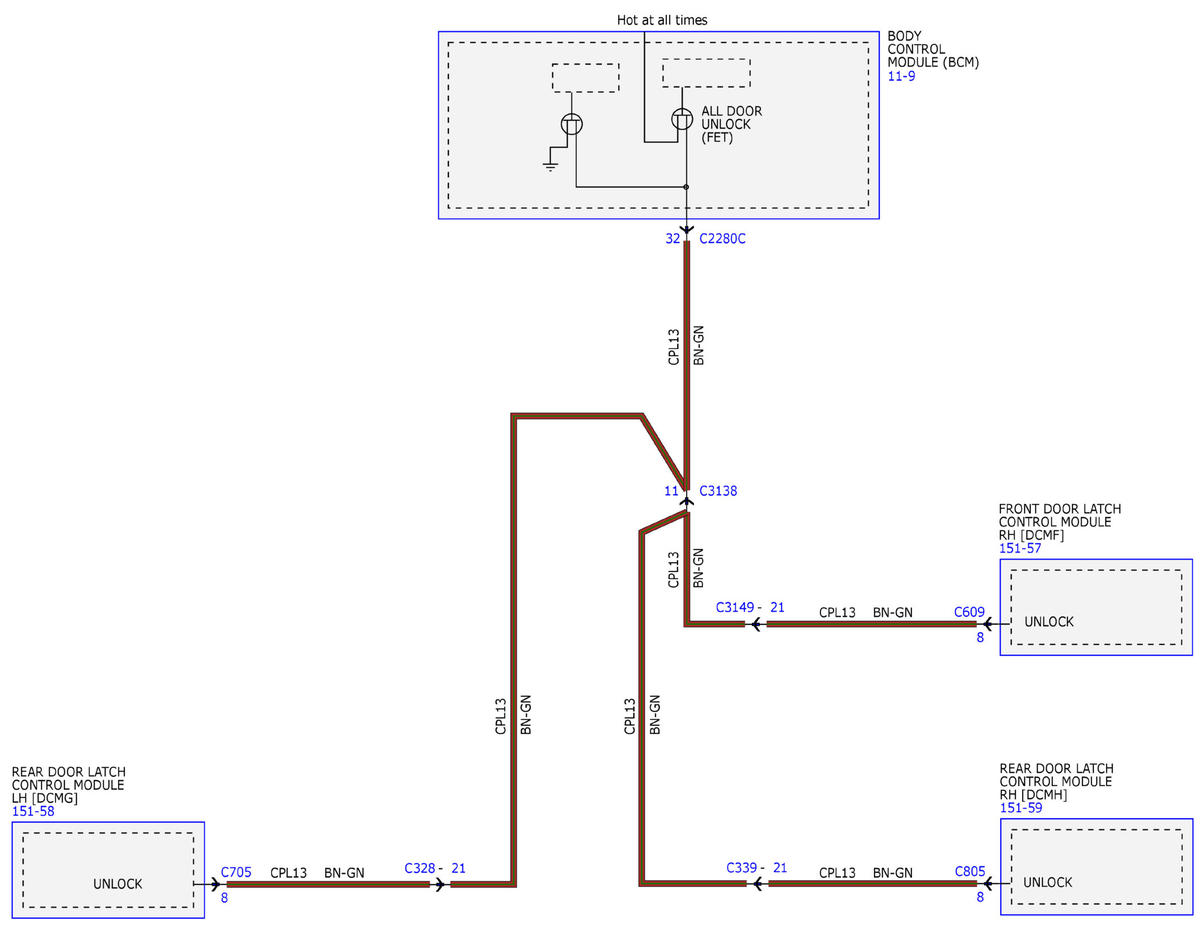

Fig 4: Remote Keyless Entry And Alarm Wiring Diagram (4 Of 28)

GFDWR111173

Courtesy of FORD MOTOR COMPANY

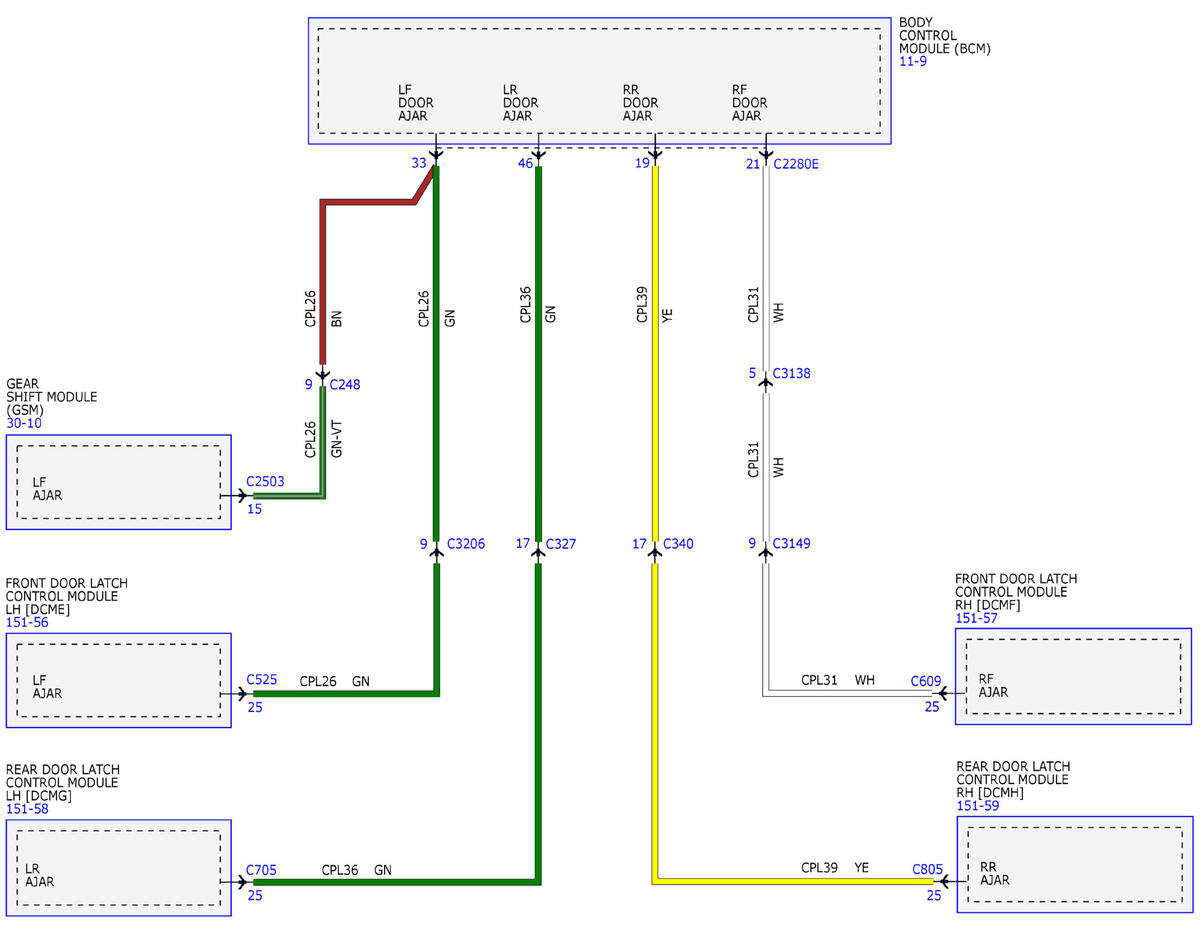

Fig 5: Remote Keyless Entry And Alarm Wiring Diagram (5 Of 28)

GFDWR111174

Courtesy of FORD MOTOR COMPANY

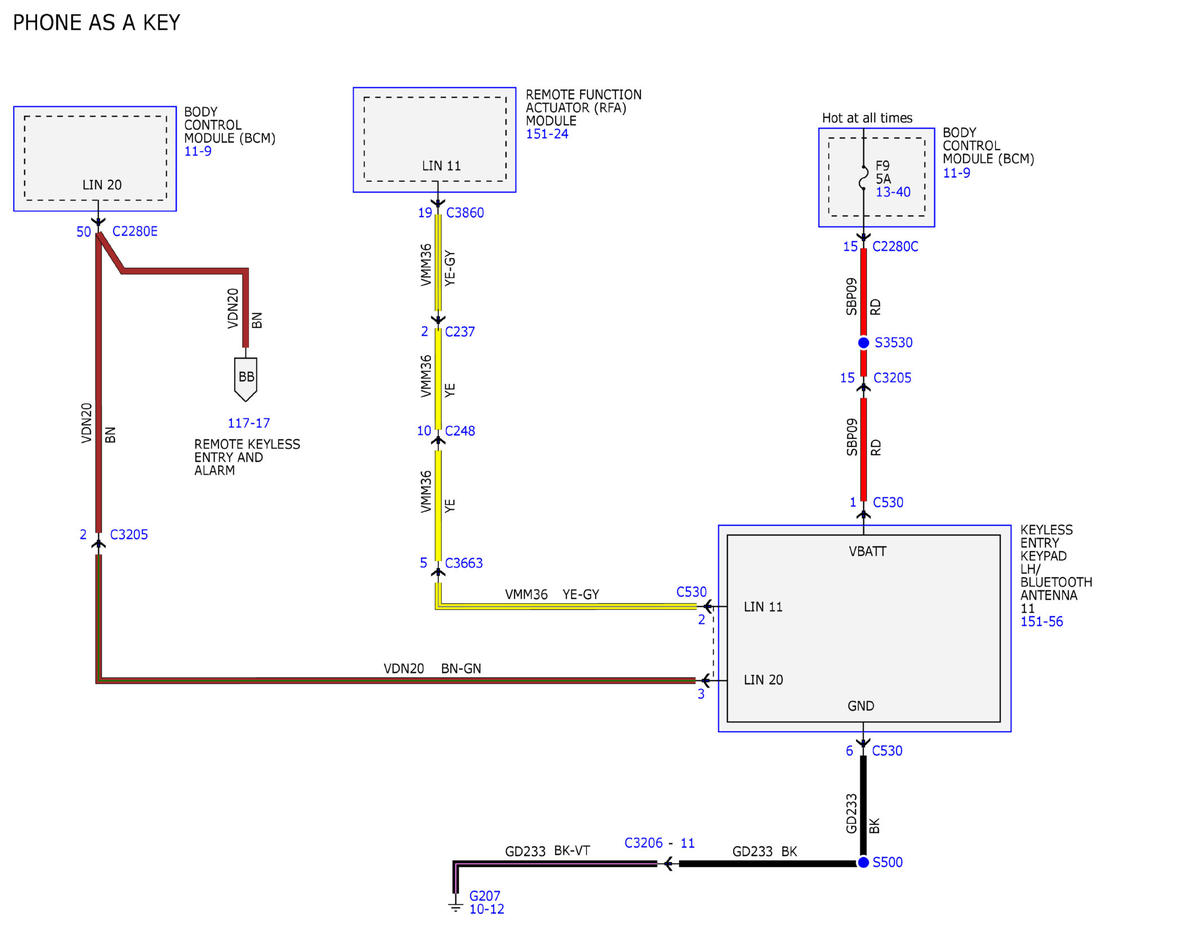

Fig 6: Remote Keyless Entry And Alarm Wiring Diagram (6 Of 28)

GFDWR111175

Courtesy of FORD MOTOR COMPANY

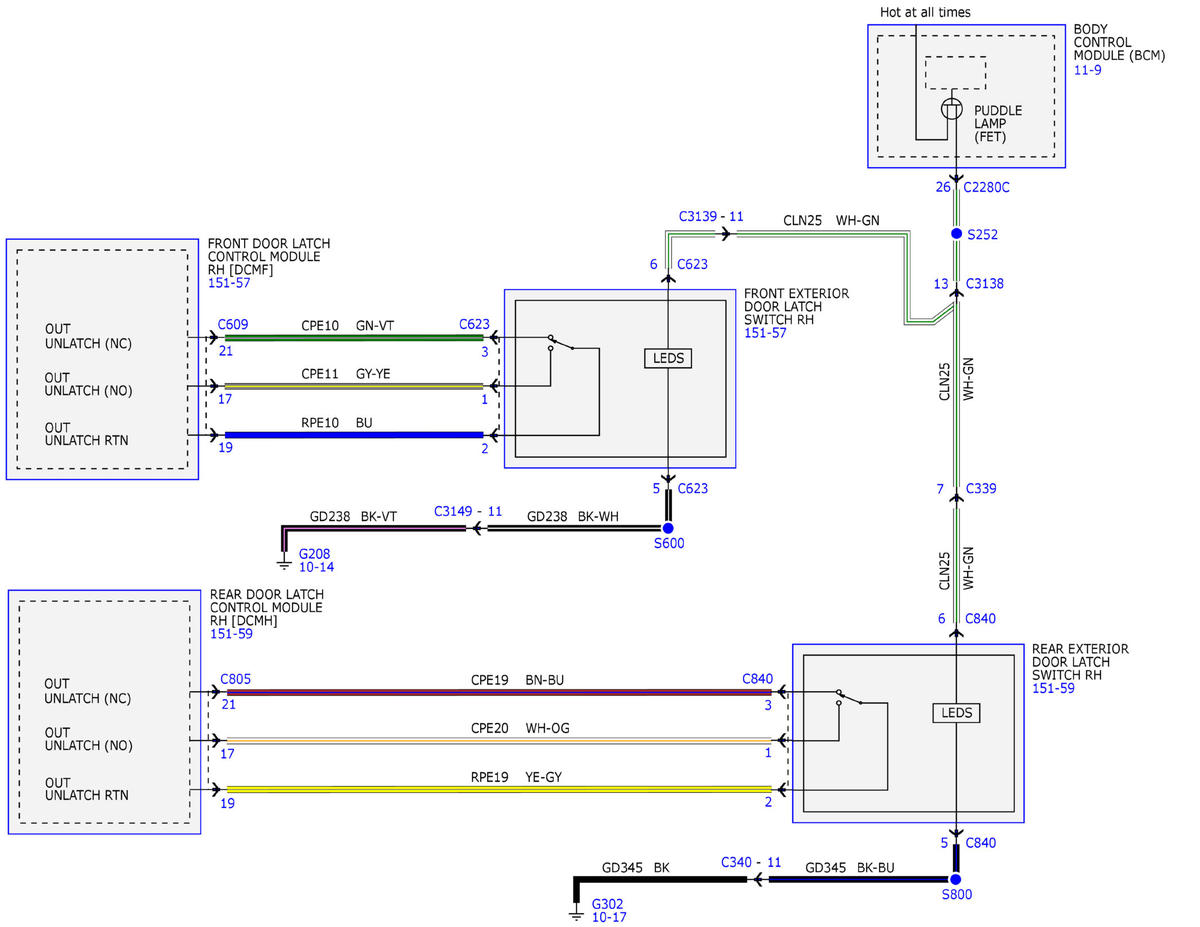

Fig 7: Remote Keyless Entry And Alarm Wiring Diagram (7 Of 28)

GFDWR111176

Courtesy of FORD MOTOR COMPANY

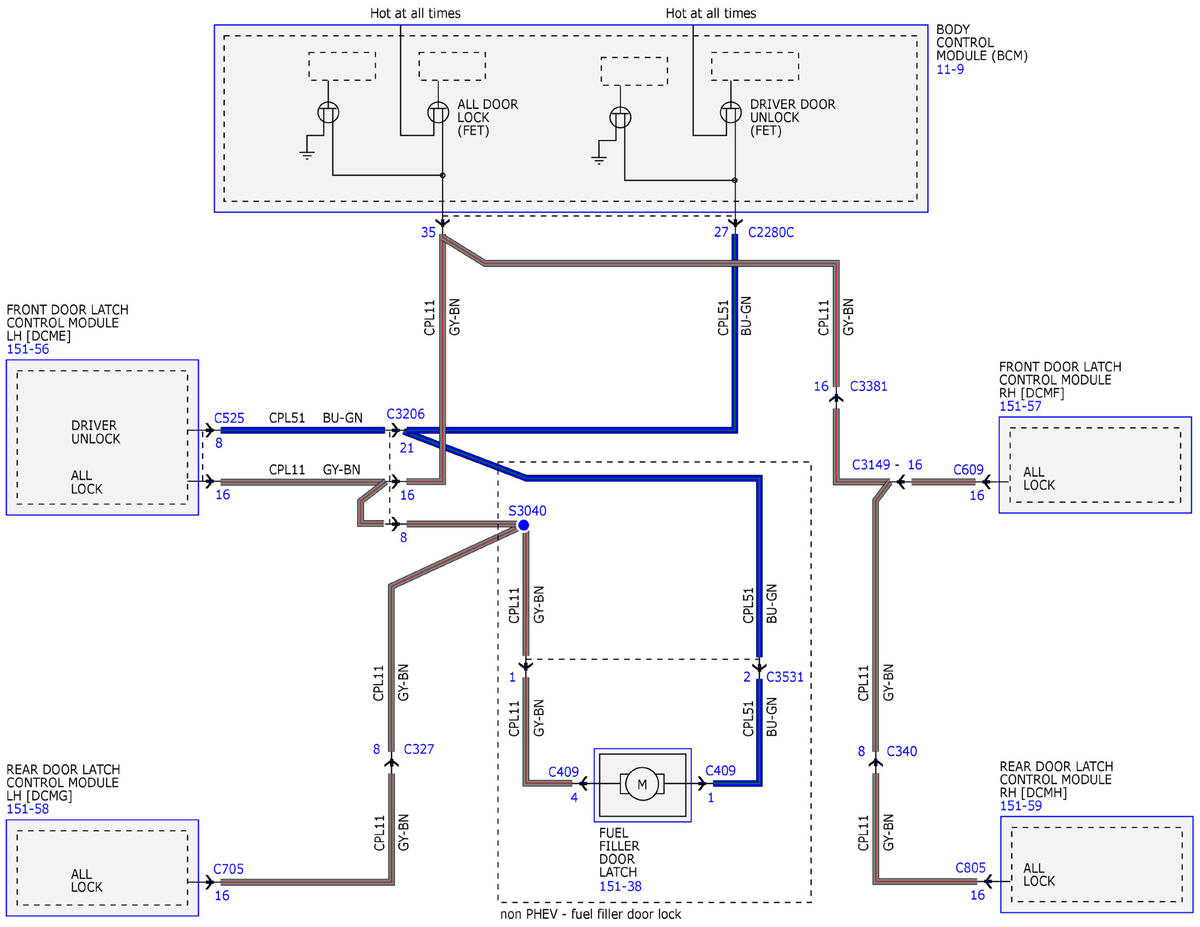

Fig 8: Remote Keyless Entry And Alarm Wiring Diagram (8 Of 28)

GFDWR111177

Courtesy of FORD MOTOR COMPANY

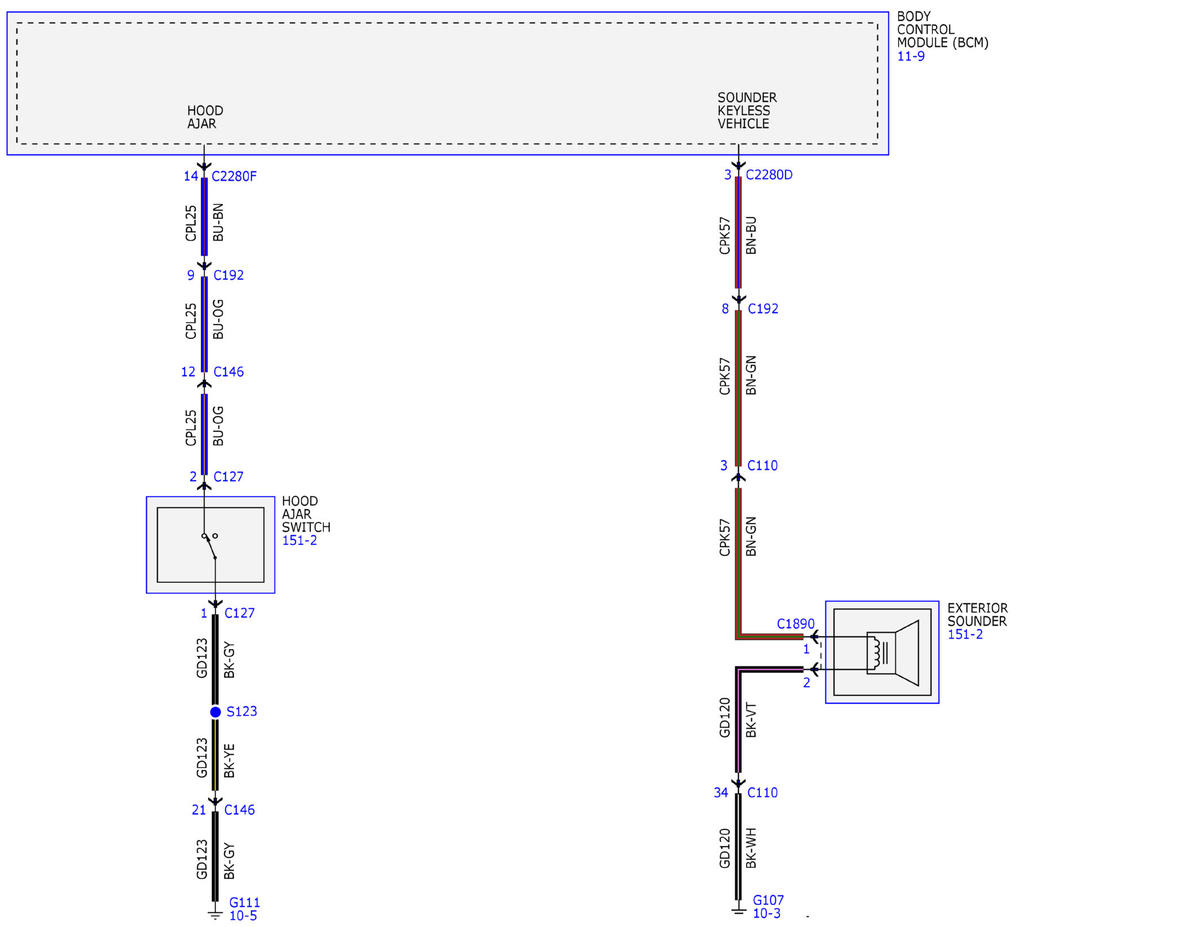

Fig 9: Remote Keyless Entry And Alarm Wiring Diagram (9 Of 28)

GFDWR111178

Courtesy of FORD MOTOR COMPANY

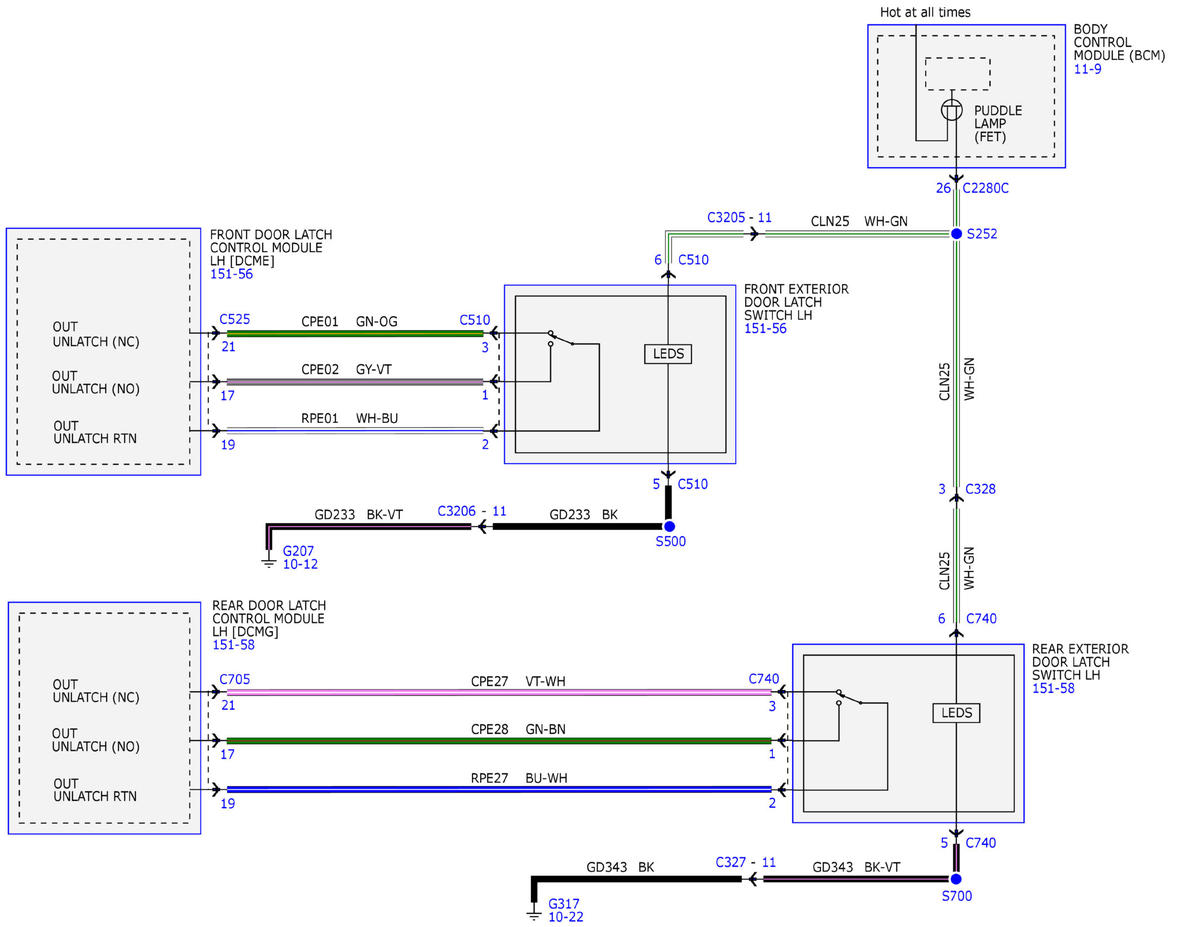

Fig 10: Remote Keyless Entry And Alarm Wiring Diagram (10 Of 28)

GFDWR111179

Courtesy of FORD MOTOR COMPANY

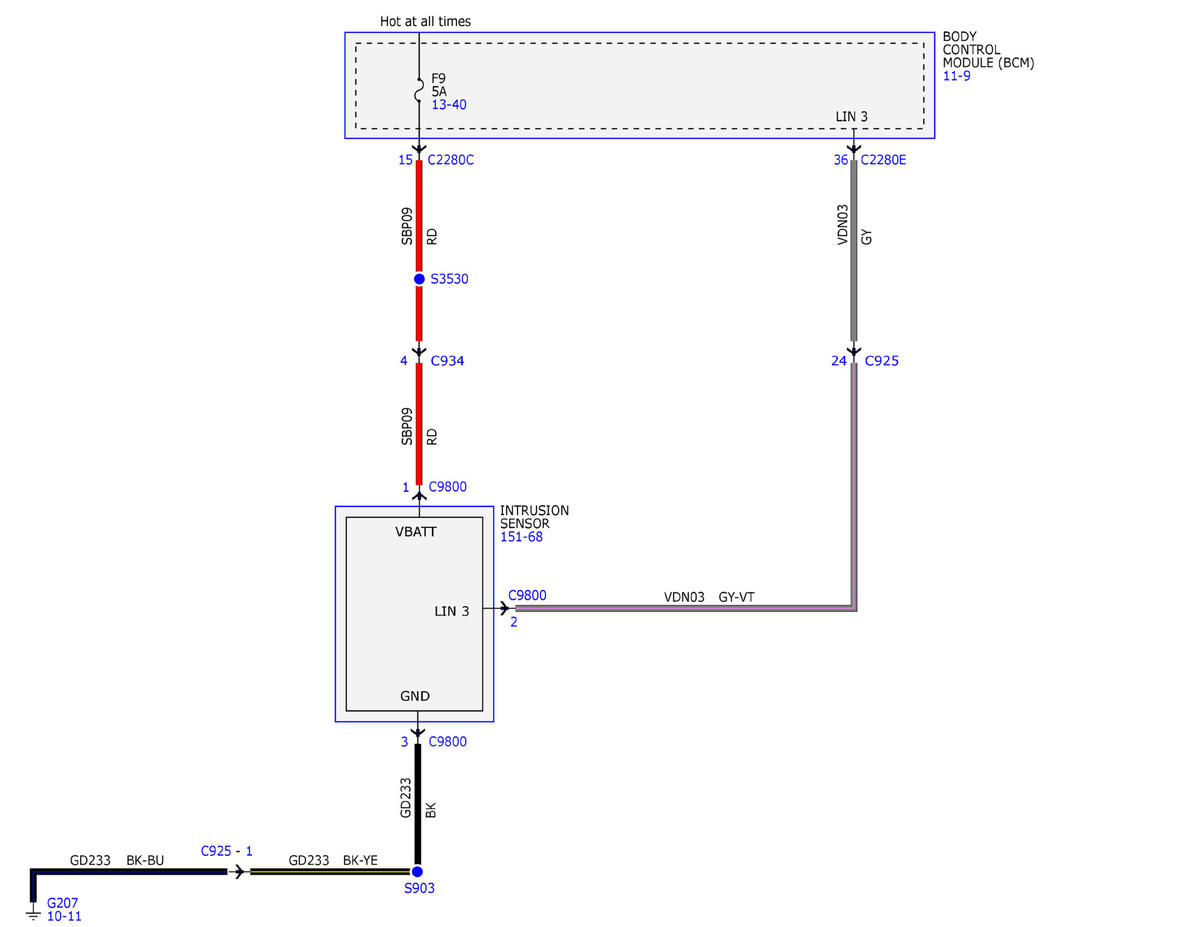

Fig 11: Remote Keyless Entry And Alarm Wiring Diagram (11 Of 28)

GFDWR111180

Courtesy of FORD MOTOR COMPANY

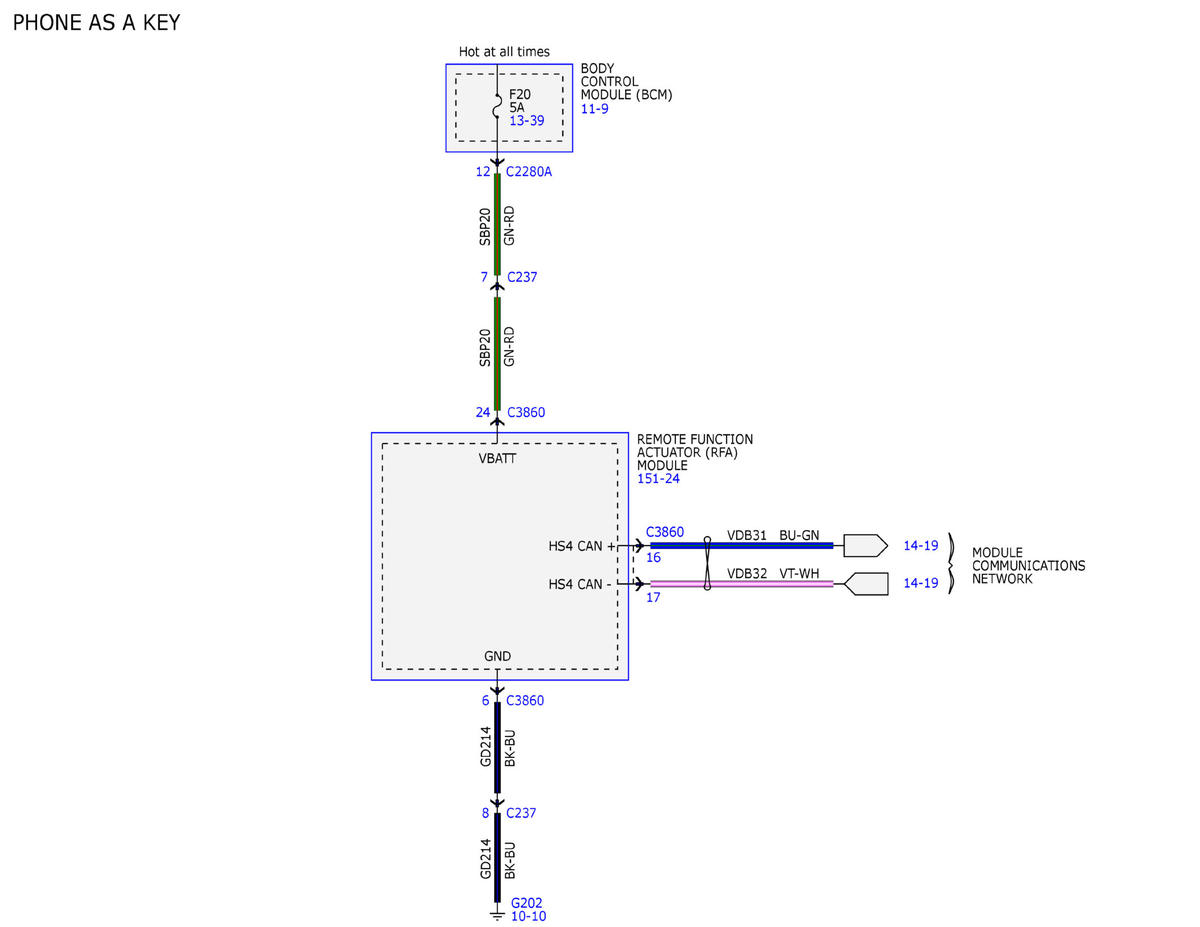

Fig 12: Remote Keyless Entry And Alarm Wiring Diagram (12 Of 28)

GFDWR111181

Courtesy of FORD MOTOR COMPANY

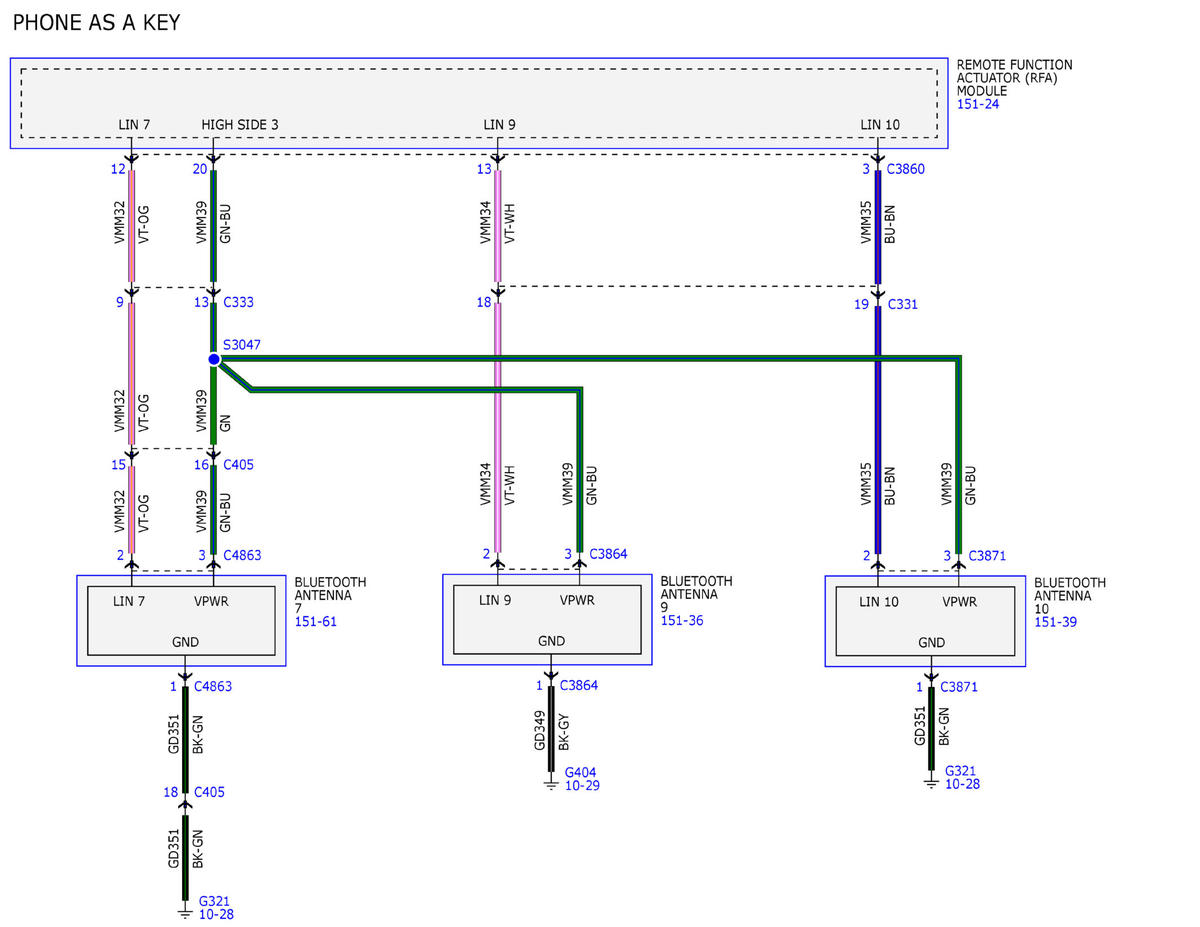

Fig 13: Remote Keyless Entry And Alarm Wiring Diagram (13 Of 28)

GFDWR111182

Courtesy of FORD MOTOR COMPANY

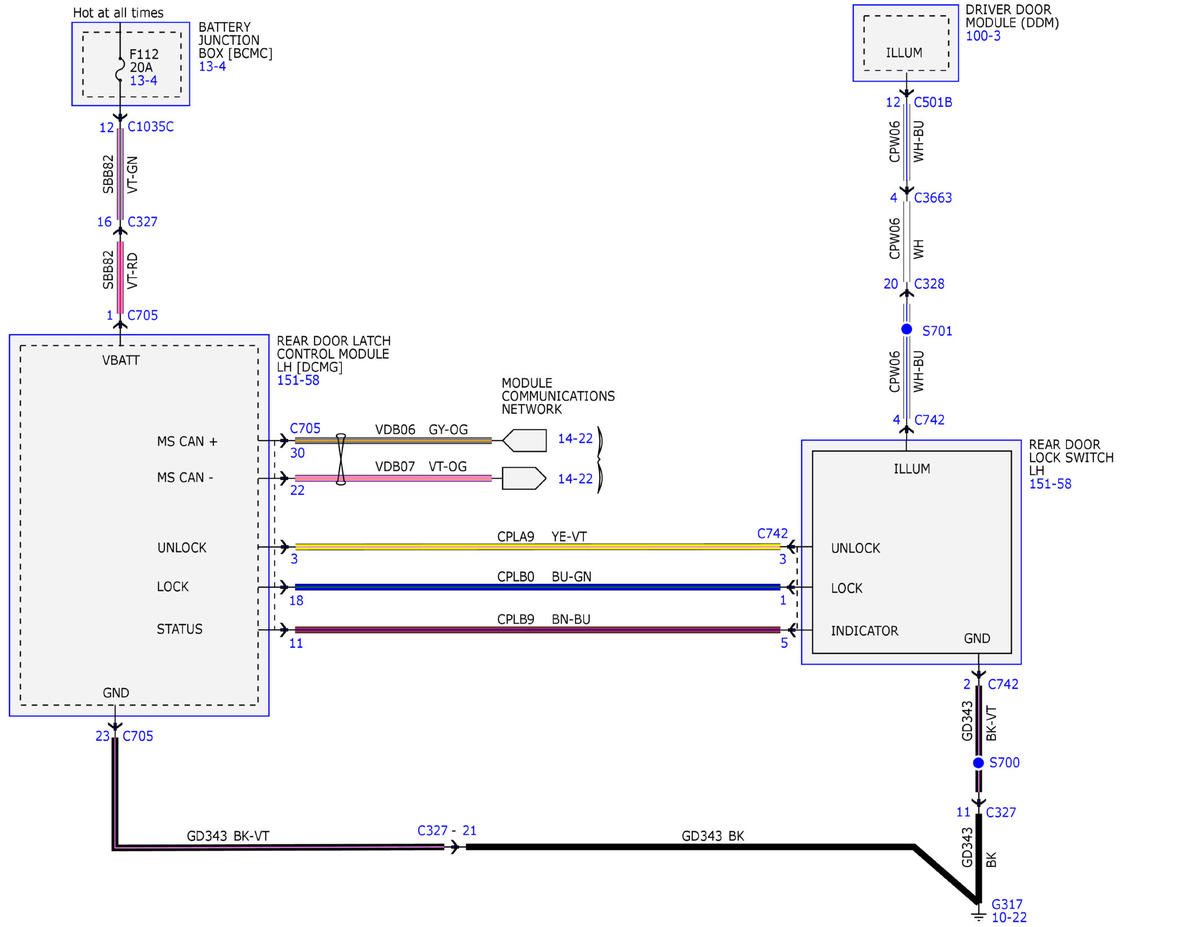

Fig 14: Remote Keyless Entry And Alarm Wiring Diagram (14 Of 28)

GFDWR111183

Courtesy of FORD MOTOR COMPANY

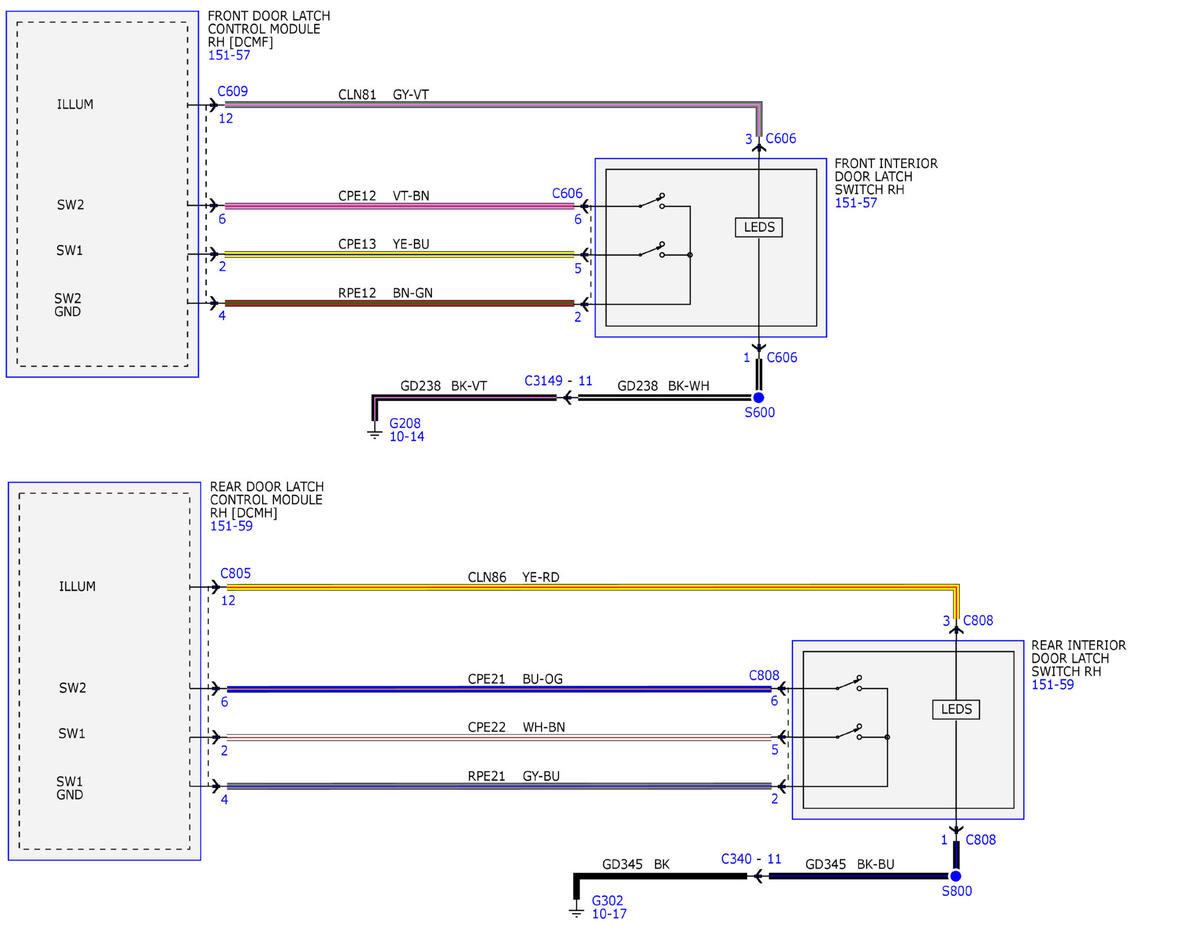

Fig 15: Remote Keyless Entry And Alarm Wiring Diagram (15 Of 28)

GFDWR111184

Courtesy of FORD MOTOR COMPANY

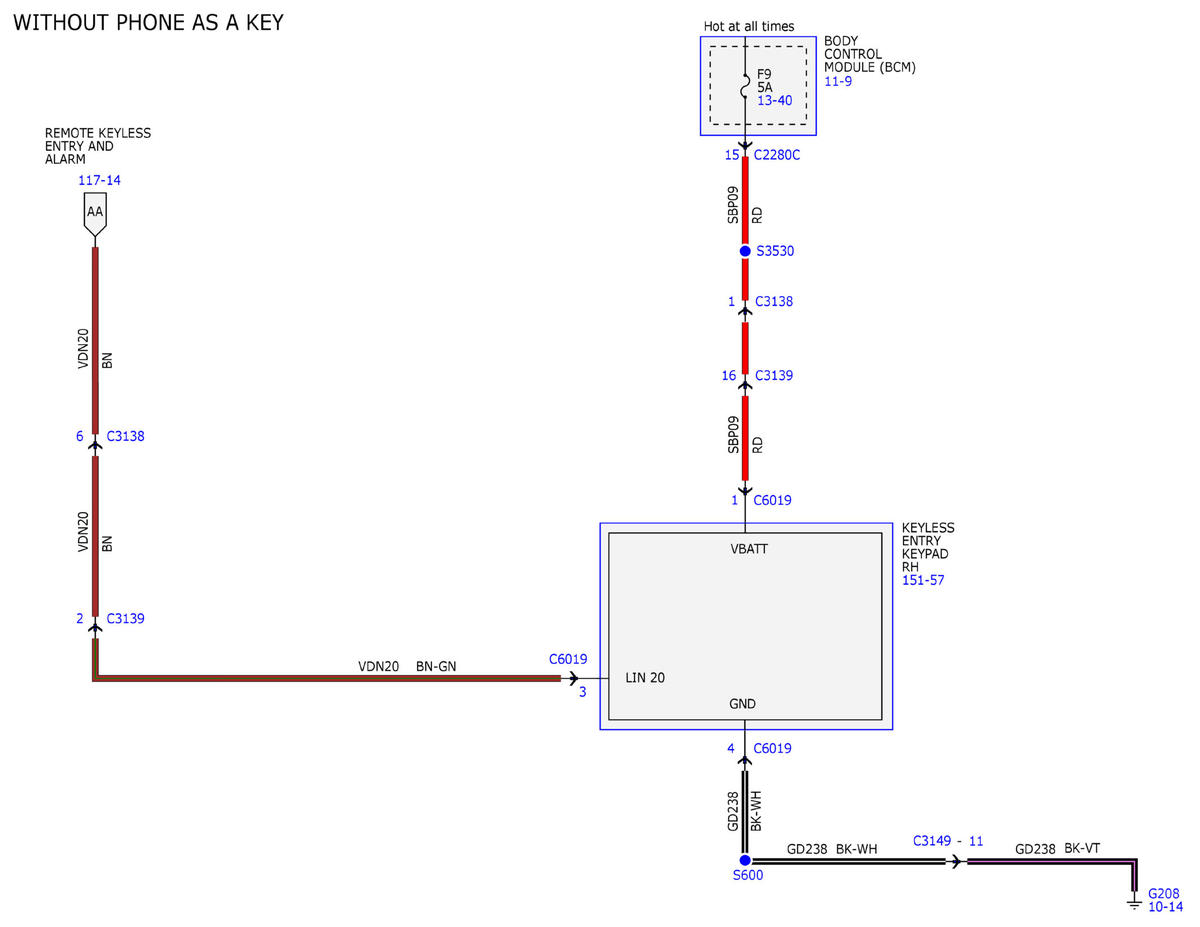

Fig 16: Remote Keyless Entry And Alarm Wiring Diagram (16 Of 28)

GFDWR111185

Courtesy of FORD MOTOR COMPANY

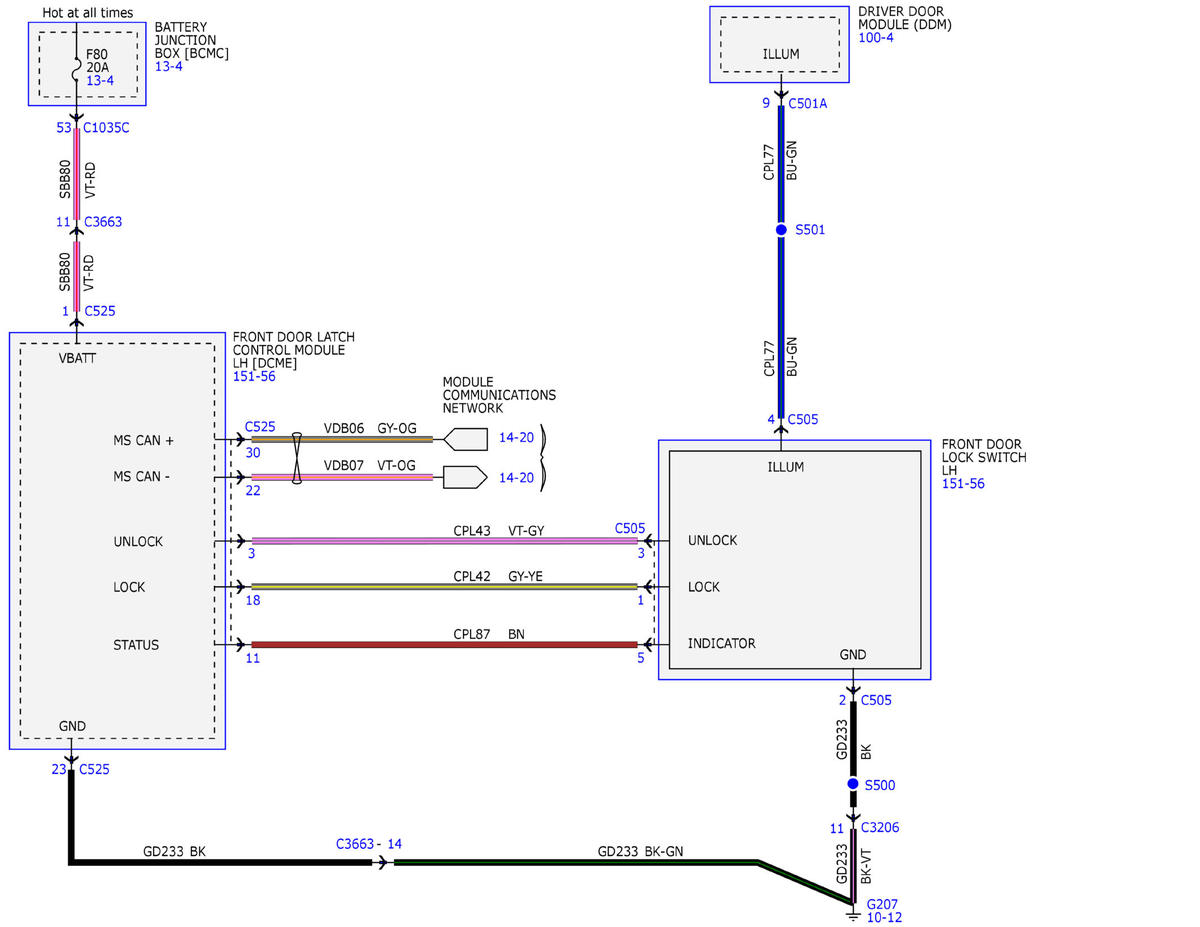

Fig 17: Remote Keyless Entry And Alarm Wiring Diagram (17 Of 28)

GFDWR111186

Courtesy of FORD MOTOR COMPANY

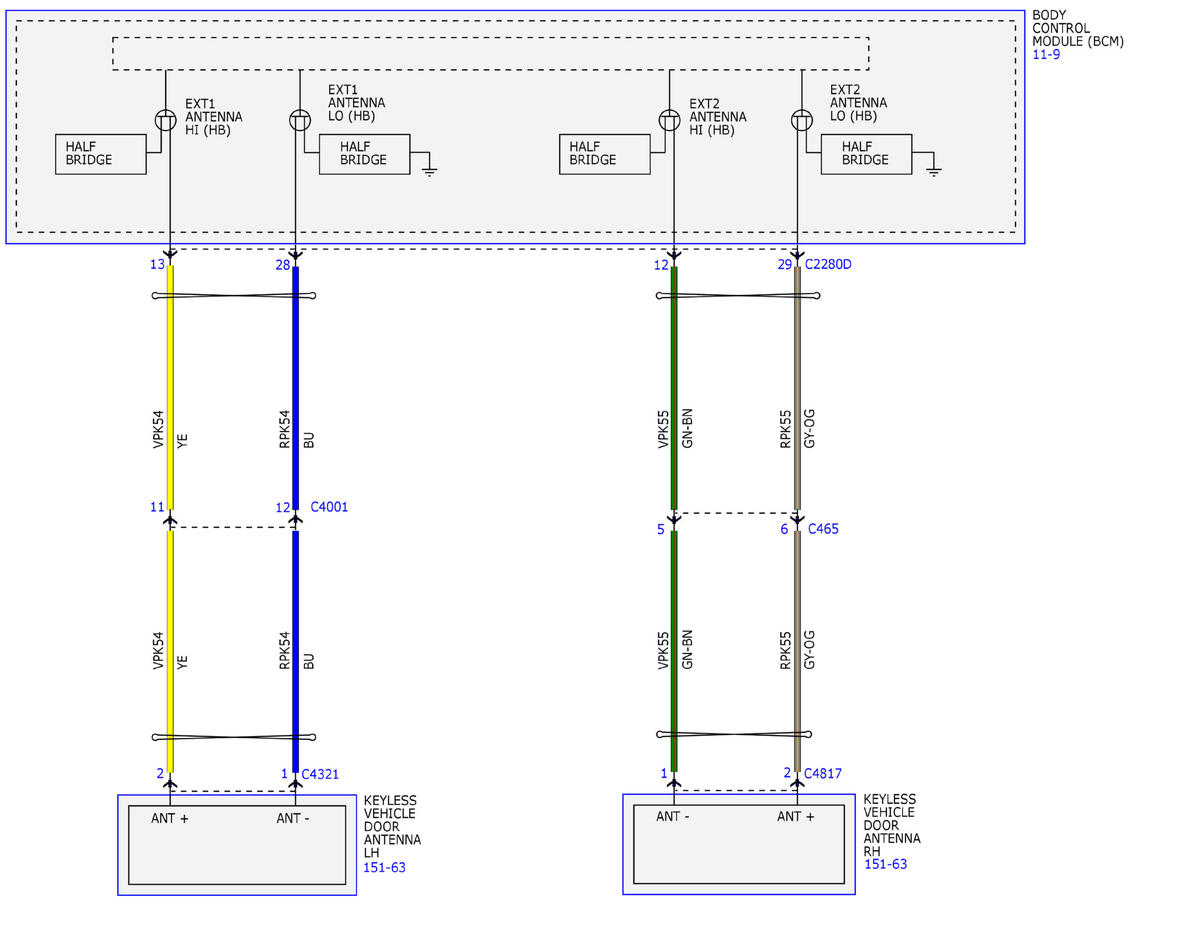

Fig 18: Remote Keyless Entry And Alarm Wiring Diagram (18 Of 28)

GFDWR111187

Courtesy of FORD MOTOR COMPANY

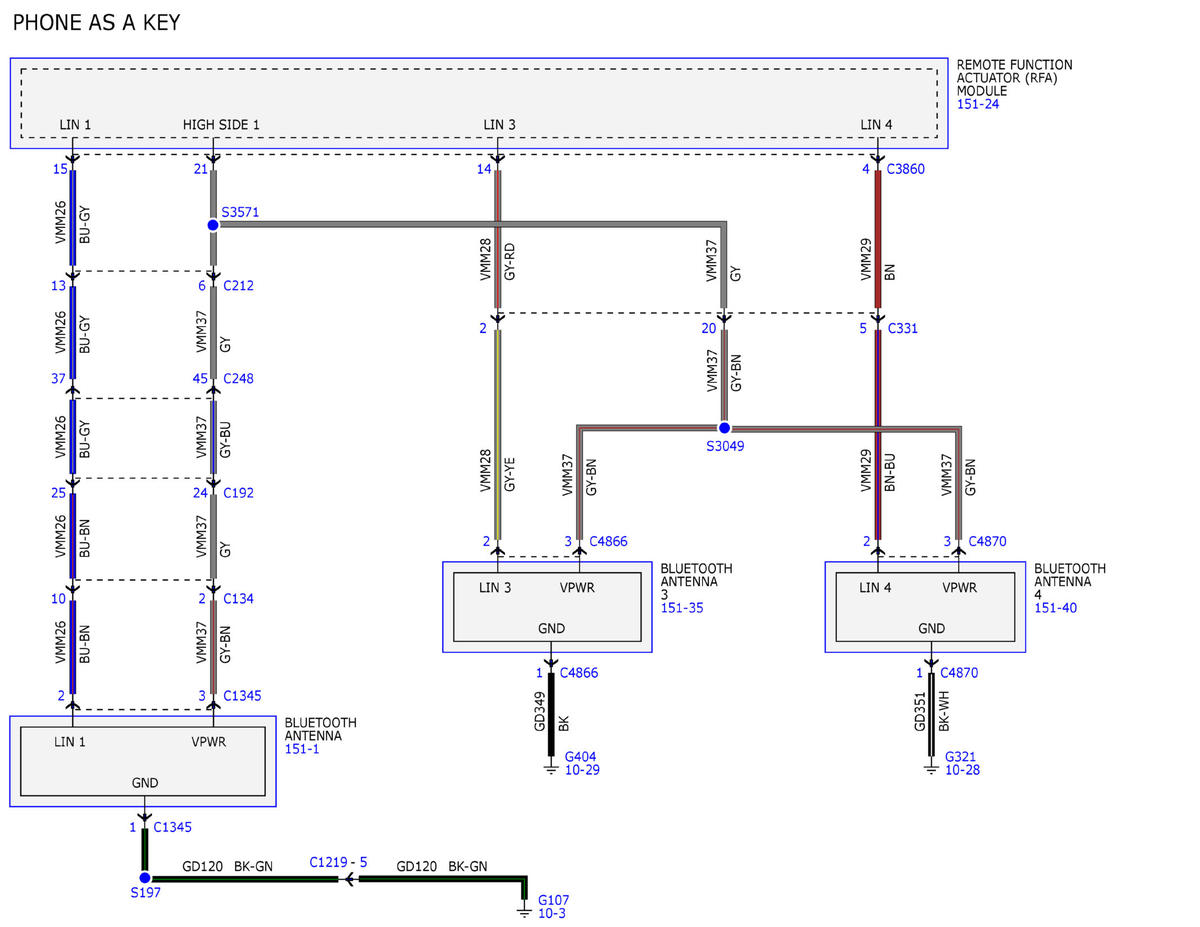

Fig 19: Remote Keyless Entry And Alarm Wiring Diagram (19 Of 28)

GFDWR111188

Courtesy of FORD MOTOR COMPANY

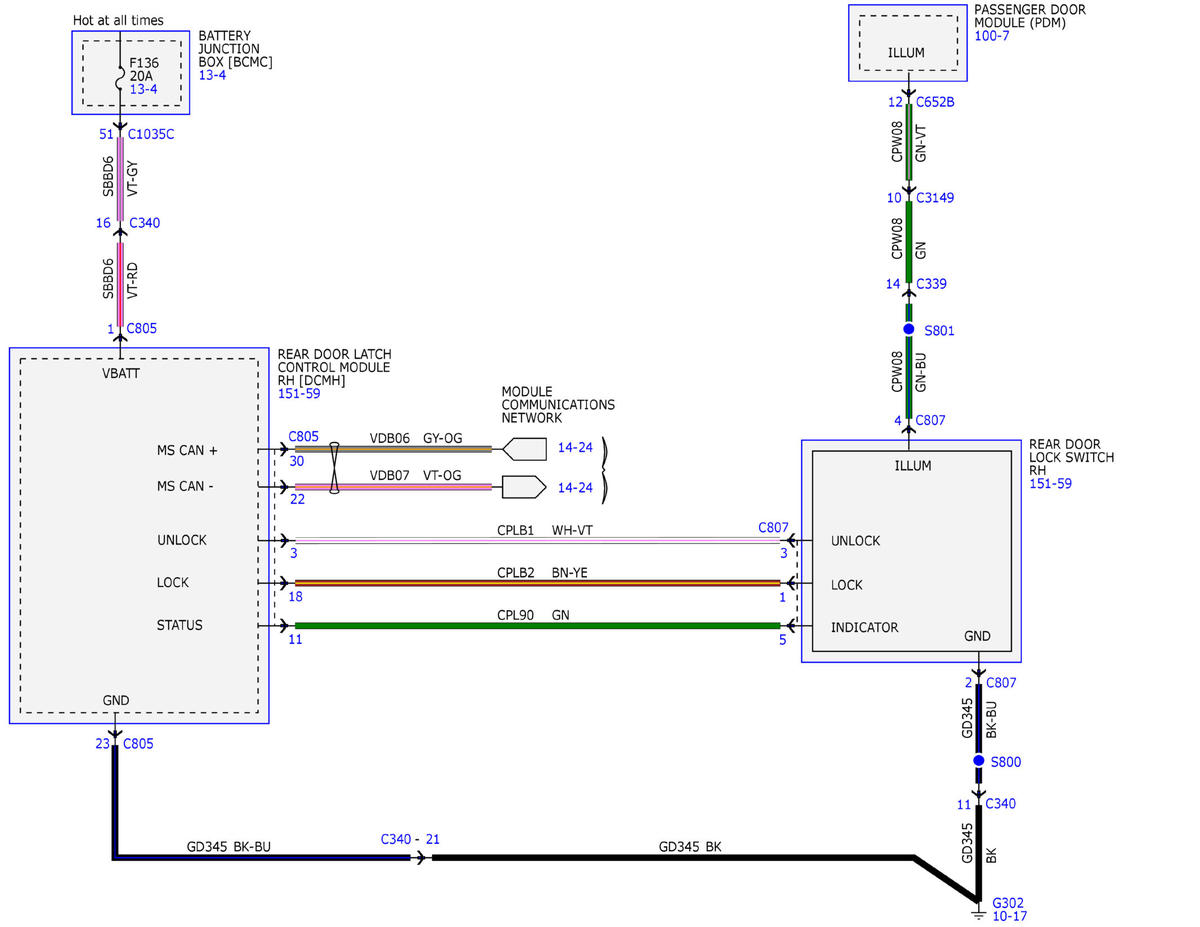

Fig 20: Remote Keyless Entry And Alarm Wiring Diagram (20 Of 28)

GFDWR111189

Courtesy of FORD MOTOR COMPANY

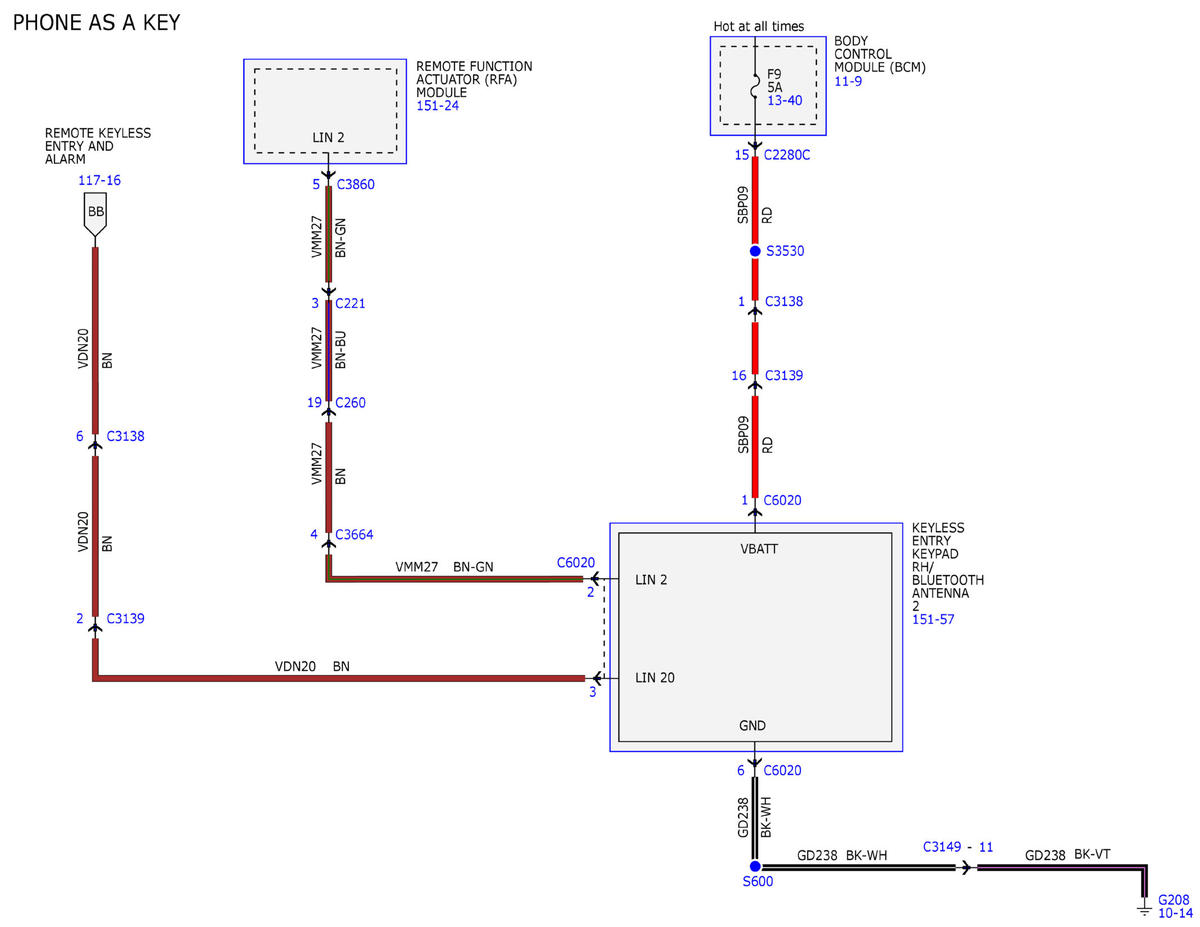

Fig 21: Remote Keyless Entry And Alarm Wiring Diagram (21 Of 28)

GFDWR111190

Courtesy of FORD MOTOR COMPANY

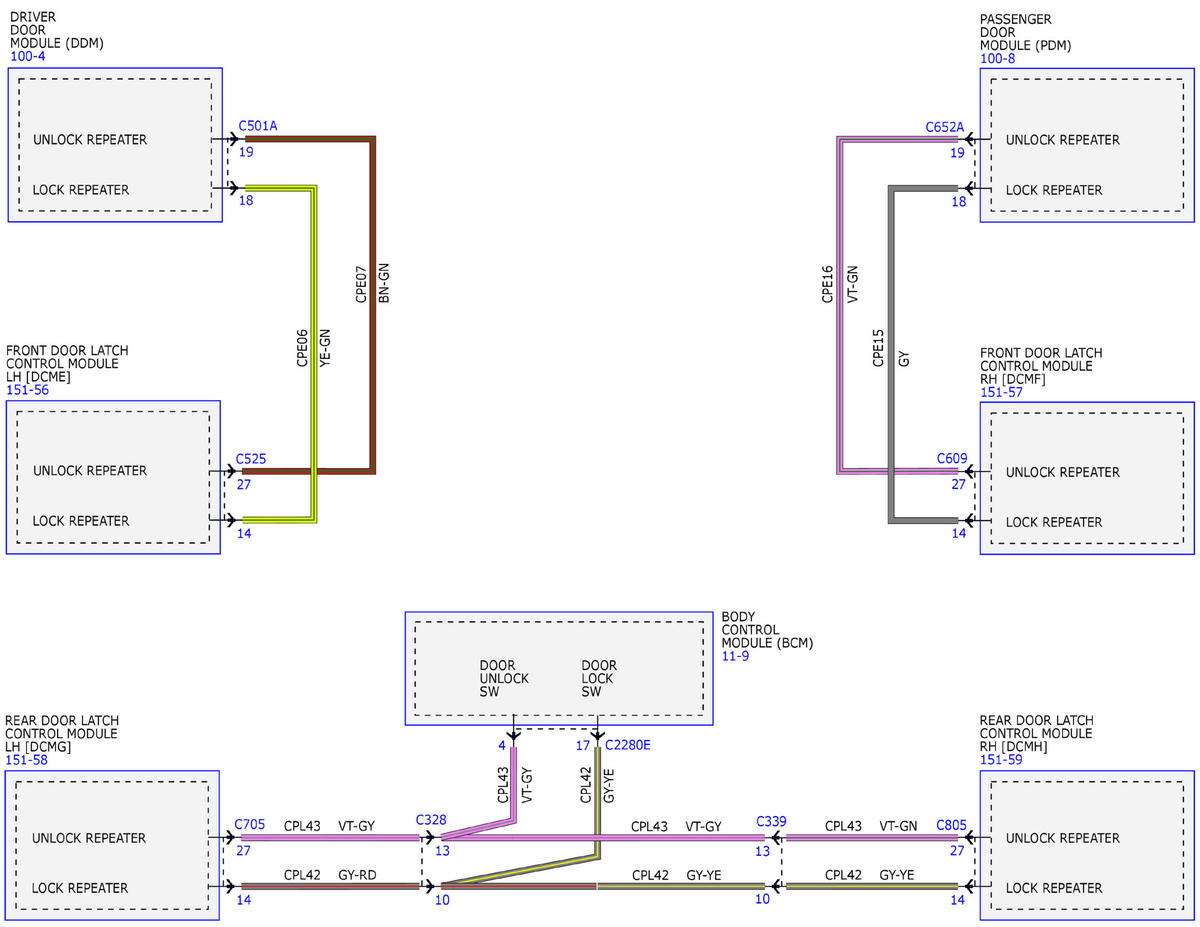

Fig 22: Remote Keyless Entry And Alarm Wiring Diagram (22 Of 28)

GFDWR111191

Courtesy of FORD MOTOR COMPANY

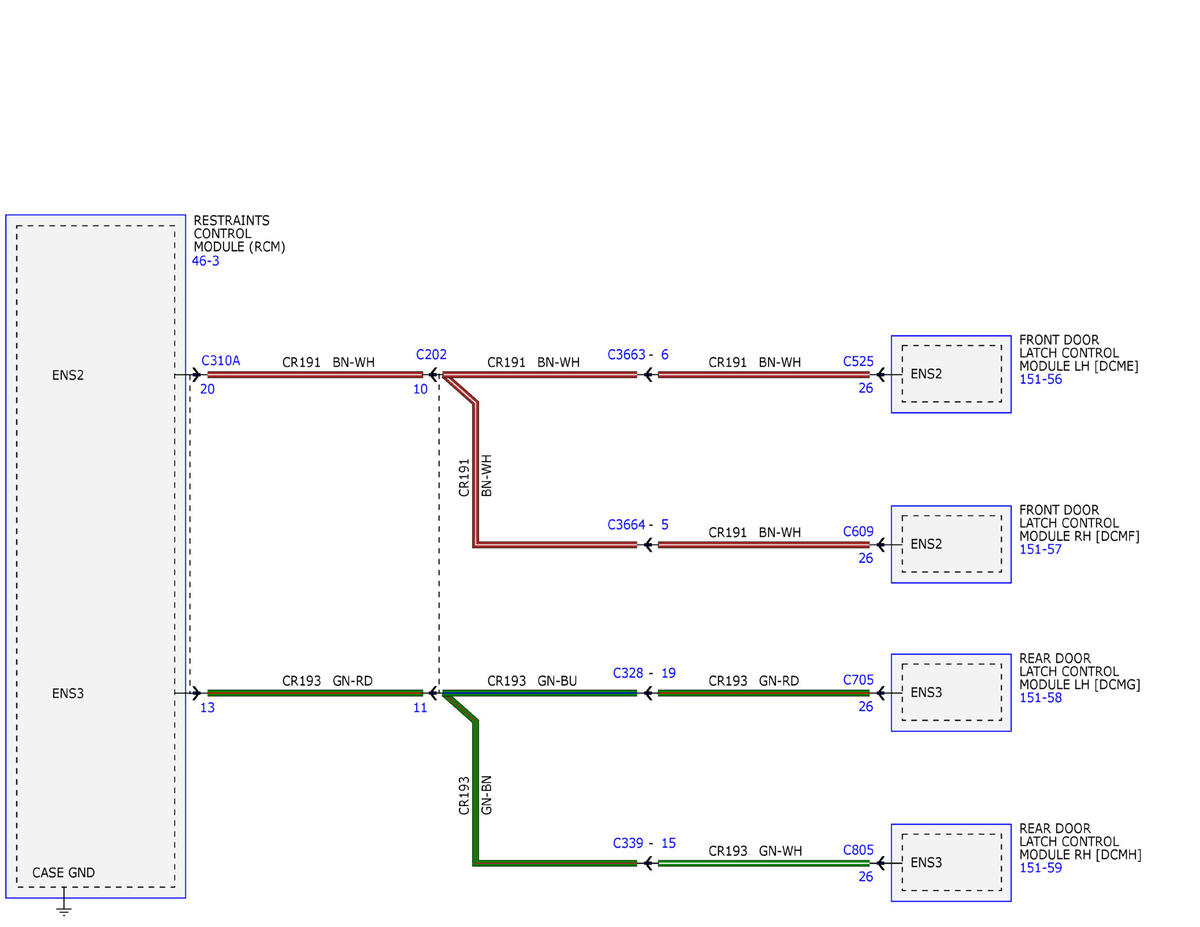

Fig 23: Remote Keyless Entry And Alarm Wiring Diagram (23 Of 28)

GFDWR111192

Courtesy of FORD MOTOR COMPANY

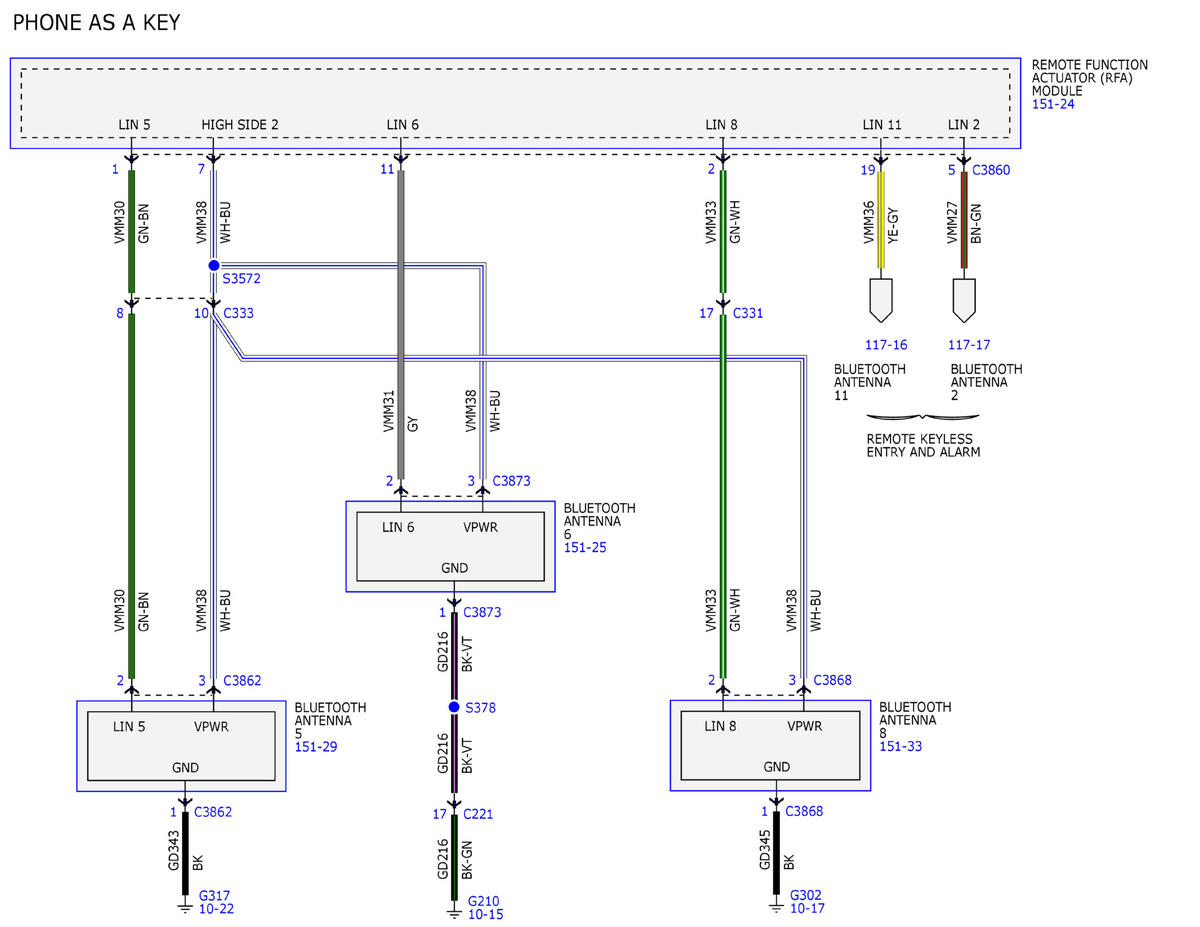

Fig 24: Remote Keyless Entry And Alarm Wiring Diagram (24 Of 28)

GFDWR111193

Courtesy of FORD MOTOR COMPANY

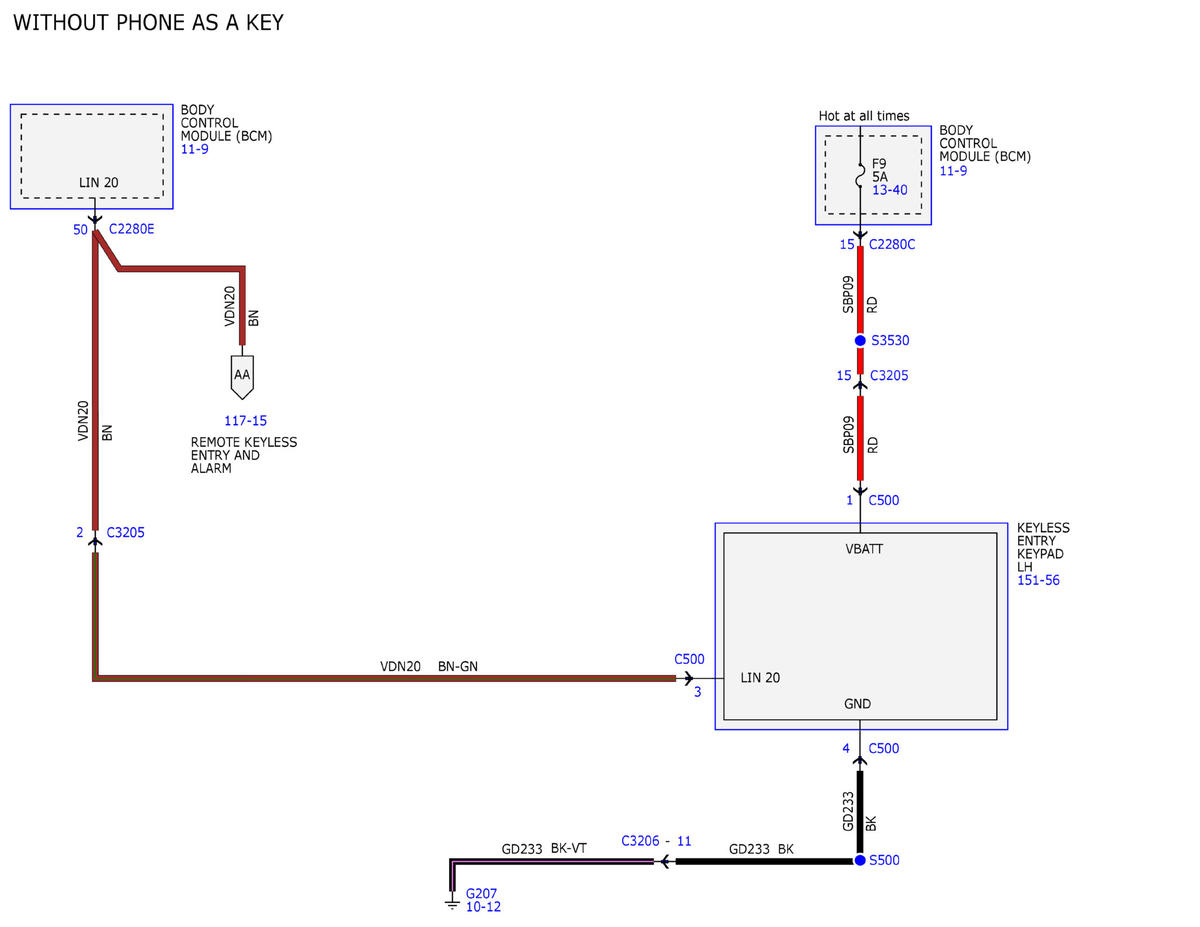

Fig 25: Remote Keyless Entry And Alarm Wiring Diagram (25 Of 28)

GFDWR111194

Courtesy of FORD MOTOR COMPANY

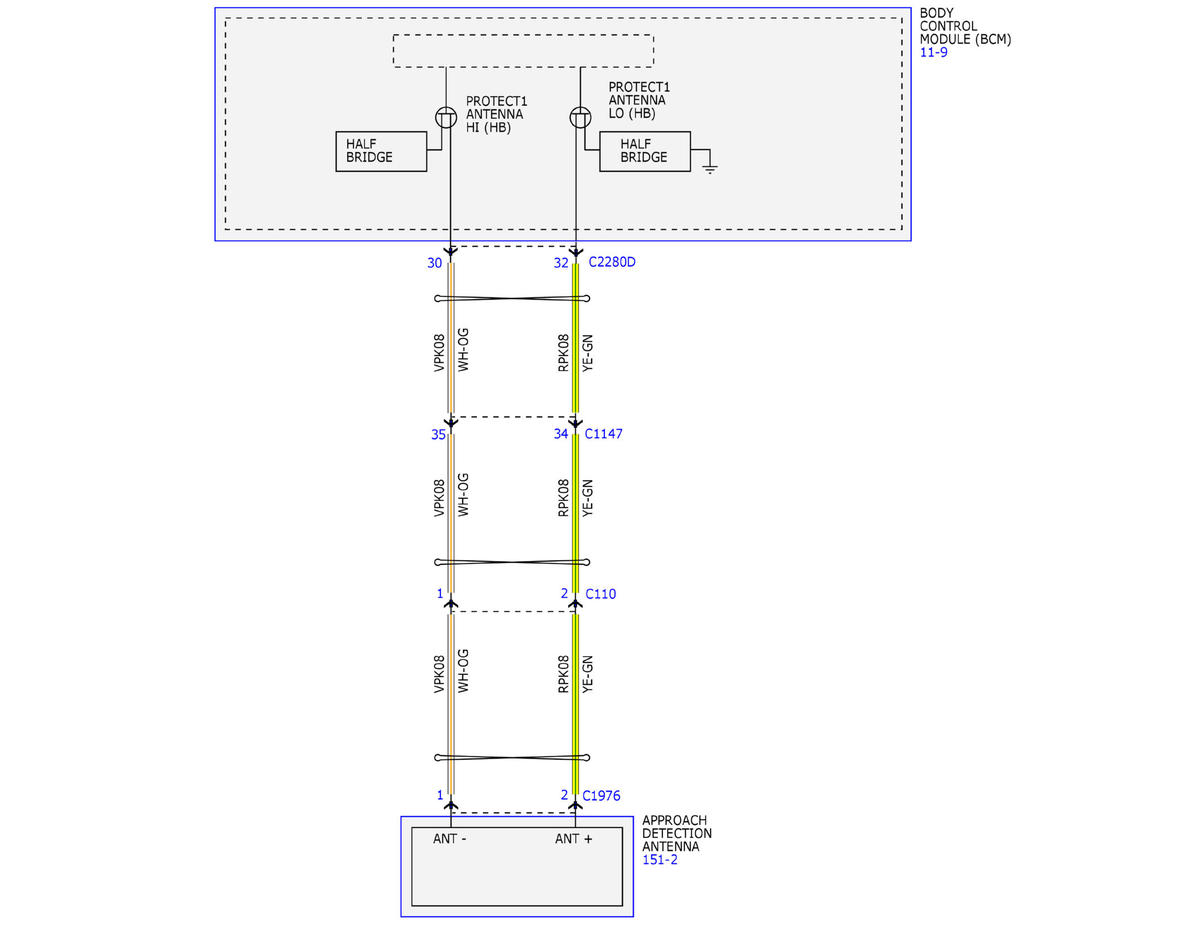

Fig 26: Remote Keyless Entry And Alarm Wiring Diagram (26 Of 28)

GFDWR111195

Courtesy of FORD MOTOR COMPANY

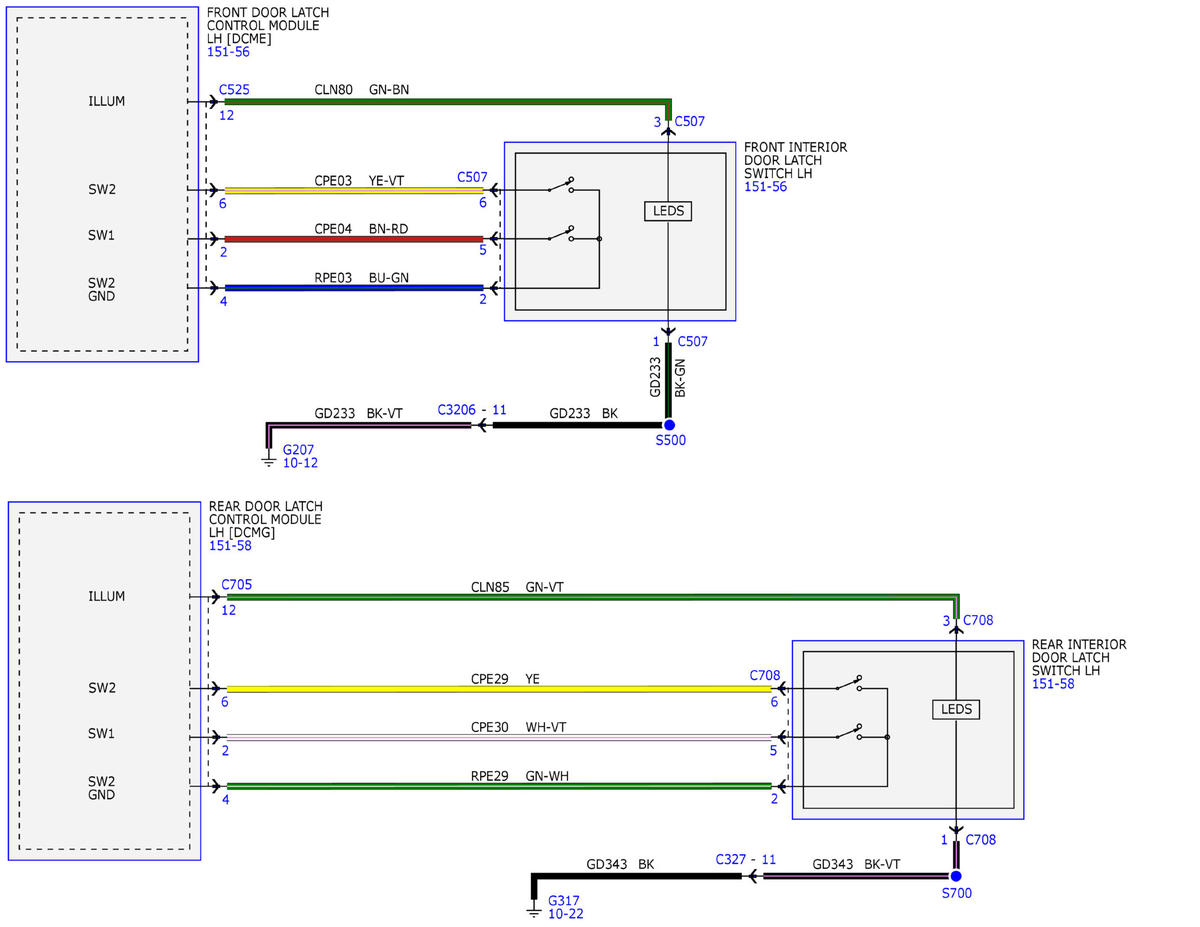

Fig 27: Remote Keyless Entry And Alarm Wiring Diagram (27 Of 28)

GFDWR111196

Courtesy of FORD MOTOR COMPANY

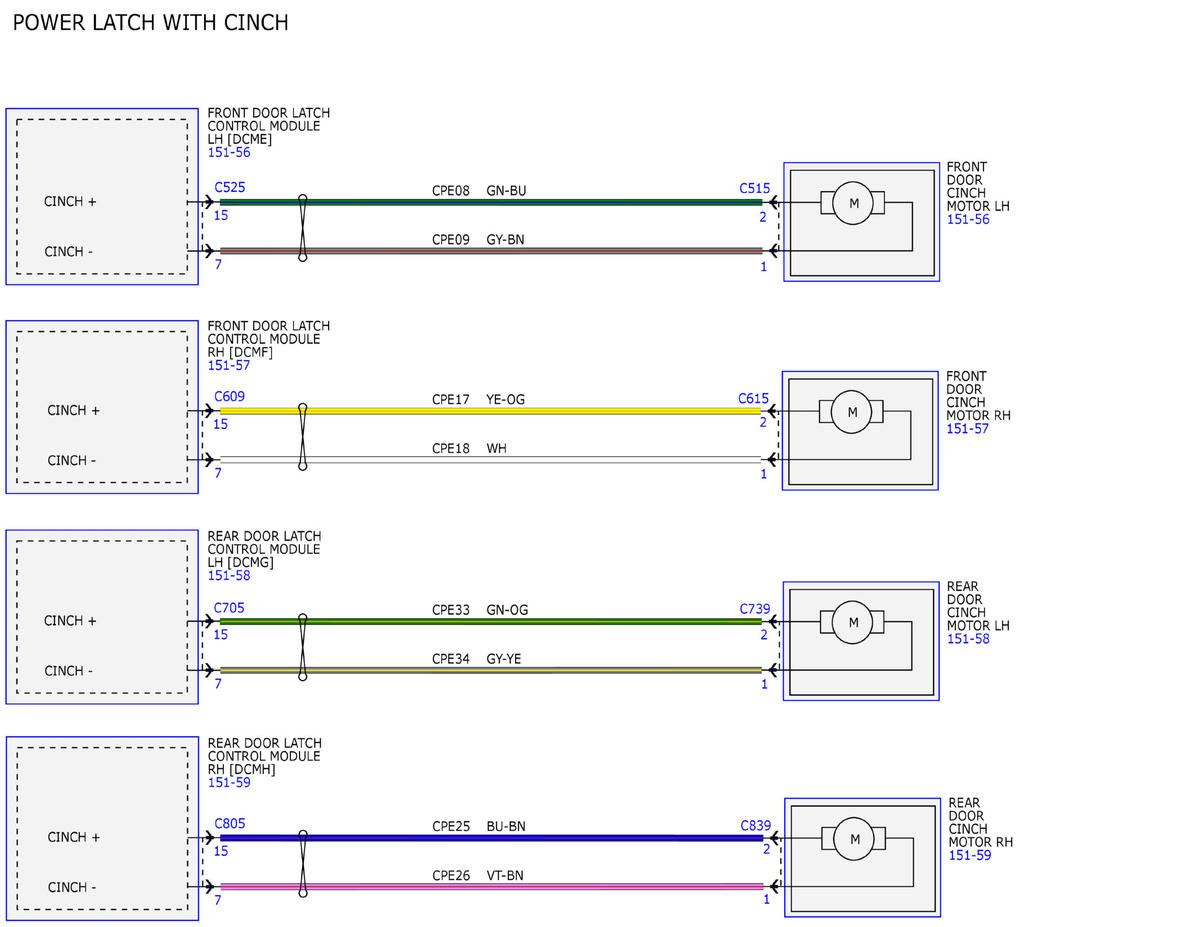

Fig 28: Remote Keyless Entry And Alarm Wiring Diagram (28 Of 28)

GFDWR111197

Courtesy of FORD MOTOR COMPANY
