Power Windows

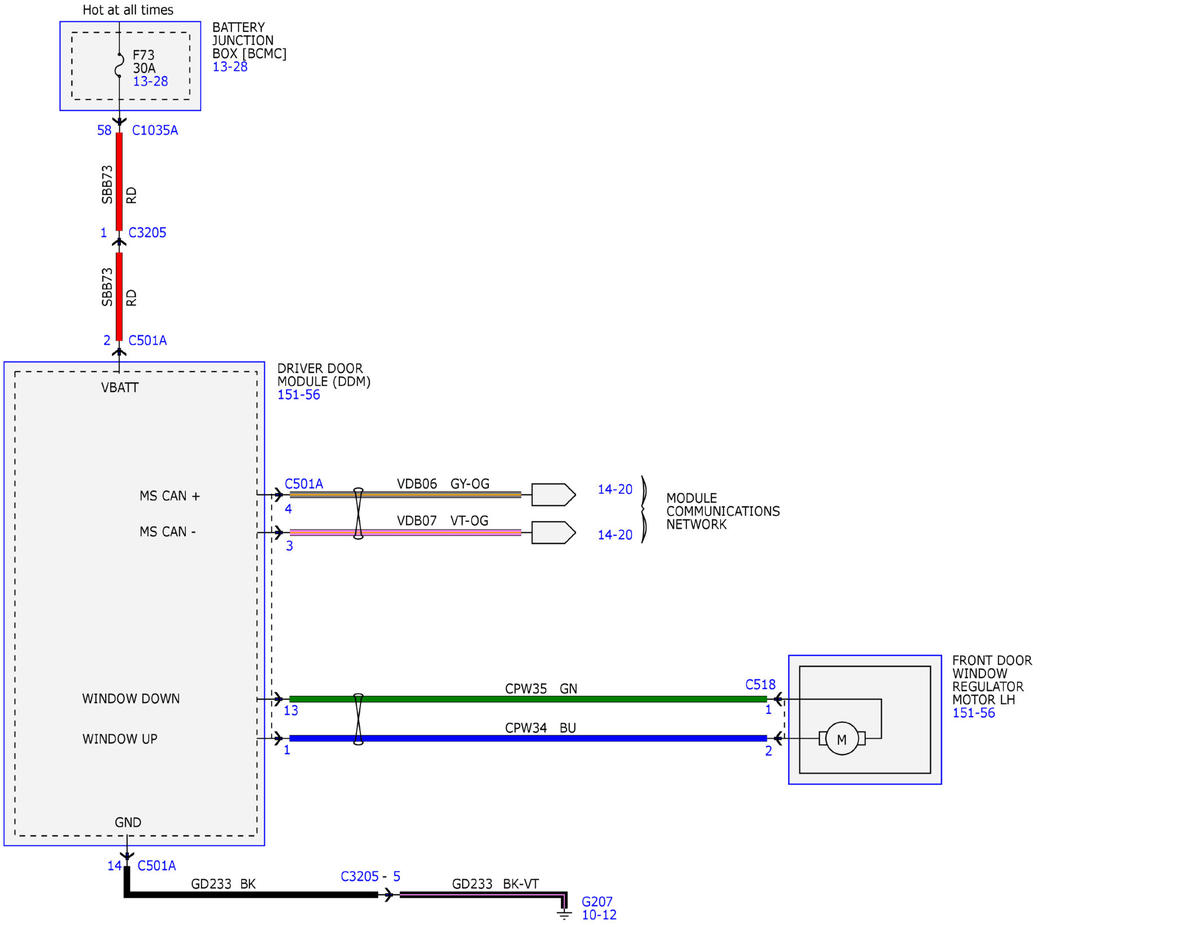

Fig 1: Power Windows Wiring Diagram (1 Of 8)
GFDWR111162Courtesy of FORD MOTOR COMPANY

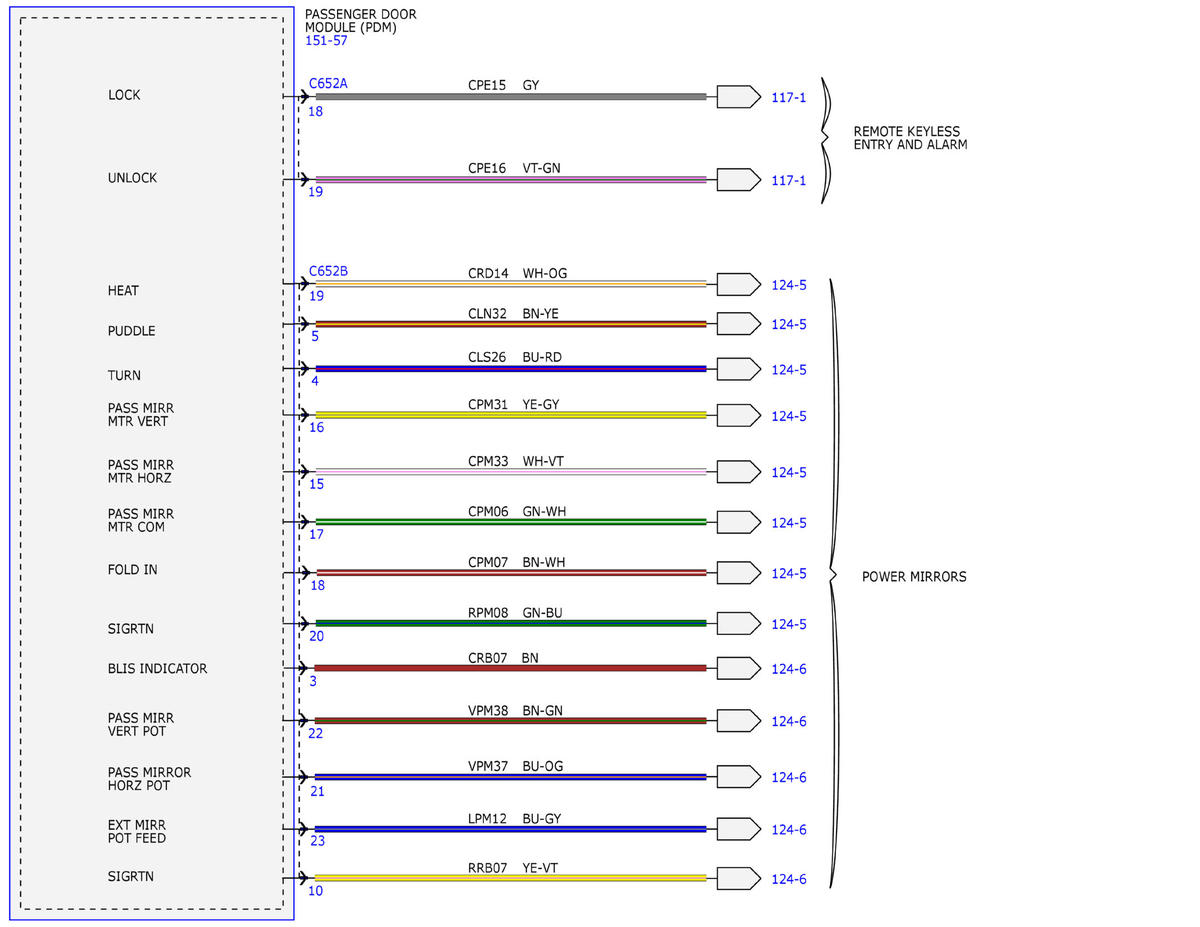

Fig 2: Power Windows Wiring Diagram (2 Of 8)
GFDWR111163Courtesy of FORD MOTOR COMPANY

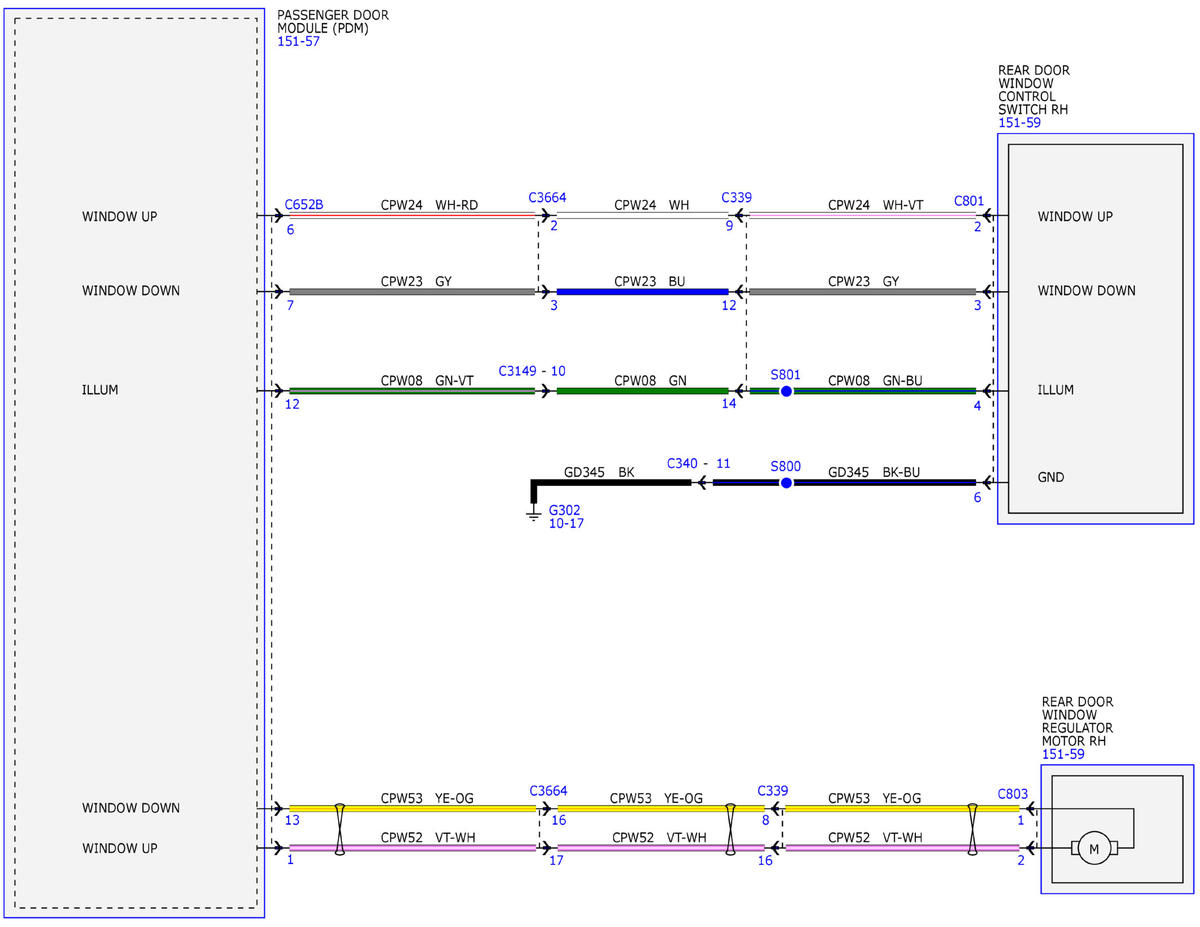

Fig 3: Power Windows Wiring Diagram (3 Of 8)
GFDWR111164Courtesy of FORD MOTOR COMPANY

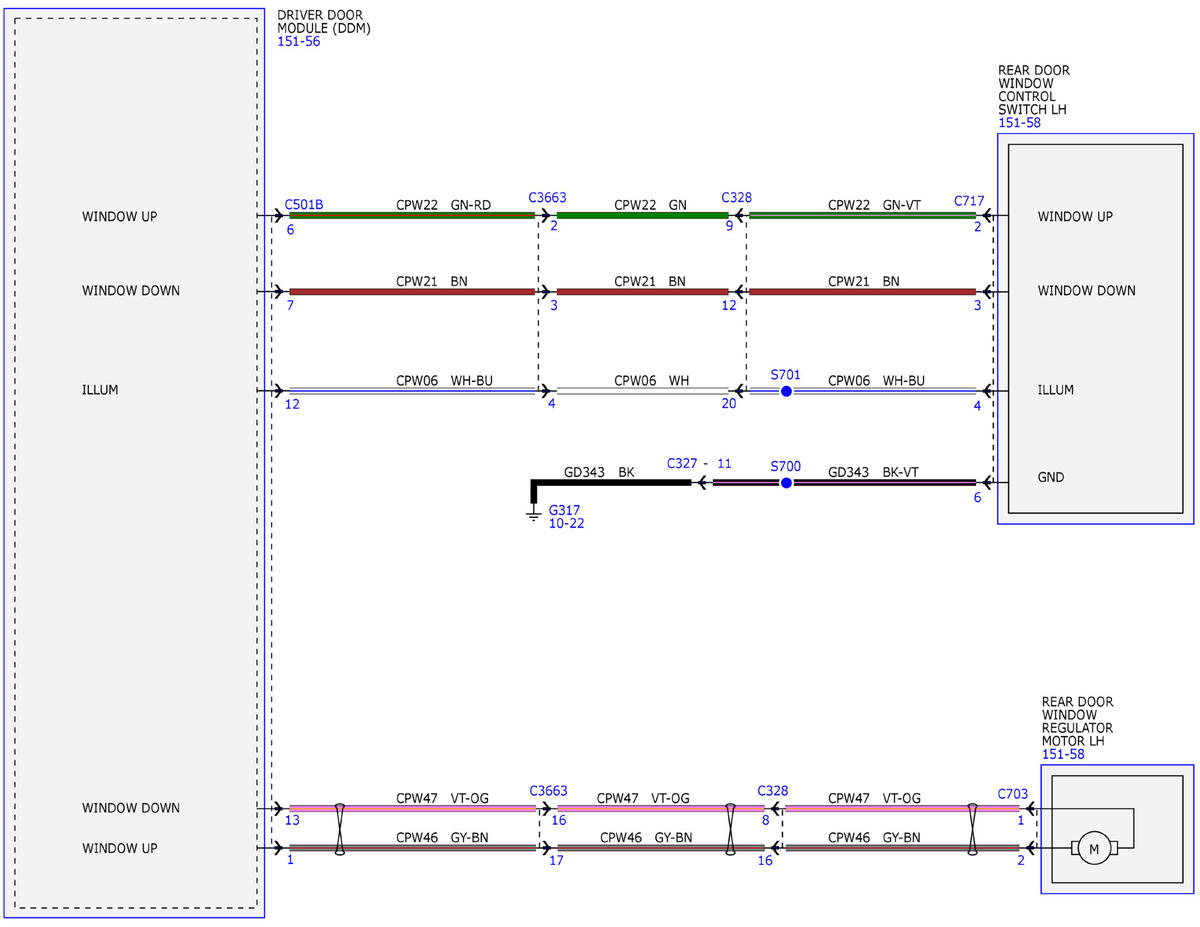

Fig 4: Power Windows Wiring Diagram (4 Of 8)
GFDWR111165Courtesy of FORD MOTOR COMPANY

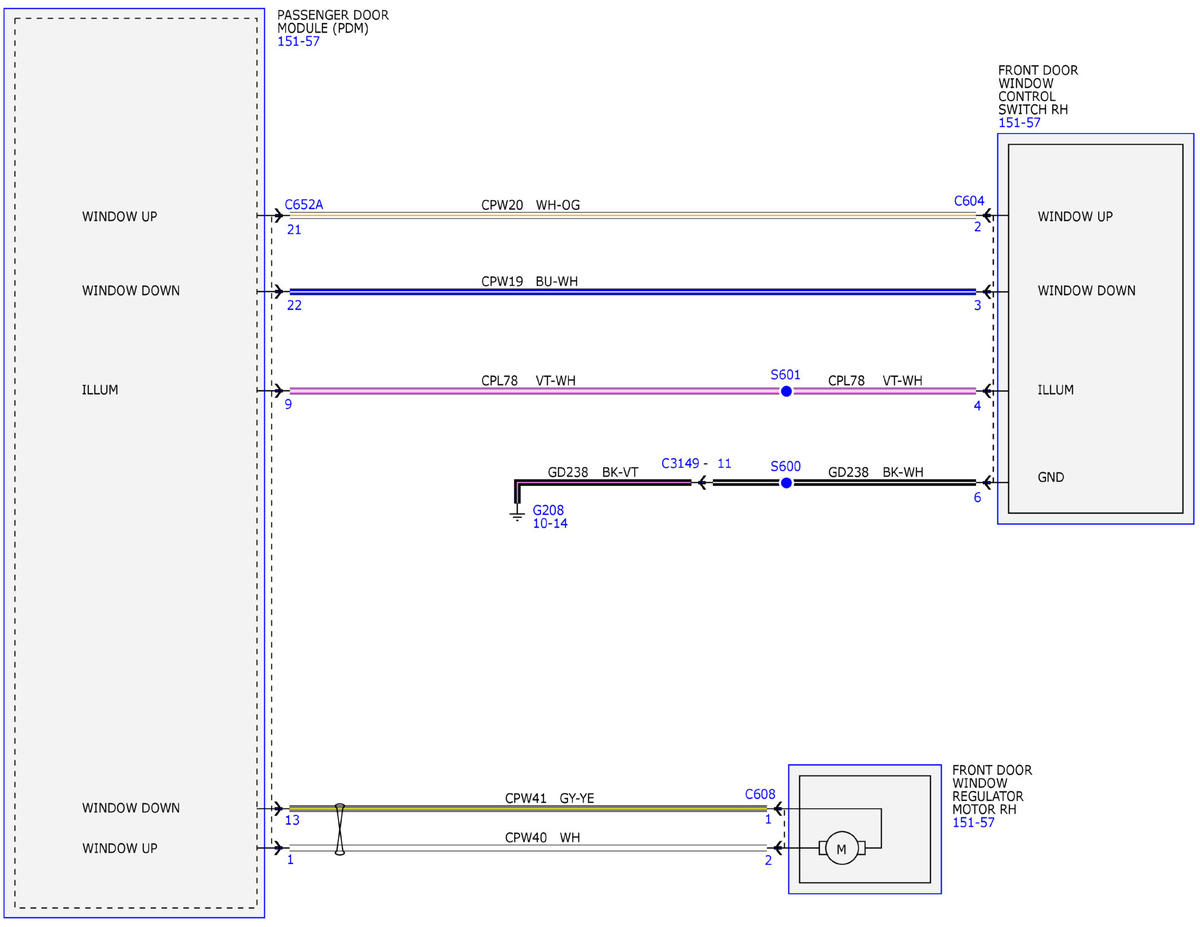

Fig 5: Power Windows Wiring Diagram (5 Of 8)
GFDWR111166Courtesy of FORD MOTOR COMPANY

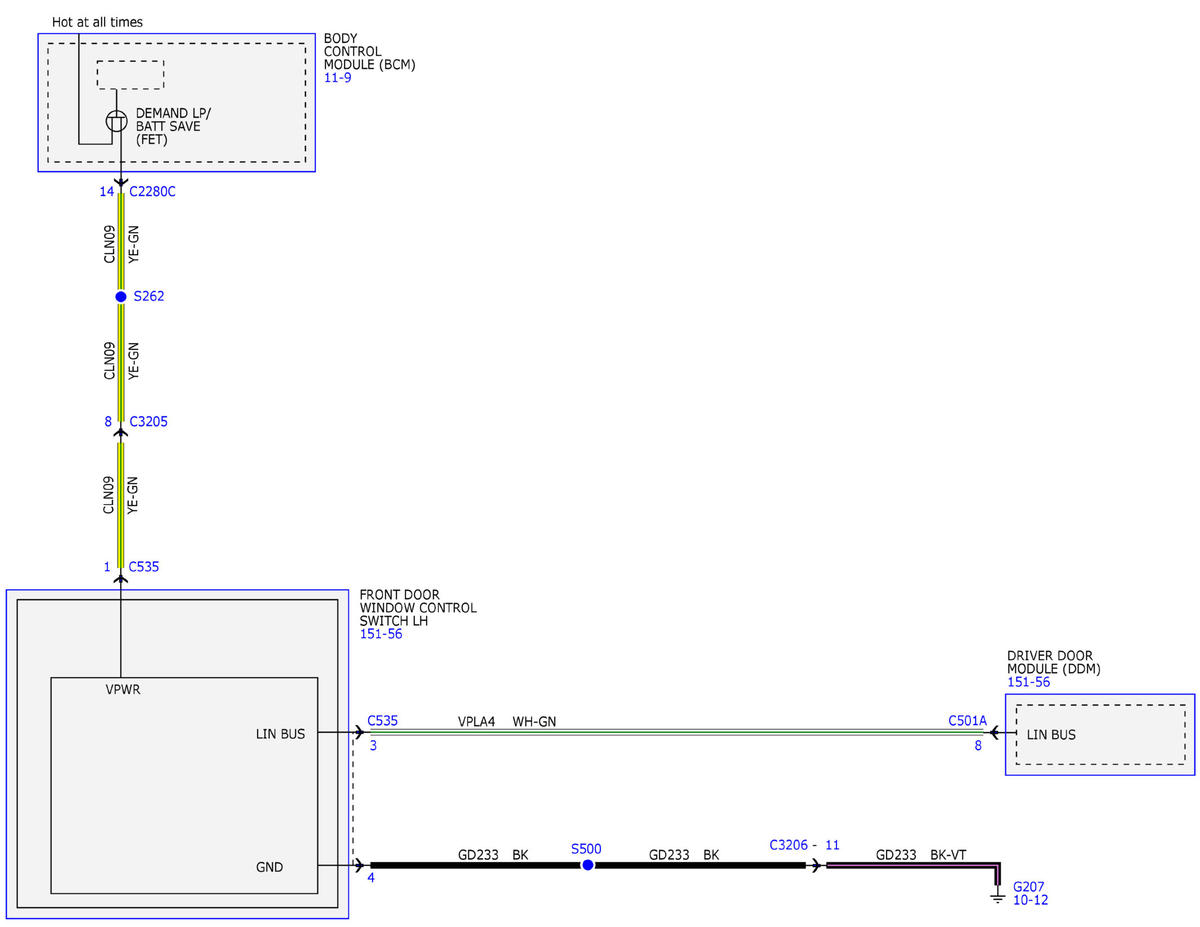

Fig 6: Power Windows Wiring Diagram (6 Of 8)
GFDWR111167Courtesy of FORD MOTOR COMPANY

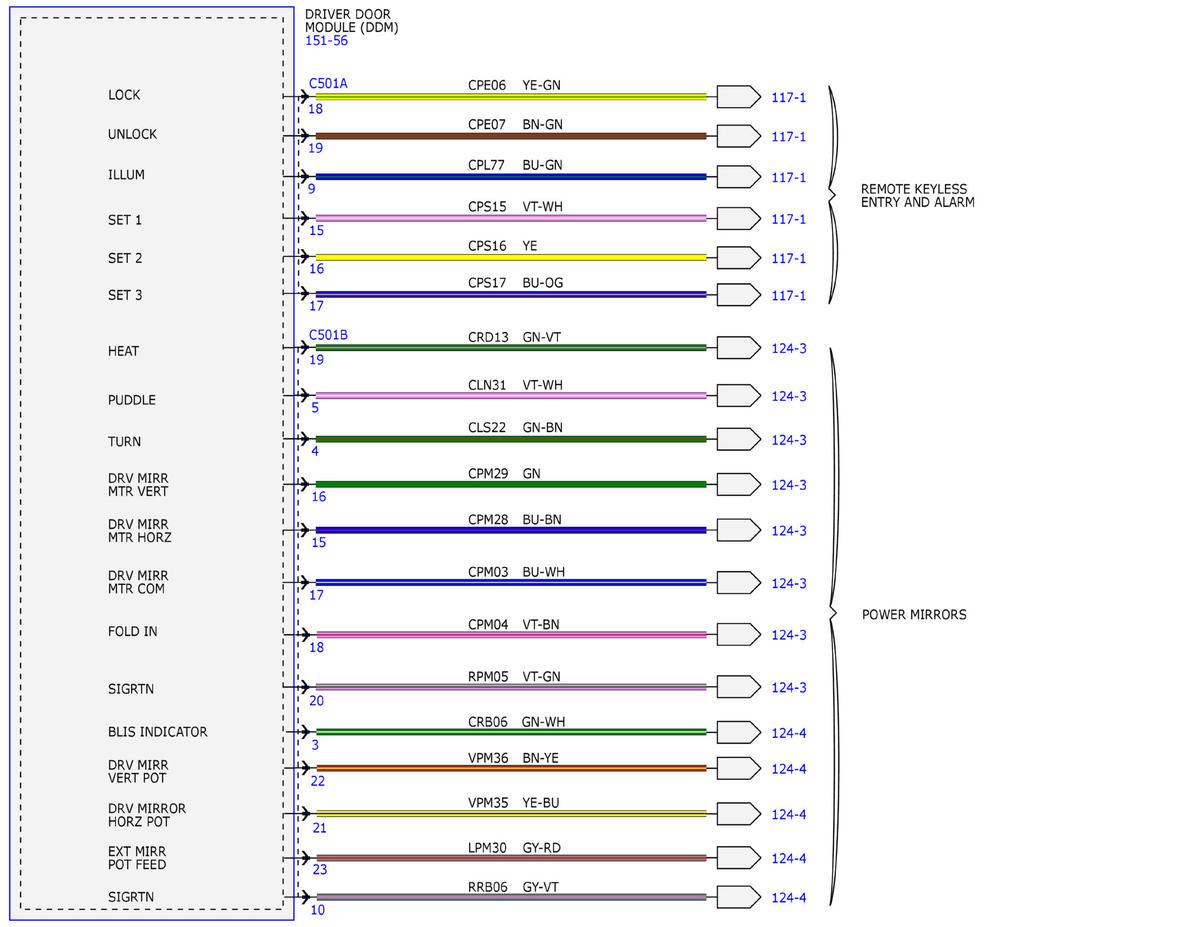

Fig 7: Power Windows Wiring Diagram (7 Of 8)
GFDWR111168Courtesy of FORD MOTOR COMPANY

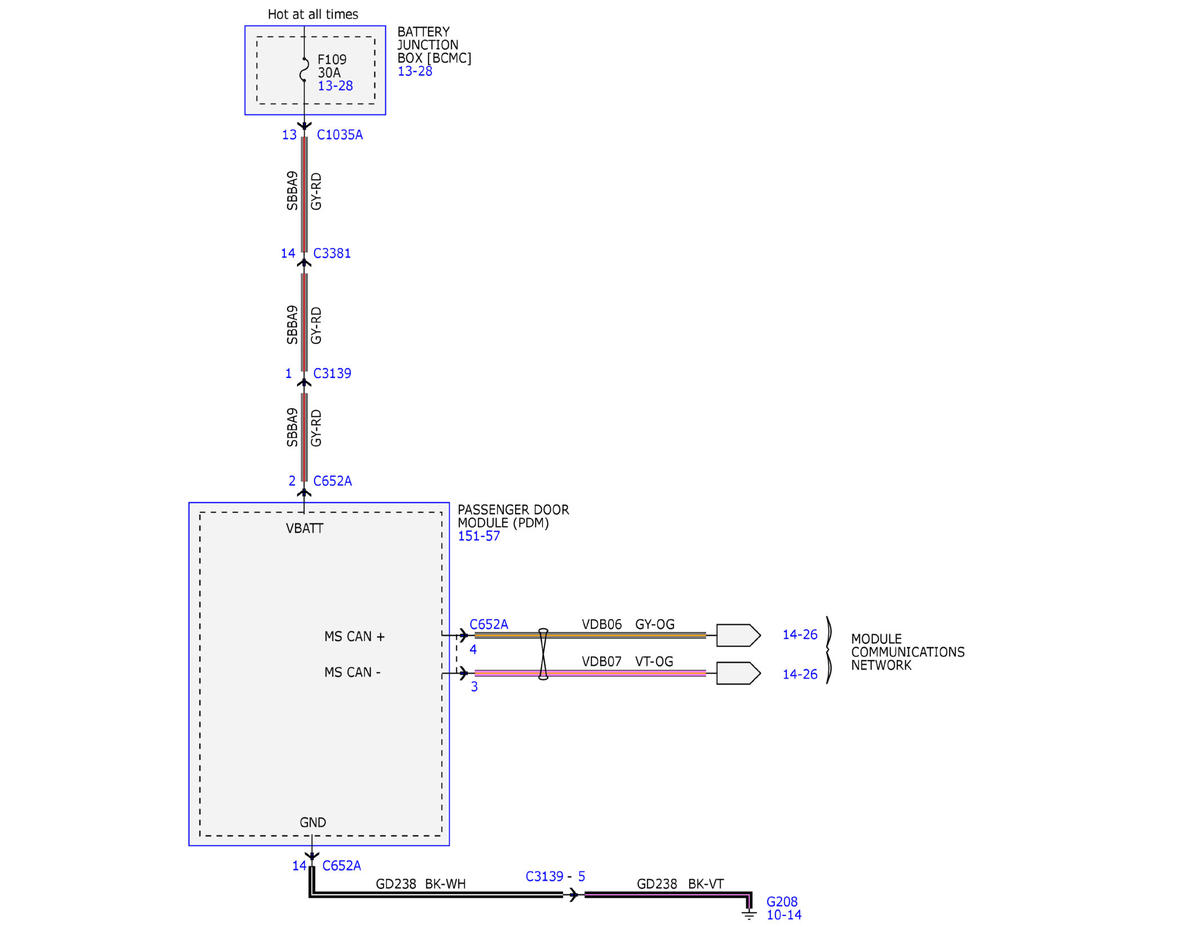

Fig 8: Power Windows Wiring Diagram (8 Of 8)
GFDWR111169Courtesy of FORD MOTOR COMPANY
