Power Steering Controls
Power Steering Controls

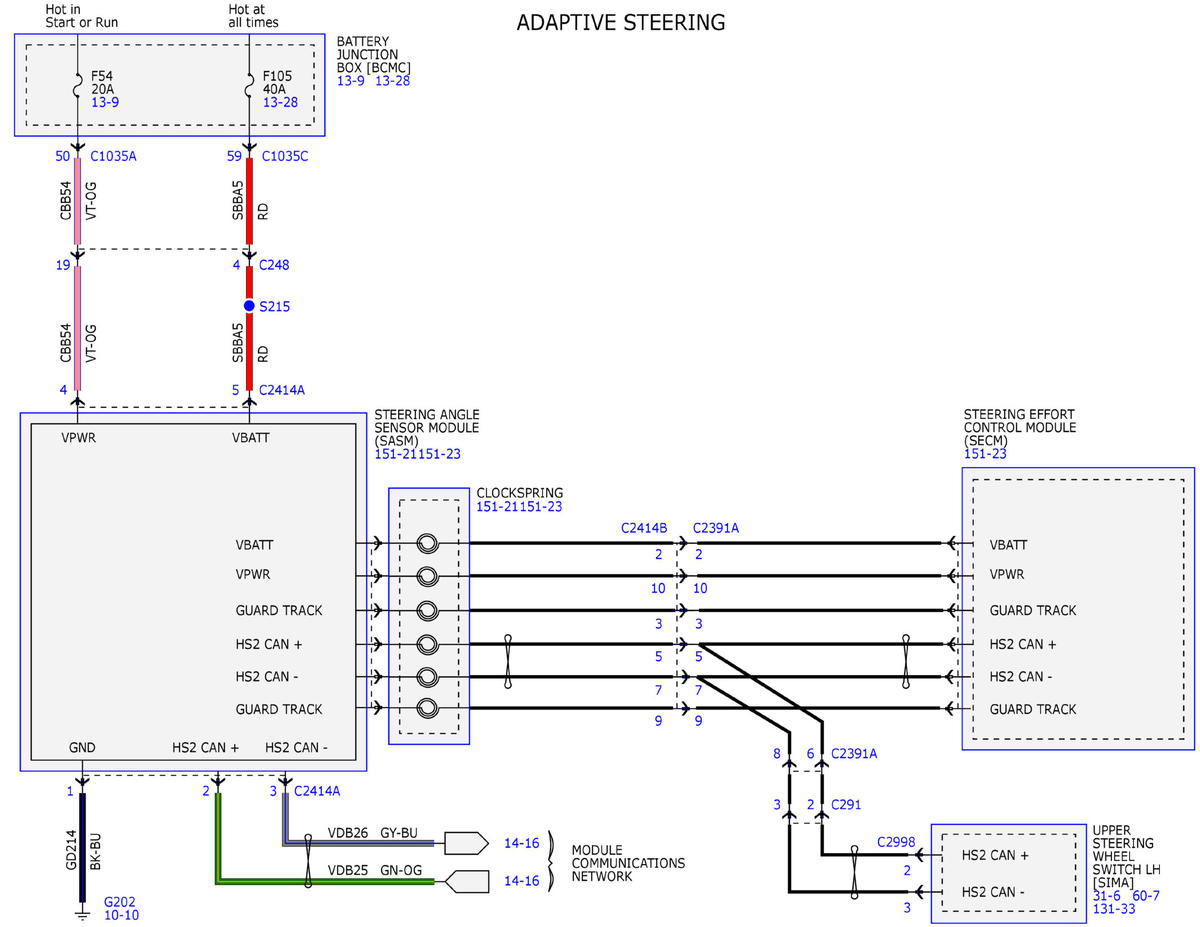

Fig 1: Power Steering Controls Wiring Diagram (1 Of 3)
Courtesy of FORD MOTOR COMPANY

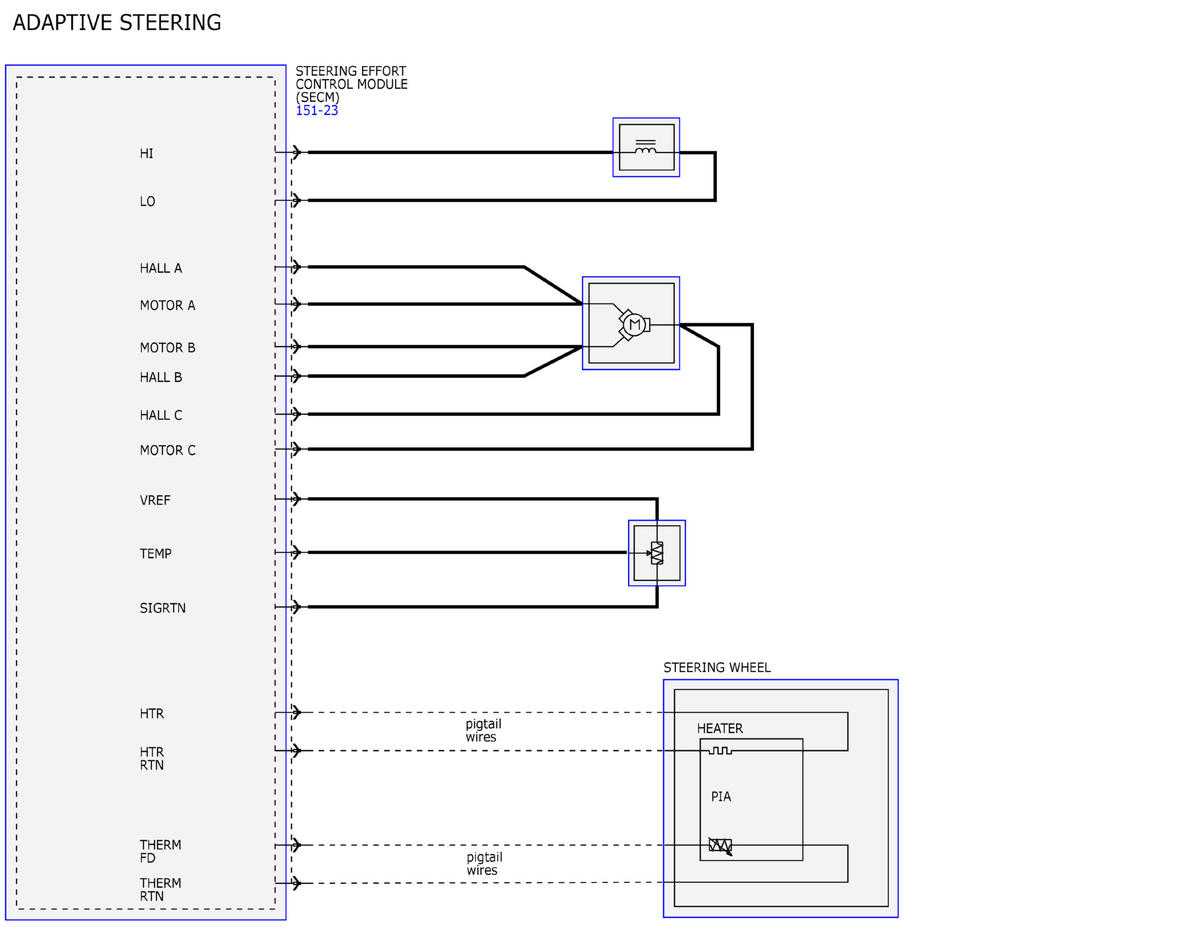

Fig 2: Power Steering Controls Wiring Diagram (2 Of 3)
Courtesy of FORD MOTOR COMPANY

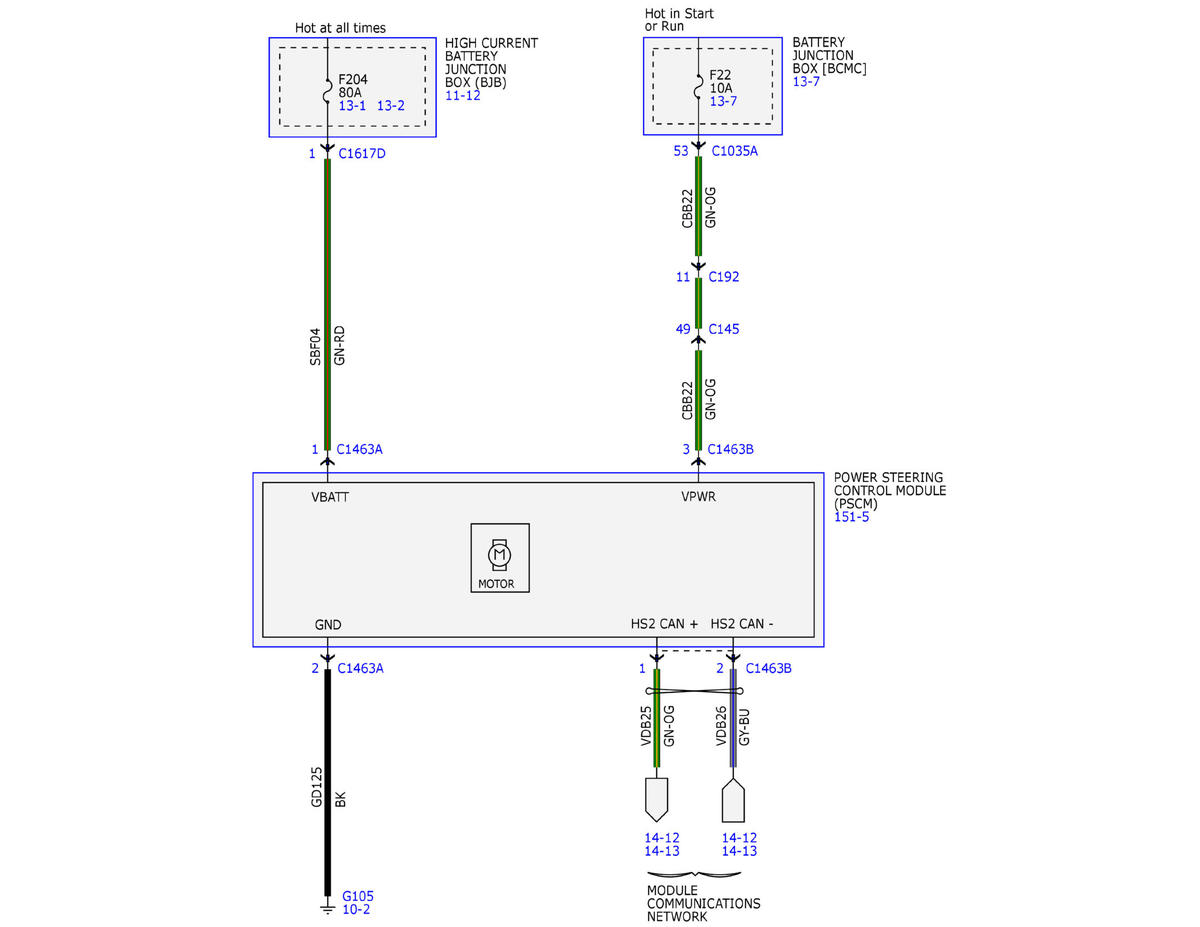

Fig 3: Power Steering Controls Wiring Diagram (3 Of 3)
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
