Power Liftgate

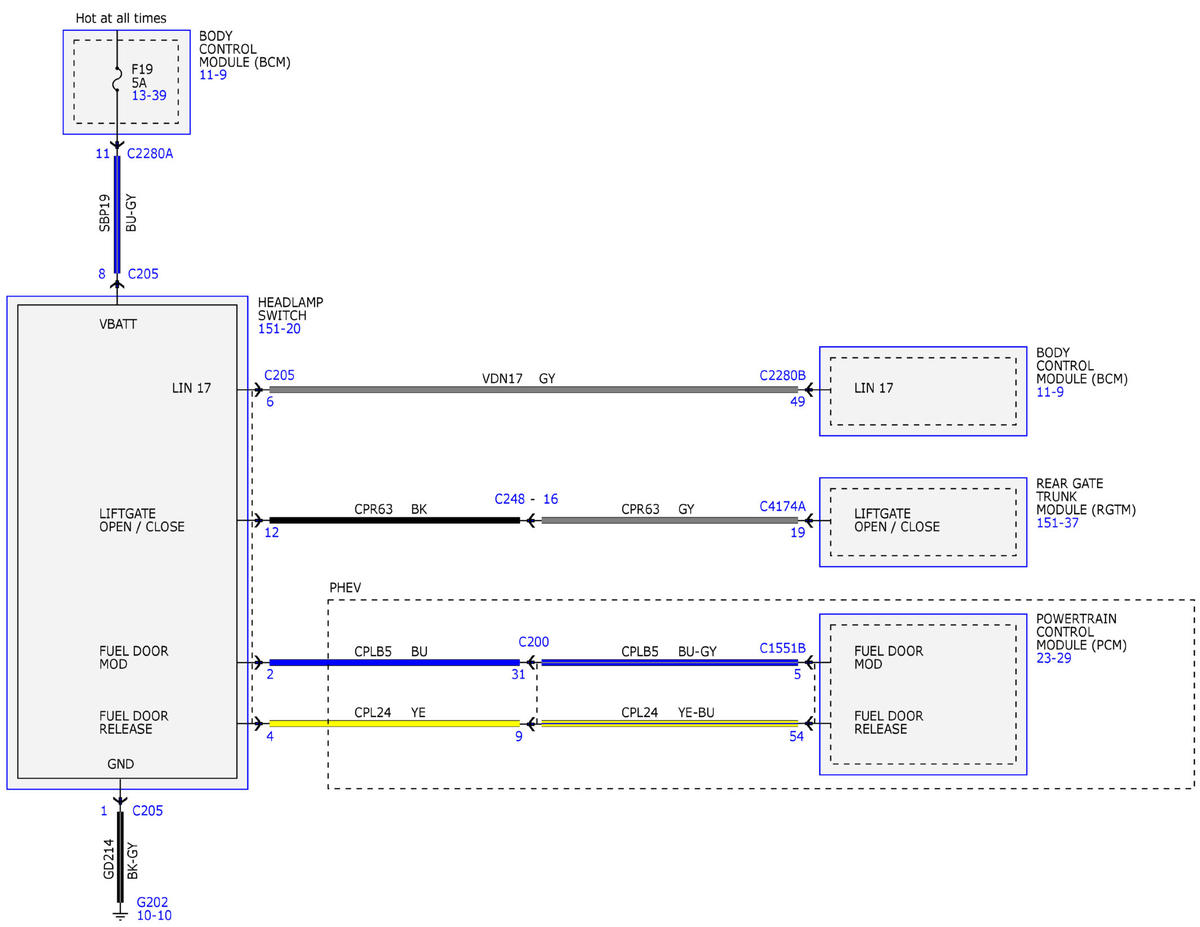

Fig 1: Power Liftgate Wiring Diagram (1 Of 8)
GFDWR111130Courtesy of FORD MOTOR COMPANY

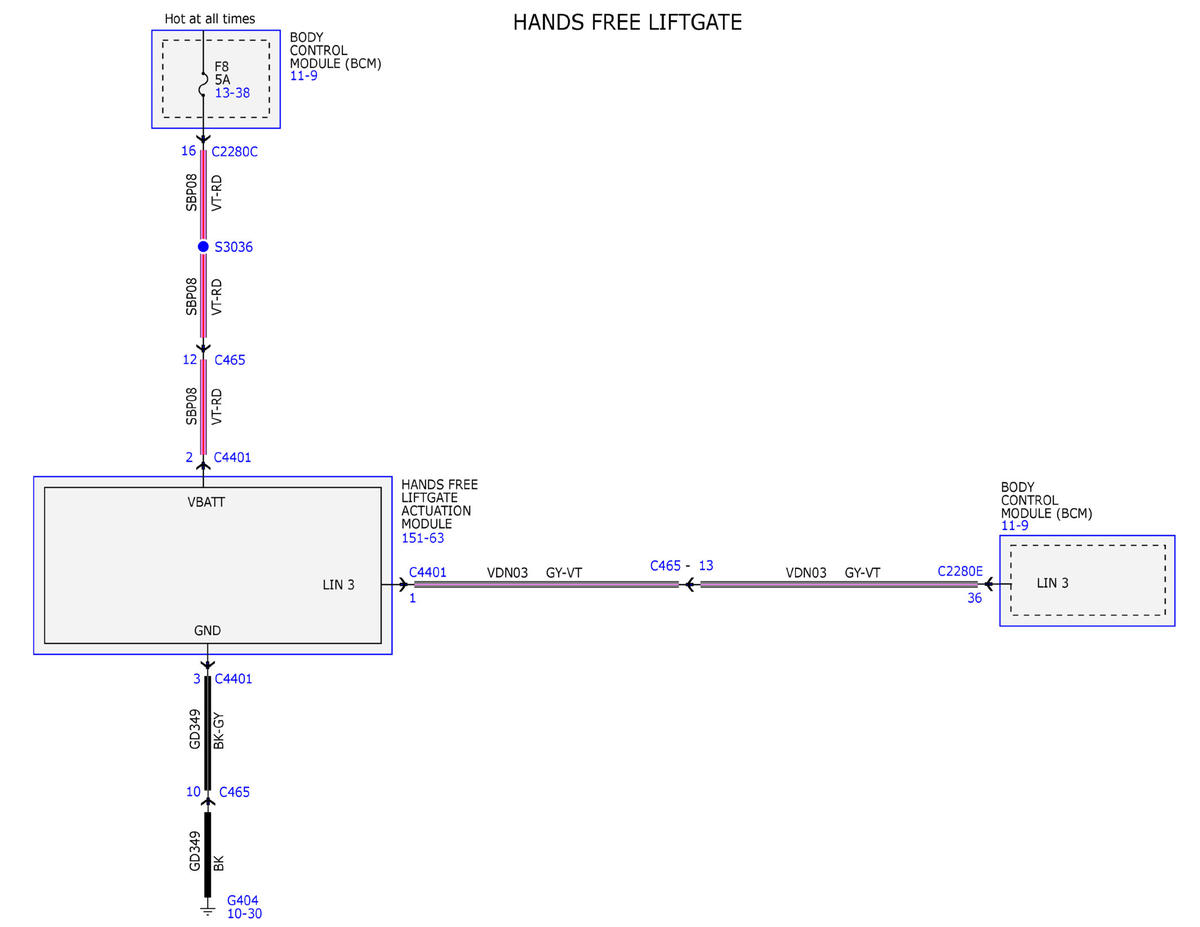

Fig 2: Power Liftgate Wiring Diagram (2 Of 8)
GFDWR111131Courtesy of FORD MOTOR COMPANY

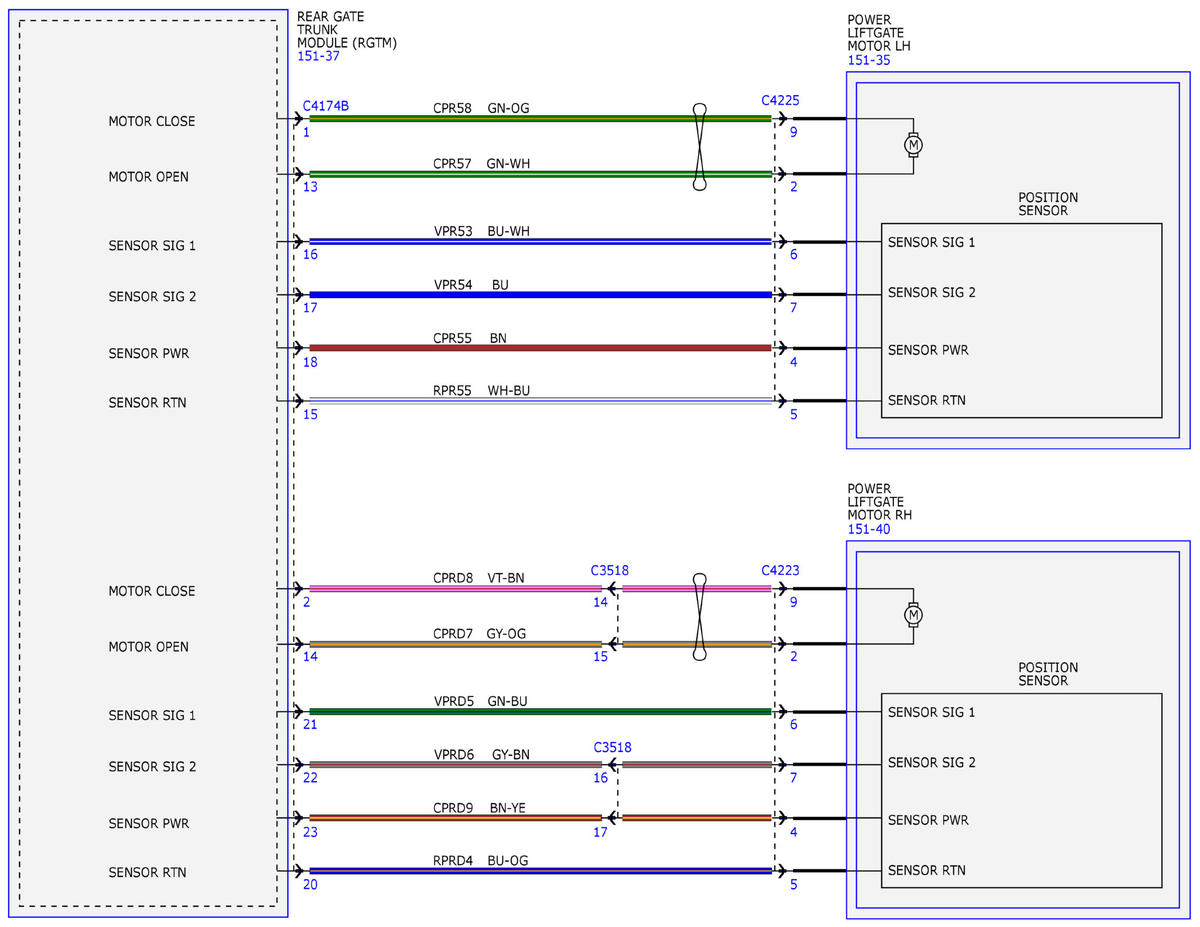

Fig 3: Power Liftgate Wiring Diagram (3 Of 8)
GFDWR111132Courtesy of FORD MOTOR COMPANY

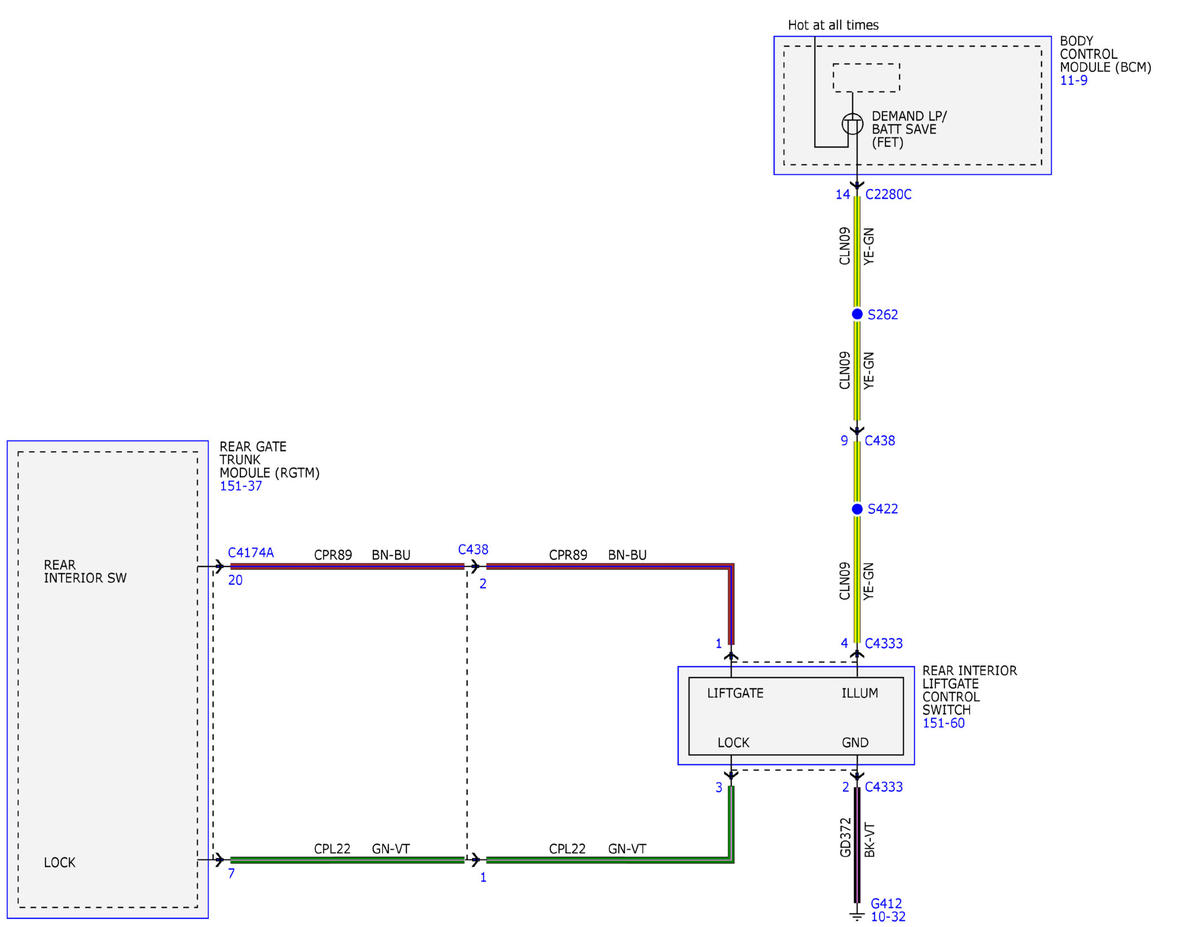

Fig 4: Power Liftgate Wiring Diagram (4 Of 8)
GFDWR111133Courtesy of FORD MOTOR COMPANY

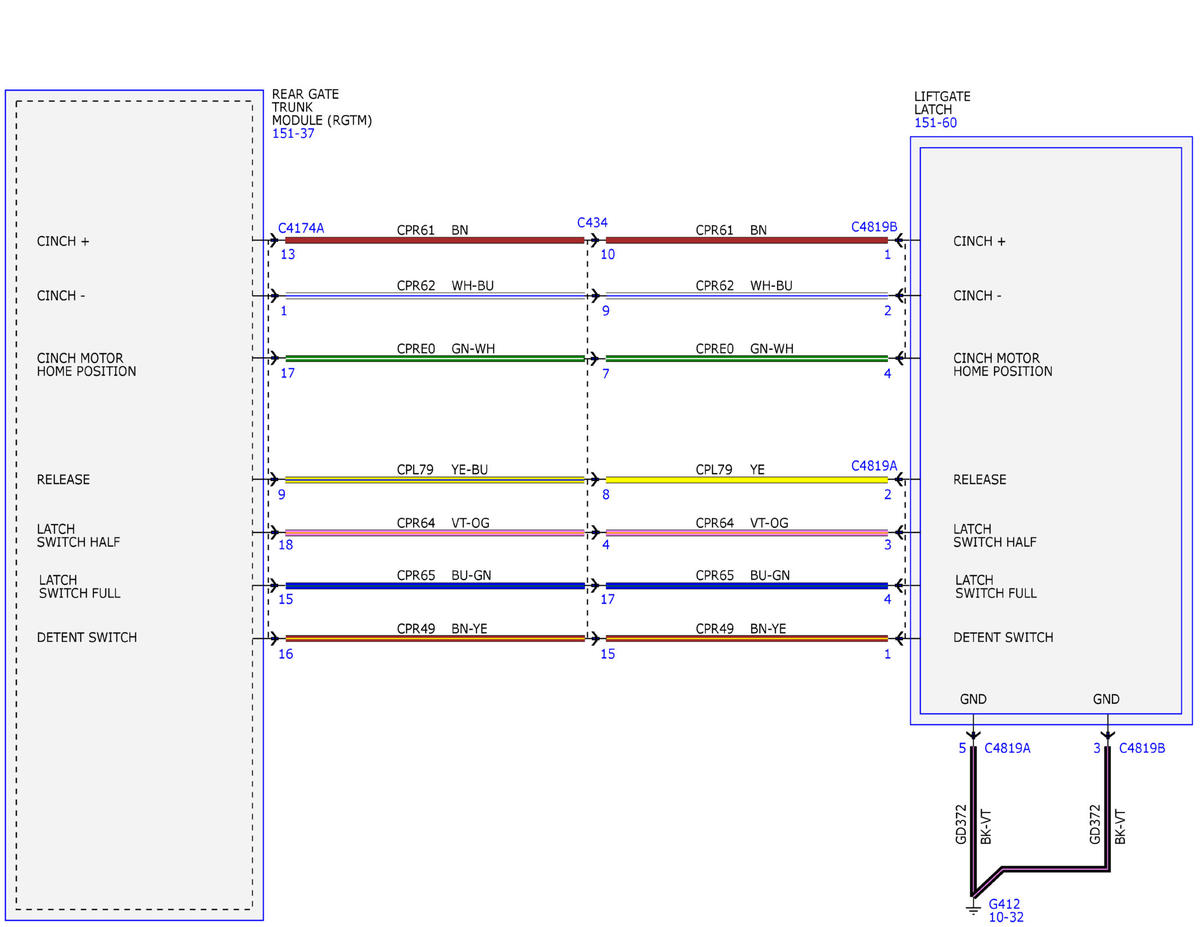

Fig 5: Power Liftgate Wiring Diagram (5 Of 8)
GFDWR111134Courtesy of FORD MOTOR COMPANY

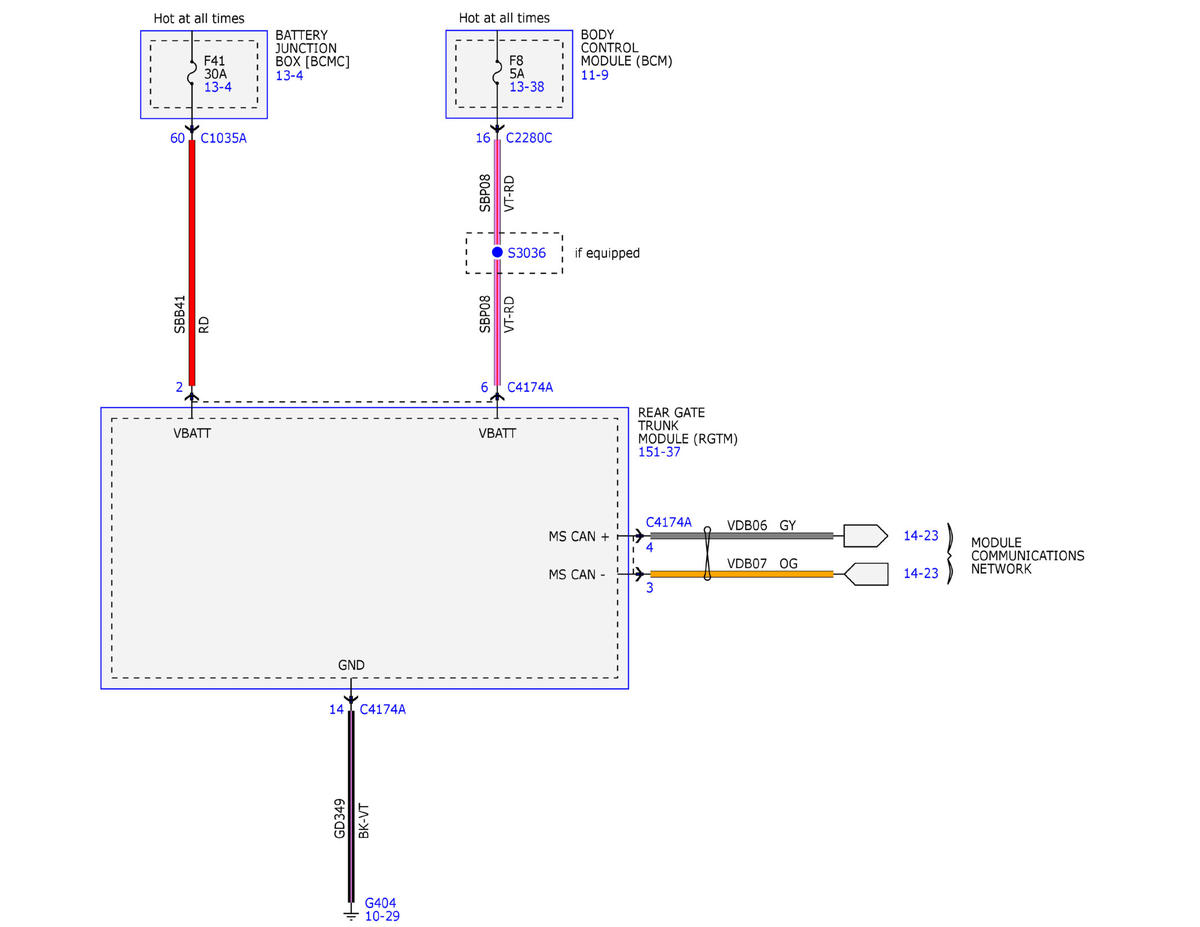

Fig 6: Power Liftgate Wiring Diagram (6 Of 8)
GFDWR111135Courtesy of FORD MOTOR COMPANY

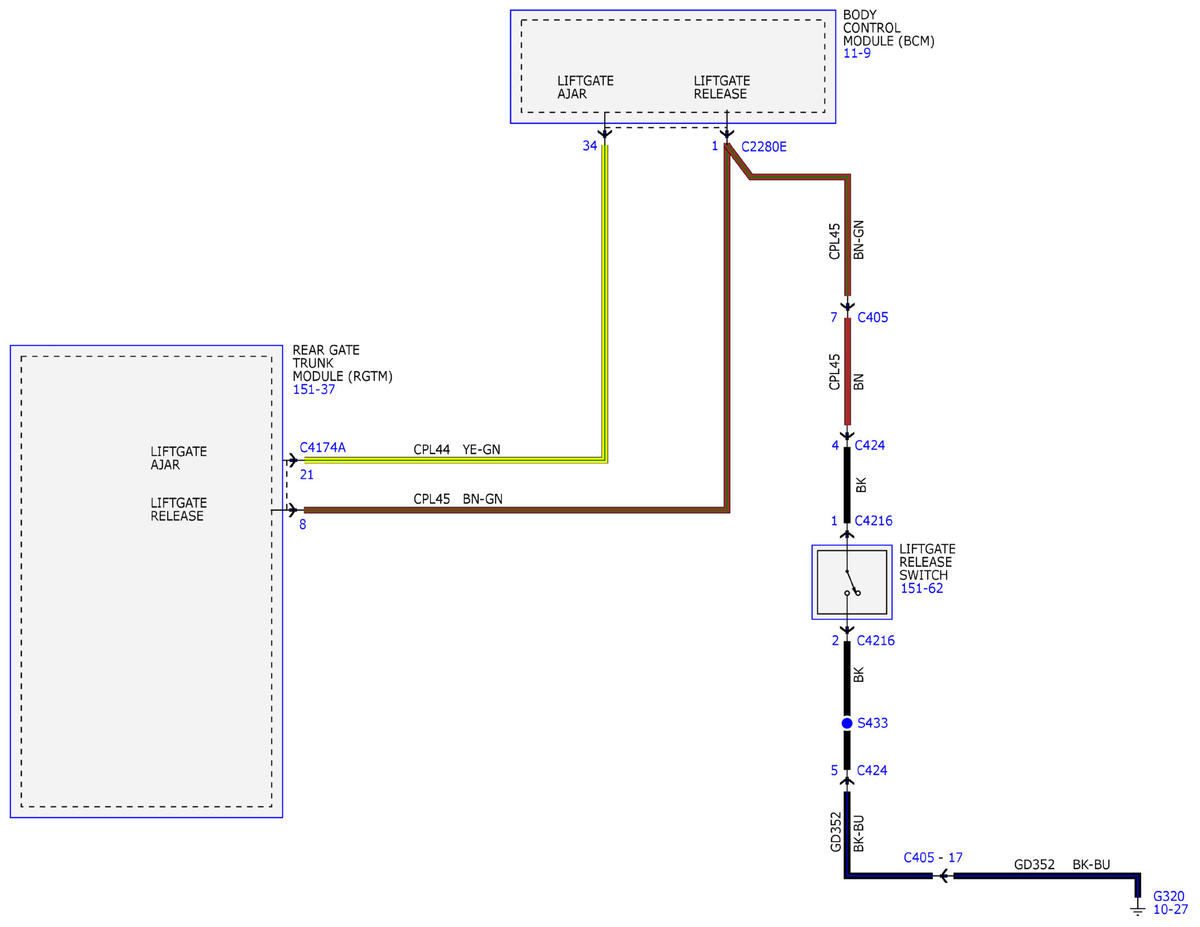

Fig 7: Power Liftgate Wiring Diagram (7 Of 8)
GFDWR111136Courtesy of FORD MOTOR COMPANY

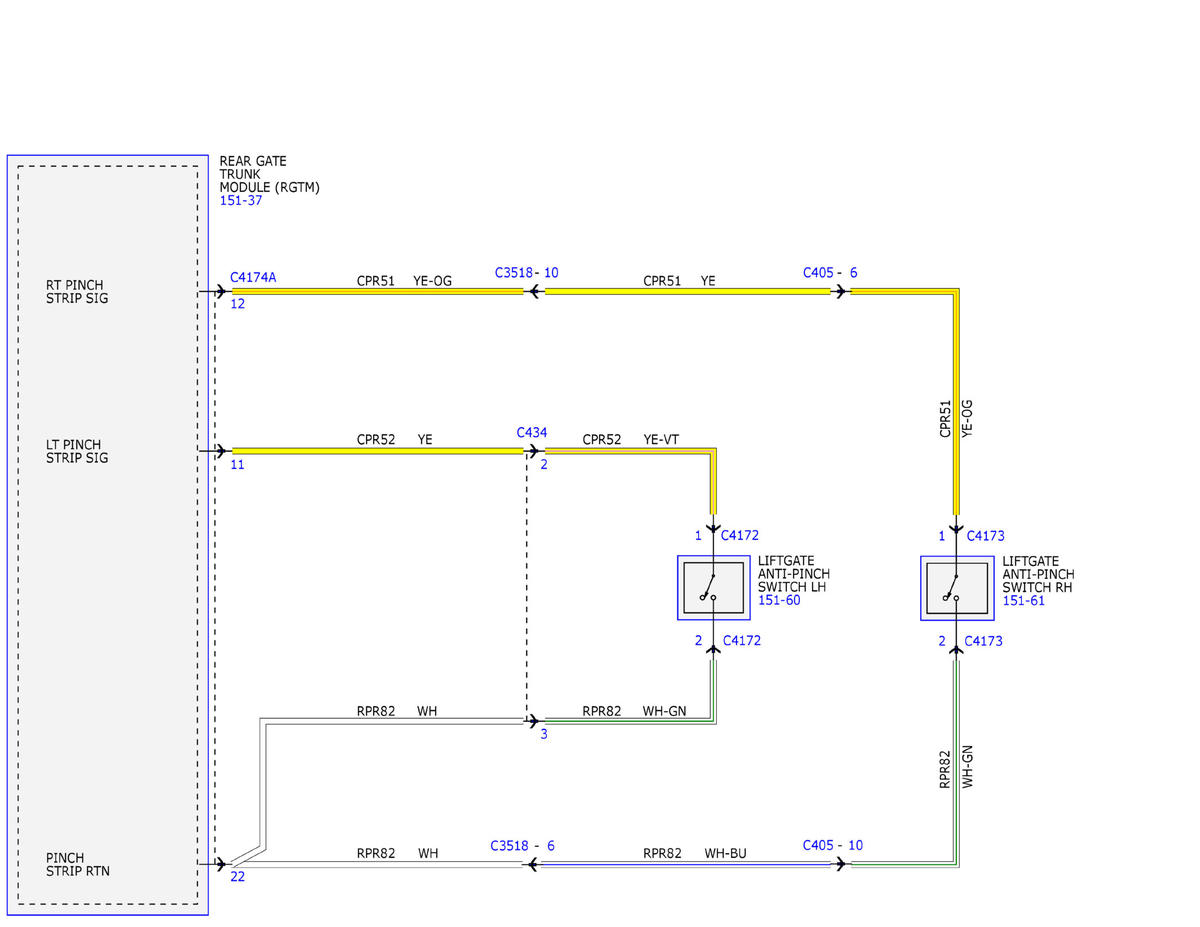

Fig 8: Power Liftgate Wiring Diagram (8 Of 8)
GFDWR111137Courtesy of FORD MOTOR COMPANY
