Memory Seats

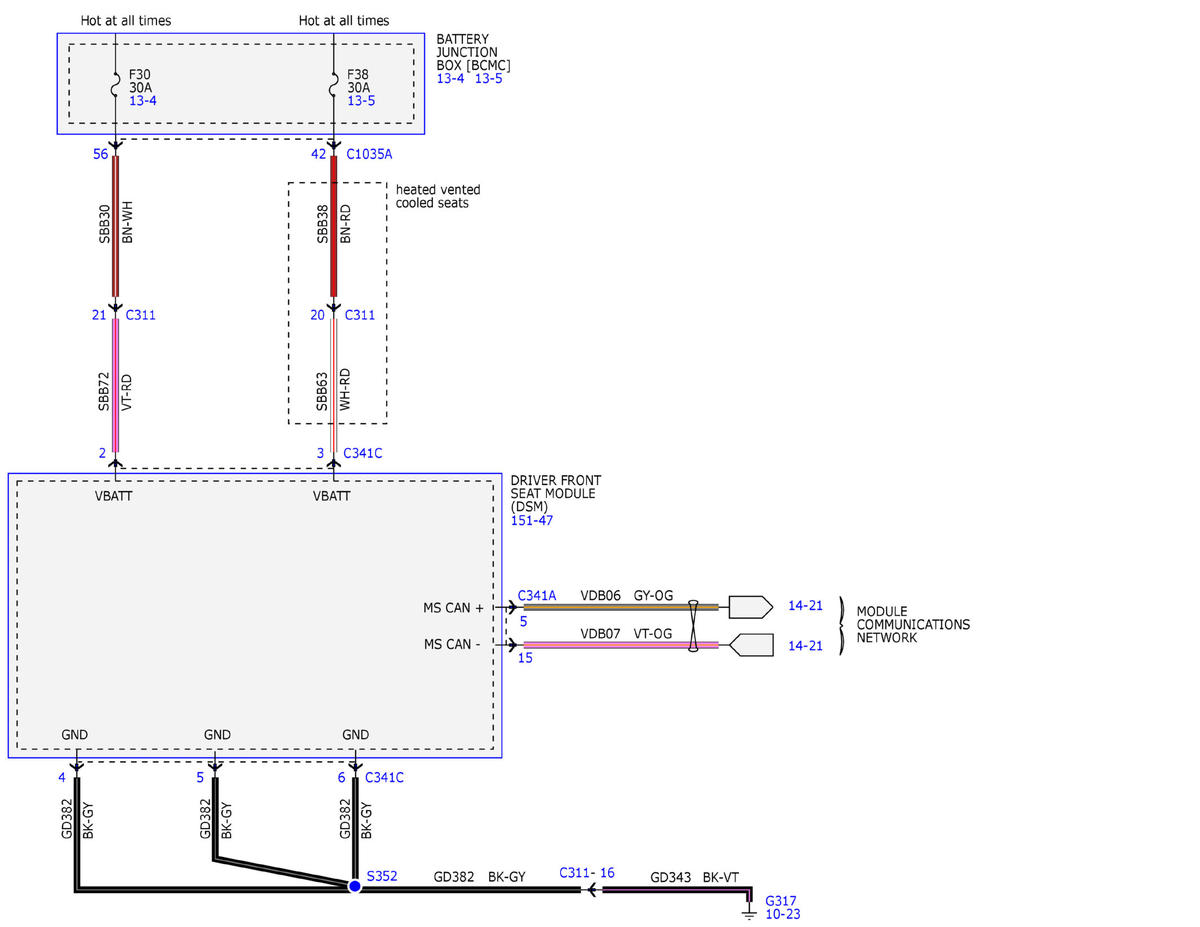

Fig 1: Memory Seats Wiring Diagram (1 Of 11)
GFDWR110995Courtesy of FORD MOTOR COMPANY

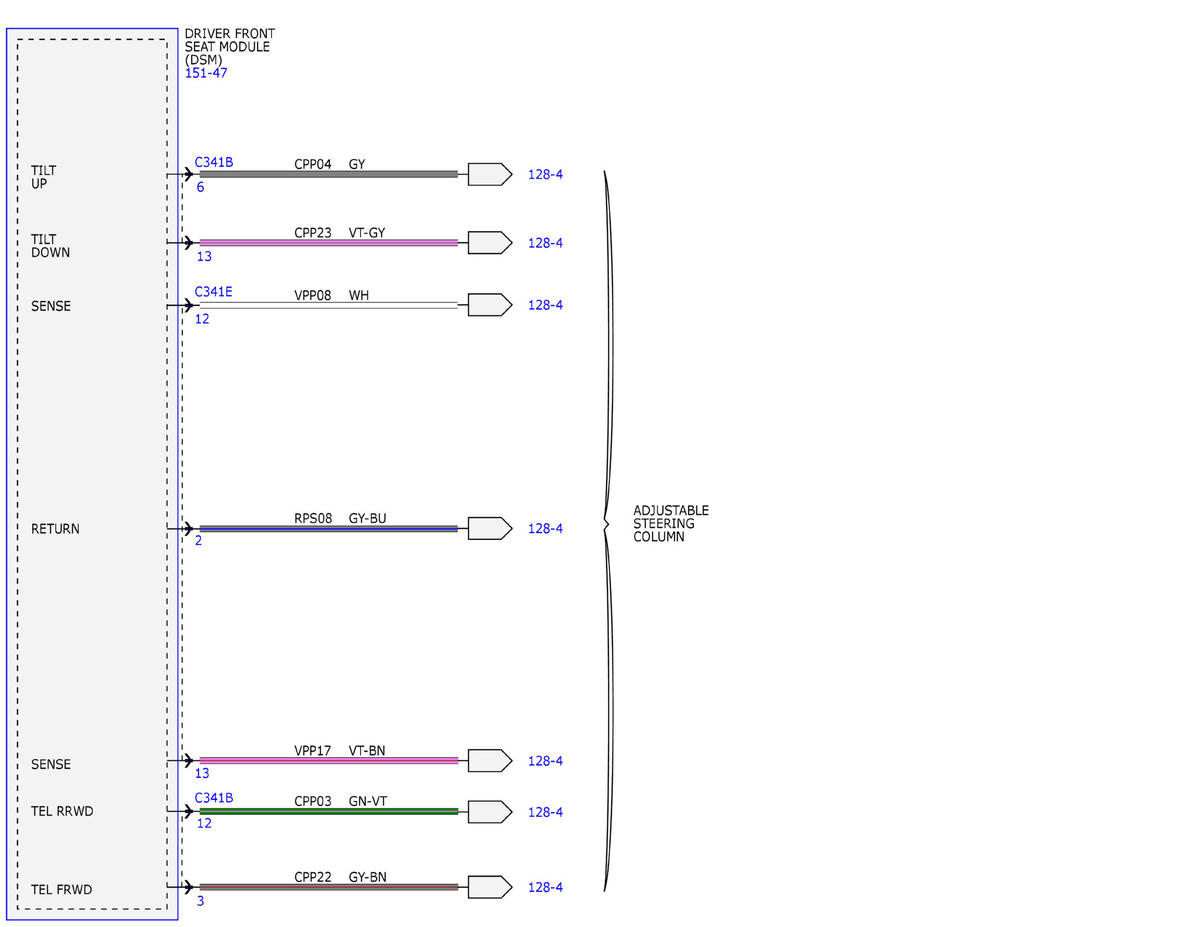

Fig 2: Memory Seats Wiring Diagram (2 Of 11)
GFDWR110996Courtesy of FORD MOTOR COMPANY

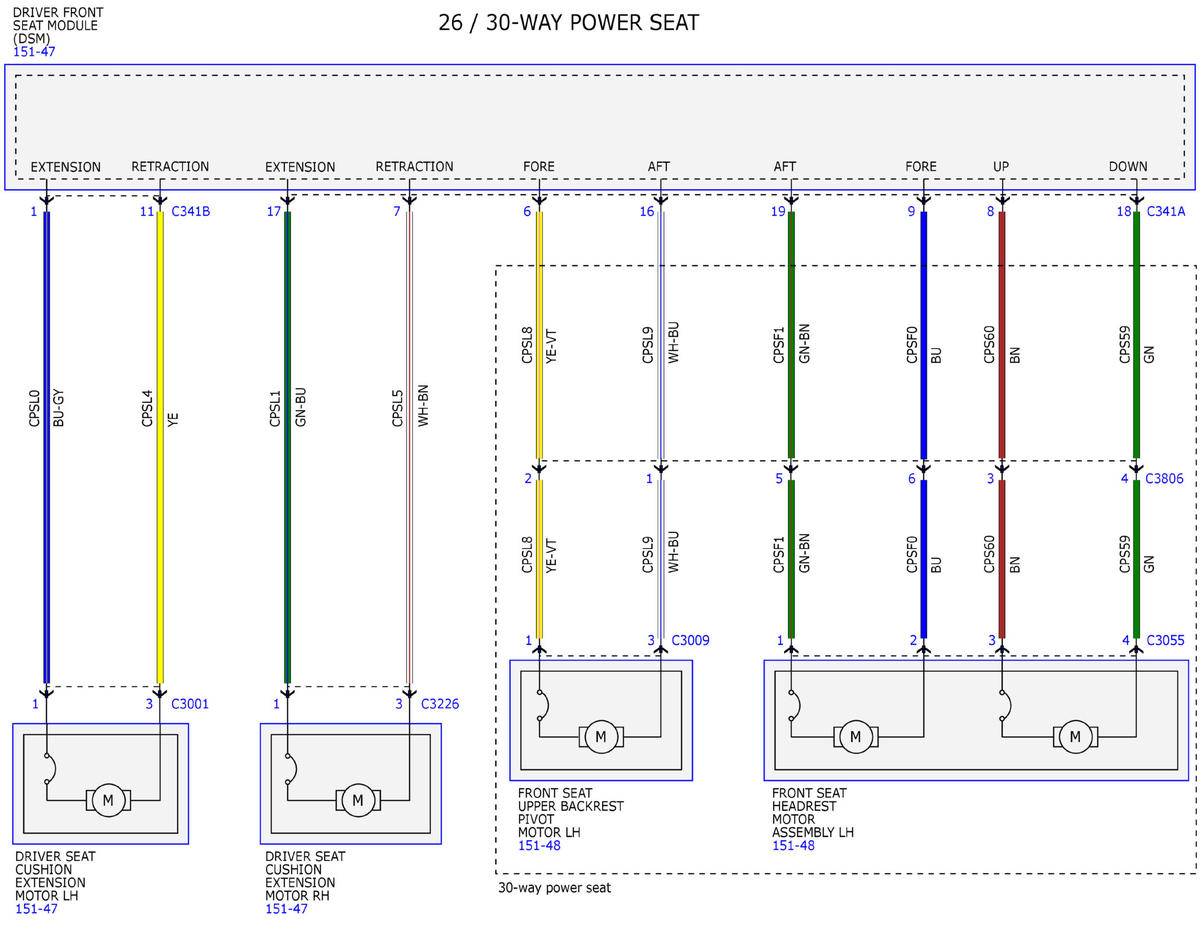

Fig 3: Memory Seats Wiring Diagram (3 Of 11)
GFDWR110997Courtesy of FORD MOTOR COMPANY

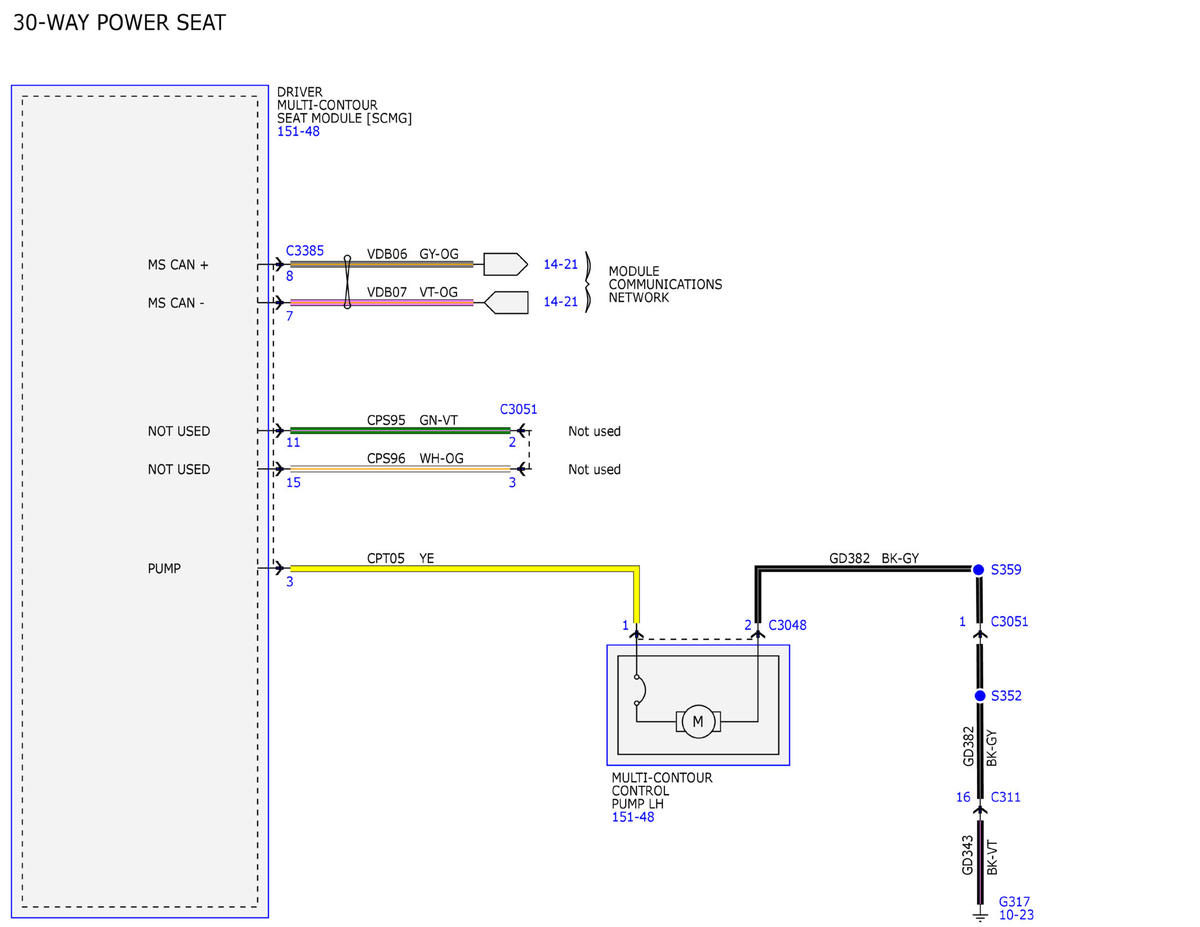

Fig 4: Memory Seats Wiring Diagram (4 Of 11)
GFDWR110998Courtesy of FORD MOTOR COMPANY

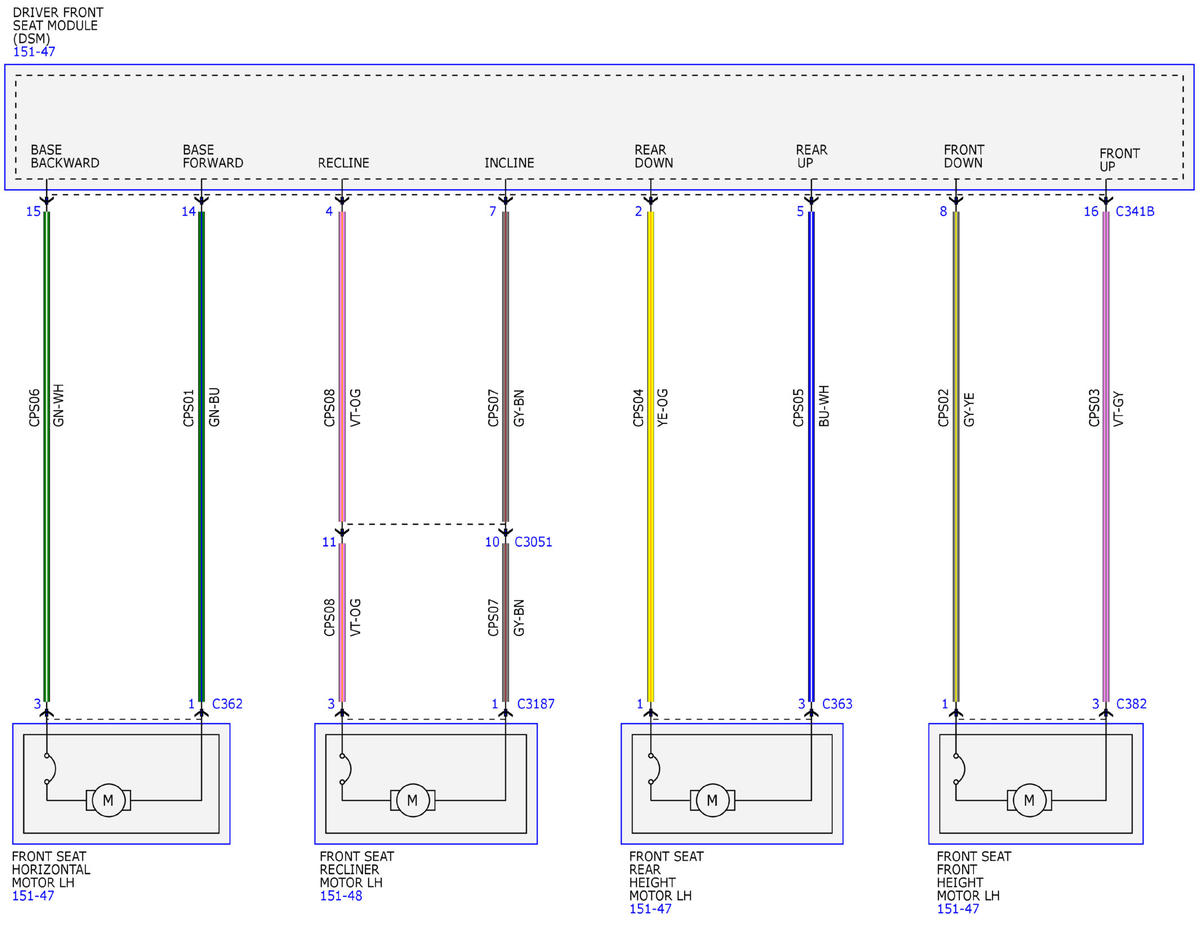

Fig 5: Memory Seats Wiring Diagram (5 Of 11)
GFDWR110999Courtesy of FORD MOTOR COMPANY

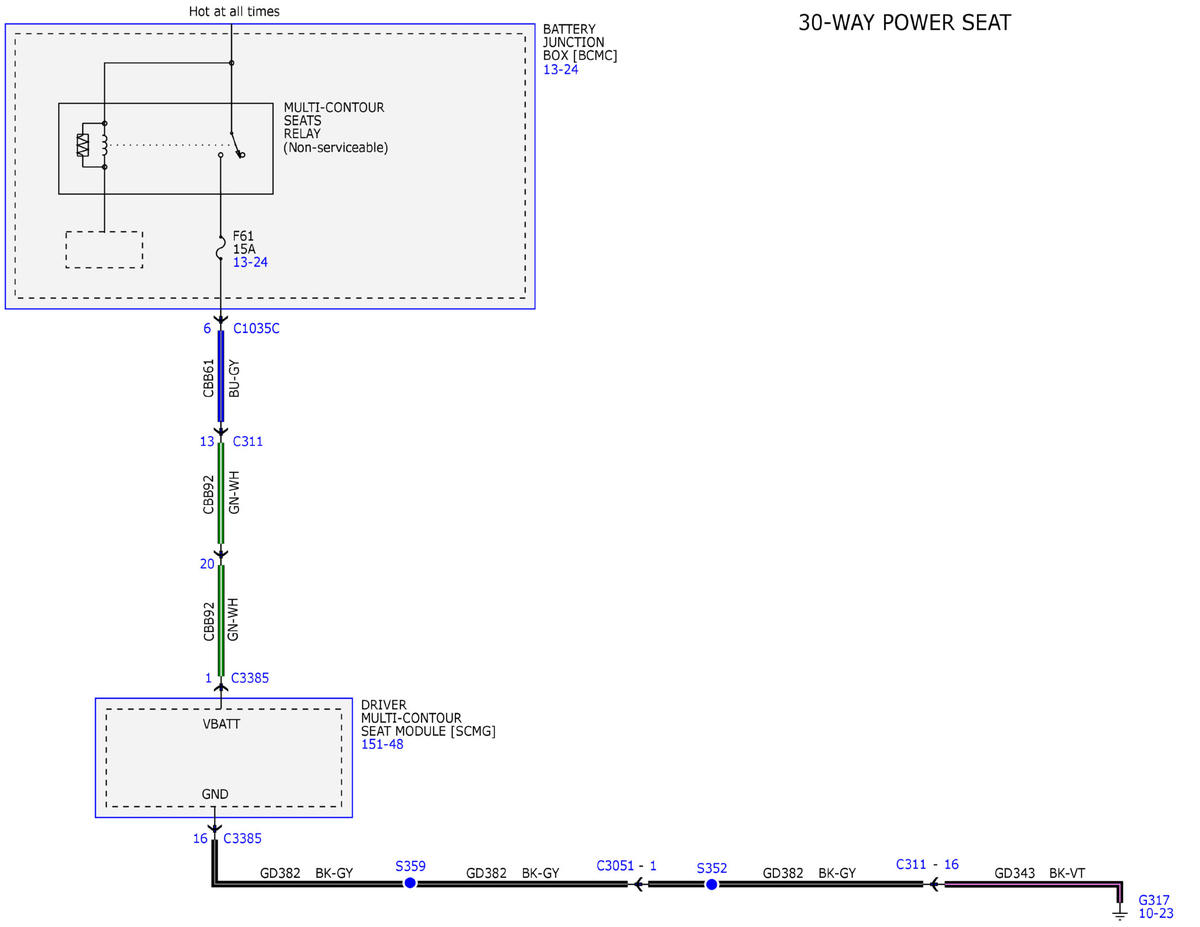

Fig 6: Memory Seats Wiring Diagram (6 Of 11)
GFDWR111000Courtesy of FORD MOTOR COMPANY

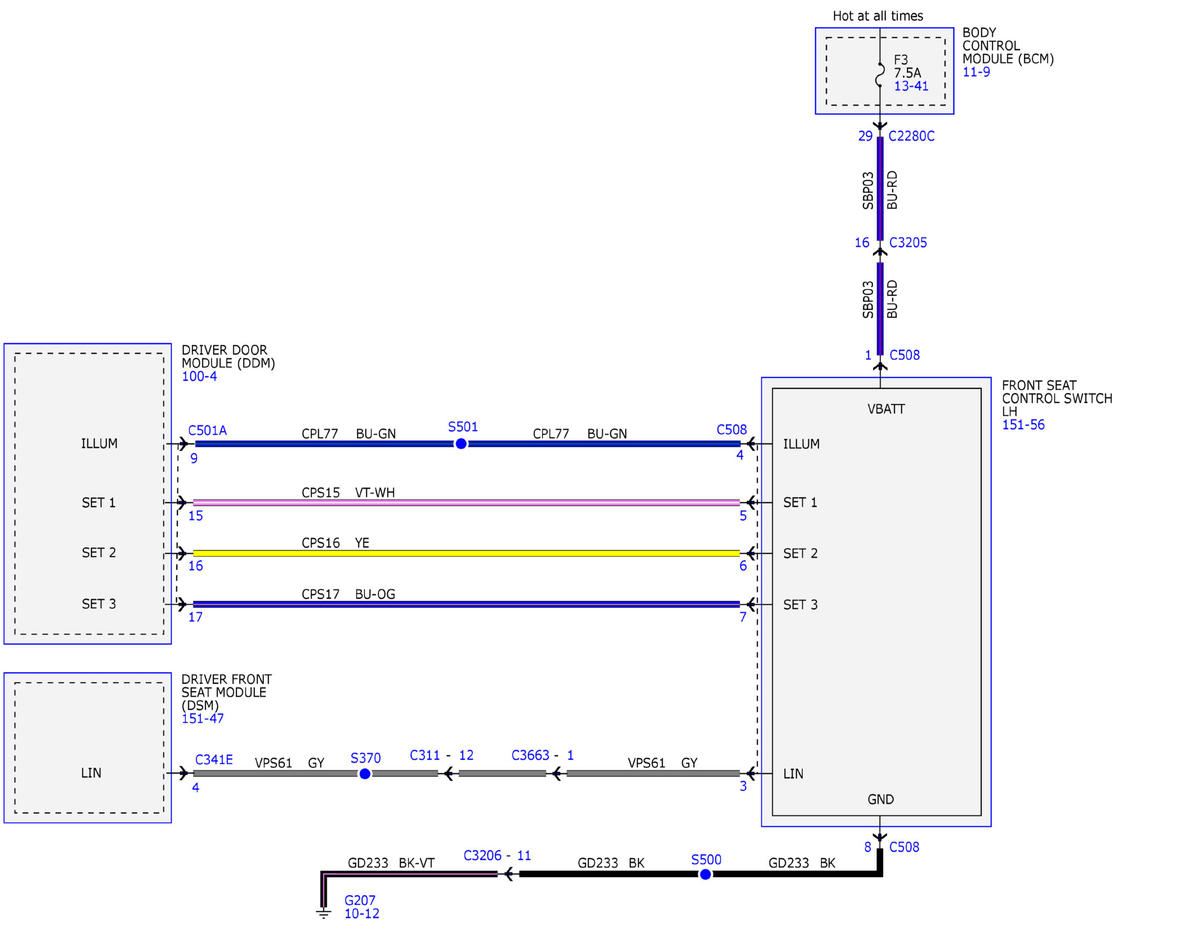

Fig 7: Memory Seats Wiring Diagram (7 Of 11)
GFDWR111001Courtesy of FORD MOTOR COMPANY

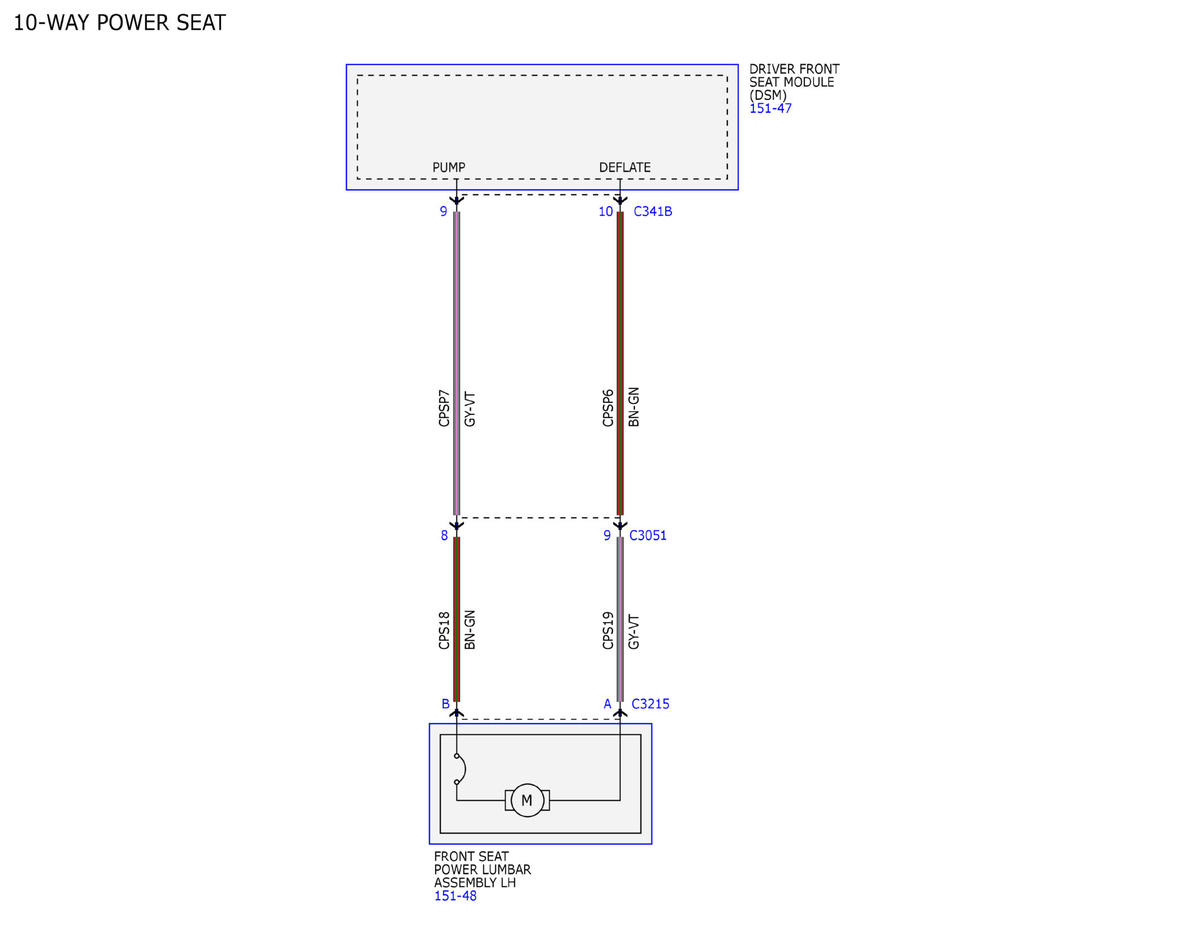

Fig 8: Memory Seats Wiring Diagram (8 Of 11)
GFDWR111002Courtesy of FORD MOTOR COMPANY

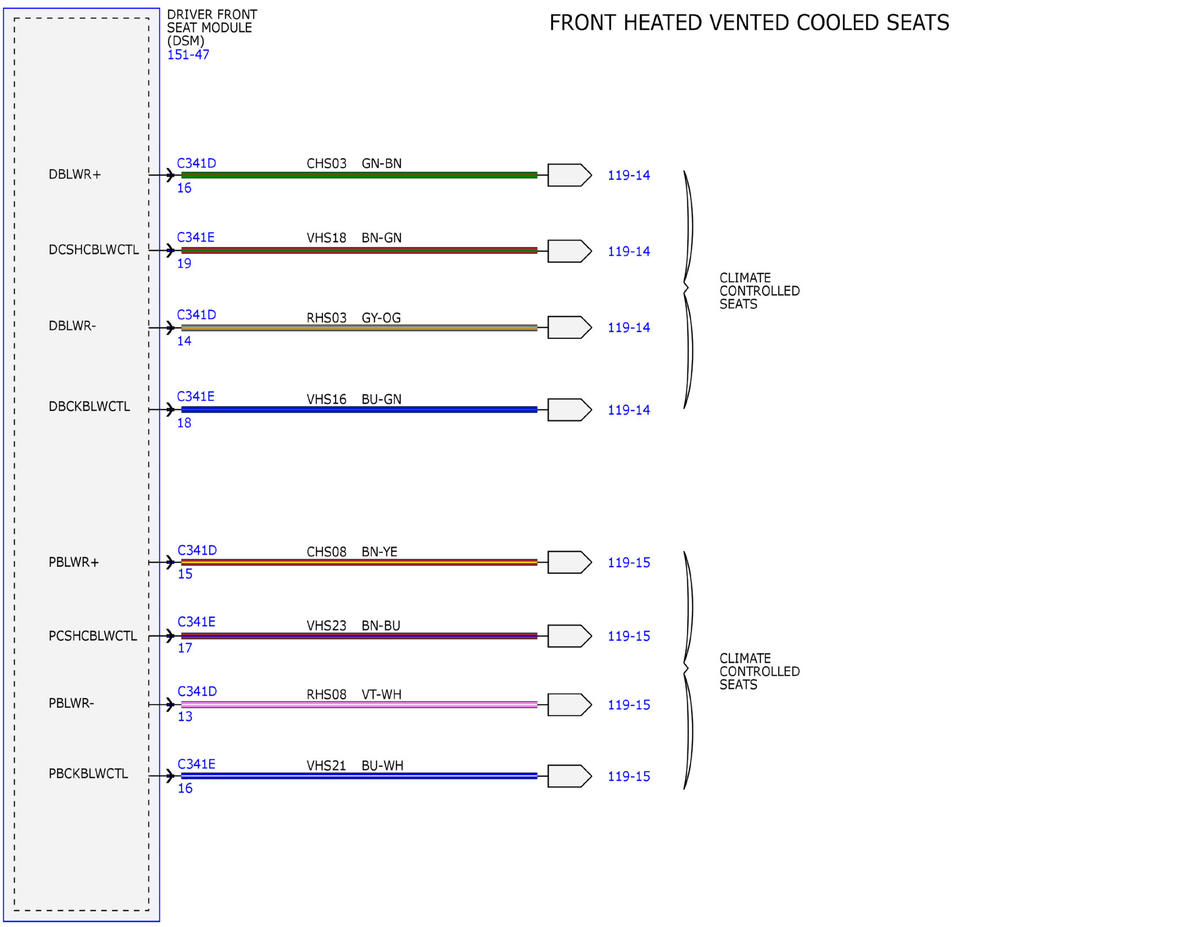

Fig 9: Memory Seats Wiring Diagram (9 Of 11)
GFDWR111003Courtesy of FORD MOTOR COMPANY

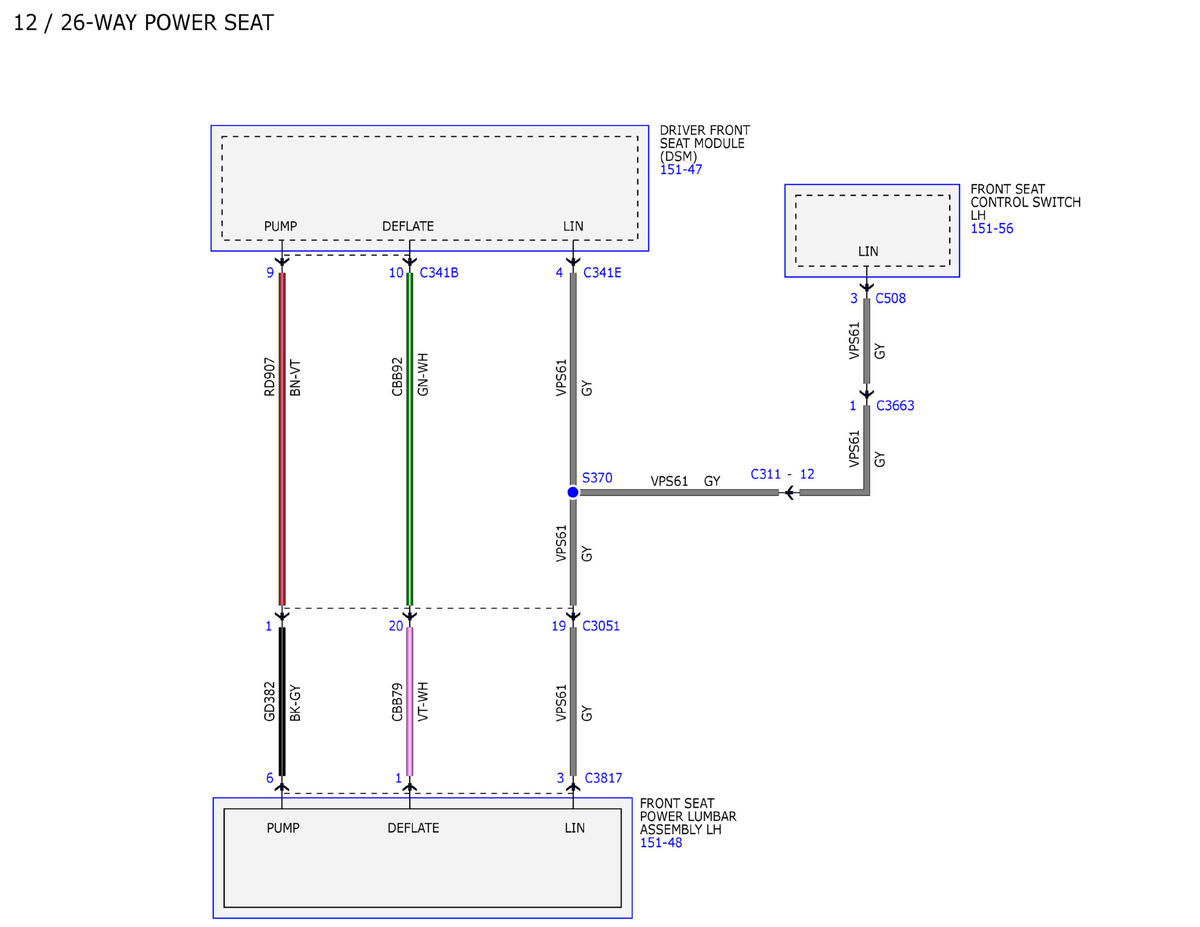

Fig 10: Memory Seats Wiring Diagram (10 Of 11)
GFDWR111004Courtesy of FORD MOTOR COMPANY

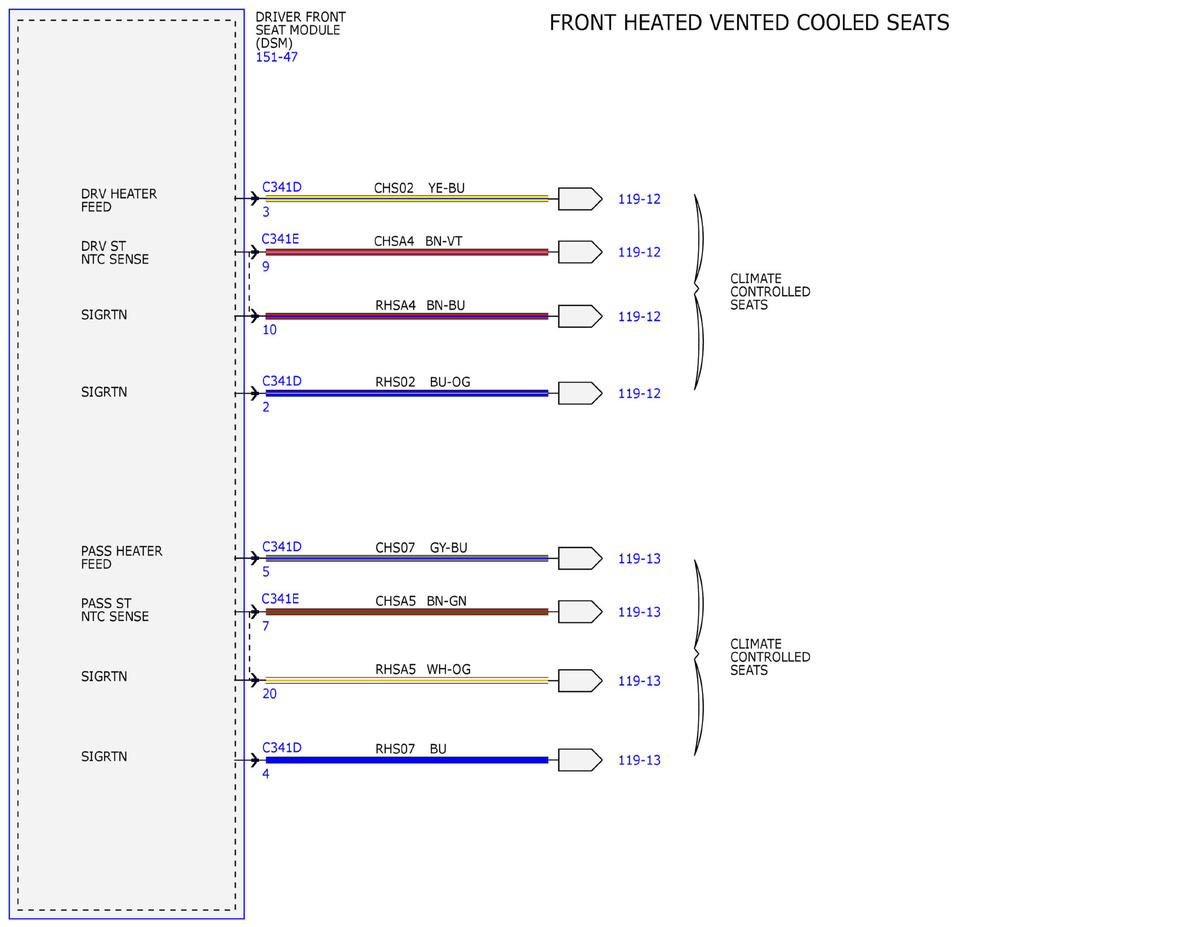

Fig 11: Memory Seats Wiring Diagram (11 Of 11)
GFDWR111005Courtesy of FORD MOTOR COMPANY
