Charging System

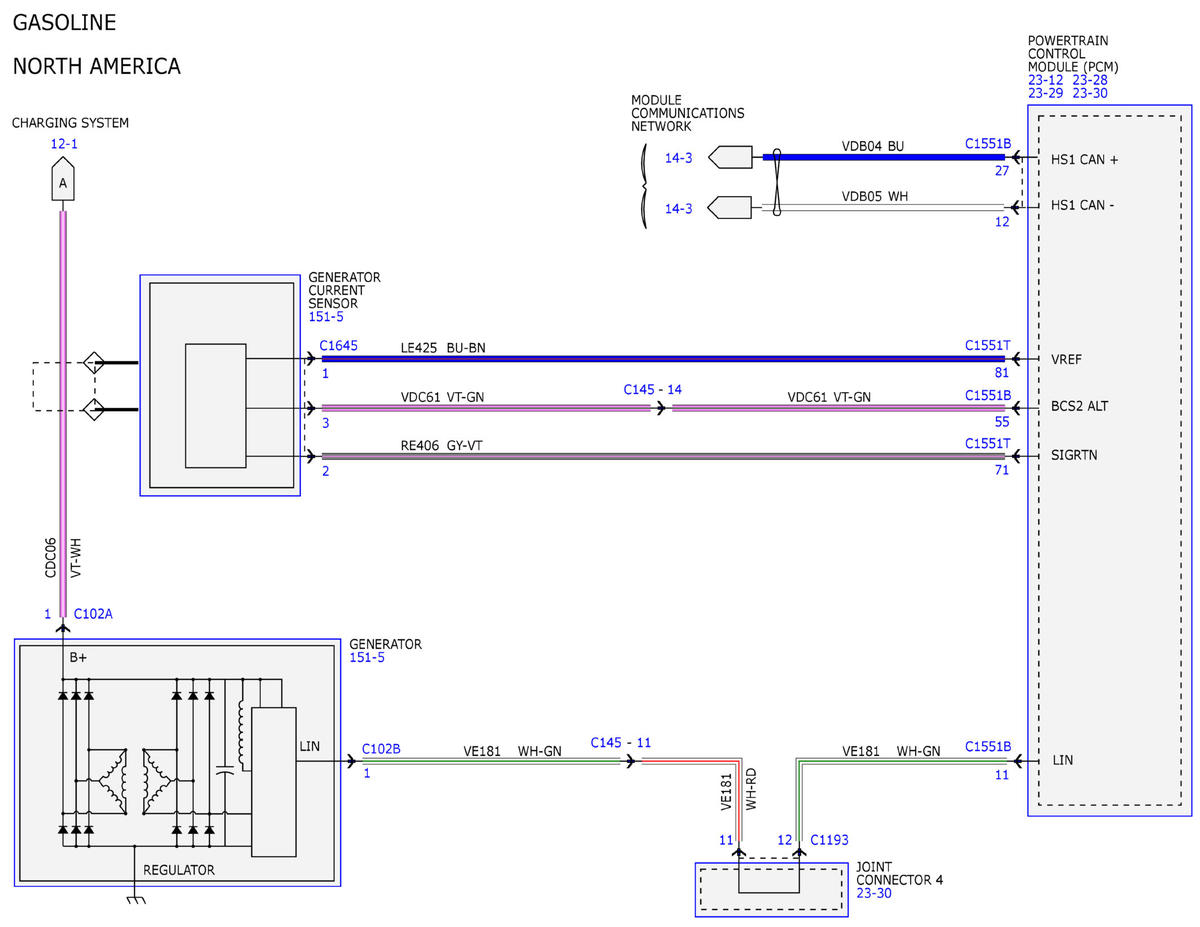

Fig 1: Charging System Wiring Diagram (1 Of 11)
GFDWR110849Courtesy of FORD MOTOR COMPANY

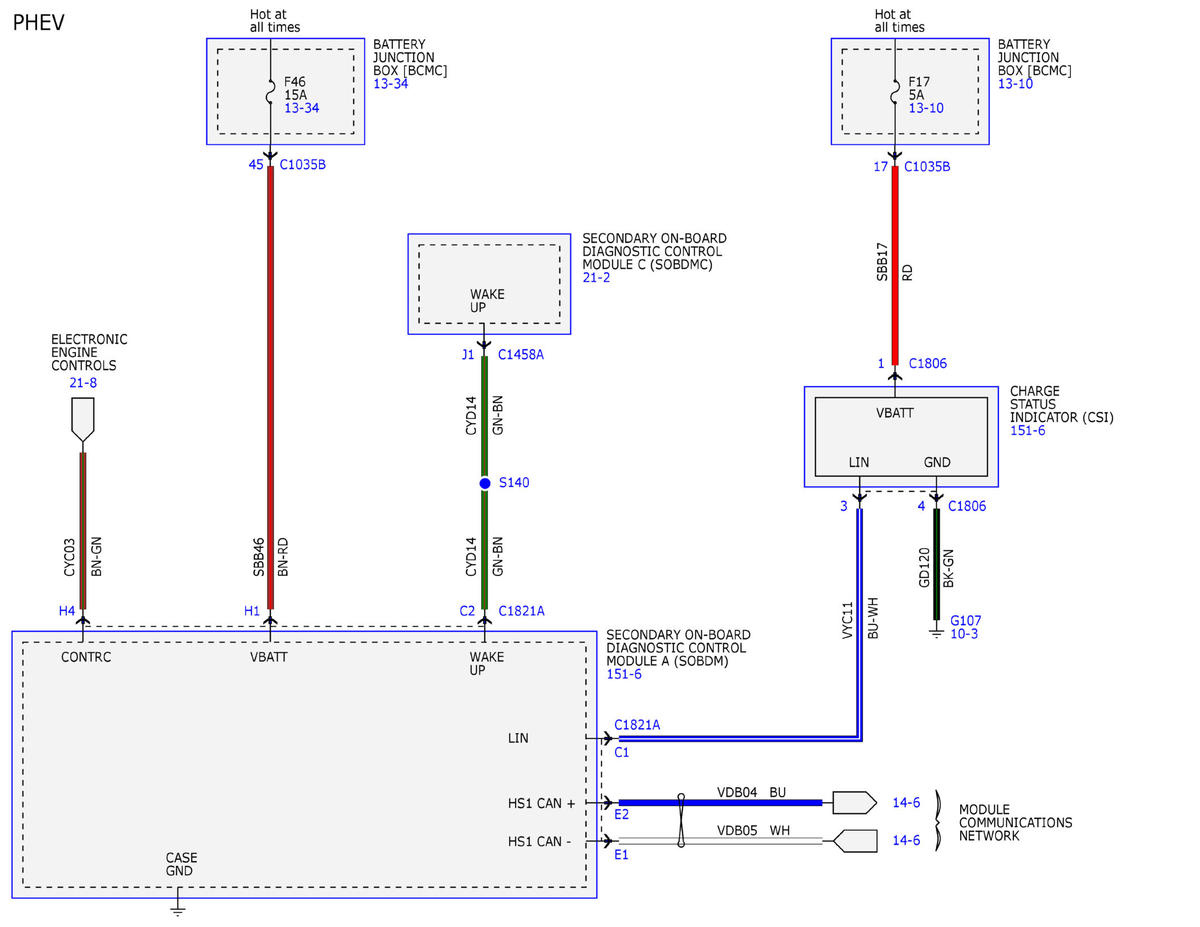

Fig 2: Charging System Wiring Diagram (2 Of 11)
GFDWR110850Courtesy of FORD MOTOR COMPANY

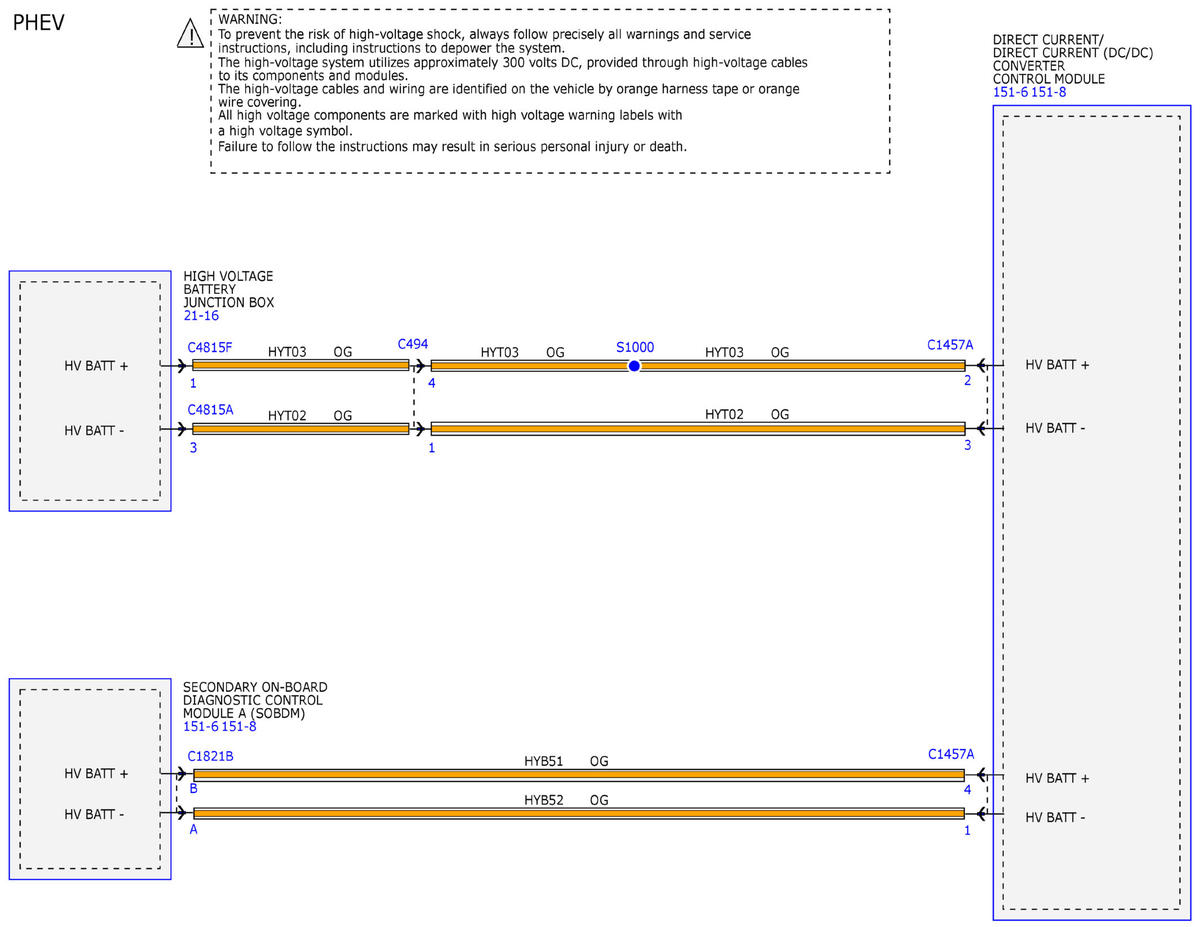

Fig 3: Charging System Wiring Diagram (3 Of 11)
GFDWR110851Courtesy of FORD MOTOR COMPANY

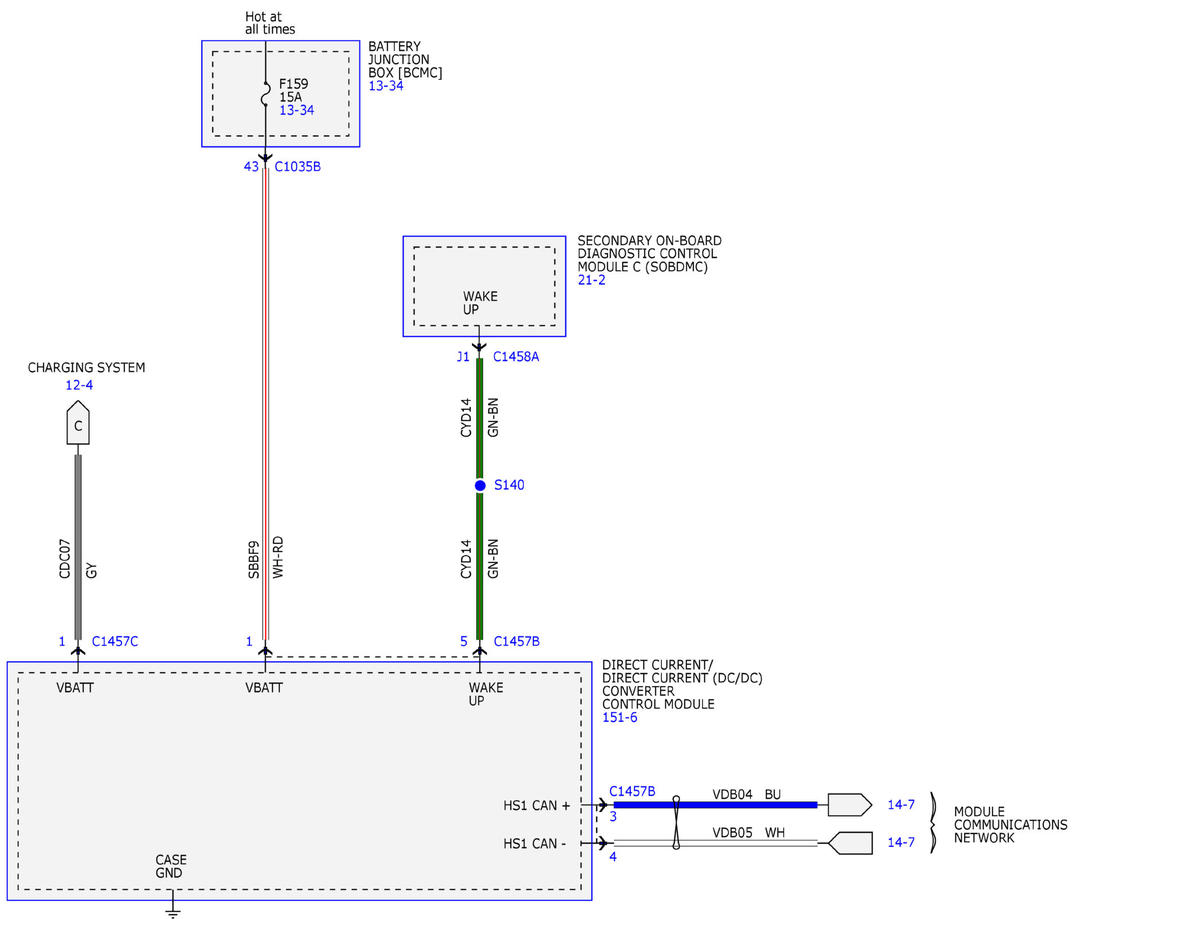

Fig 4: Charging System Wiring Diagram (4 Of 11)
GFDWR110852Courtesy of FORD MOTOR COMPANY

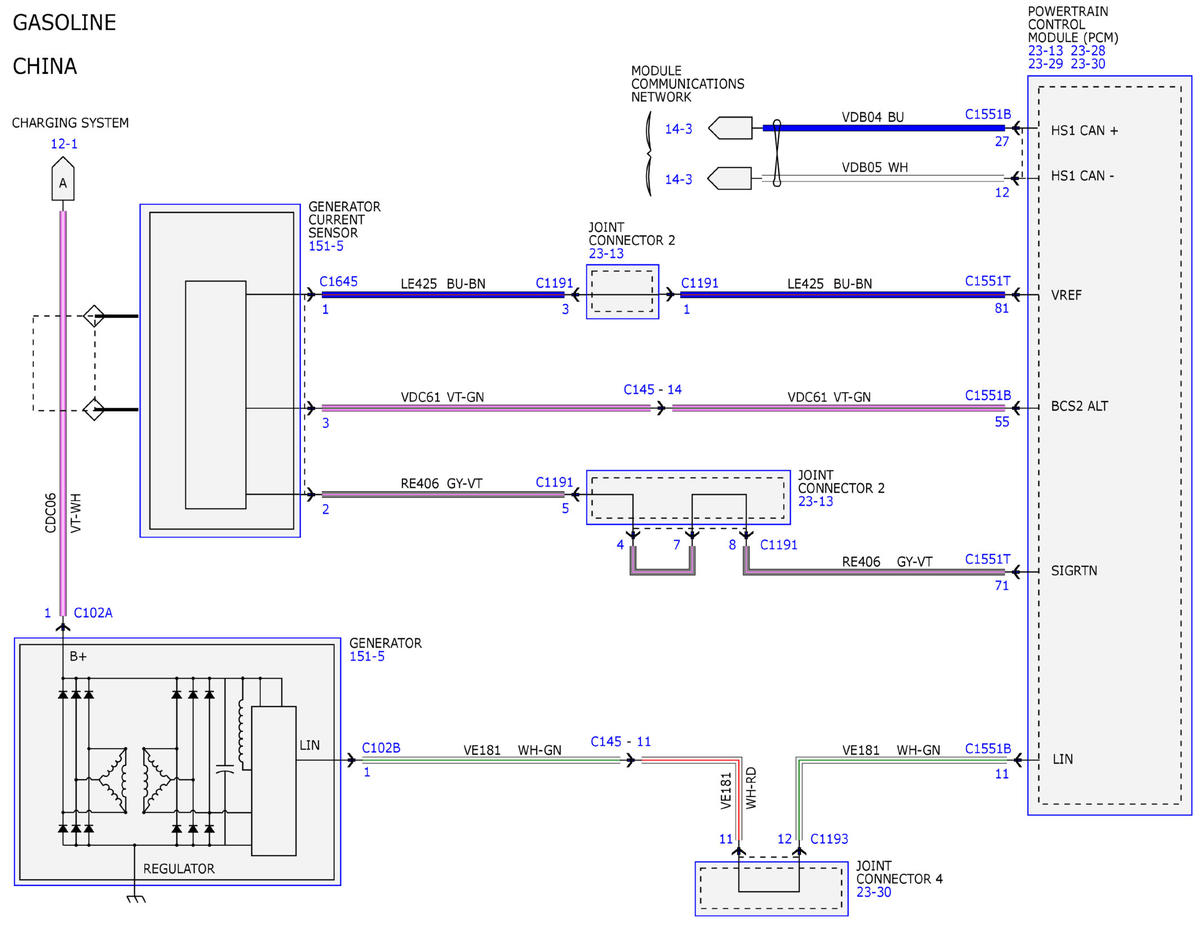

Fig 5: Charging System Wiring Diagram (5 Of 11)
GFDWR110853Courtesy of FORD MOTOR COMPANY

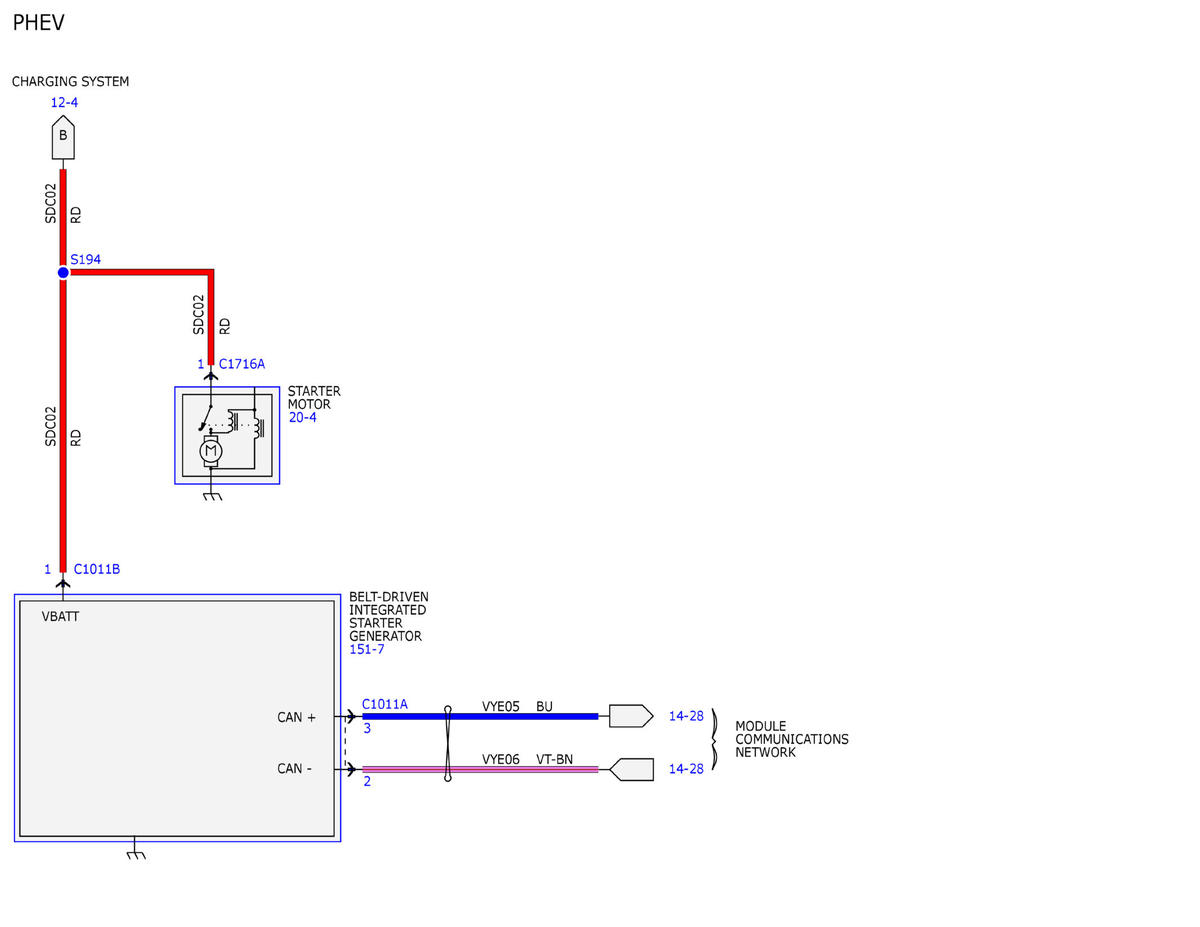

Fig 6: Charging System Wiring Diagram (6 Of 11)
GFDWR110854Courtesy of FORD MOTOR COMPANY

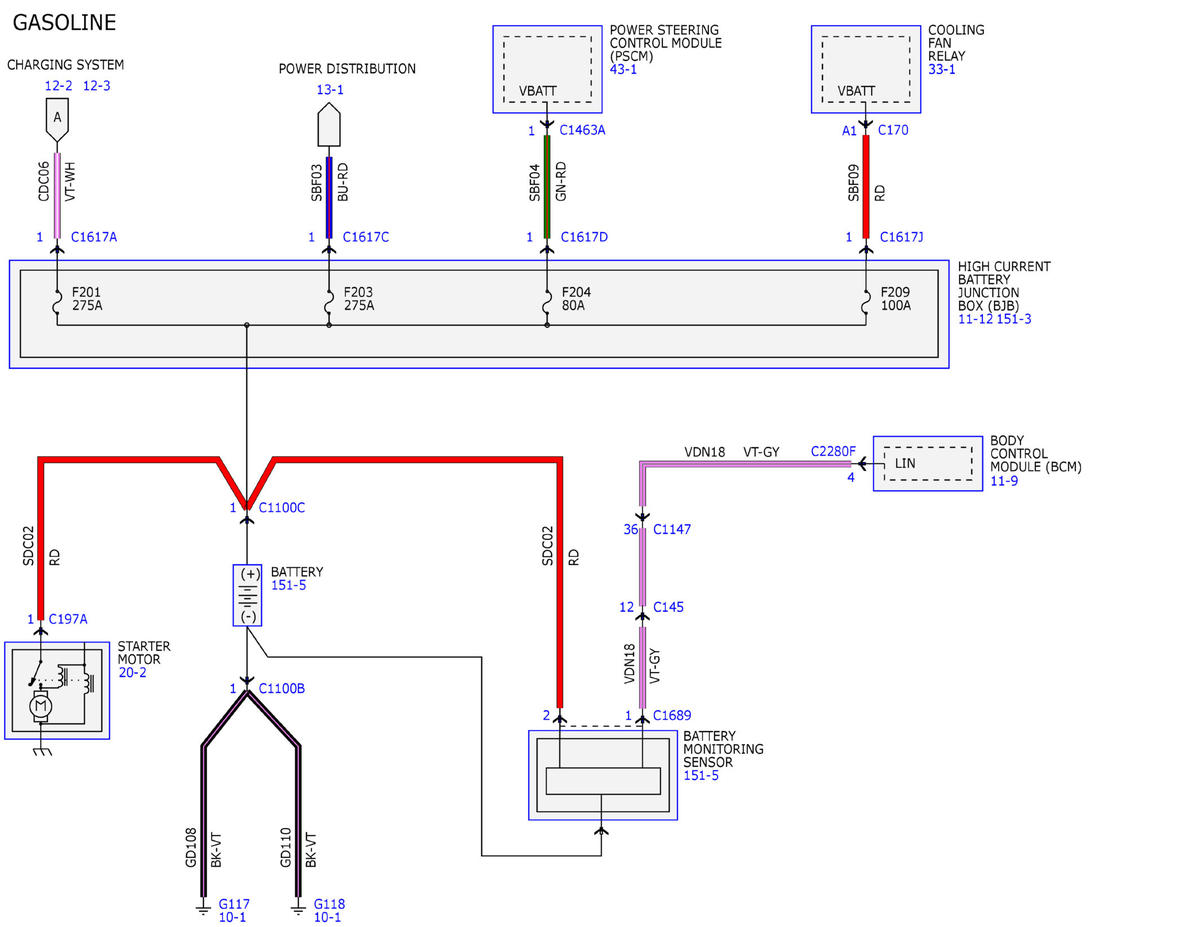

Fig 7: Charging System Wiring Diagram (7 Of 11)
GFDWR110855Courtesy of FORD MOTOR COMPANY

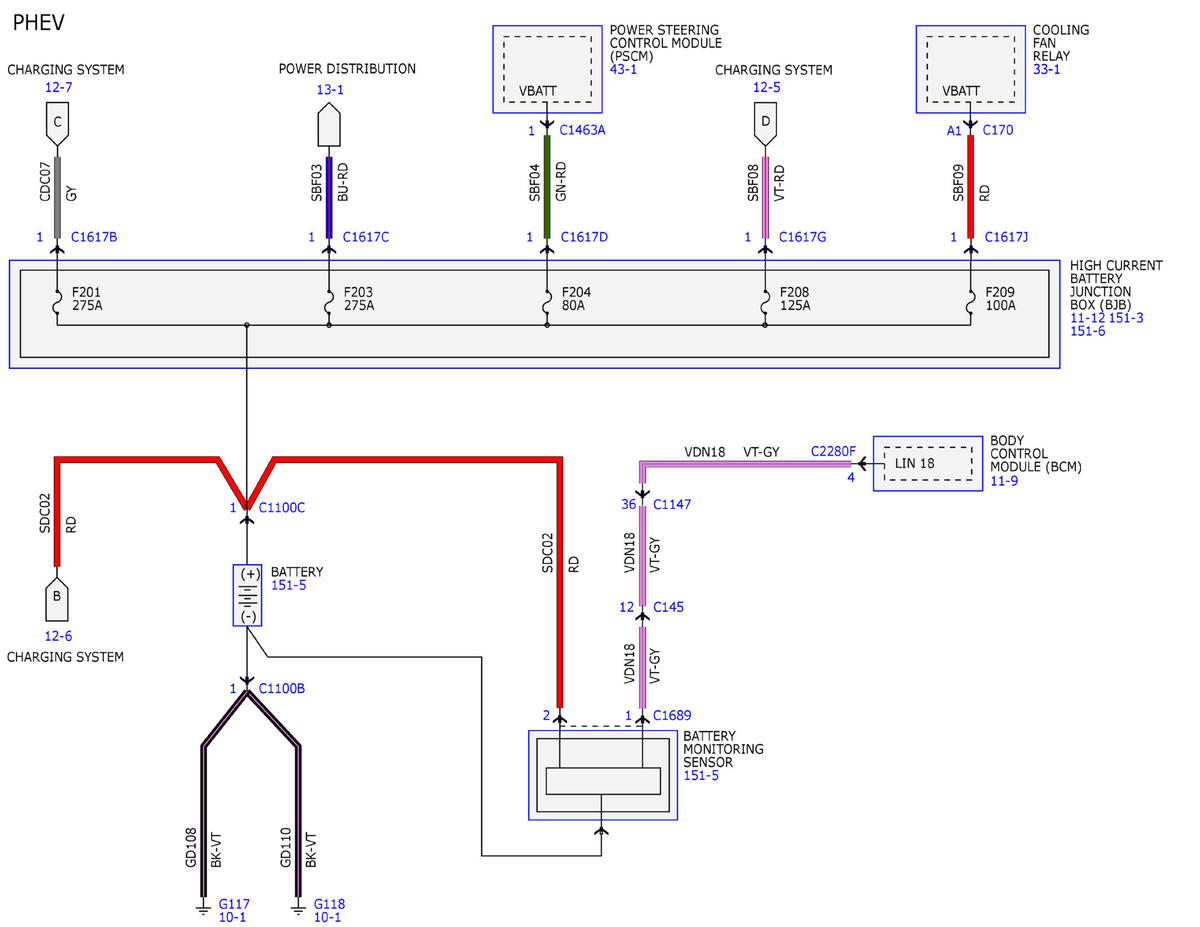

Fig 8: Charging System Wiring Diagram (8 Of 11)
GFDWR110856Courtesy of FORD MOTOR COMPANY

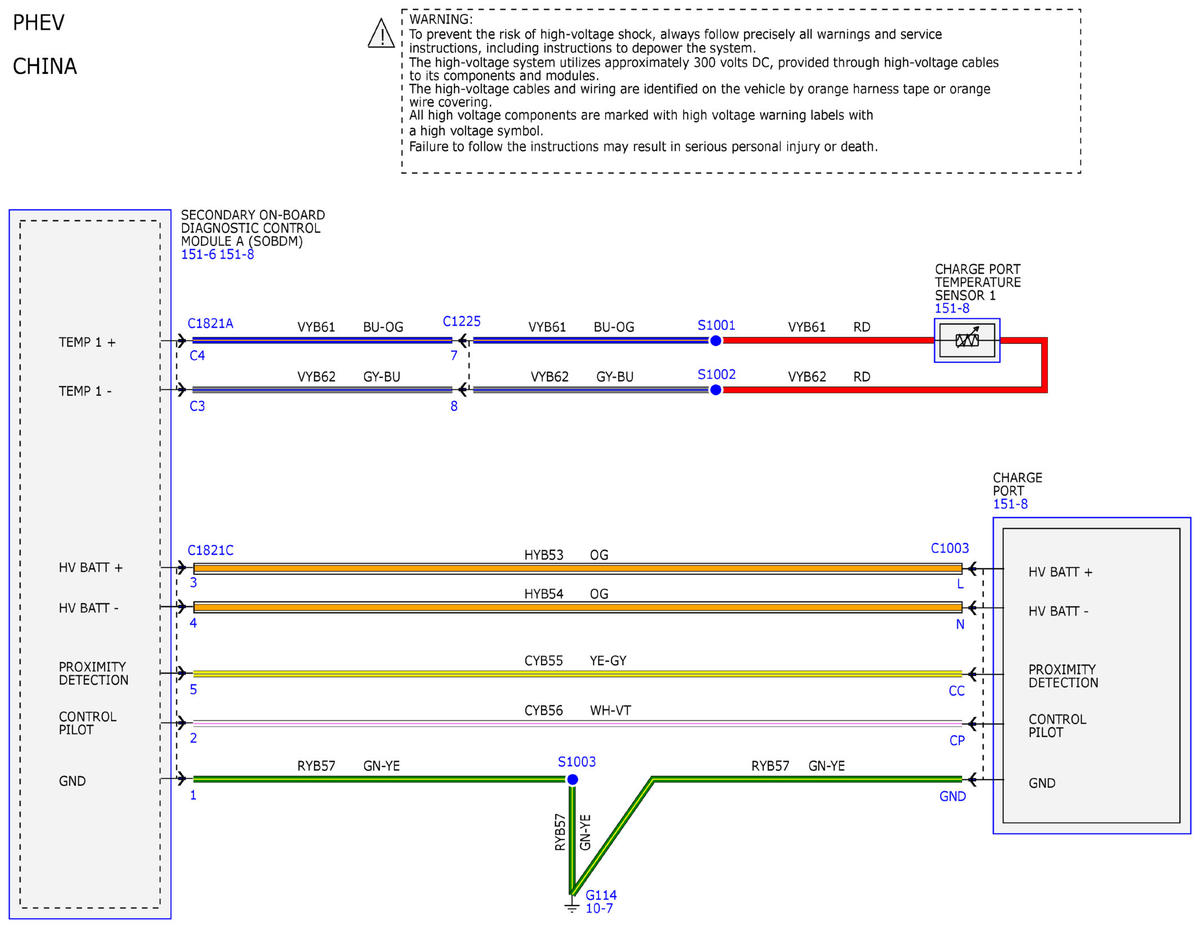

Fig 9: Charging System Wiring Diagram (9 Of 11)
GFDWR110857Courtesy of FORD MOTOR COMPANY

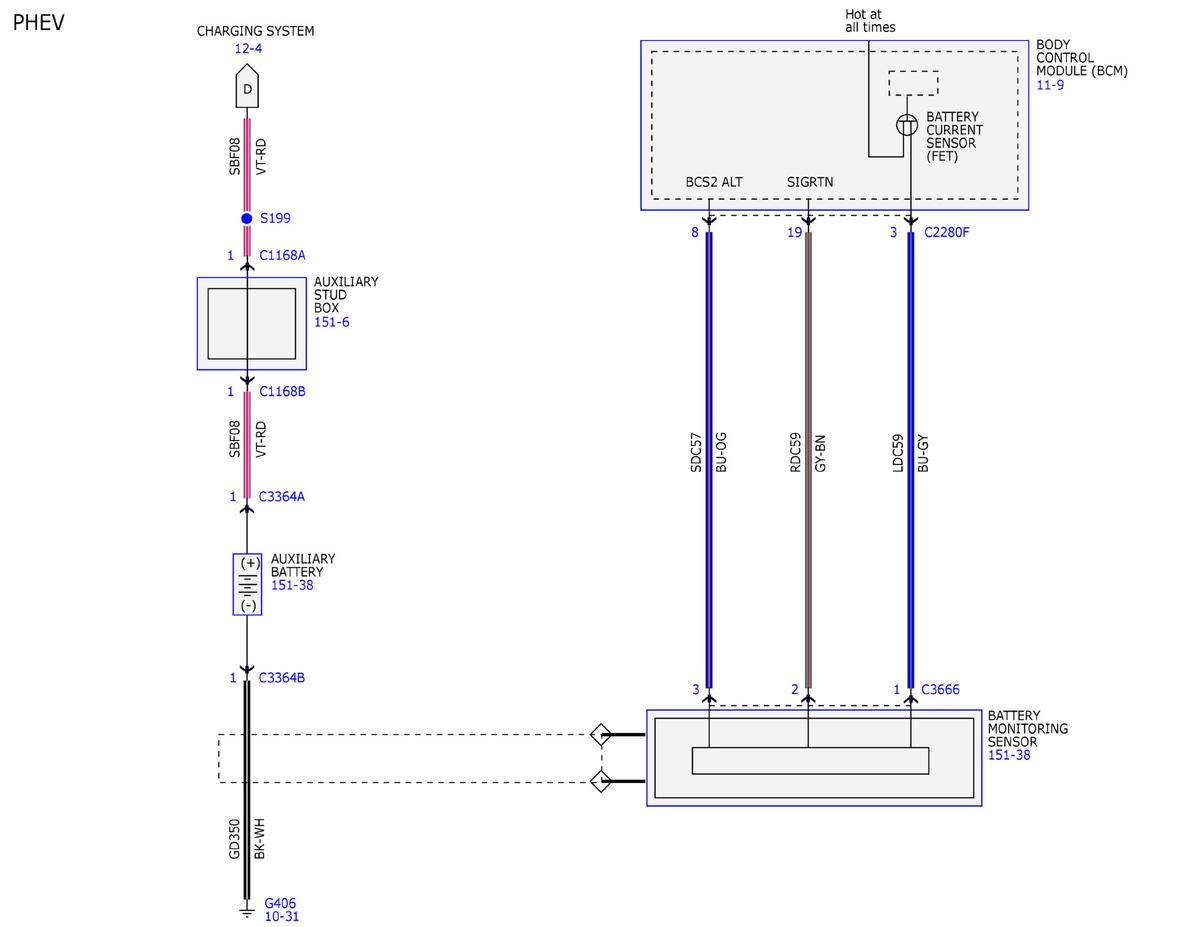

Fig 10: Charging System Wiring Diagram (10 Of 11)
GFDWR110858Courtesy of FORD MOTOR COMPANY

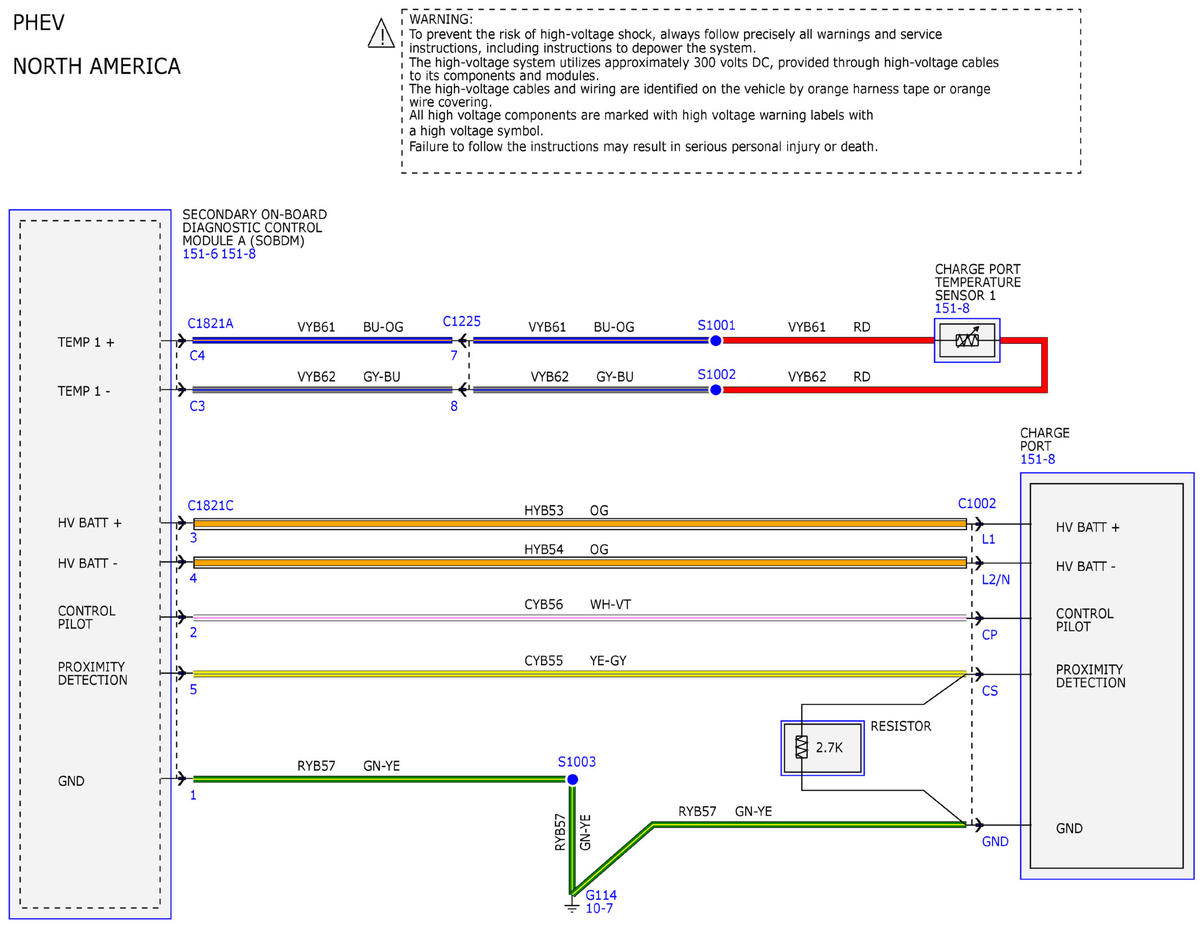

Fig 11: Charging System Wiring Diagram (11 Of 11)
GFDWR110859Courtesy of FORD MOTOR COMPANY
