Audio System/Navigation - Sync

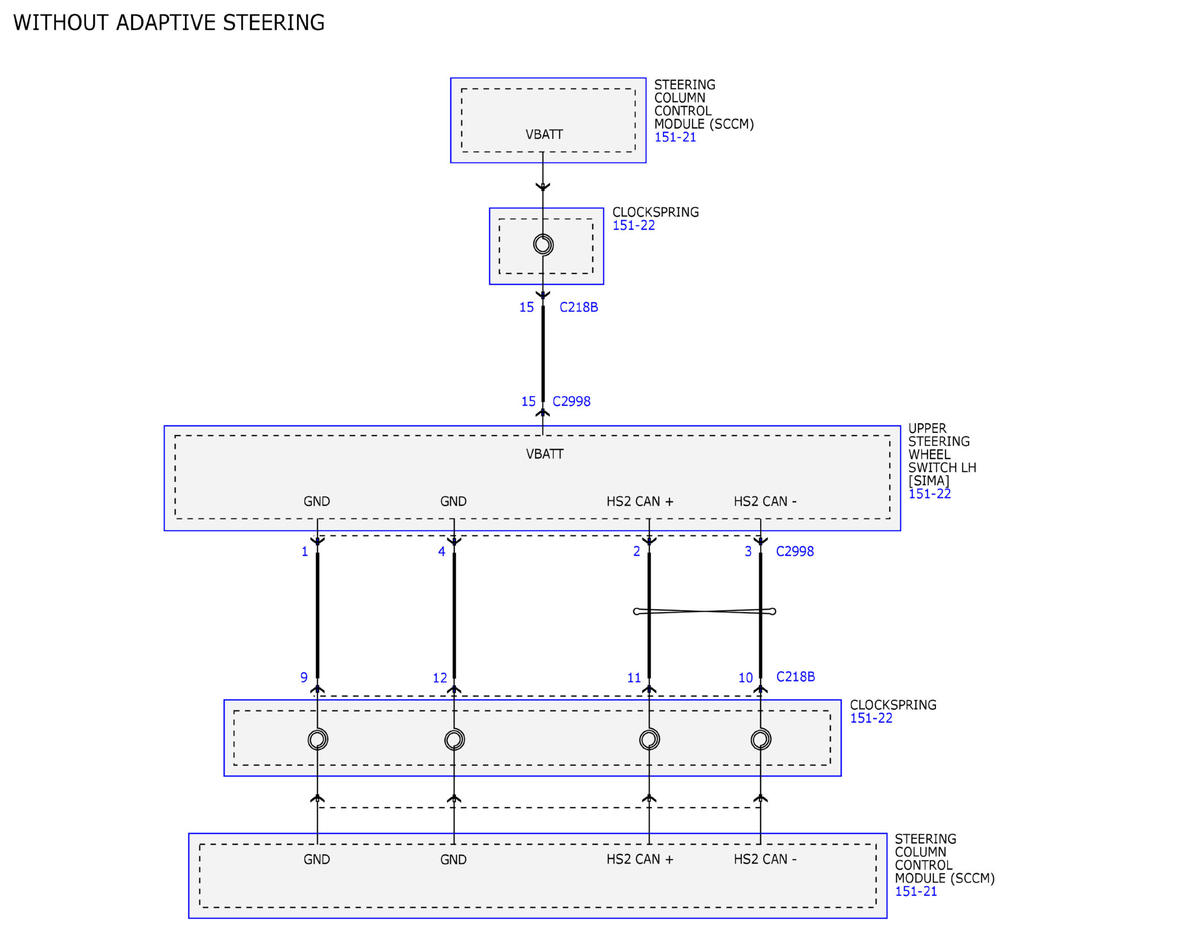

Fig 1: Audio System/Navigation - Sync Wiring Diagram (1 Of 38)

GFDWR110789

Courtesy of FORD MOTOR COMPANY

Fig 2: Audio System/Navigation - Sync Wiring Diagram (2 Of 38)

GFDWR110790

Courtesy of FORD MOTOR COMPANY

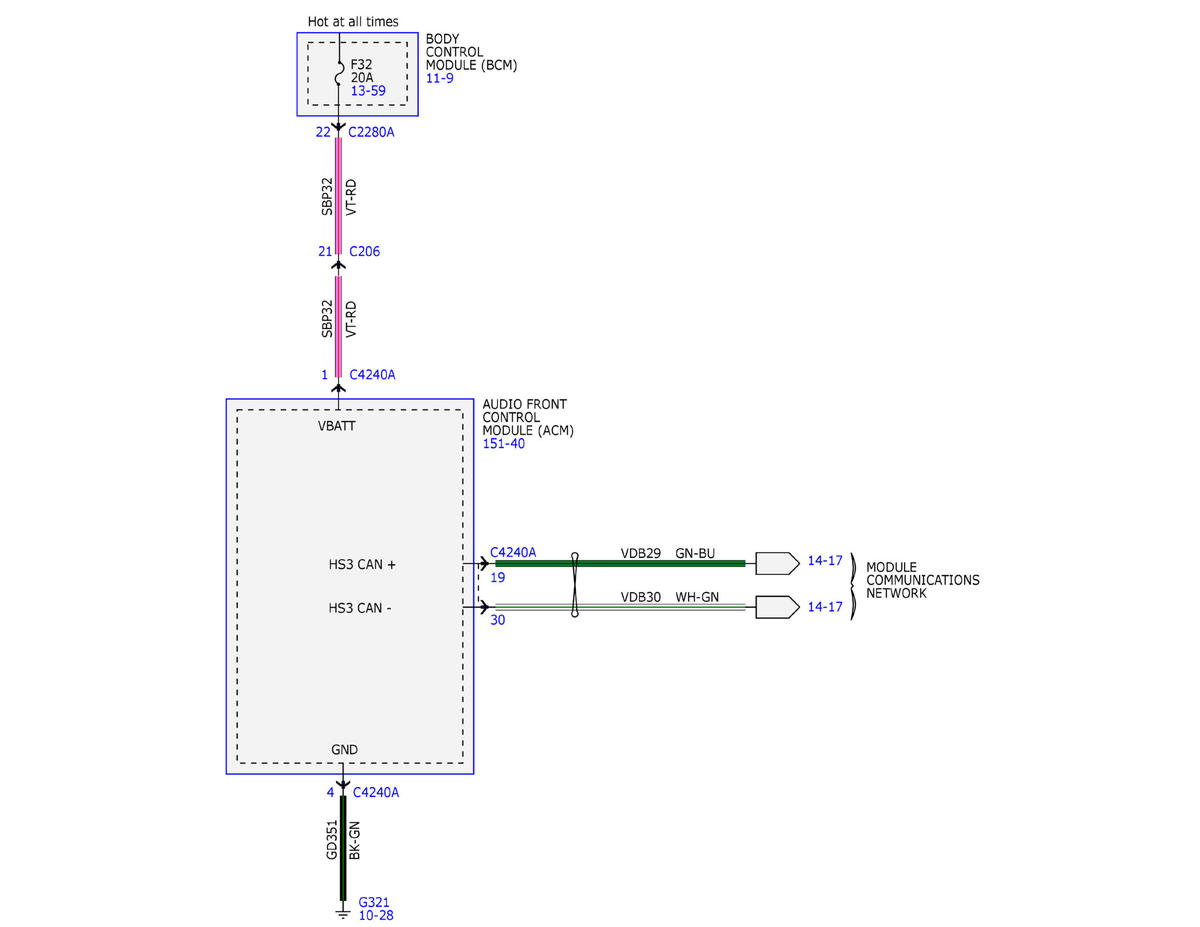

Fig 3: Audio System/Navigation - Sync Wiring Diagram (3 Of 38)

GFDWR110791

Courtesy of FORD MOTOR COMPANY

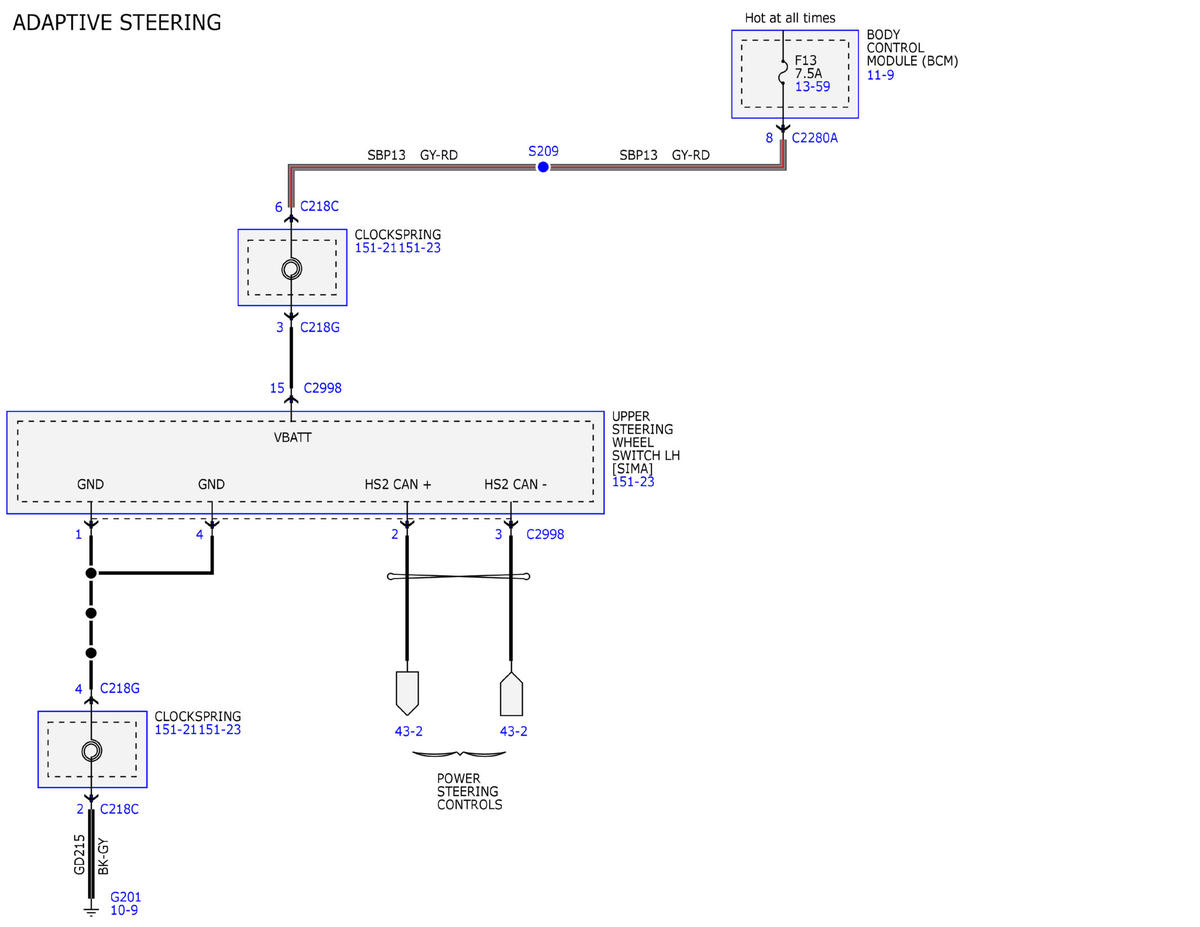

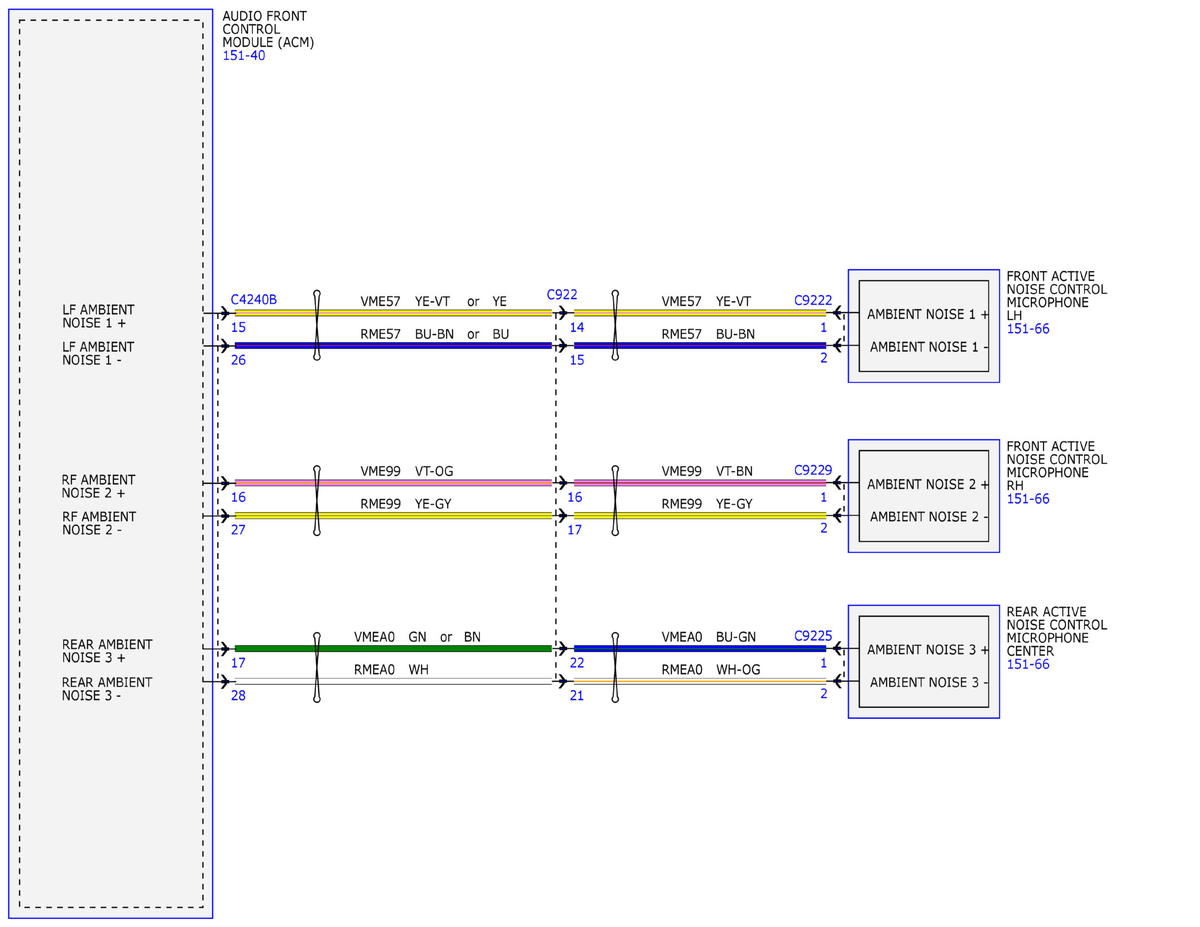

Fig 4: Audio System/Navigation - Sync Wiring Diagram (4 Of 38)

GFDWR110792

Courtesy of FORD MOTOR COMPANY

Fig 5: Audio System/Navigation - Sync Wiring Diagram (5 Of 38)

GFDWR110793

Courtesy of FORD MOTOR COMPANY

Fig 6: Audio System/Navigation - Sync Wiring Diagram (6 Of 38)

GFDWR110794

Courtesy of FORD MOTOR COMPANY

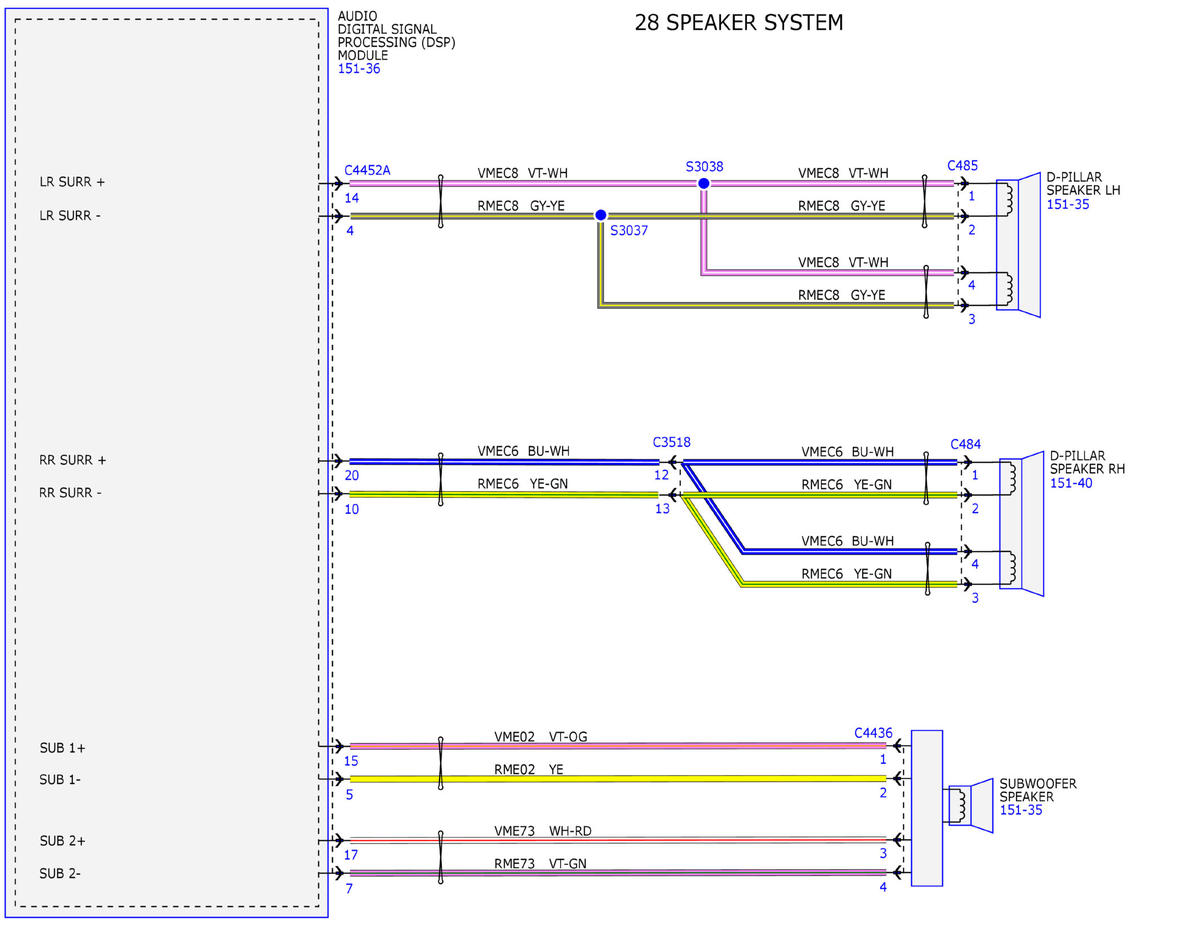

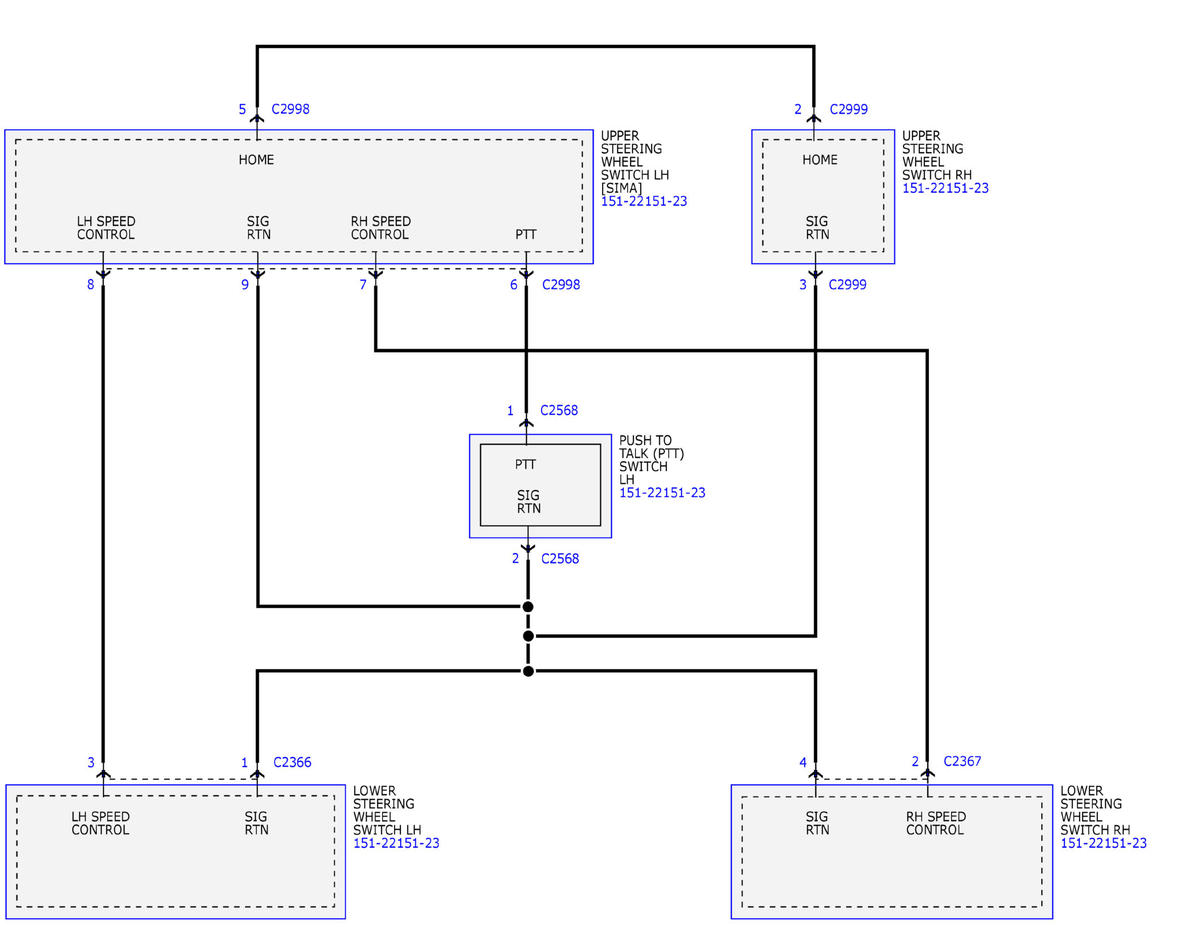

Fig 7: Audio System/Navigation - Sync Wiring Diagram (7 Of 38)

GFDWR110795

Courtesy of FORD MOTOR COMPANY

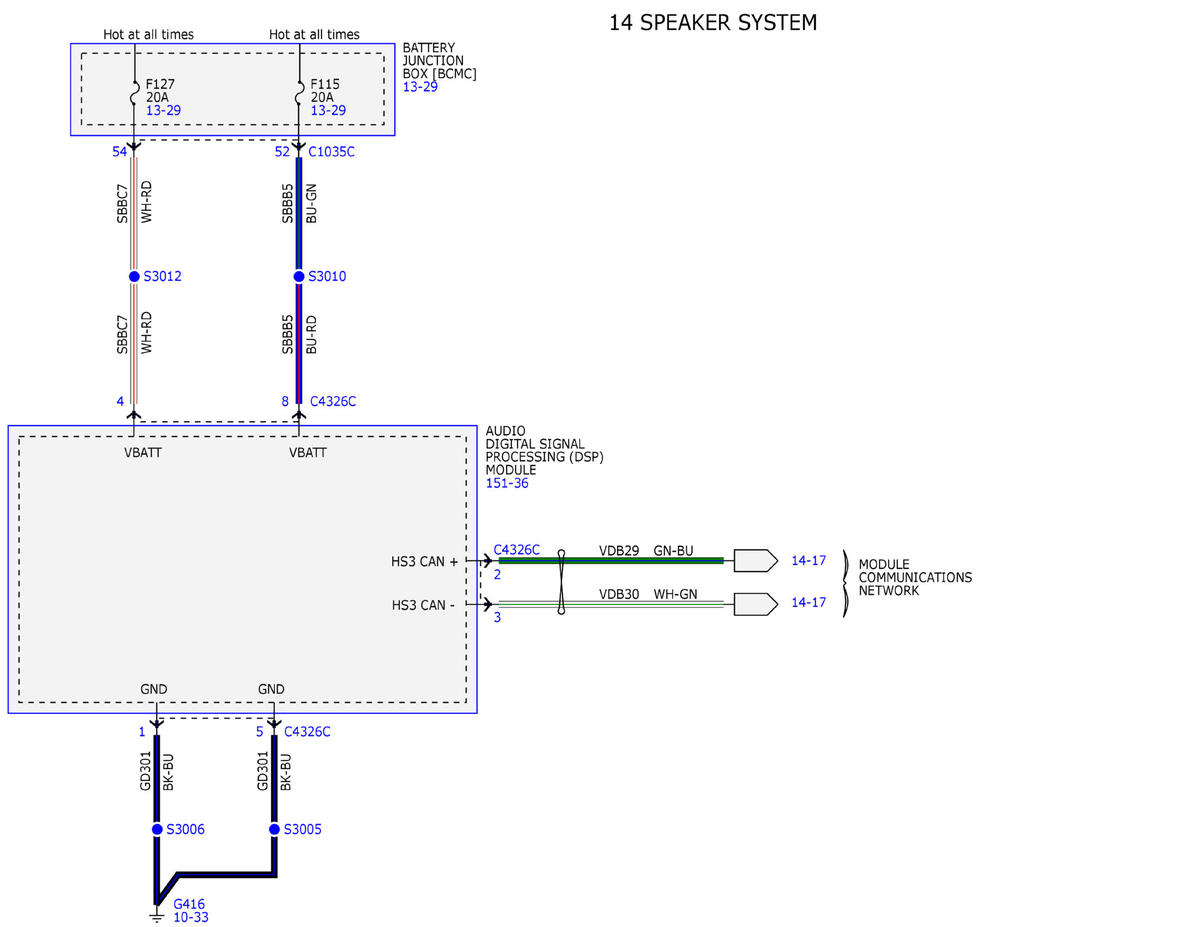

Fig 8: Audio System/Navigation - Sync Wiring Diagram (8 Of 38)

GFDWR110796

Courtesy of FORD MOTOR COMPANY

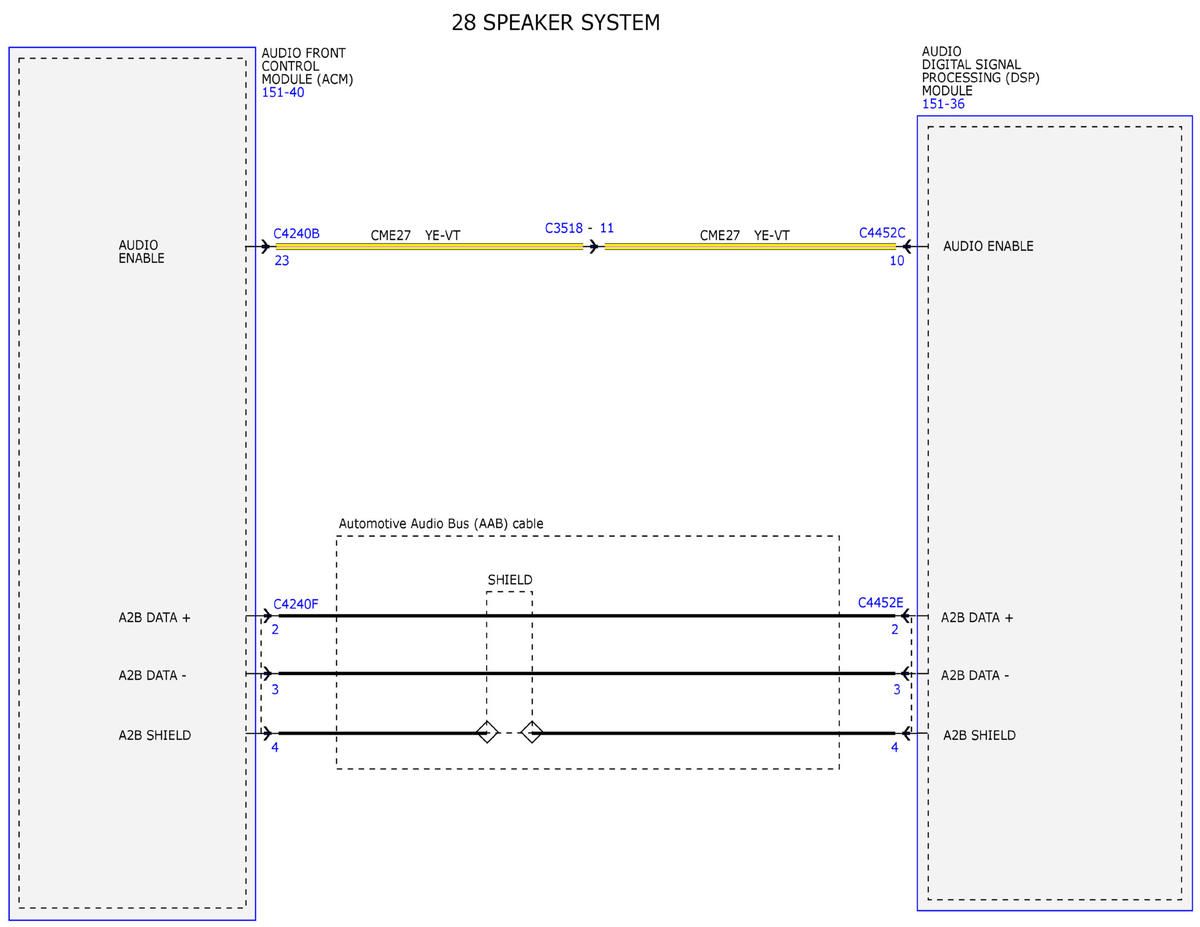

Fig 9: Audio System/Navigation - Sync Wiring Diagram (9 Of 38)

GFDWR110797

Courtesy of FORD MOTOR COMPANY

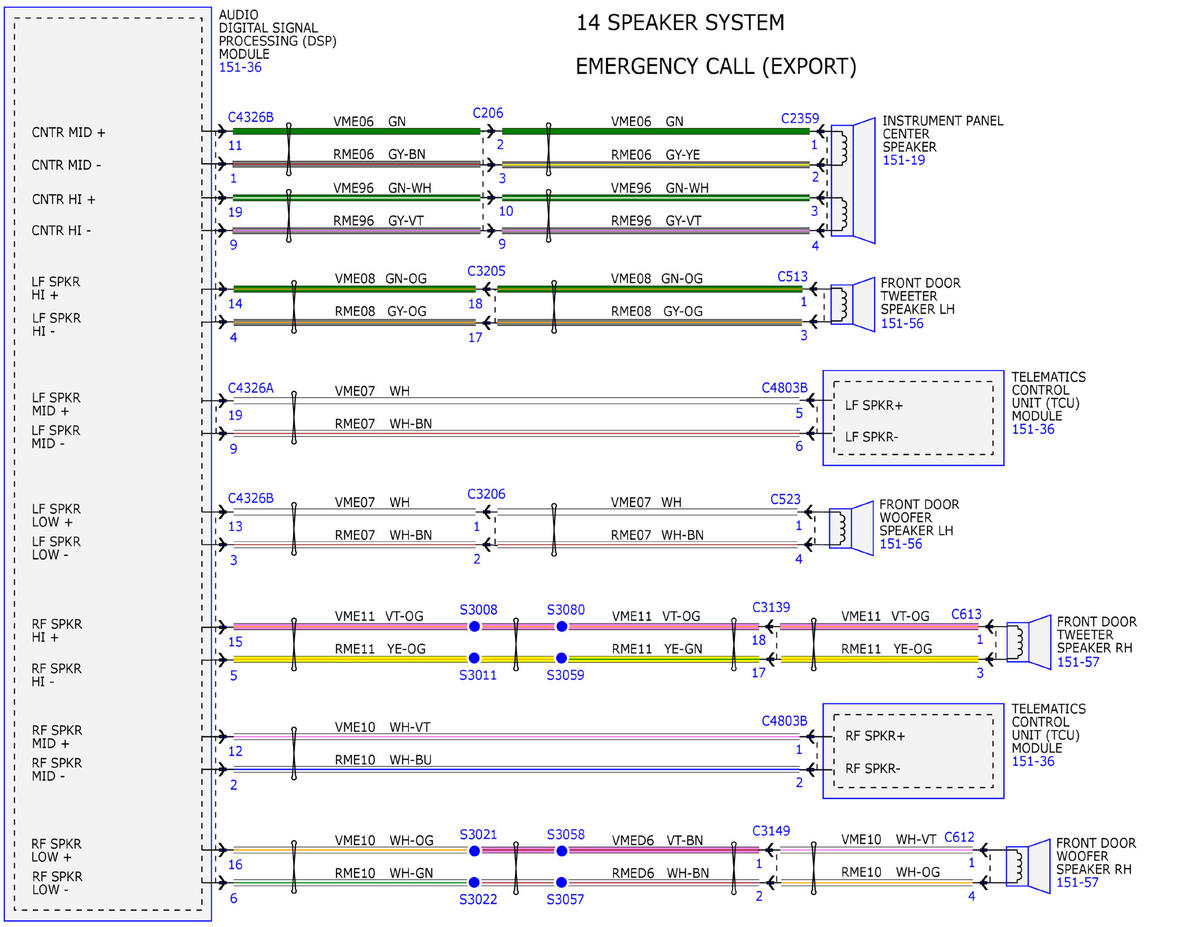

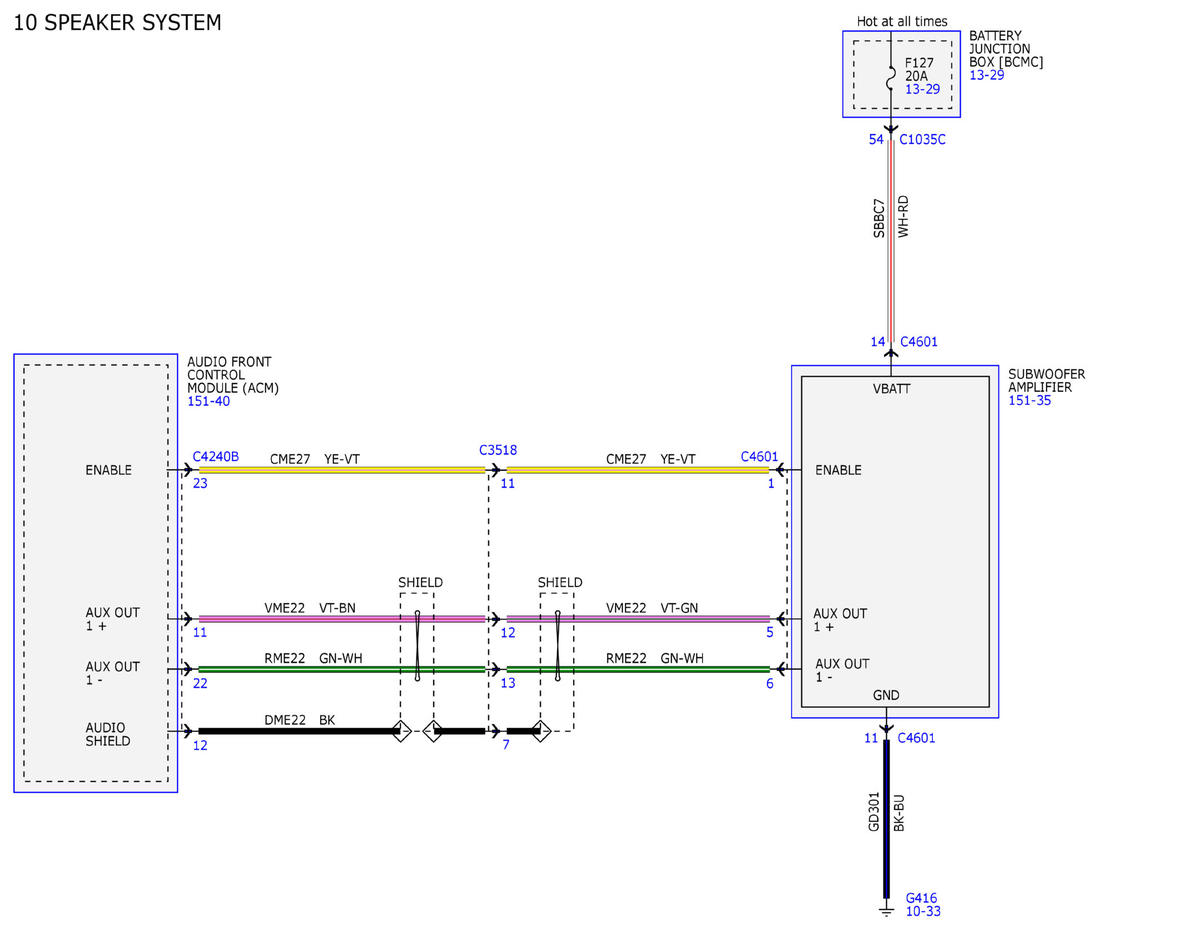

Fig 10: Audio System/Navigation - Sync Wiring Diagram (10 Of 38)

GFDWR110798

Courtesy of FORD MOTOR COMPANY

Fig 11: Audio System/Navigation - Sync Wiring Diagram (11 Of 38)

GFDWR110799

Courtesy of FORD MOTOR COMPANY

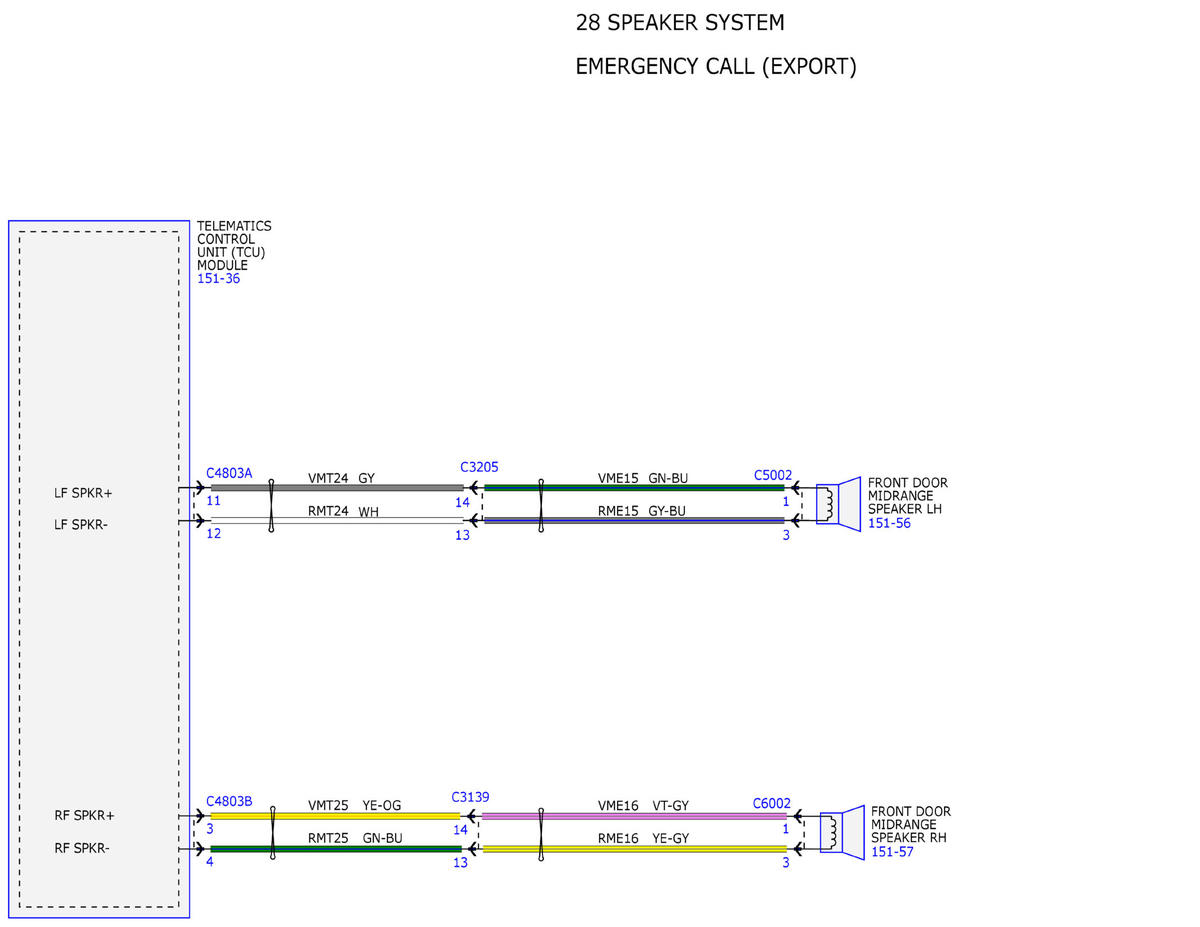

Fig 12: Audio System/Navigation - Sync Wiring Diagram (12 Of 38)

GFDWR110800

Courtesy of FORD MOTOR COMPANY

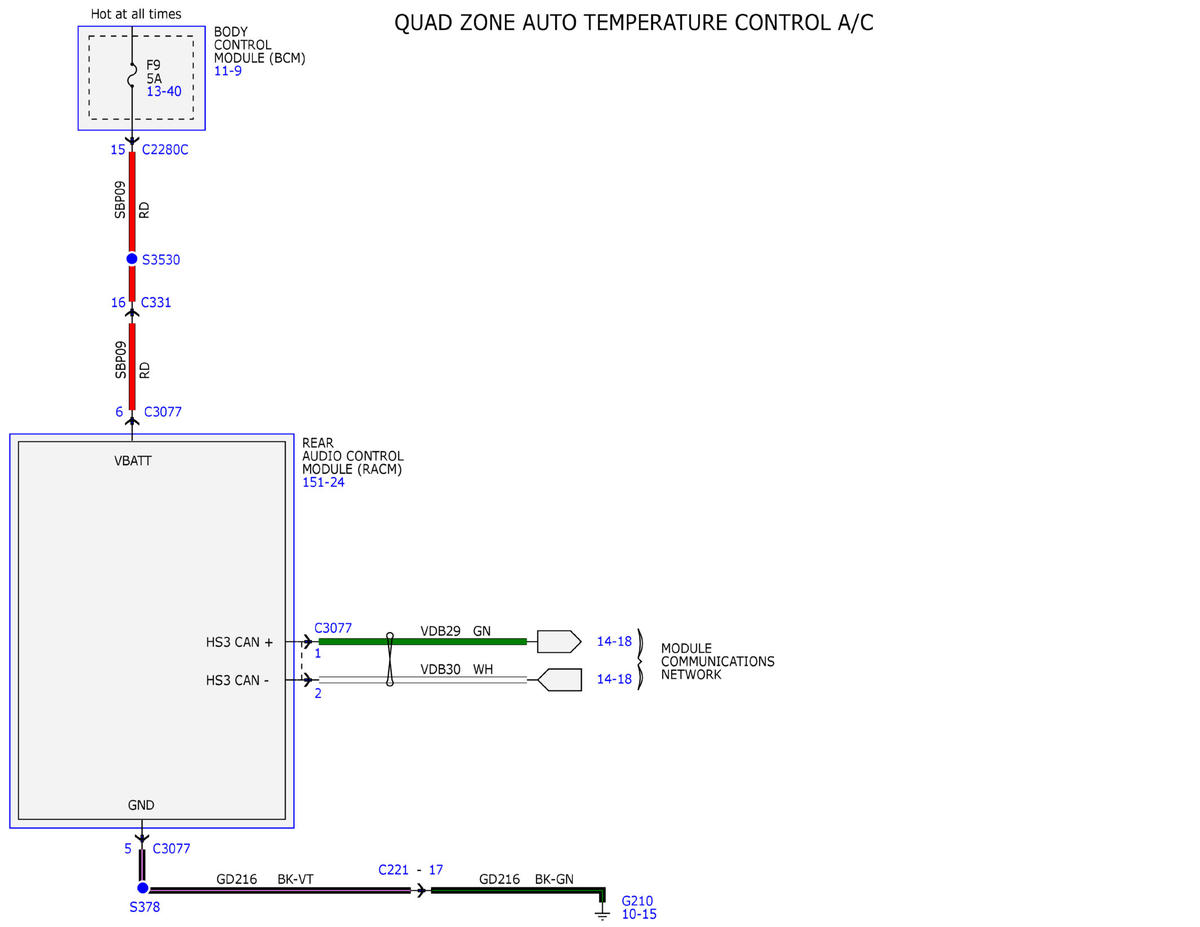

Fig 13: Audio System/Navigation - Sync Wiring Diagram (13 Of 38)

GFDWR110801

Courtesy of FORD MOTOR COMPANY

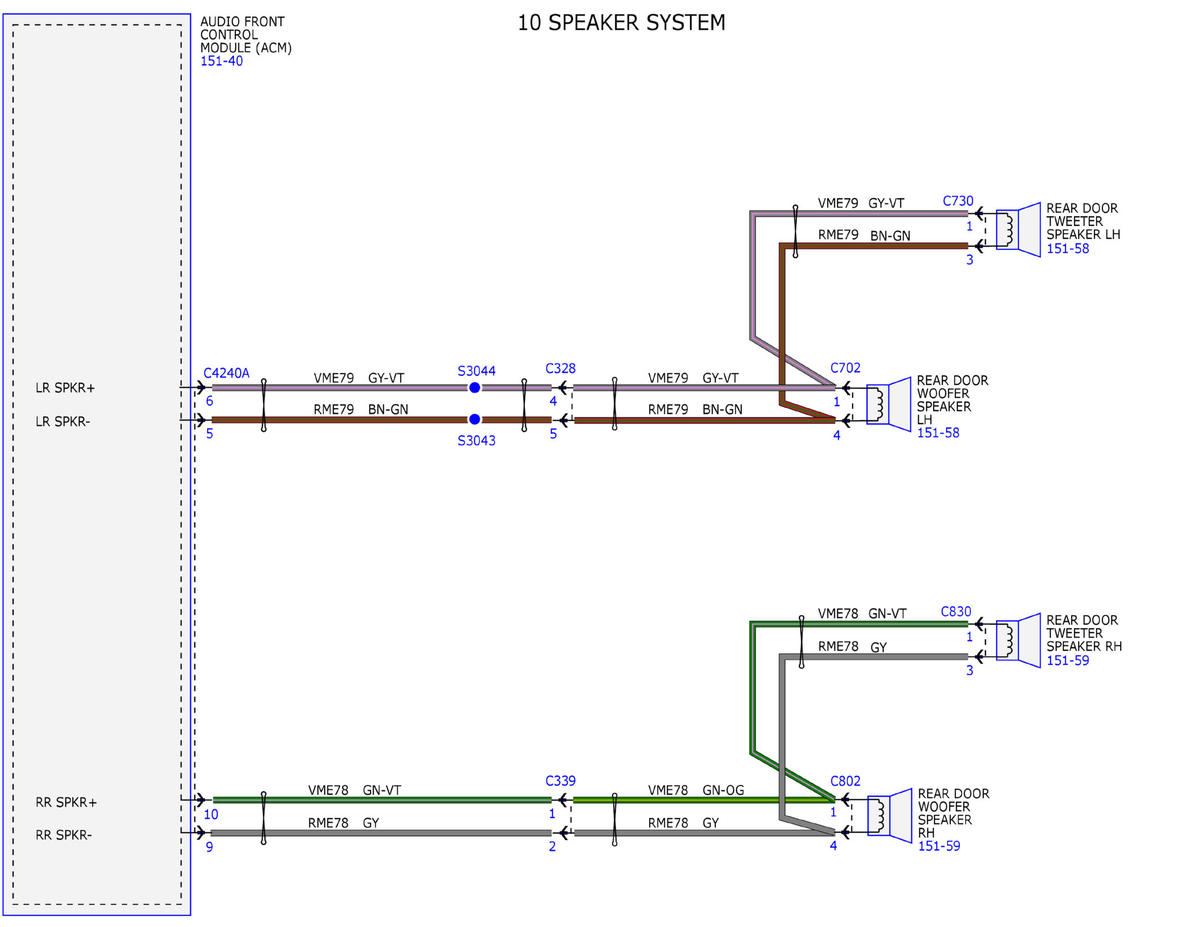

Fig 14: Audio System/Navigation - Sync Wiring Diagram (14 Of 38)

GFDWR110802

Courtesy of FORD MOTOR COMPANY

Fig 15: Audio System/Navigation - Sync Wiring Diagram (15 Of 38)

GFDWR110803

Courtesy of FORD MOTOR COMPANY

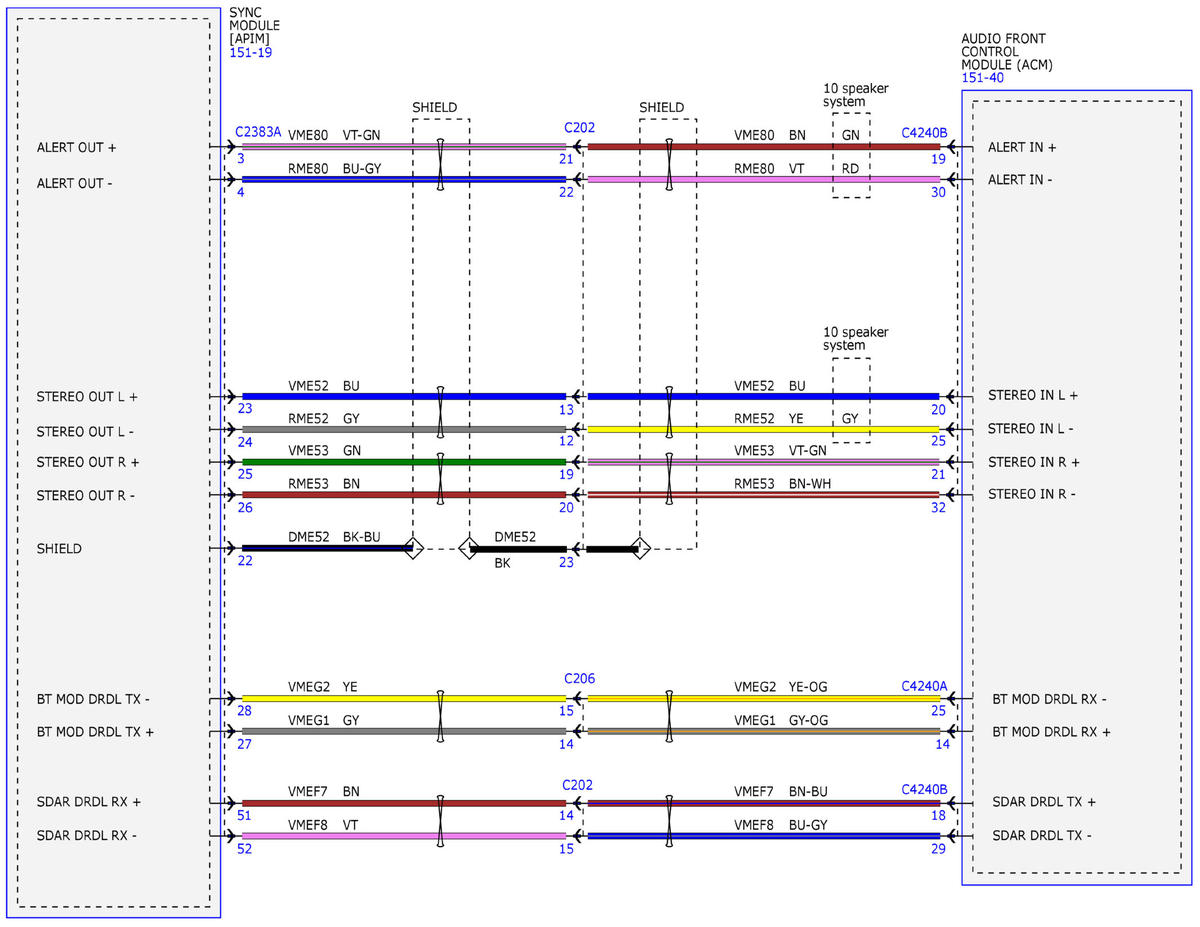

Fig 16: Audio System/Navigation - Sync Wiring Diagram (16 Of 38)

GFDWR110804

Courtesy of FORD MOTOR COMPANY

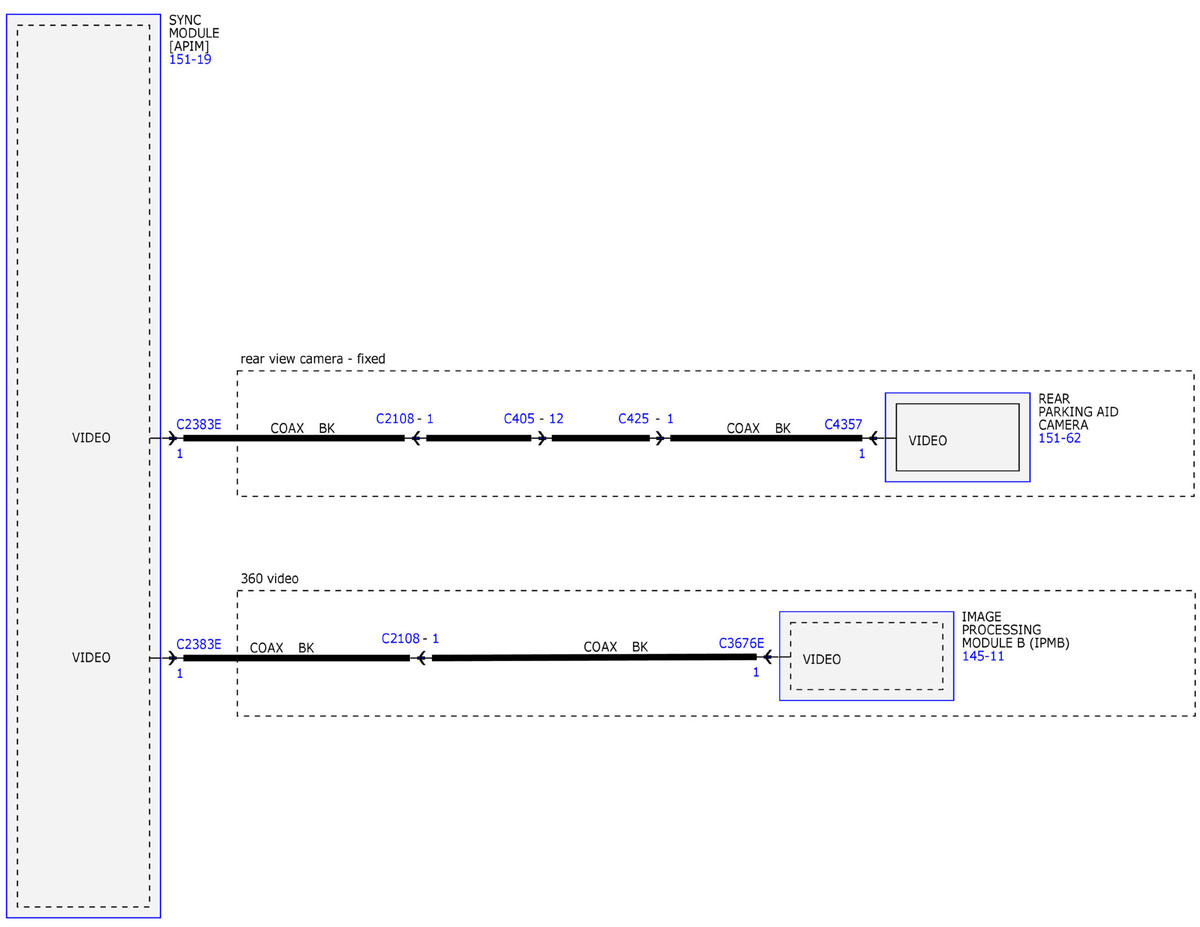

Fig 17: Audio System/Navigation - Sync Wiring Diagram (17 Of 38)

GFDWR110805

Courtesy of FORD MOTOR COMPANY

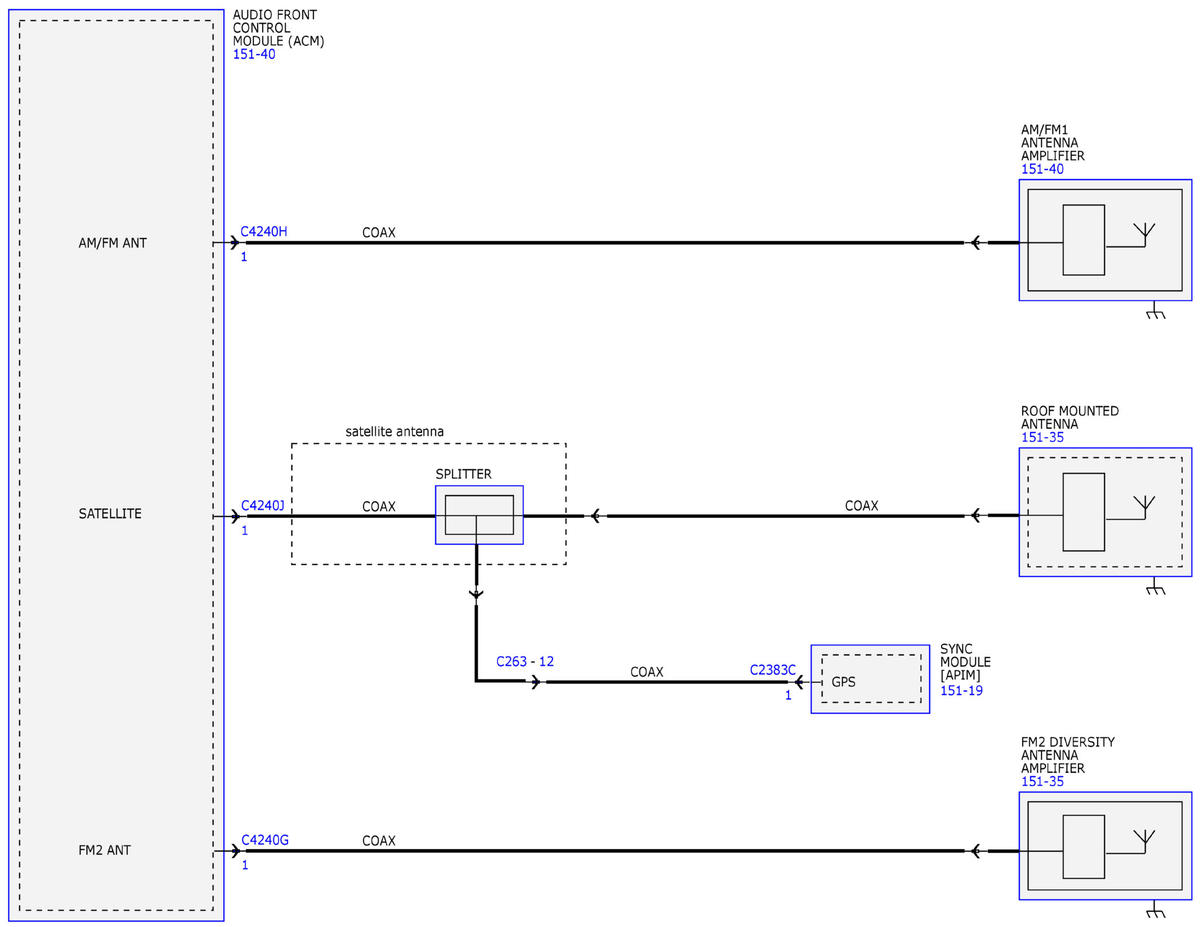

Fig 18: Audio System/Navigation - Sync Wiring Diagram (18 Of 38)

GFDWR110806

Courtesy of FORD MOTOR COMPANY

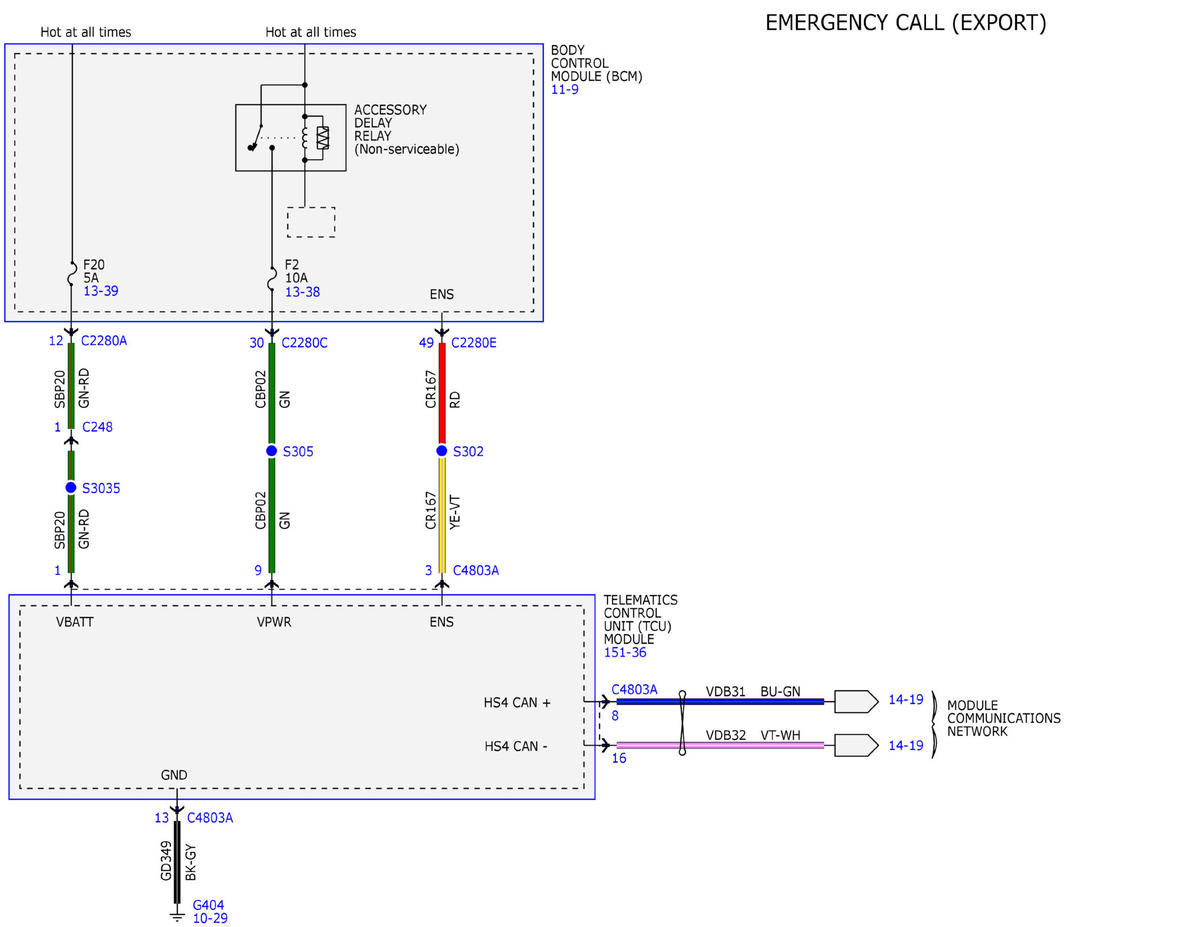

Fig 19: Audio System/Navigation - Sync Wiring Diagram (19 Of 38)

GFDWR110807

Courtesy of FORD MOTOR COMPANY

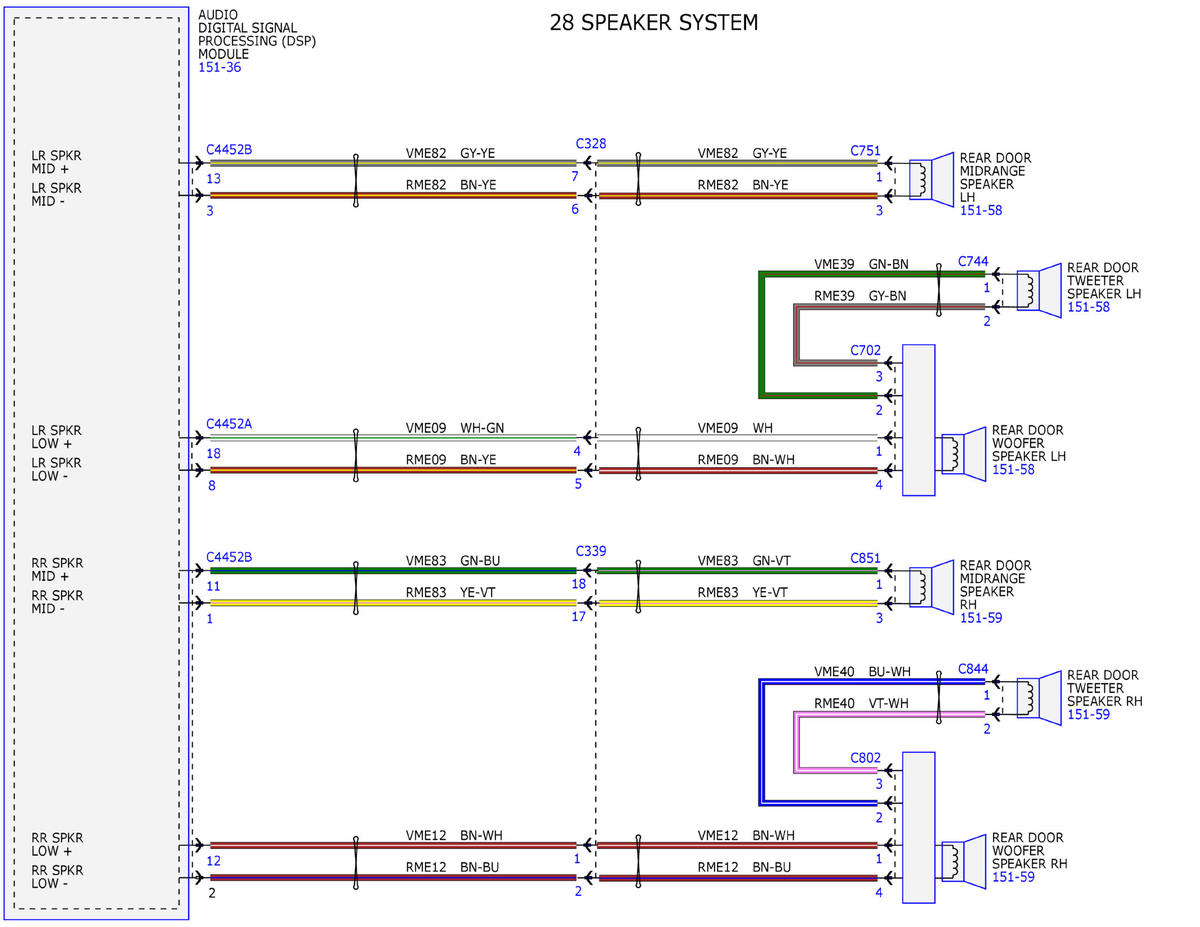

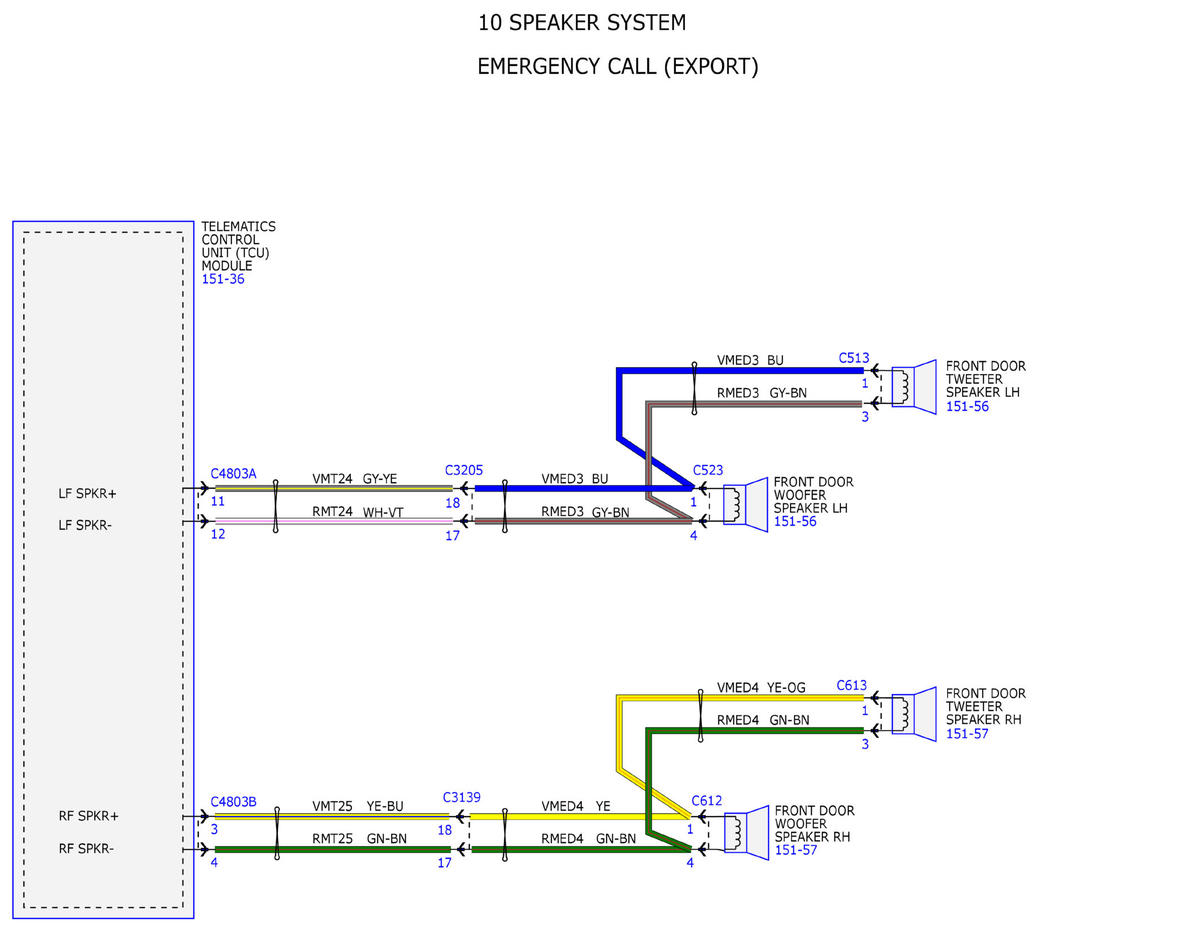

Fig 20: Audio System/Navigation - Sync Wiring Diagram (20 Of 38)

GFDWR110808

Courtesy of FORD MOTOR COMPANY

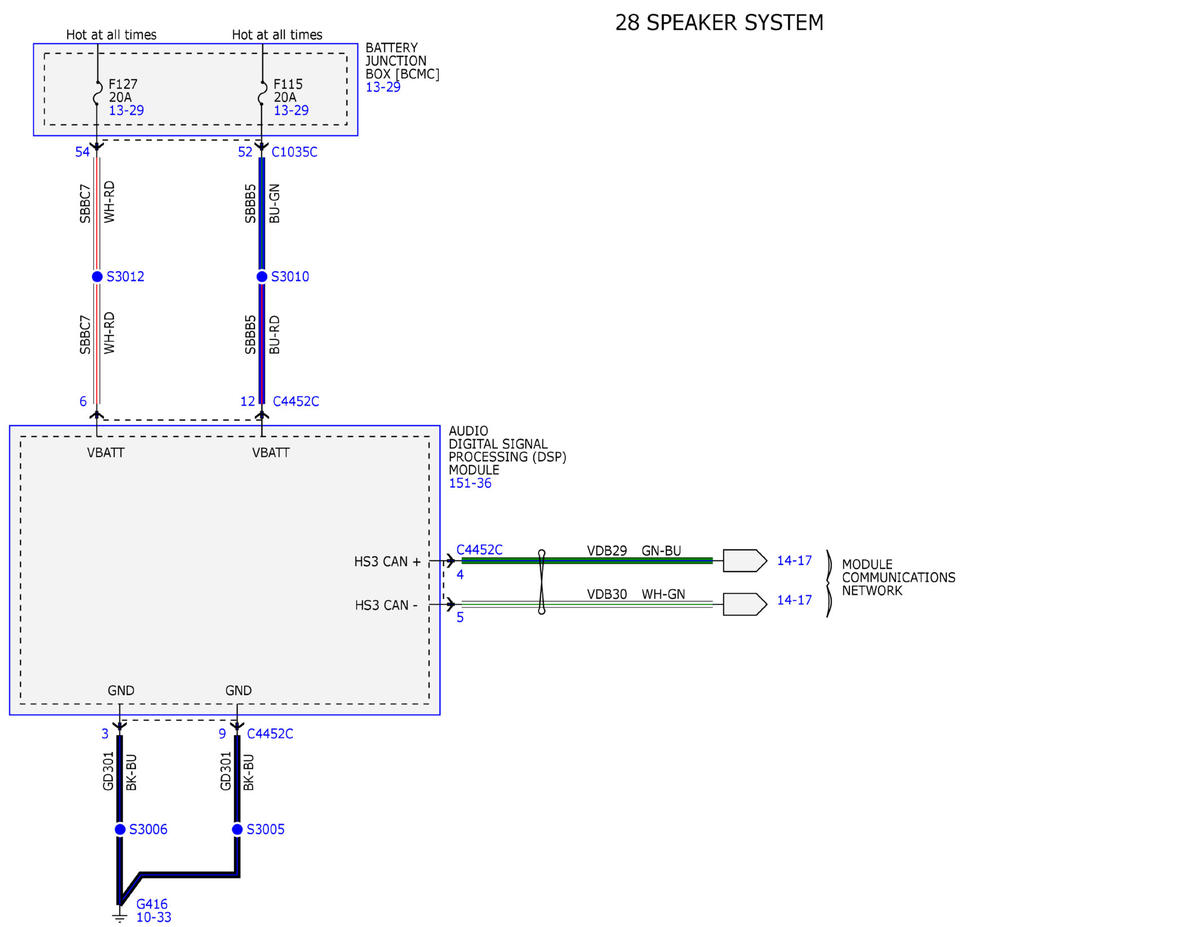

Fig 21: Audio System/Navigation - Sync Wiring Diagram (21 Of 38)

GFDWR110809

Courtesy of FORD MOTOR COMPANY

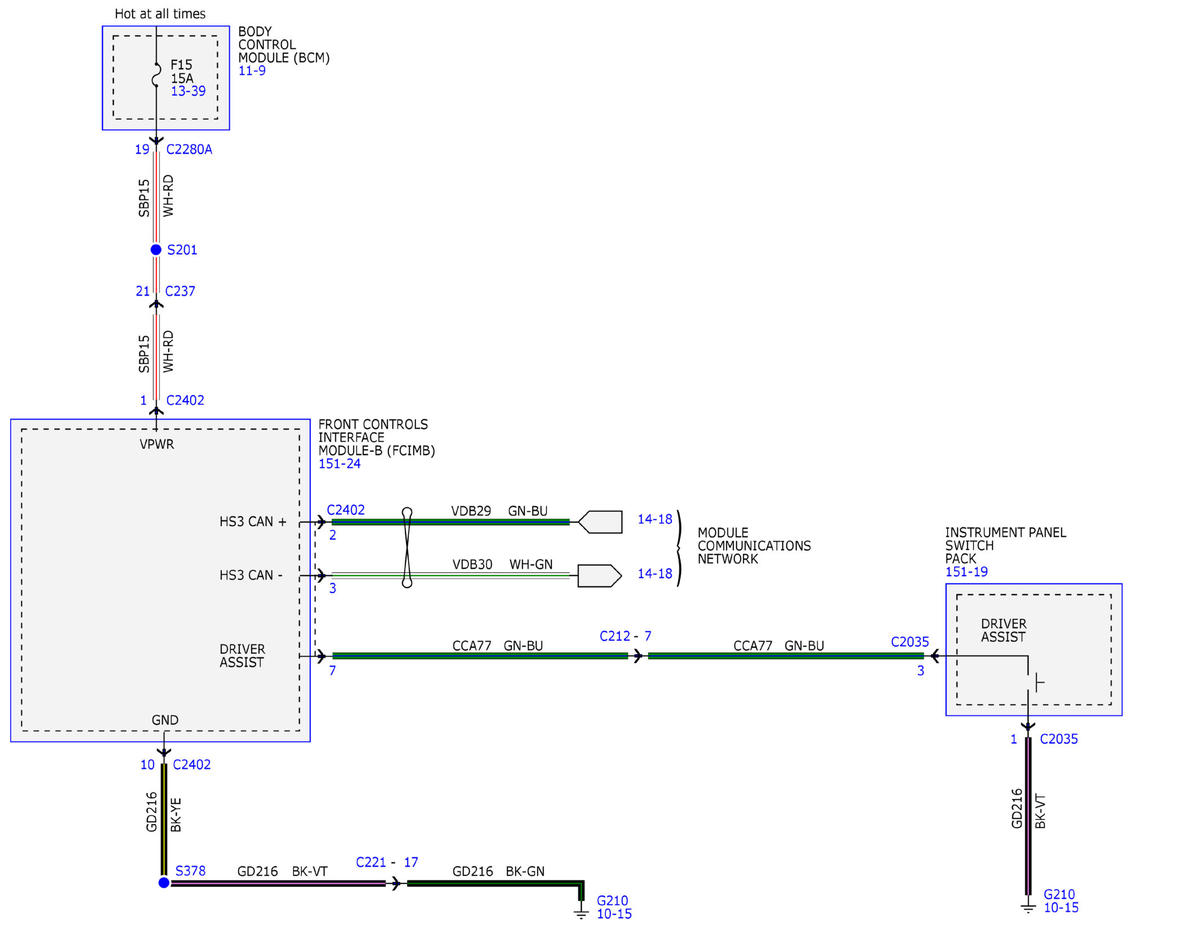

Fig 22: Audio System/Navigation - Sync Wiring Diagram (22 Of 38)

GFDWR110810

Courtesy of FORD MOTOR COMPANY

Fig 23: Audio System/Navigation - Sync Wiring Diagram (23 Of 38)

GFDWR110811

Courtesy of FORD MOTOR COMPANY

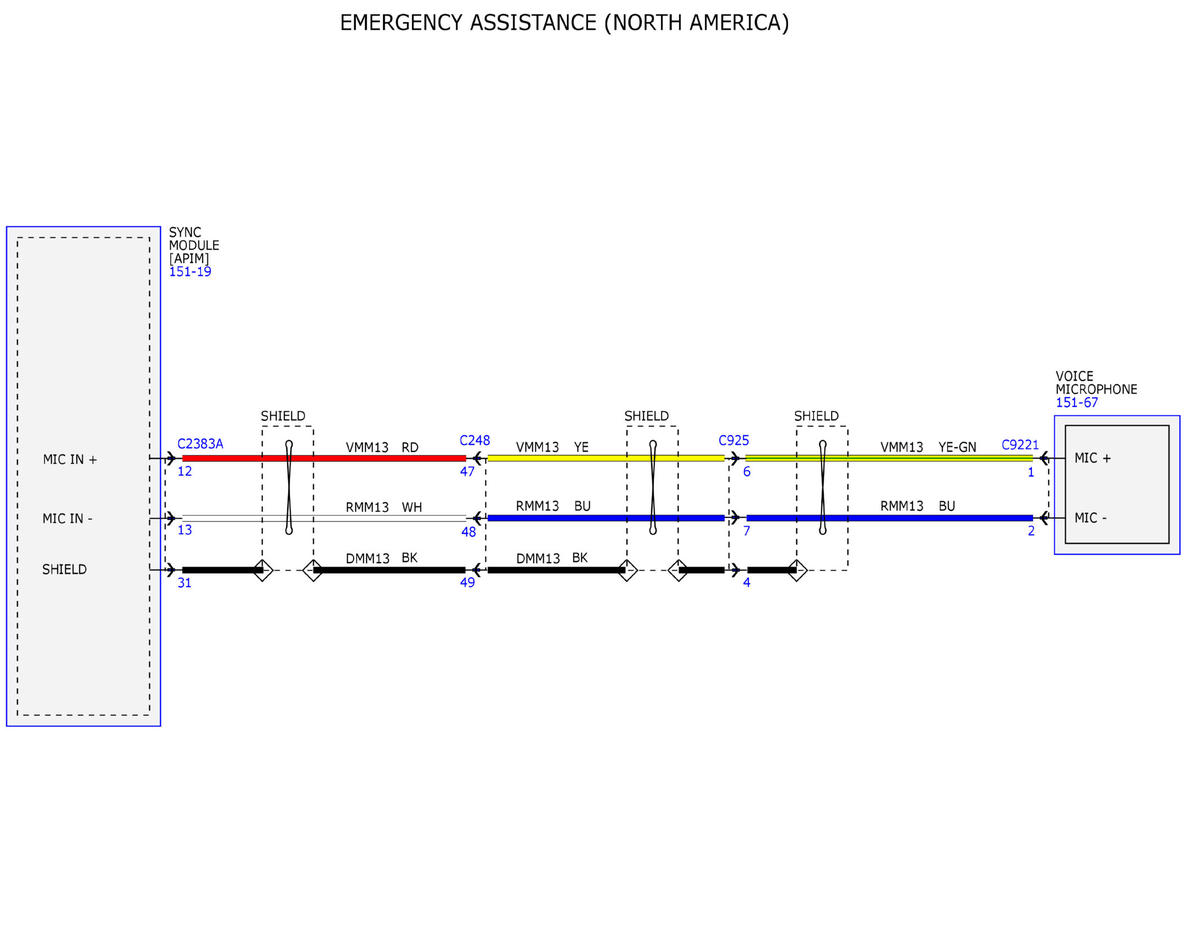

Fig 24: Audio System/Navigation - Sync Wiring Diagram (24 Of 38)

GFDWR110812

Courtesy of FORD MOTOR COMPANY

Fig 25: Audio System/Navigation - Sync Wiring Diagram (25 Of 38)

GFDWR110813

Courtesy of FORD MOTOR COMPANY

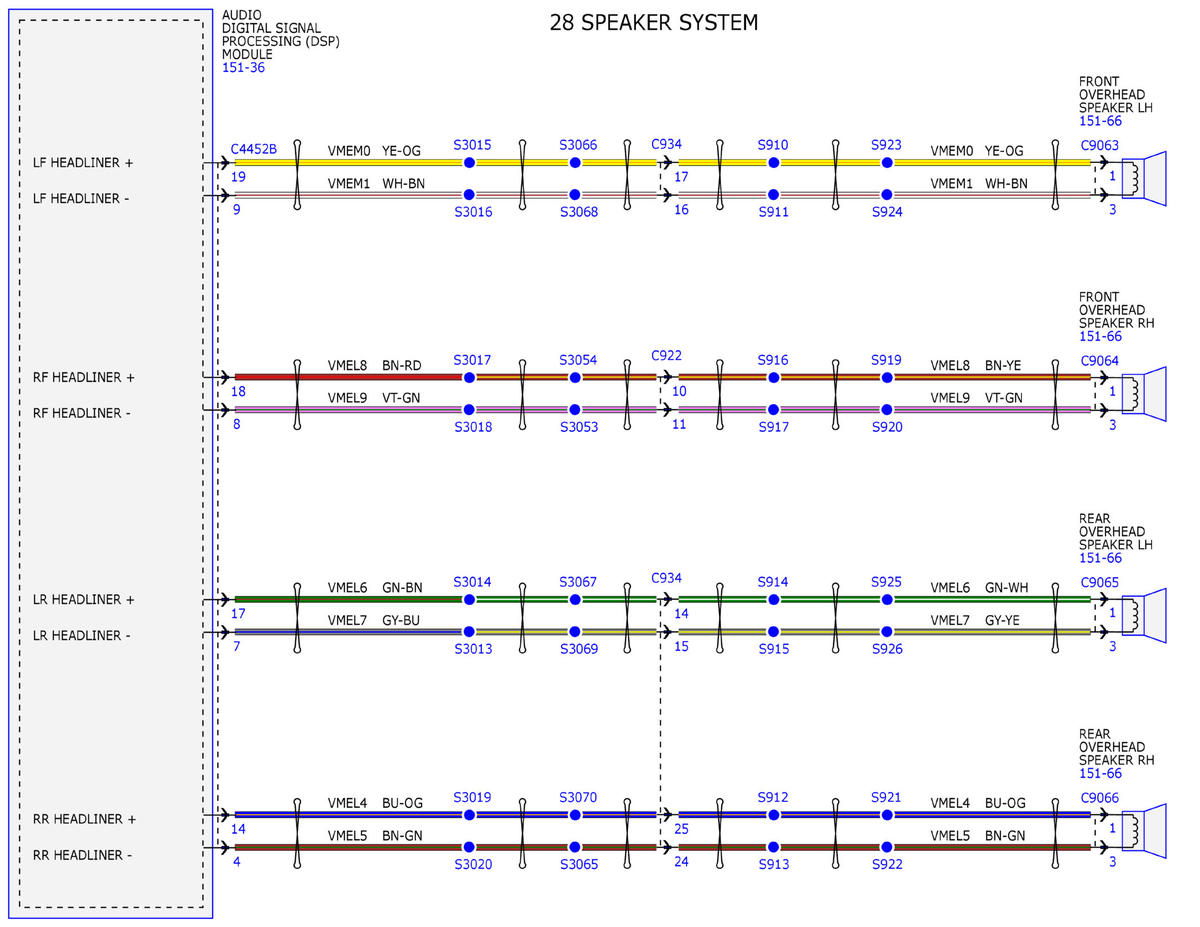

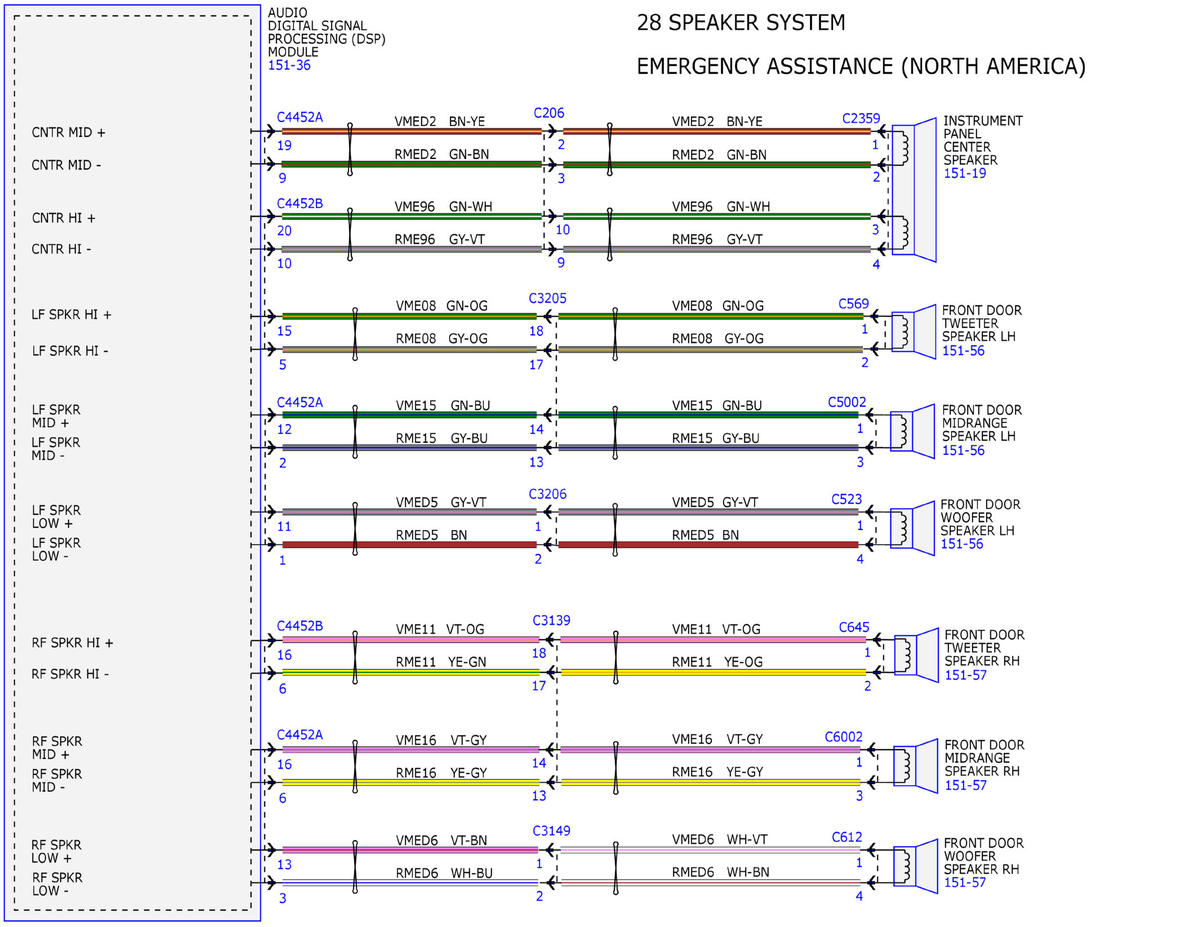

Fig 26: Audio System/Navigation - Sync Wiring Diagram (26 Of 38)

GFDWR110814

Courtesy of FORD MOTOR COMPANY

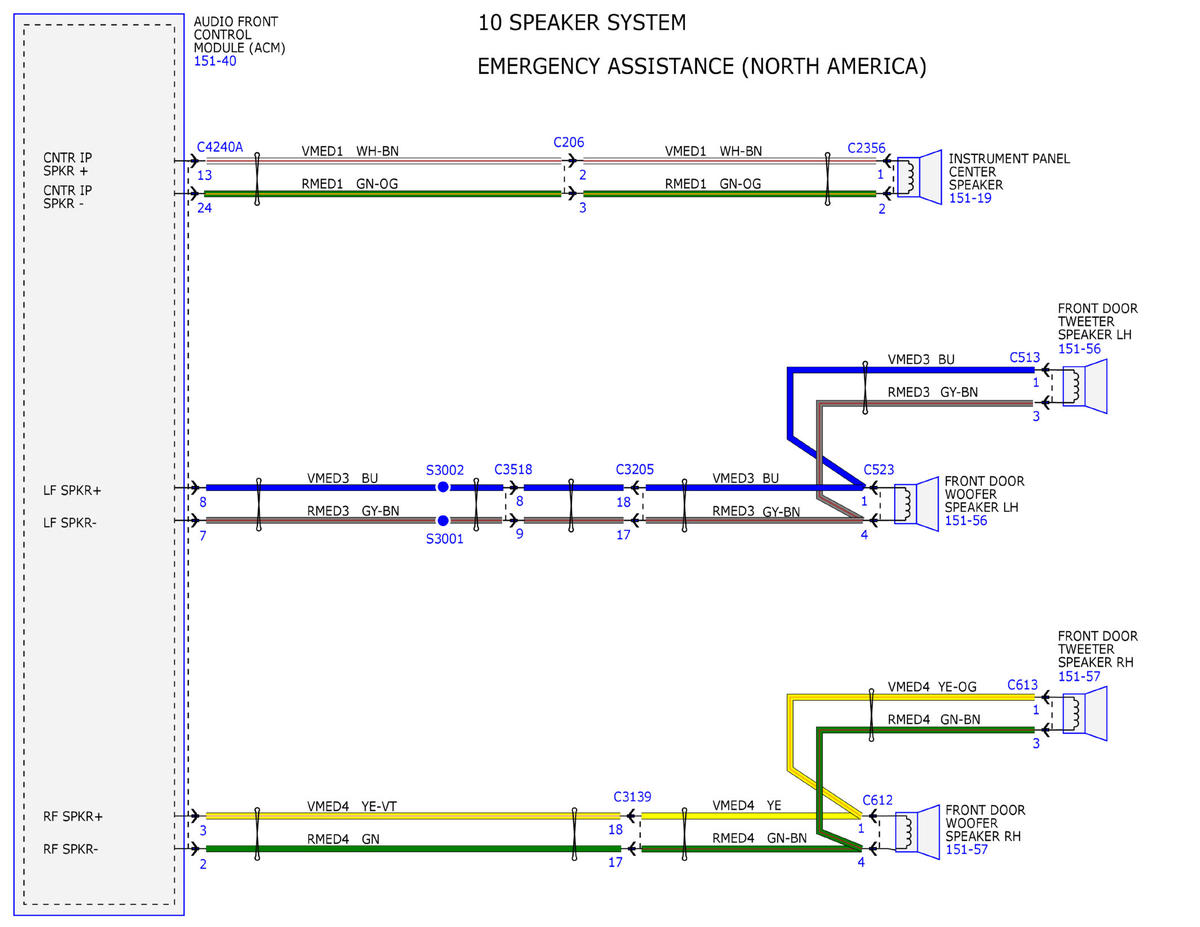

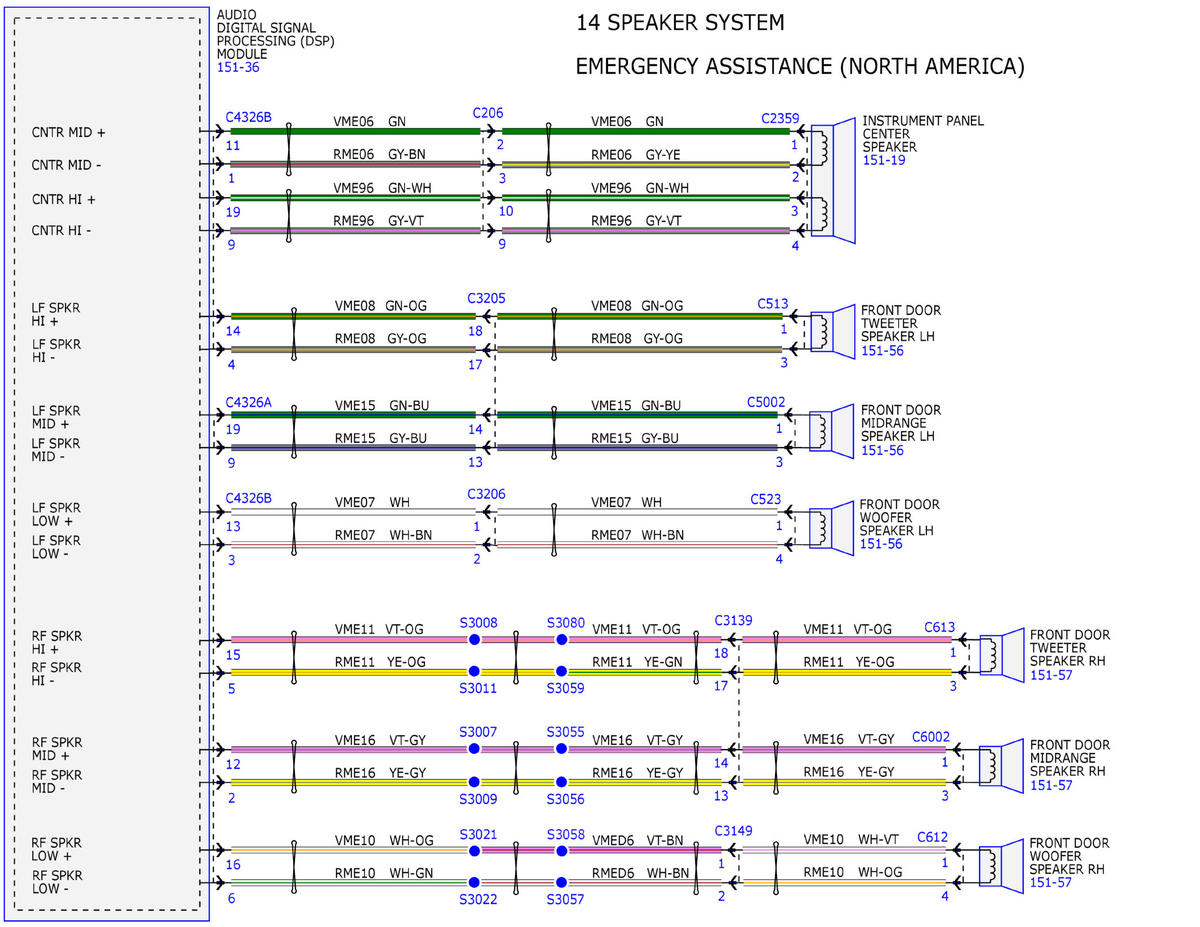

Fig 27: Audio System/Navigation - Sync Wiring Diagram (27 Of 38)

GFDWR110815

Courtesy of FORD MOTOR COMPANY

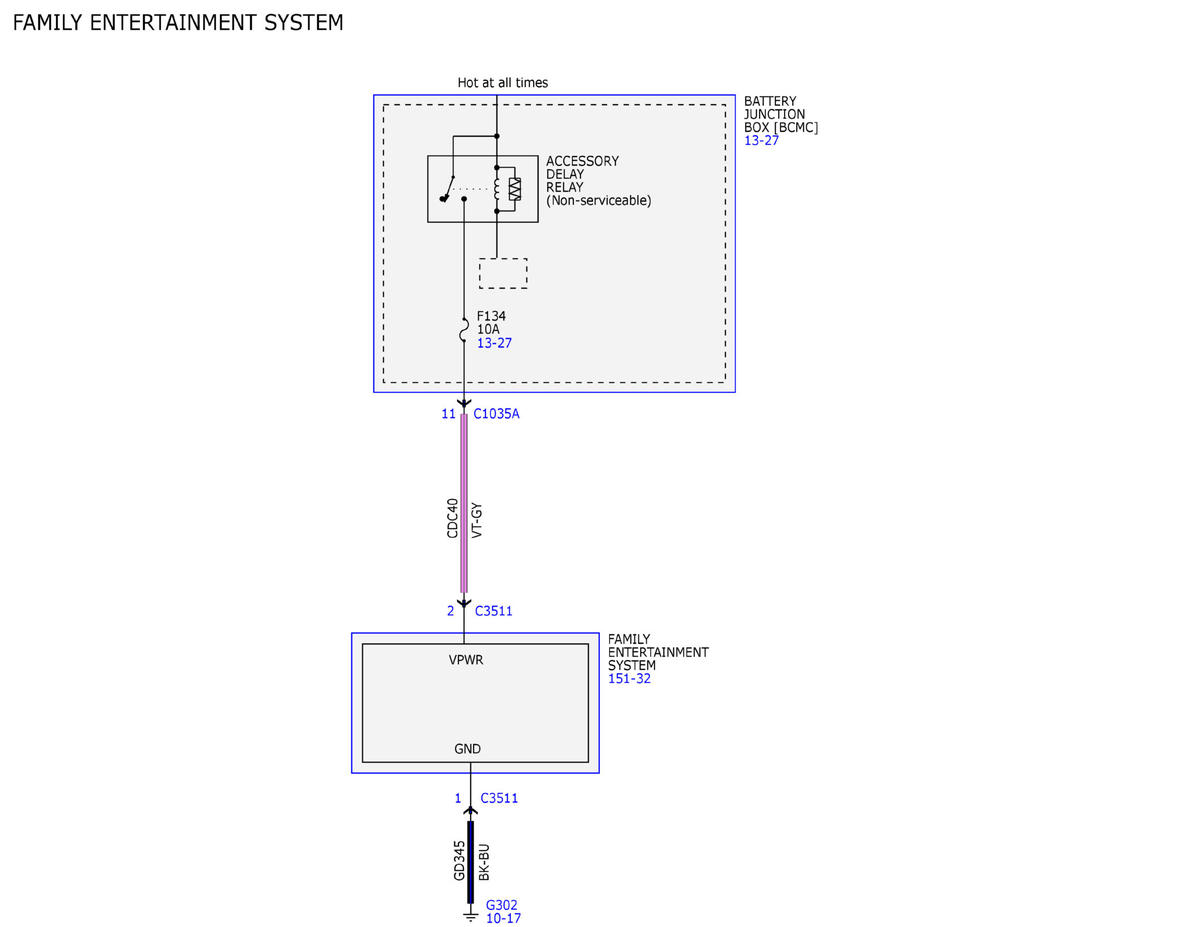

Fig 28: Audio System/Navigation - Sync Wiring Diagram (28 Of 38)

GFDWR110816

Courtesy of FORD MOTOR COMPANY

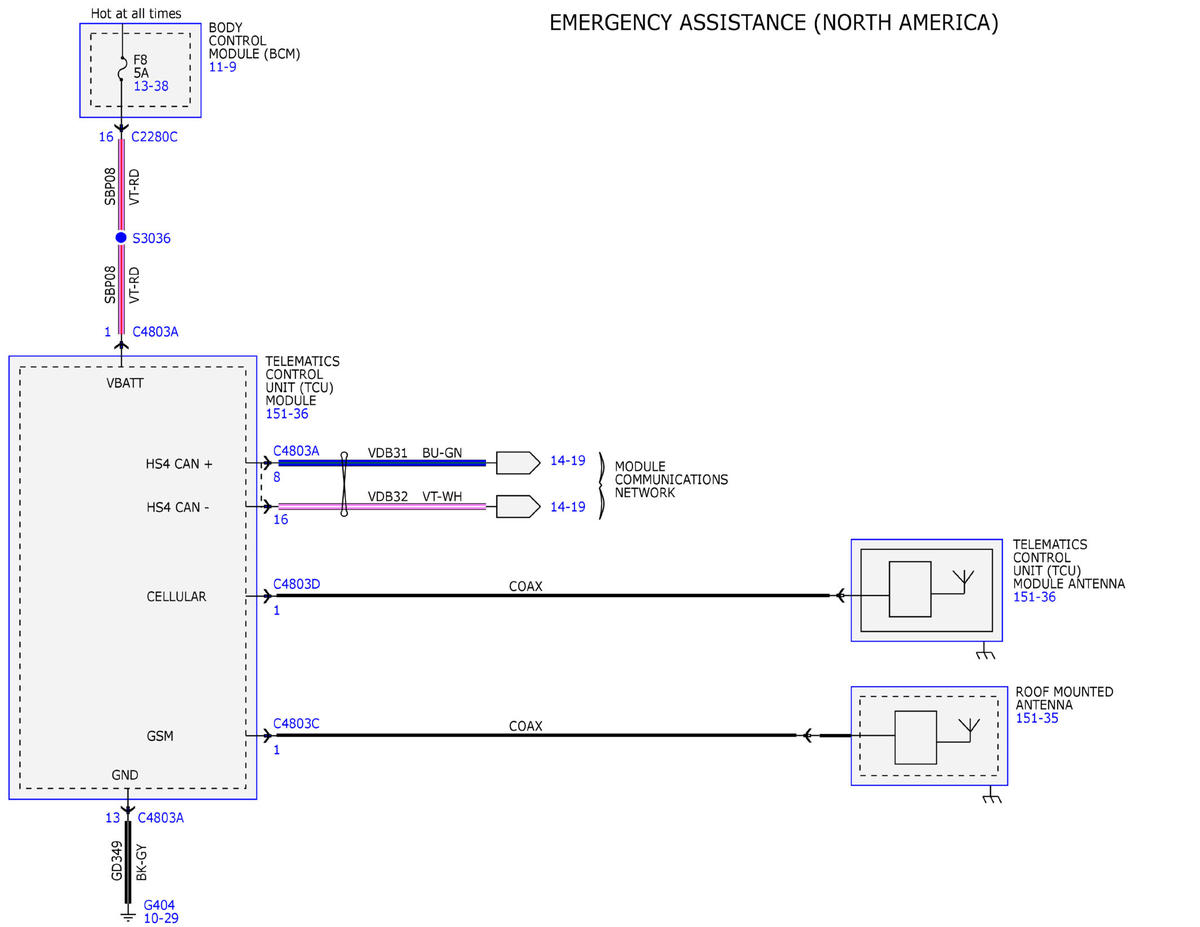

Fig 29: Audio System/Navigation - Sync Wiring Diagram (29 Of 38)

GFDWR110817

Courtesy of FORD MOTOR COMPANY

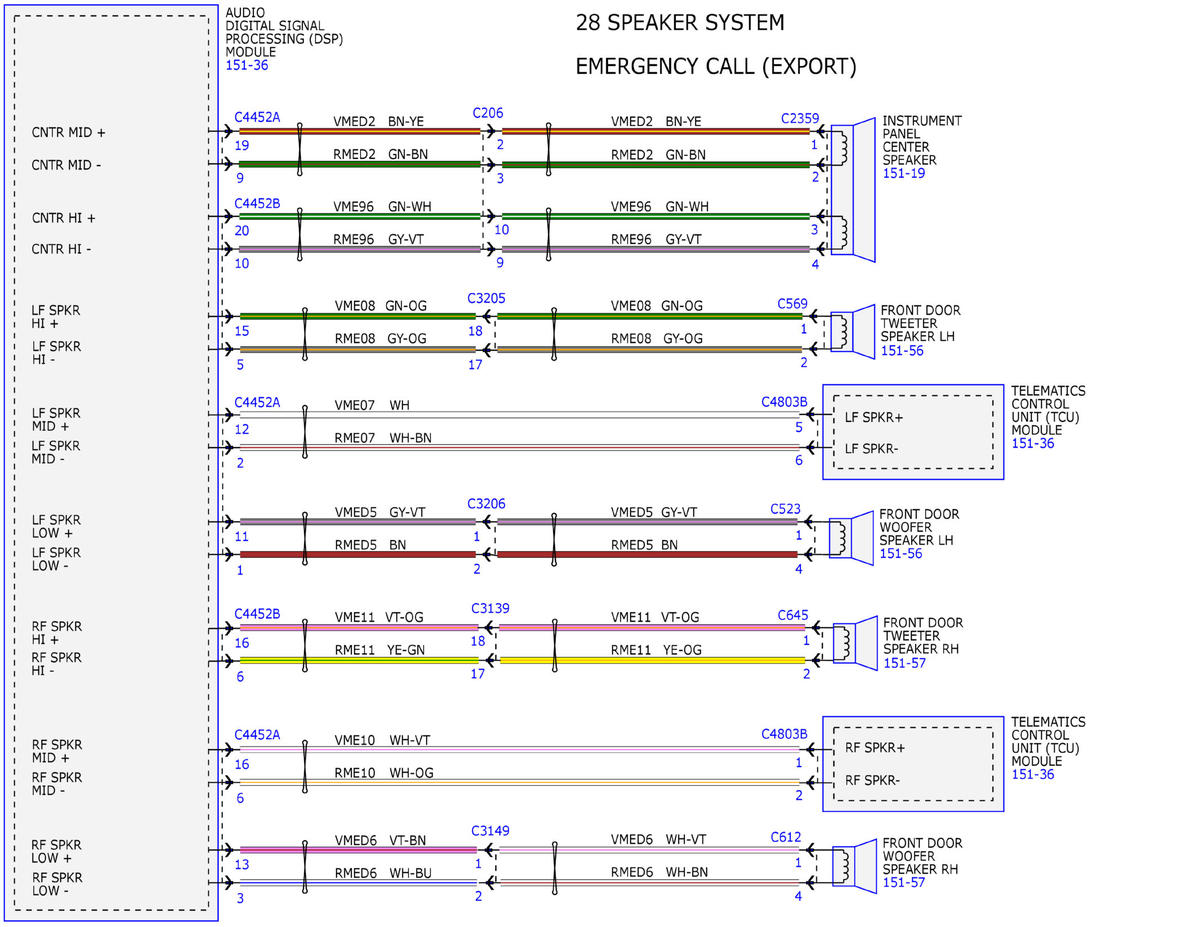

Fig 30: Audio System/Navigation - Sync Wiring Diagram (30 Of 38)

GFDWR110818

Courtesy of FORD MOTOR COMPANY

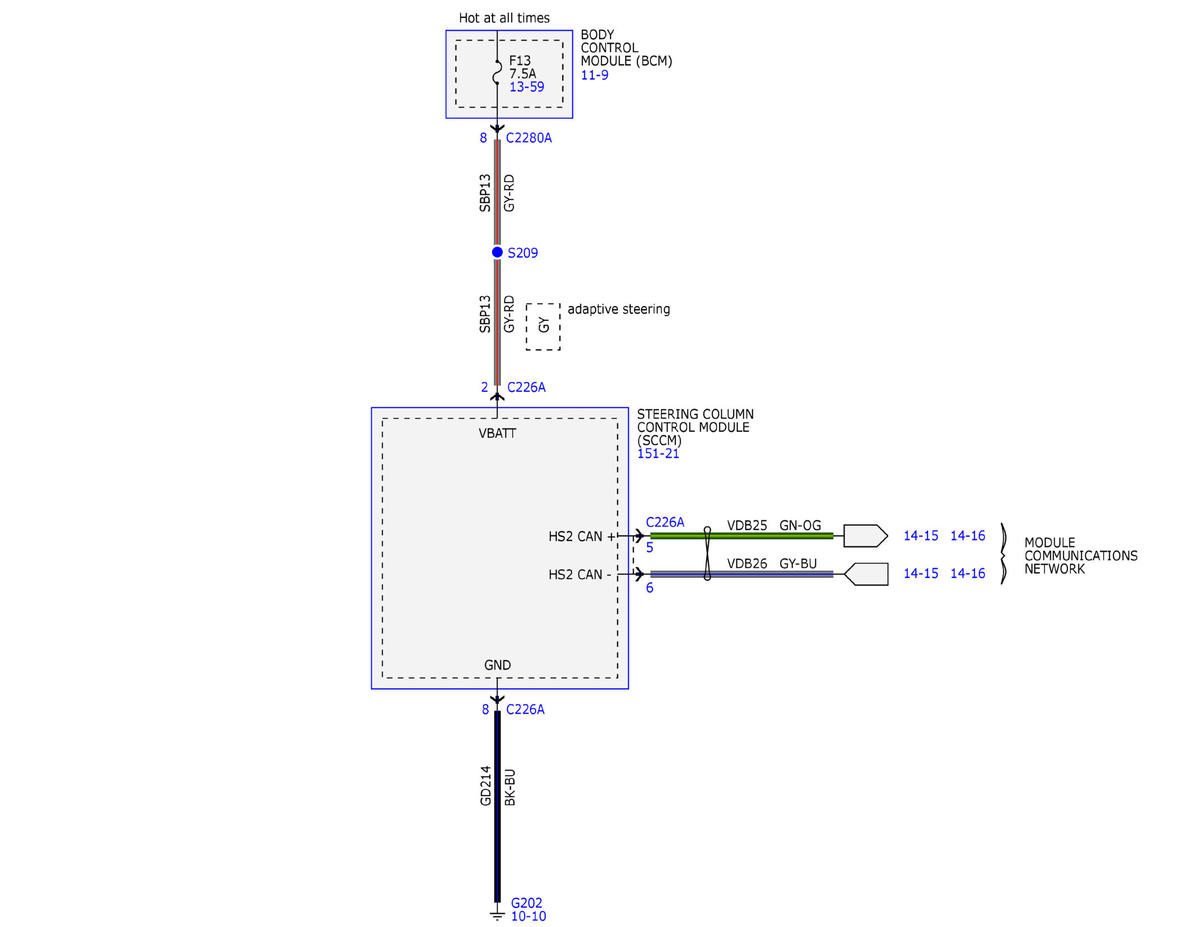

Fig 31: Audio System/Navigation - Sync Wiring Diagram (31 Of 38)

GFDWR110819

Courtesy of FORD MOTOR COMPANY

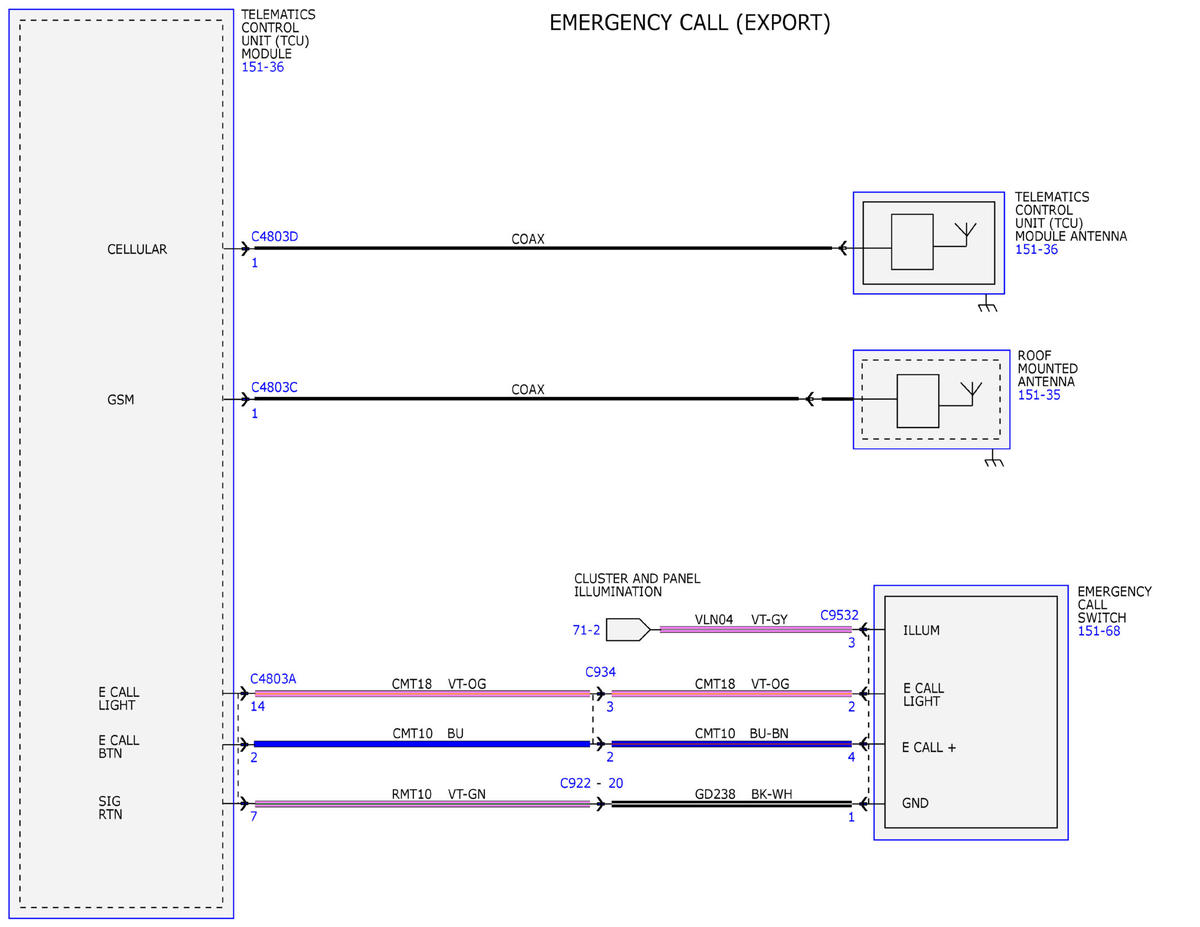

Fig 32: Audio System/Navigation - Sync Wiring Diagram (32 Of 38)

GFDWR110820

Courtesy of FORD MOTOR COMPANY

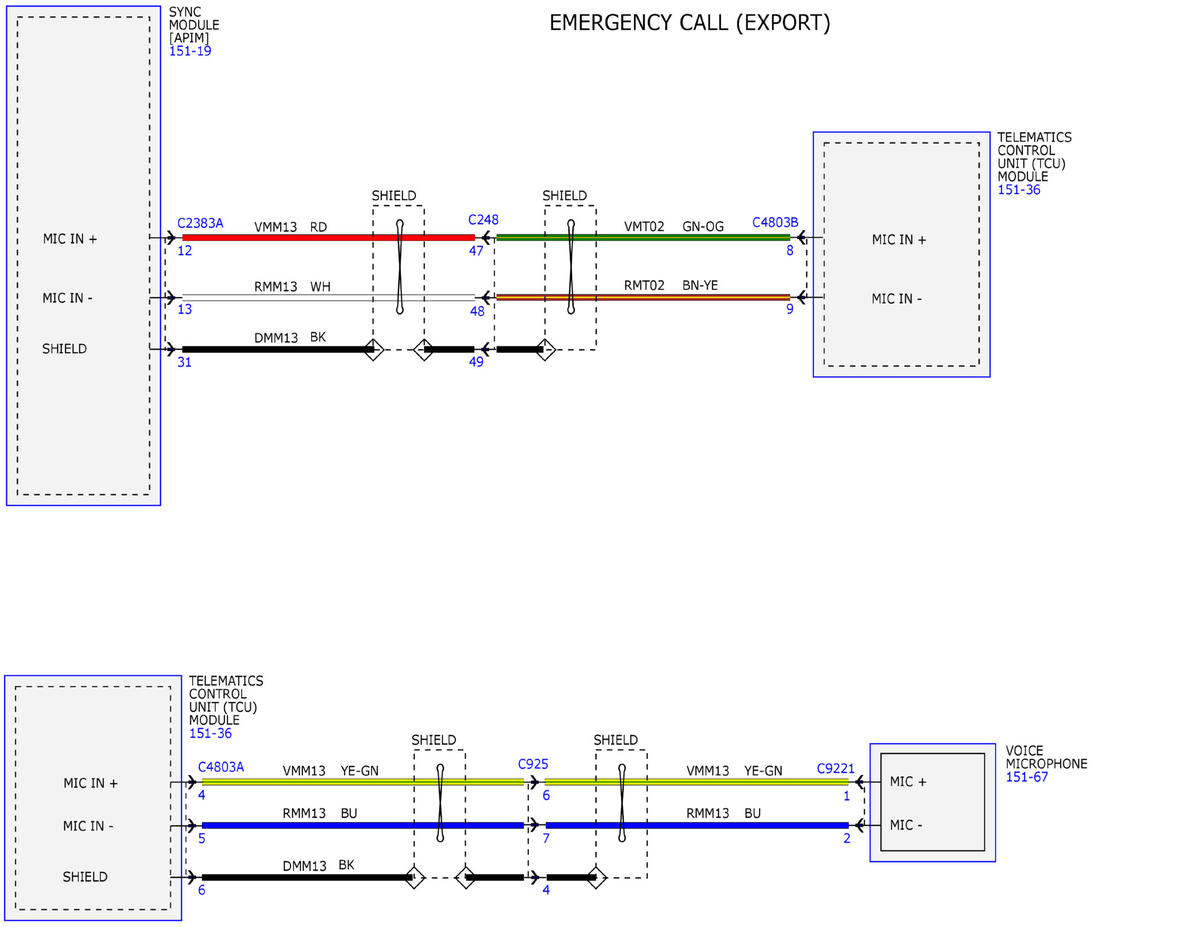

Fig 33: Audio System/Navigation - Sync Wiring Diagram (33 Of 38)

GFDWR110821

Courtesy of FORD MOTOR COMPANY

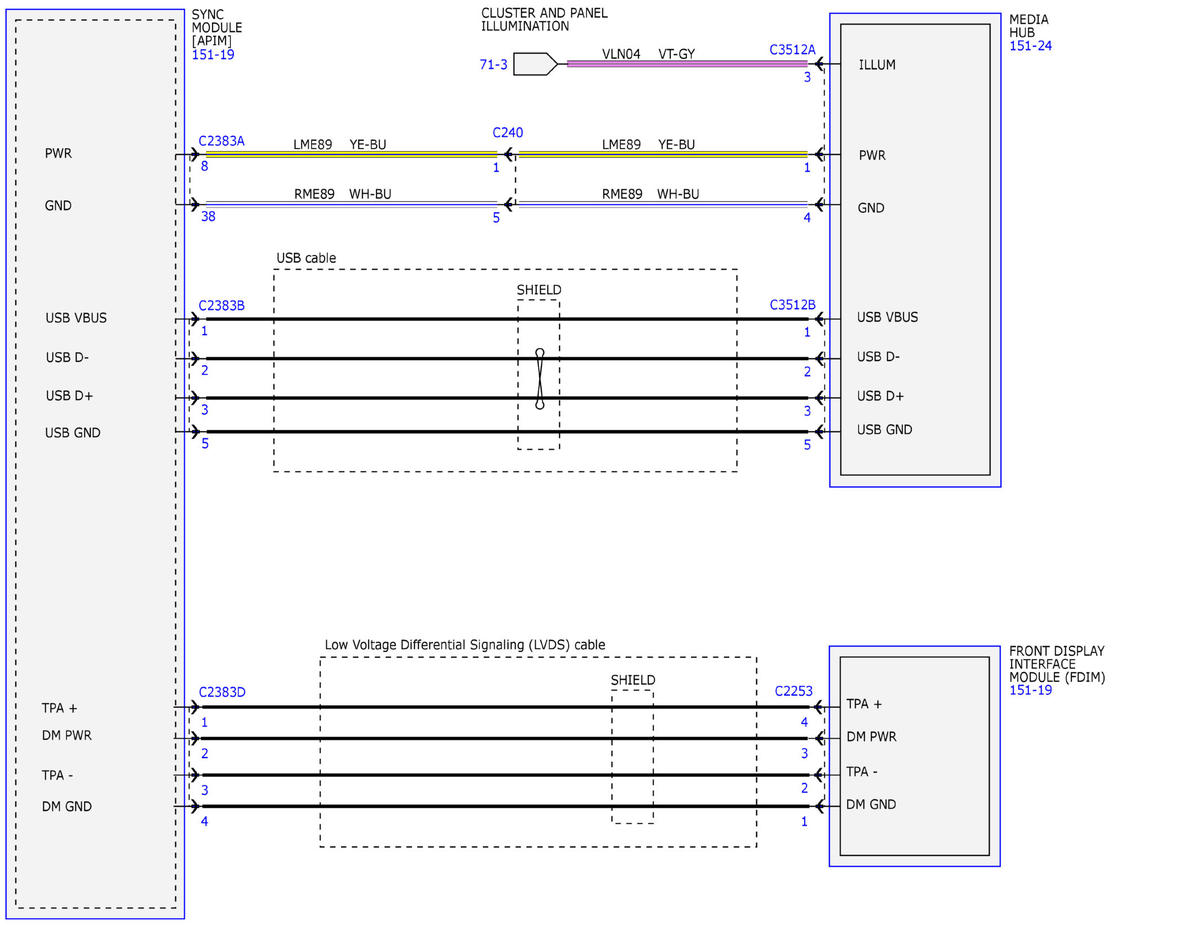

Fig 34: Audio System/Navigation - Sync Wiring Diagram (34 Of 38)

GFDWR110822

Courtesy of FORD MOTOR COMPANY

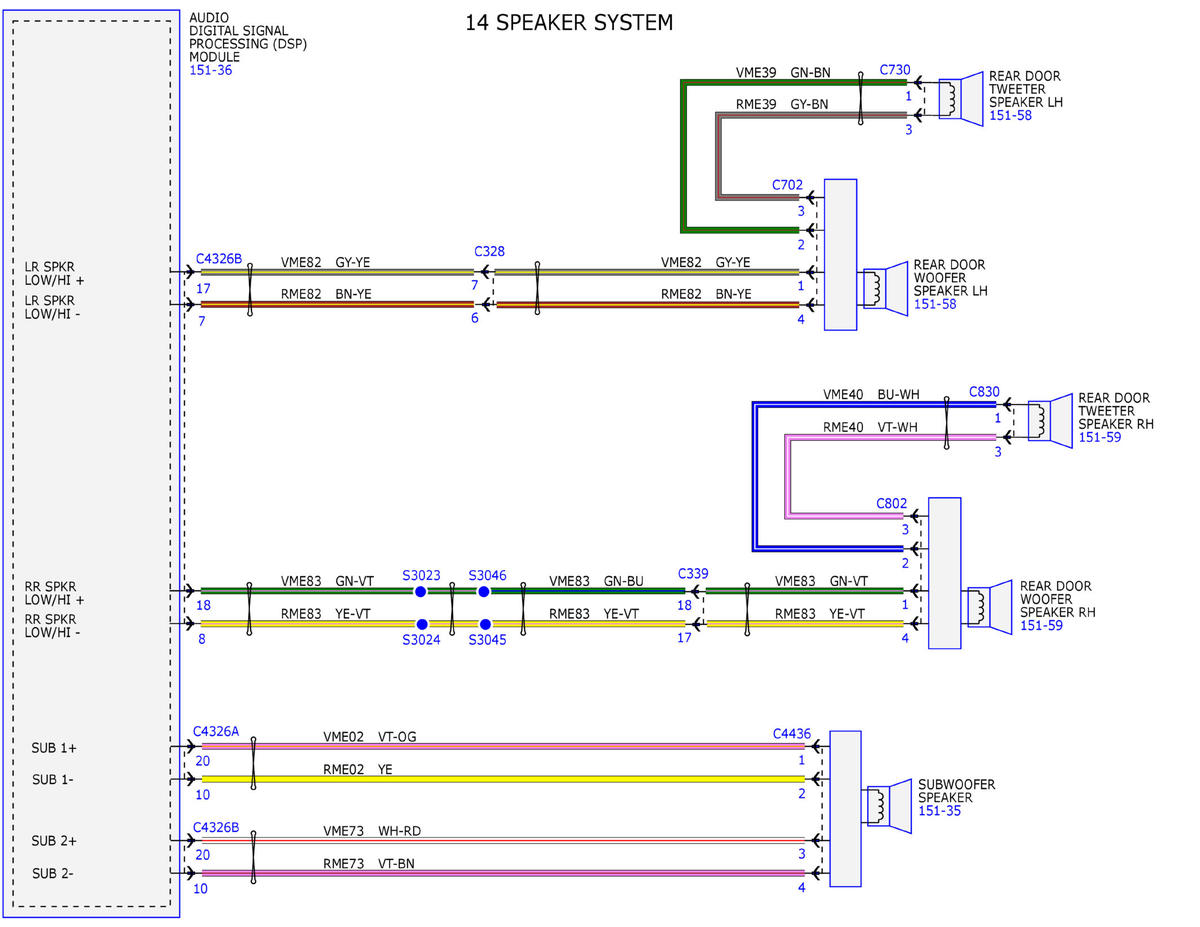

Fig 35: Audio System/Navigation - Sync Wiring Diagram (35 Of 38)

GFDWR110823

Courtesy of FORD MOTOR COMPANY

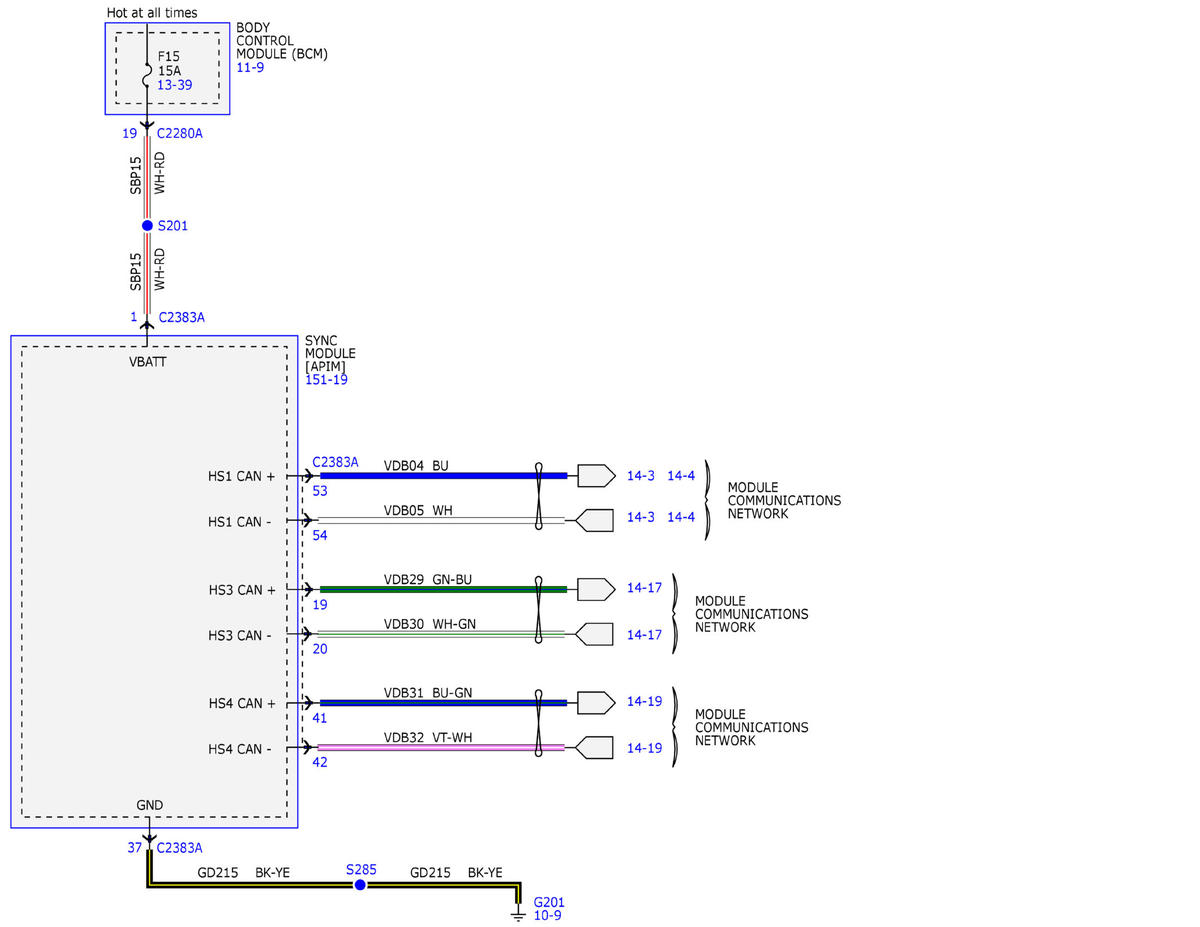

Fig 36: Audio System/Navigation - Sync Wiring Diagram (36 Of 38)

GFDWR110824

Courtesy of FORD MOTOR COMPANY

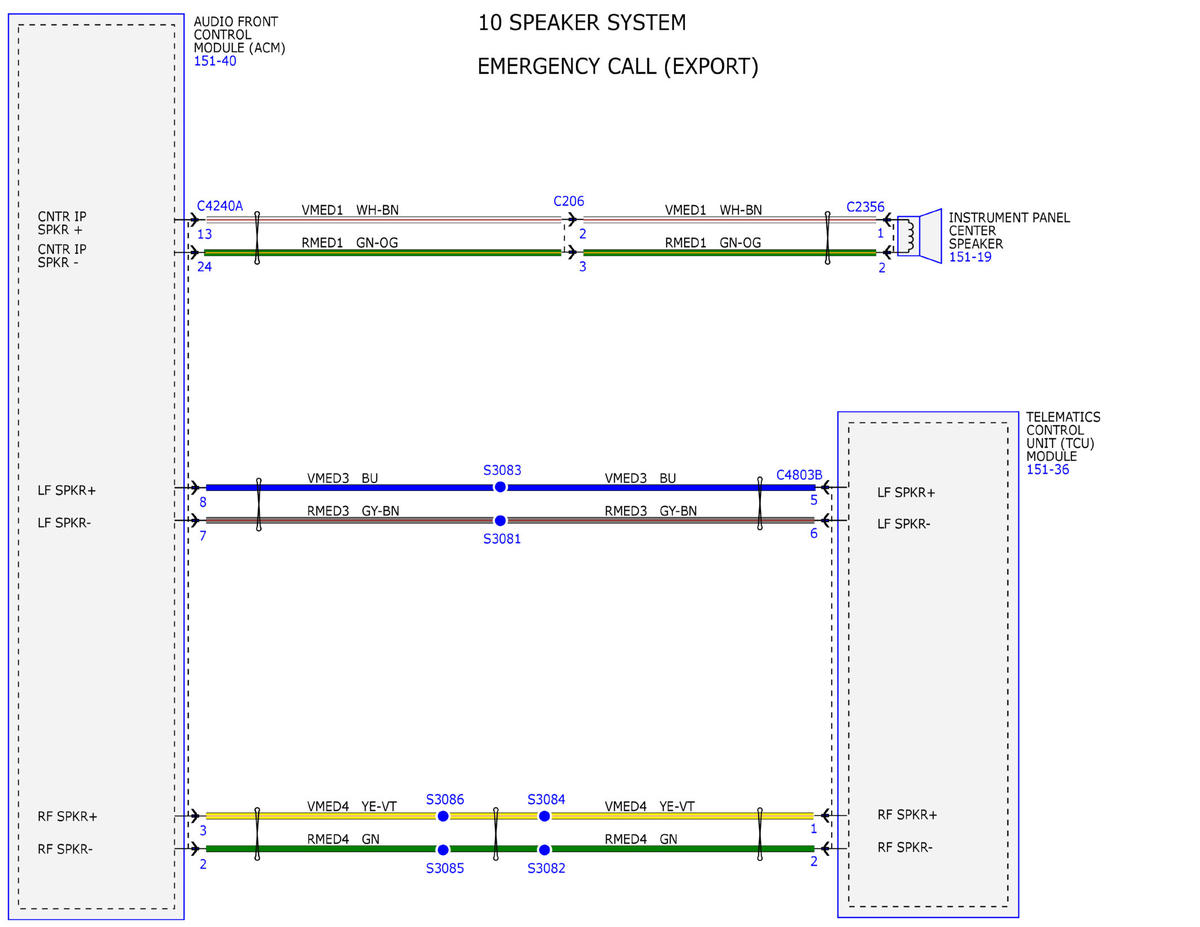

Fig 37: Audio System/Navigation - Sync Wiring Diagram (37 Of 38)

GFDWR110825

Courtesy of FORD MOTOR COMPANY

Fig 38: Audio System/Navigation - Sync Wiring Diagram (38 Of 38)

GFDWR110826
