Window Control Switch - Passenger Door

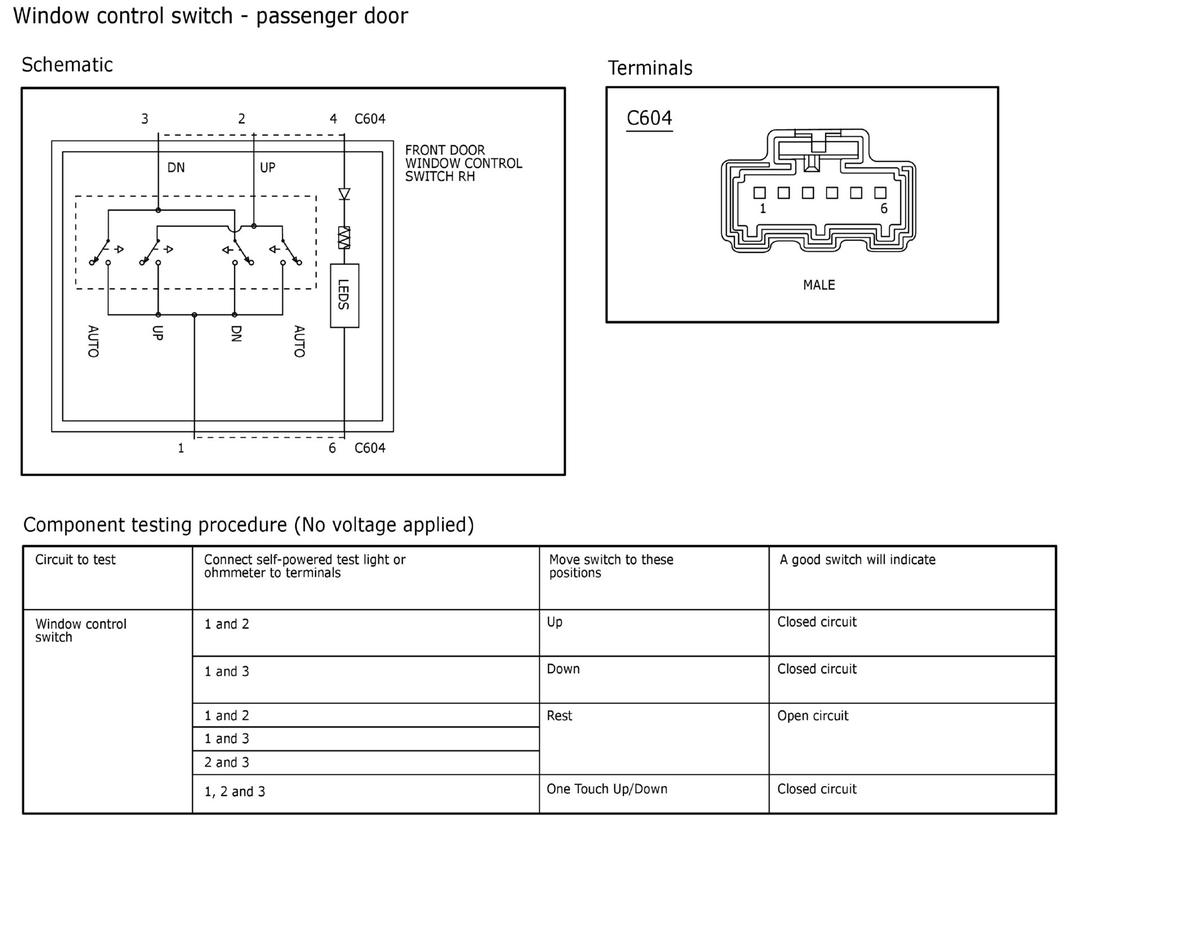

Fig 1: Window Control Switch - Passenger Door

GFDW102439

Courtesy of FORD MOTOR COMPANY
