Removal And Installation

NOTE: Removal steps in this procedure may contain installation details.

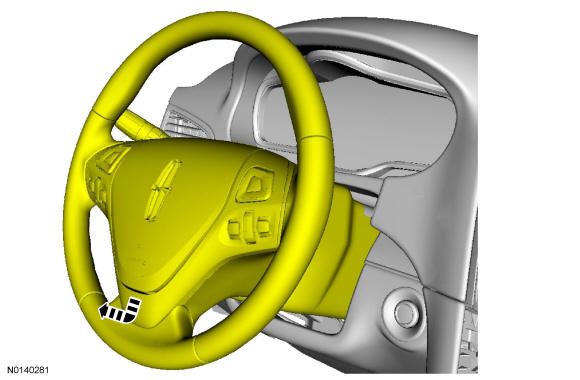

  1. GFD91282Courtesy of FORD MOTOR COMPANY
  2. To install, tighten to 3 Nm (27 lb-in).

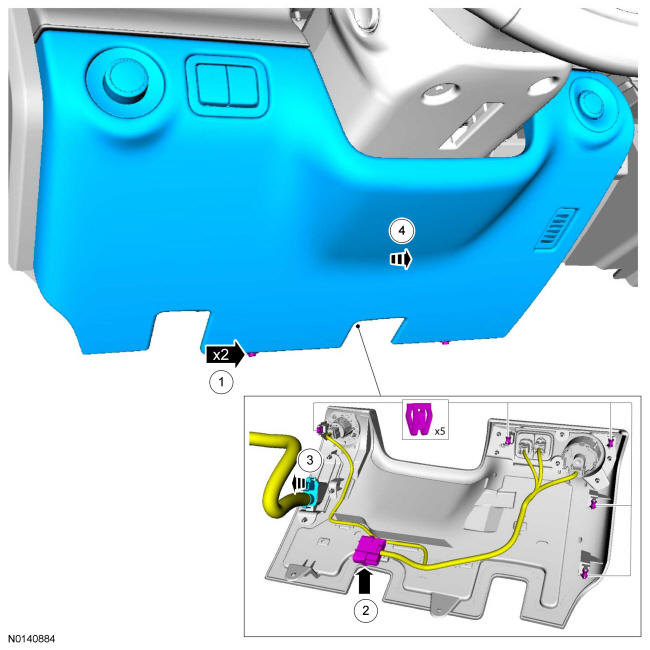

    GFD91283Courtesy of FORD MOTOR COMPANY
  3. To install, tighten to 2 Nm (18 lb-in).

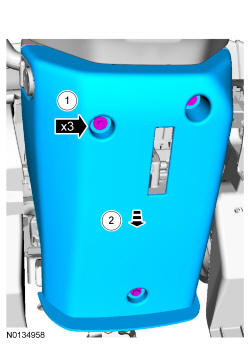

    GFD91284Courtesy of FORD MOTOR COMPANY

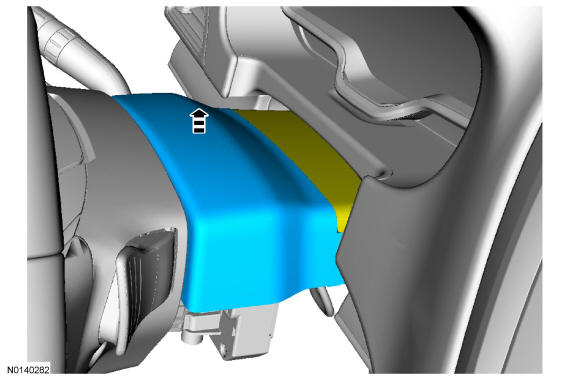

  4. GFD91285Courtesy of FORD MOTOR COMPANY
  5. To install, reverse the removal procedure.
