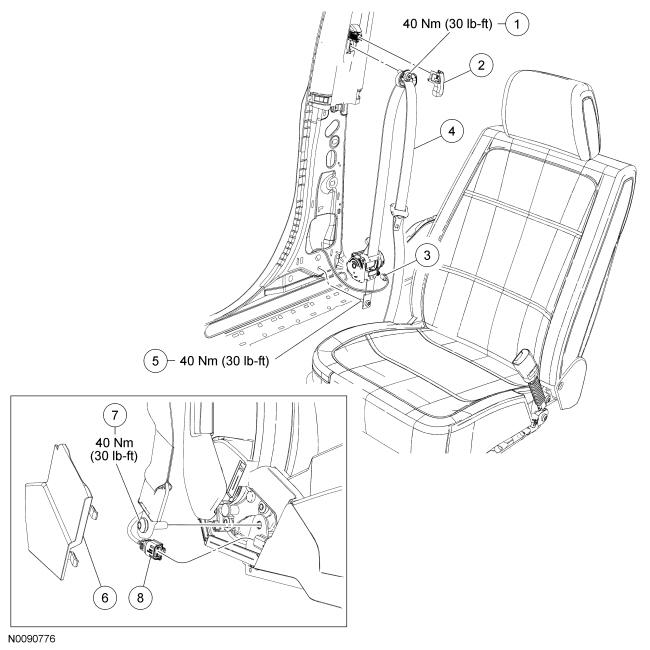

Safety Belt Retractor Front, RH: Notes
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING
| Item | Part Number | Description |
|---|---|---|
| 1 | - | D-ring bolt (part of 611B08) |
| 2 | 60262 | D-ring cover |
| 3 | - | Adaptive load-limiting safety belt retractor electrical connector (part of 14A005) |
| 4 | 611B08 | Safety belt retractor |
| 5 | - | Safety belt retractor bolt (part of 611B08) |
| 6 | 61692 | Cushion side shield cover |
| 7 | - | Safety belt anchor bolt (part of 611B08) |
| 8 | - | Belt Tension Sensor (BTS) electrical connector part of 611B08) |
