OEM Ground Distribution: Grounds

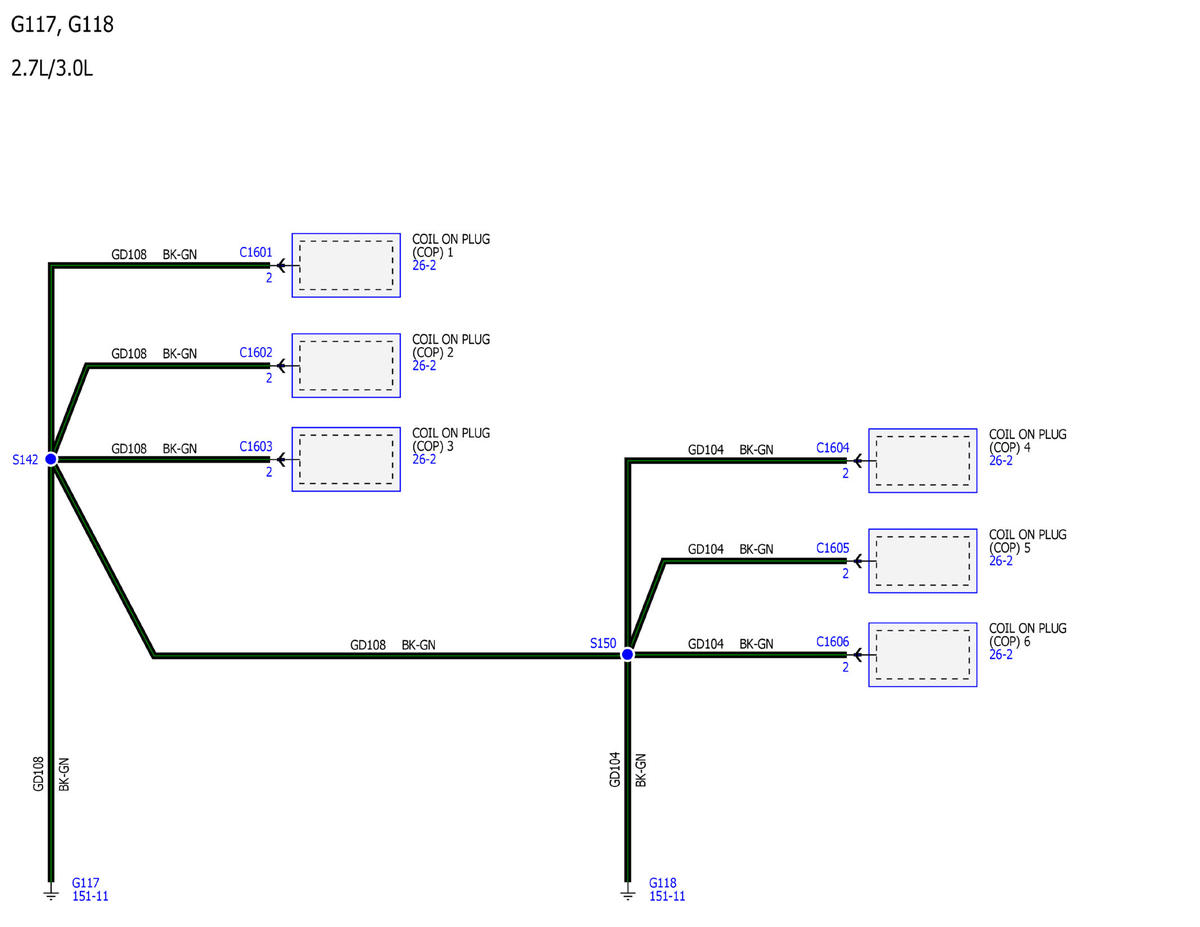

Fig 1: Ground Distribution Wiring Diagram - G117, G118 (2.7L/3.0L)

GFDWR66383

Courtesy of FORD MOTOR COMPANY

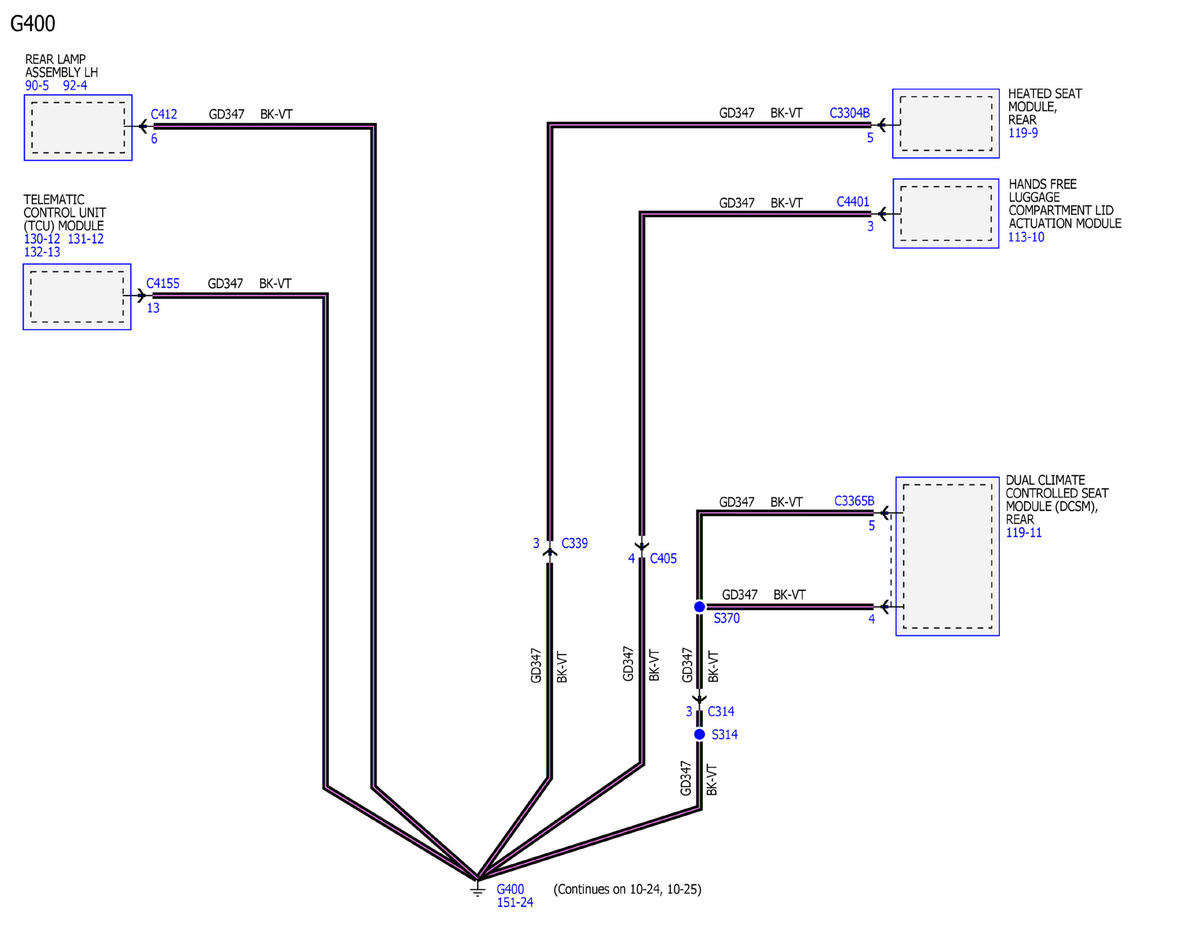

Fig 2: Ground Distribution Wiring Diagram - G400

GFDWR66384

Courtesy of FORD MOTOR COMPANY

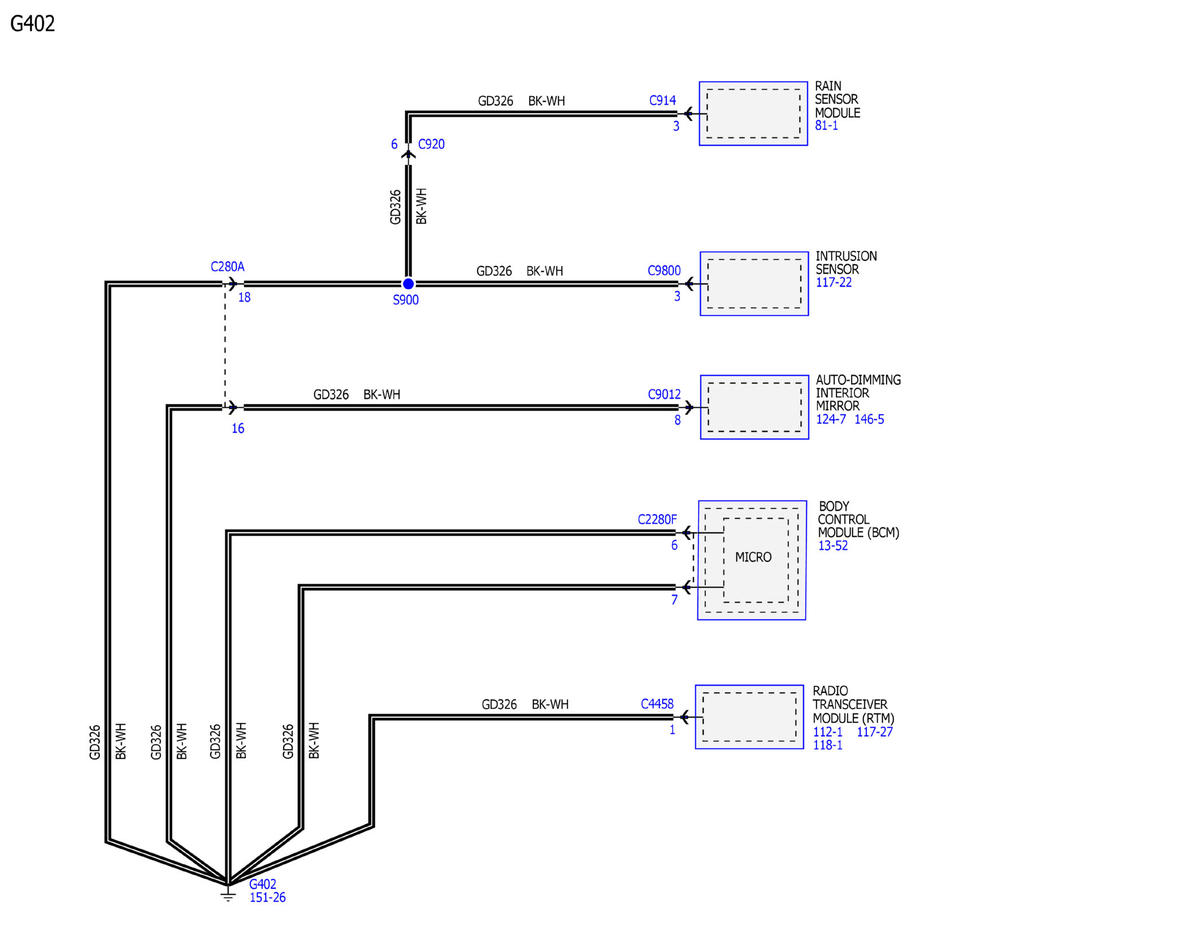

Fig 3: Ground Distribution Wiring Diagram - G402

GFDWR66385

Courtesy of FORD MOTOR COMPANY

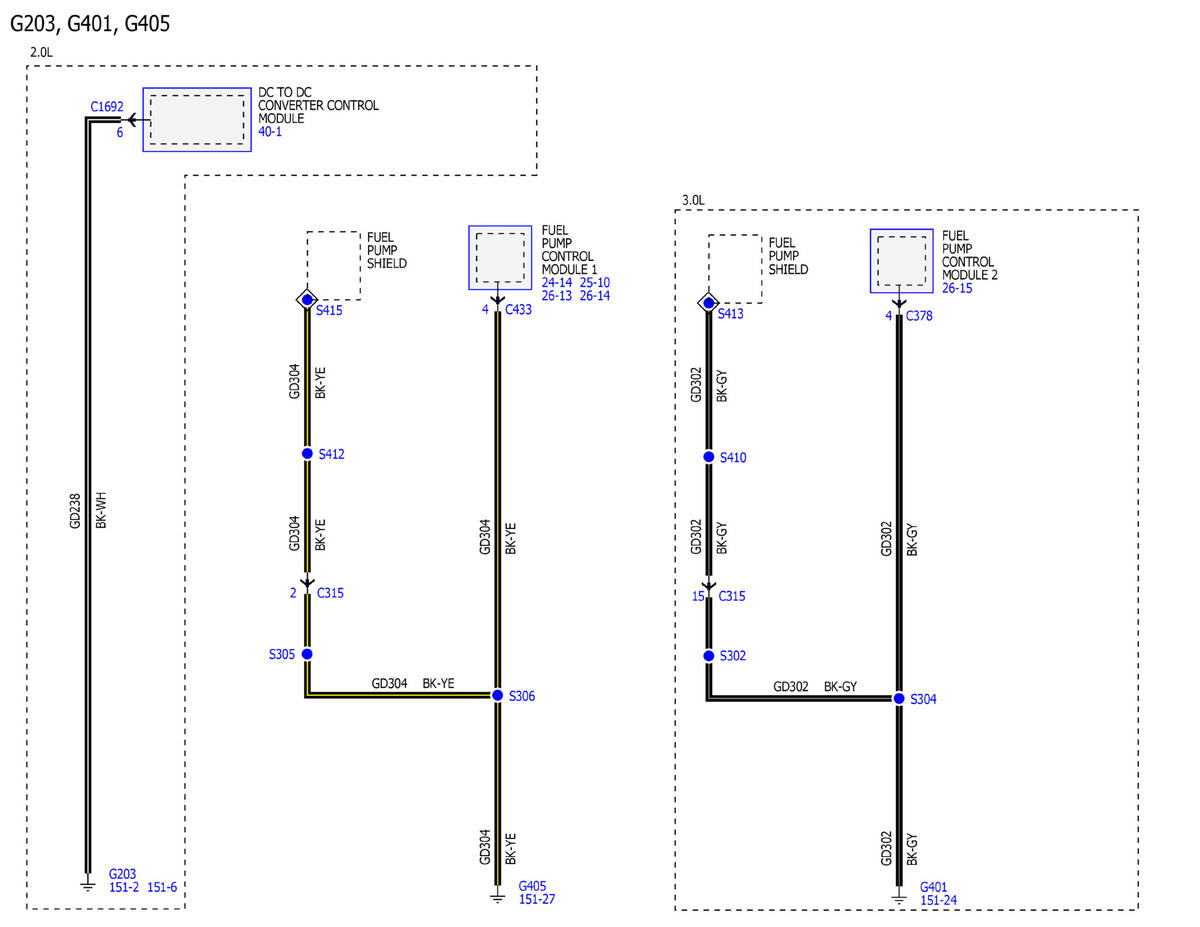

Fig 4: Ground Distribution Wiring Diagram - G203, G401, G405 (2.0L)

GFDWR66386

Courtesy of FORD MOTOR COMPANY

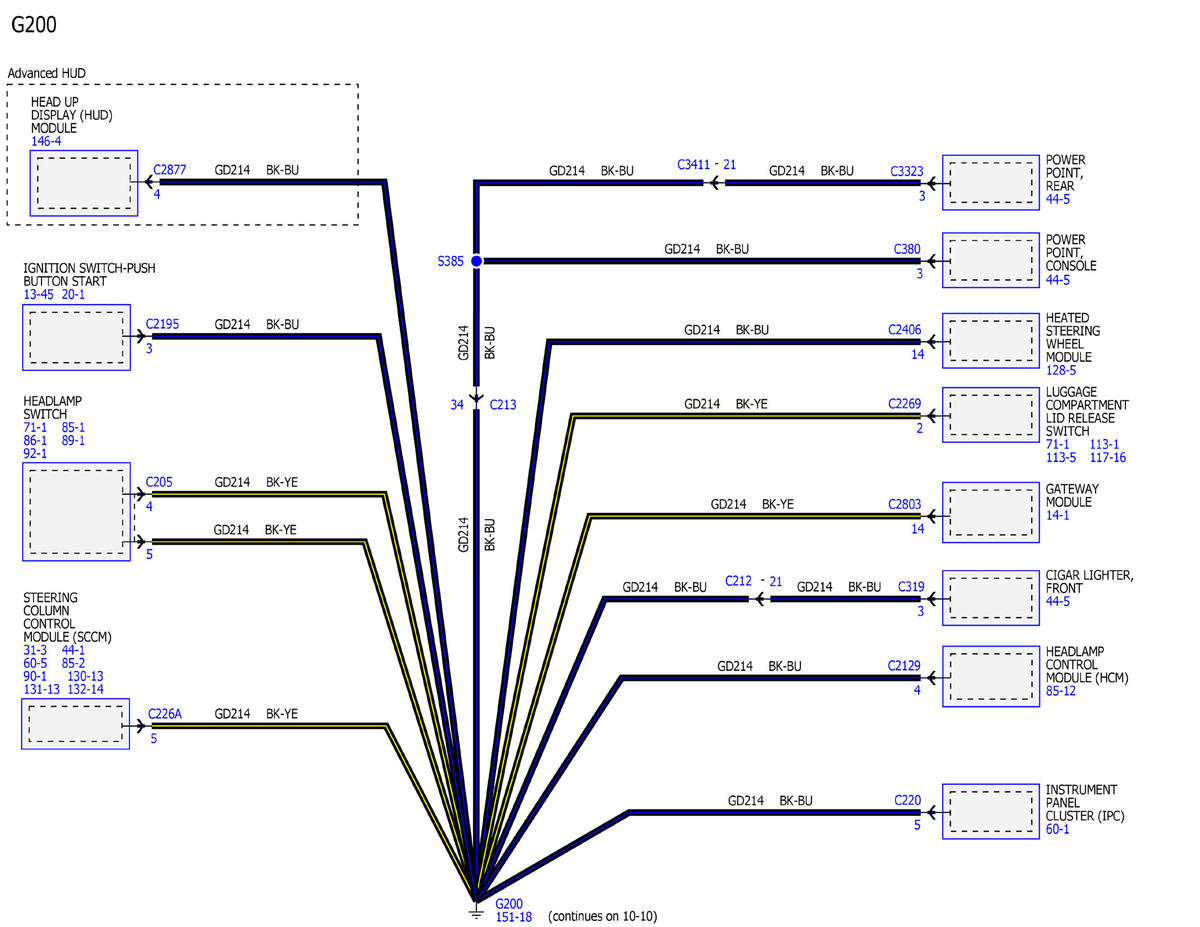

Fig 5: Ground Distribution Wiring Diagram - G200

GFDWR66387

Courtesy of FORD MOTOR COMPANY

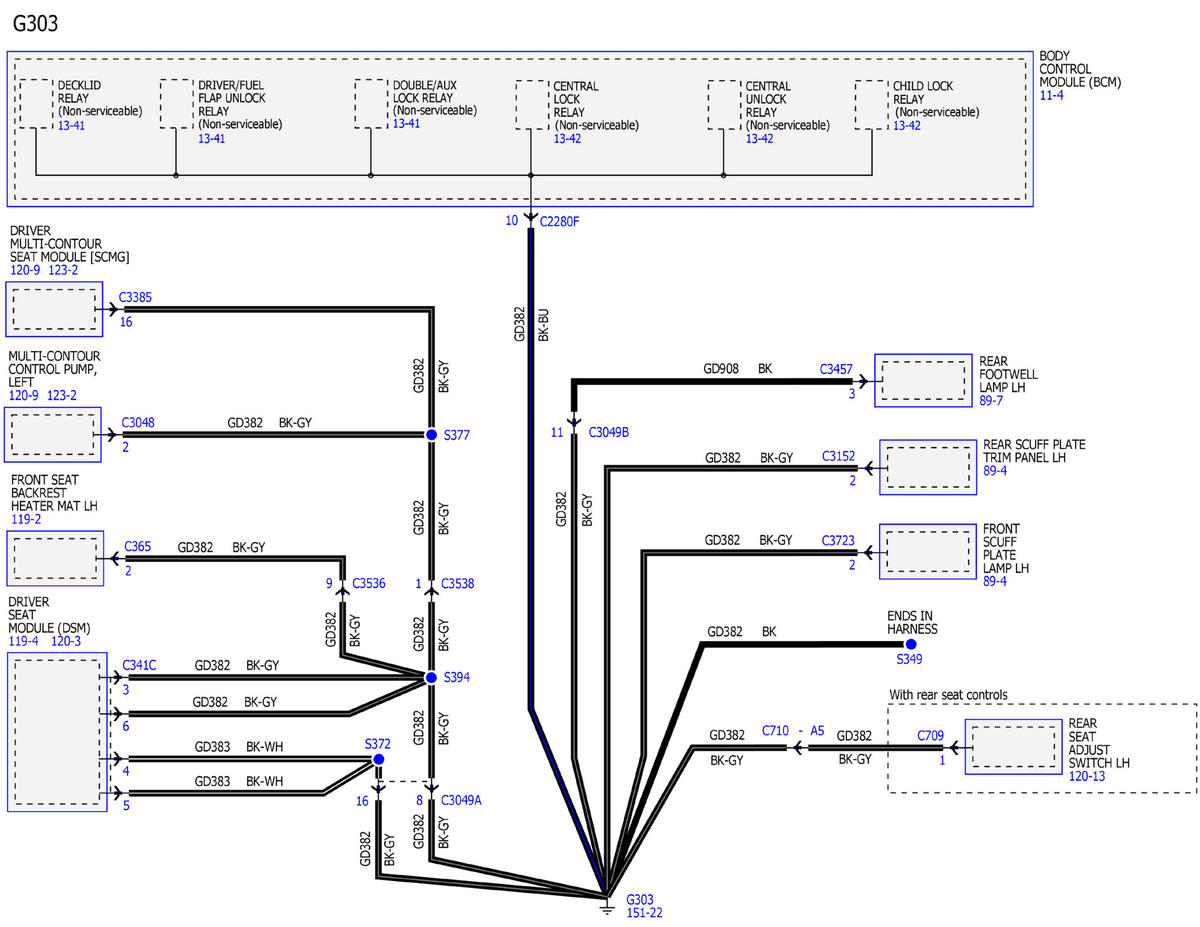

Fig 6: Ground Distribution Wiring Diagram - G303

GFDWR66388

Courtesy of FORD MOTOR COMPANY

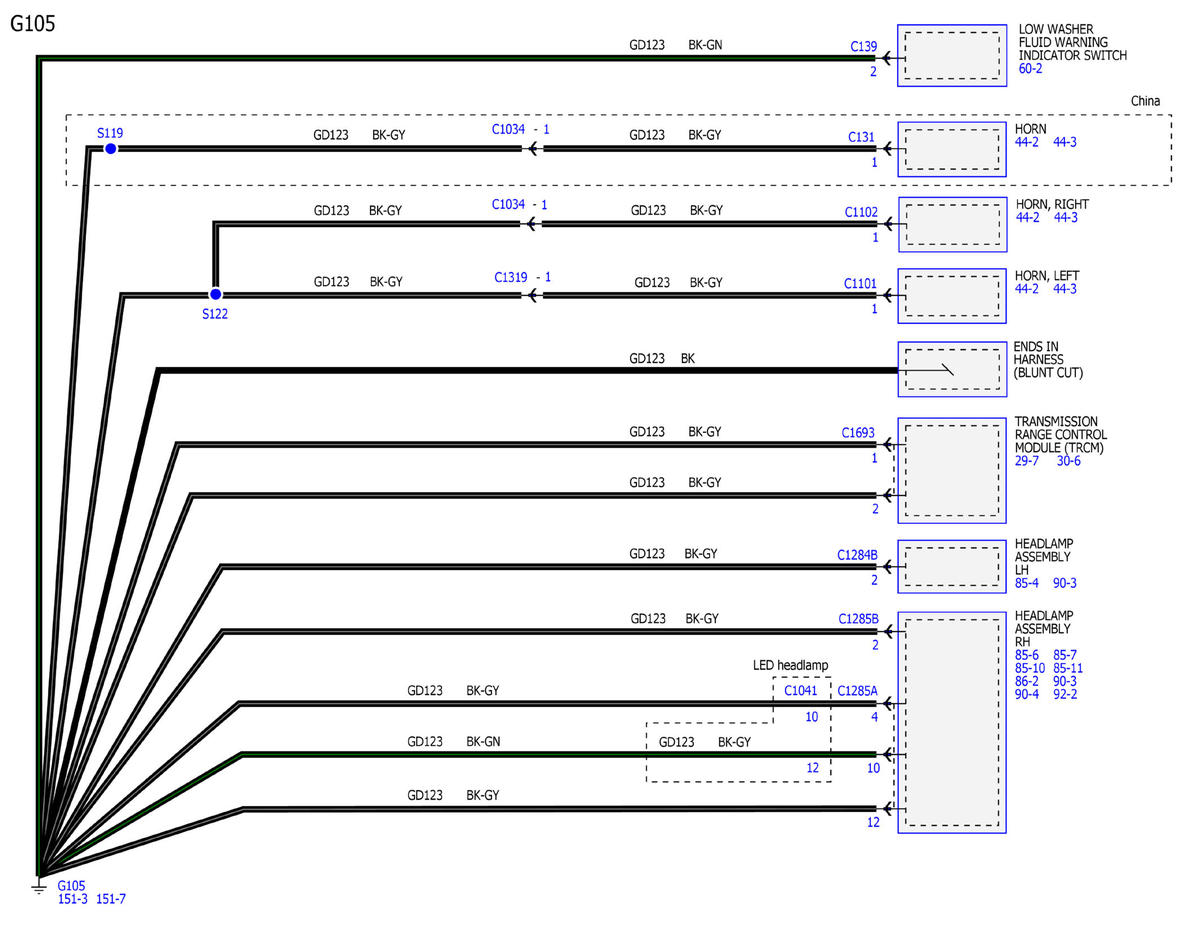

Fig 7: Ground Distribution Wiring Diagram - G105

GFDWR66389

Courtesy of FORD MOTOR COMPANY

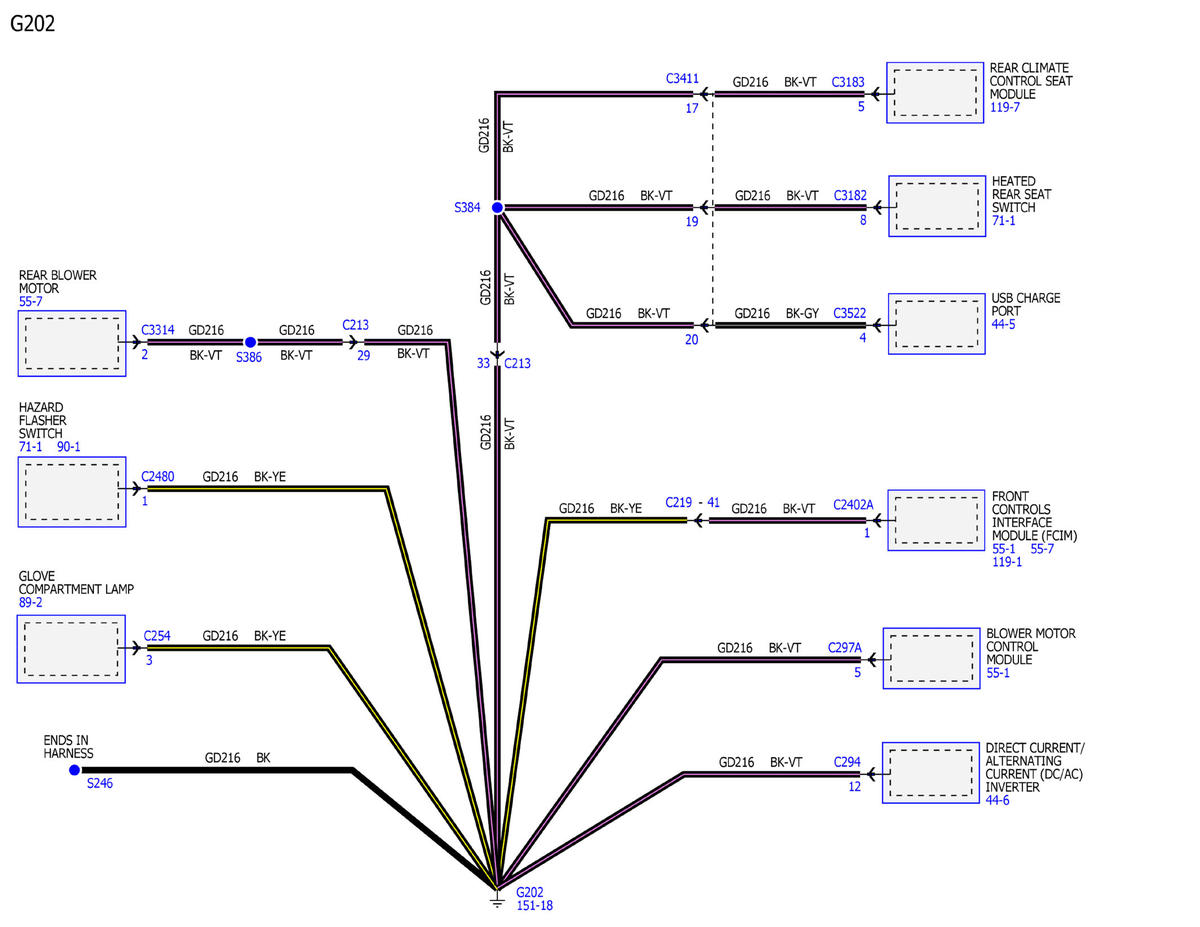

Fig 8: Ground Distribution Wiring Diagram - G202

GFDWR66390

Courtesy of FORD MOTOR COMPANY

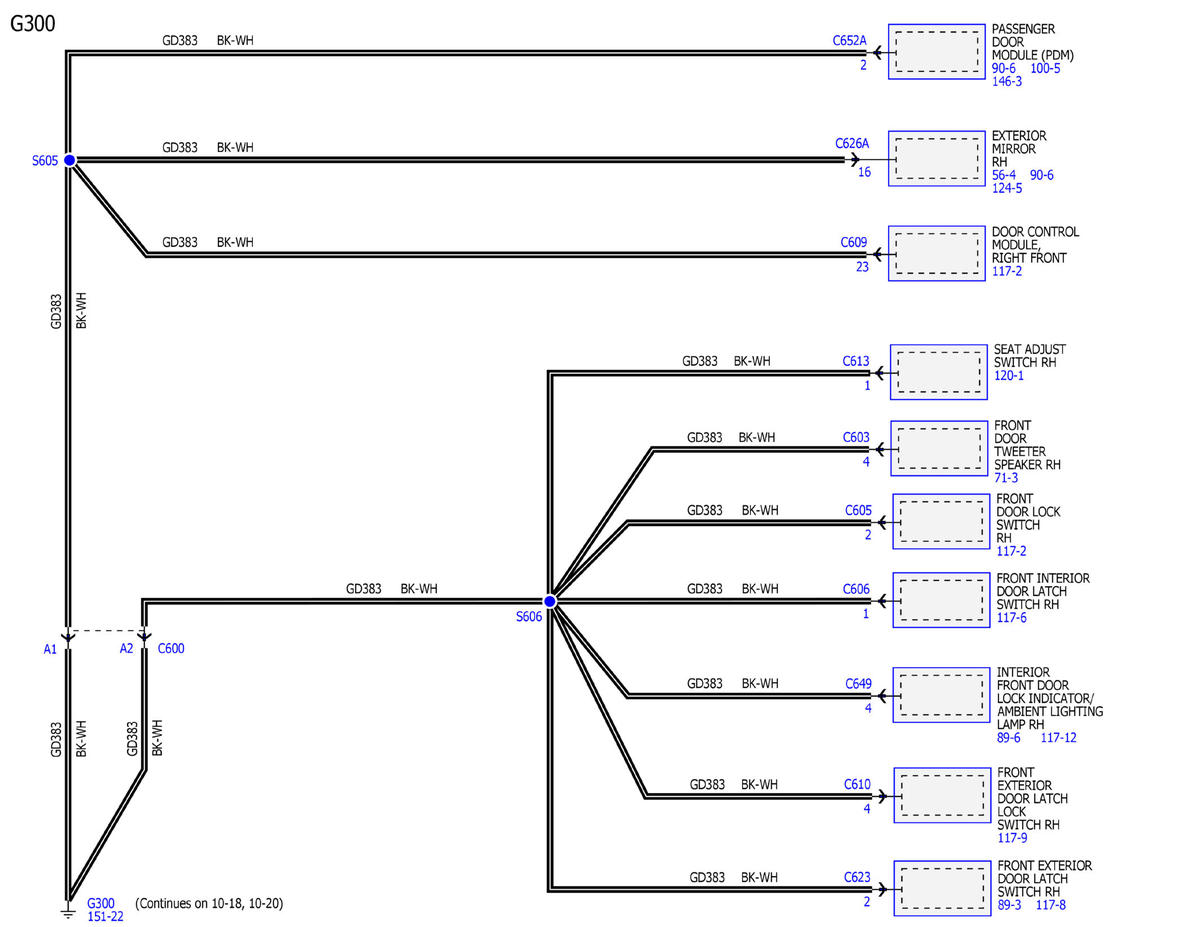

Fig 9: Ground Distribution Wiring Diagram - G300

GFDWR66391

Courtesy of FORD MOTOR COMPANY

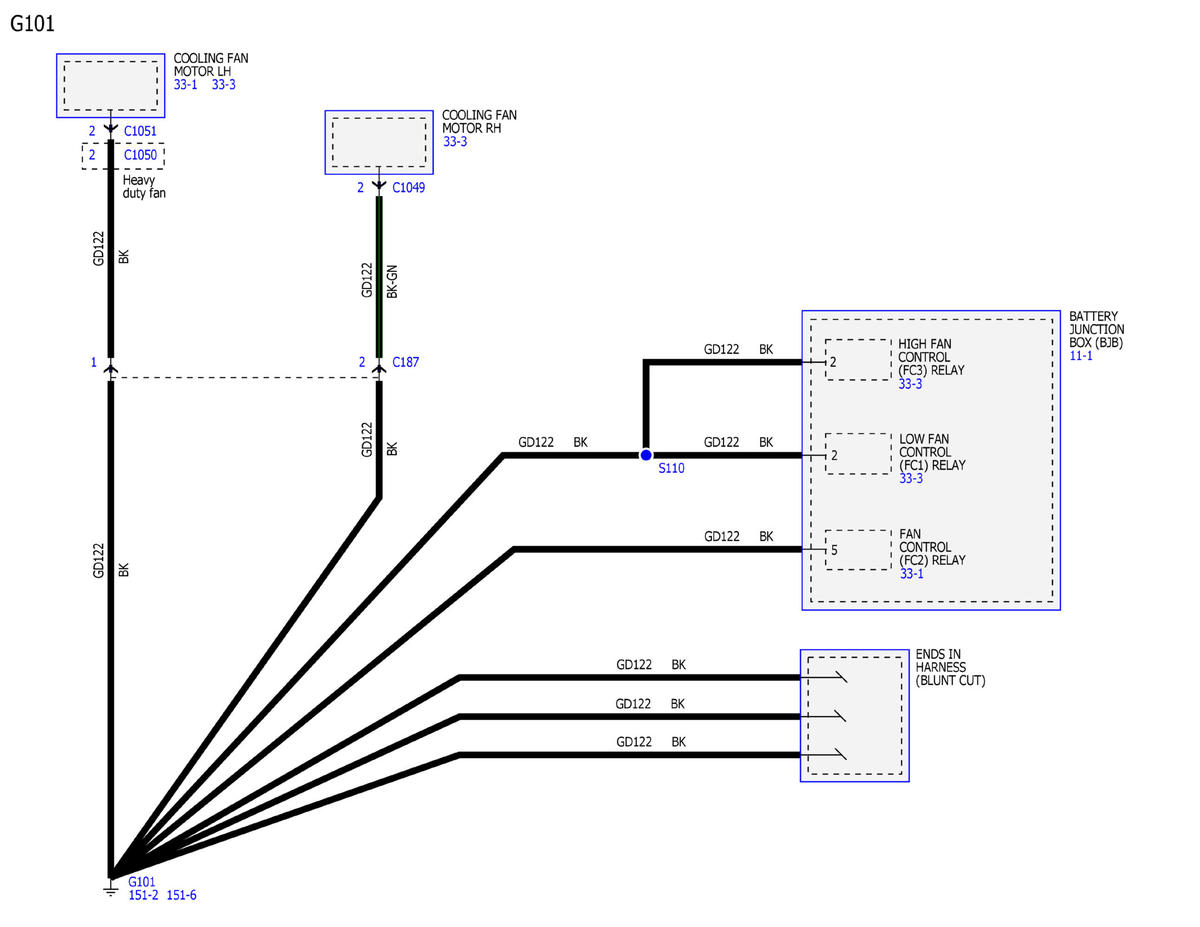

Fig 10: Ground Distribution Wiring Diagram - G101

GFDWR66392

Courtesy of FORD MOTOR COMPANY

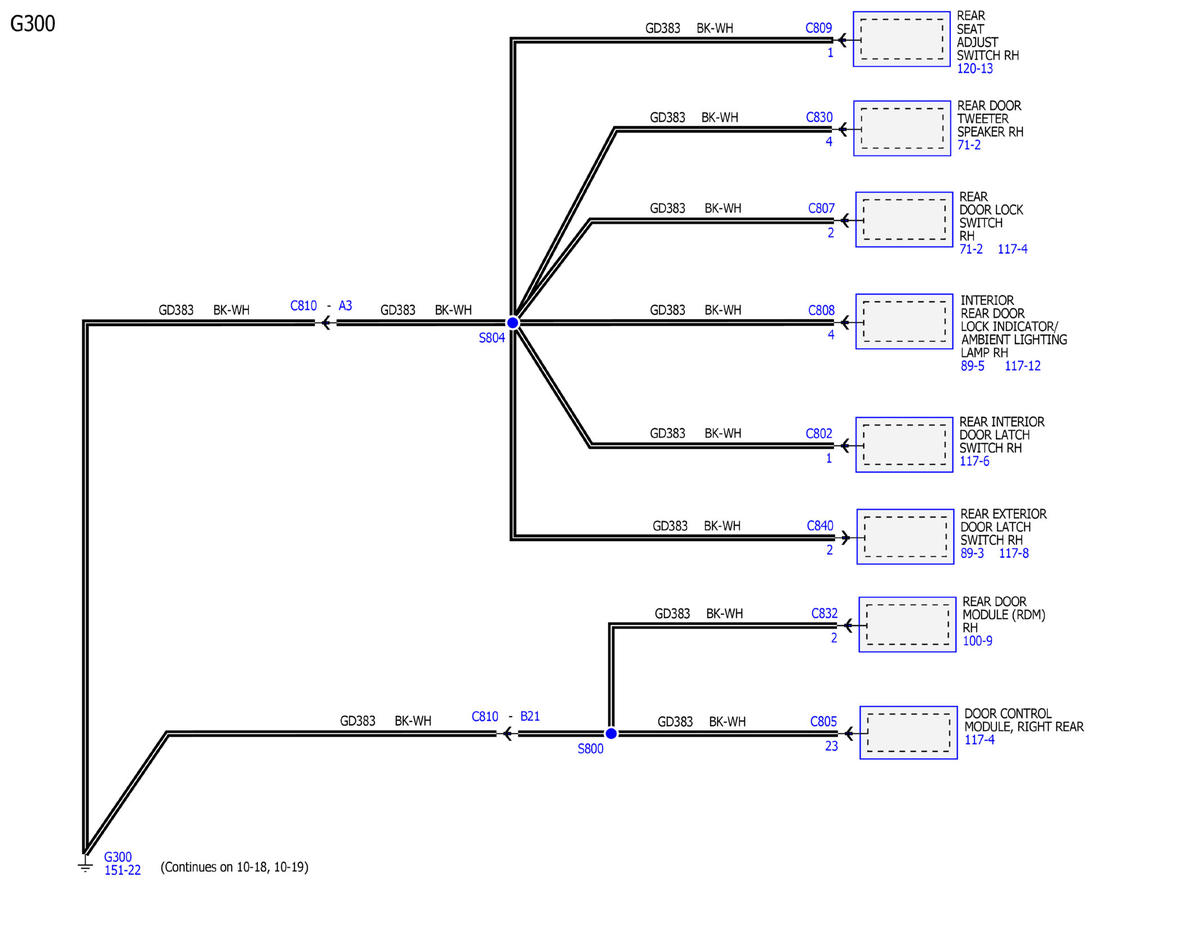

Fig 11: Ground Distribution Wiring Diagram - G300

GFDWR66393

Courtesy of FORD MOTOR COMPANY

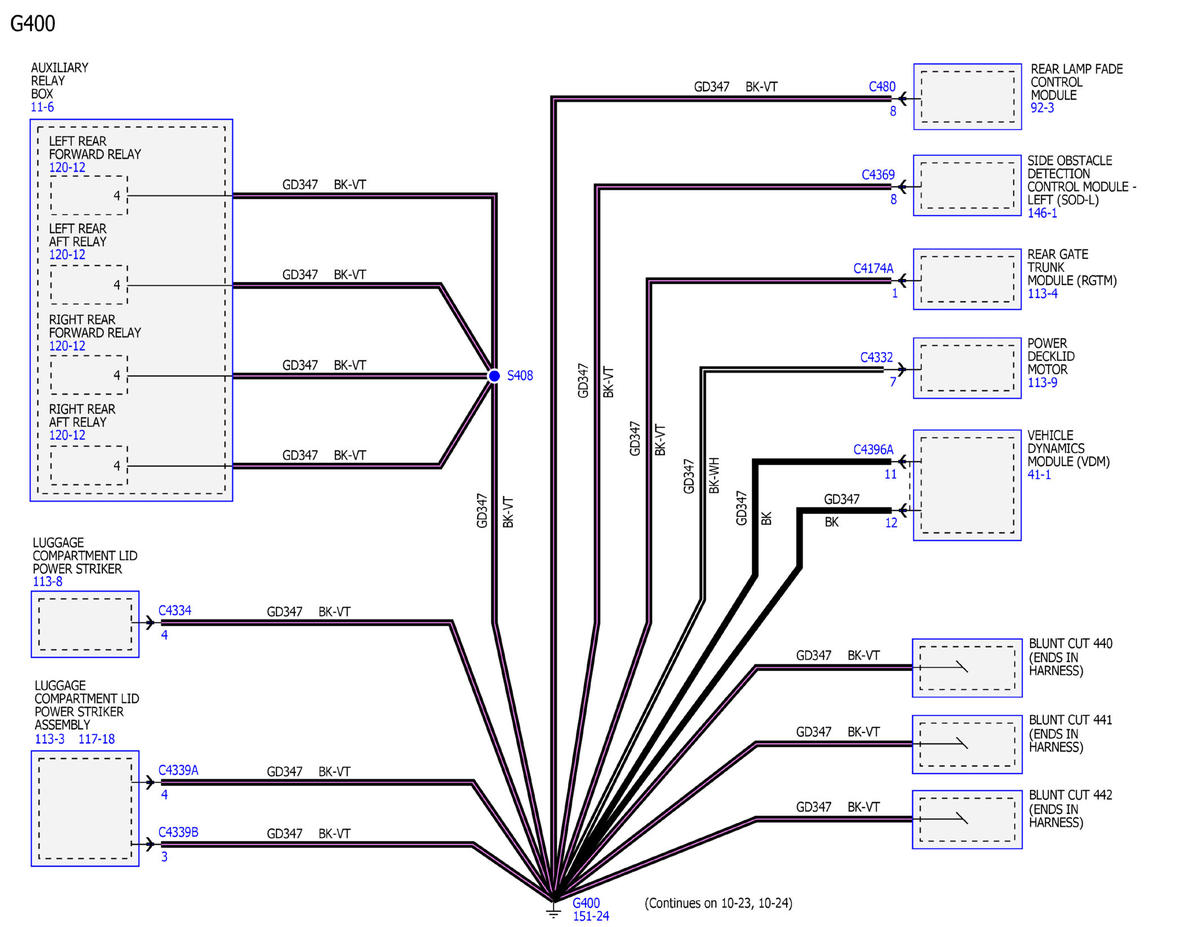

Fig 12: Ground Distribution Wiring Diagram - G400

GFDWR66394

Courtesy of FORD MOTOR COMPANY

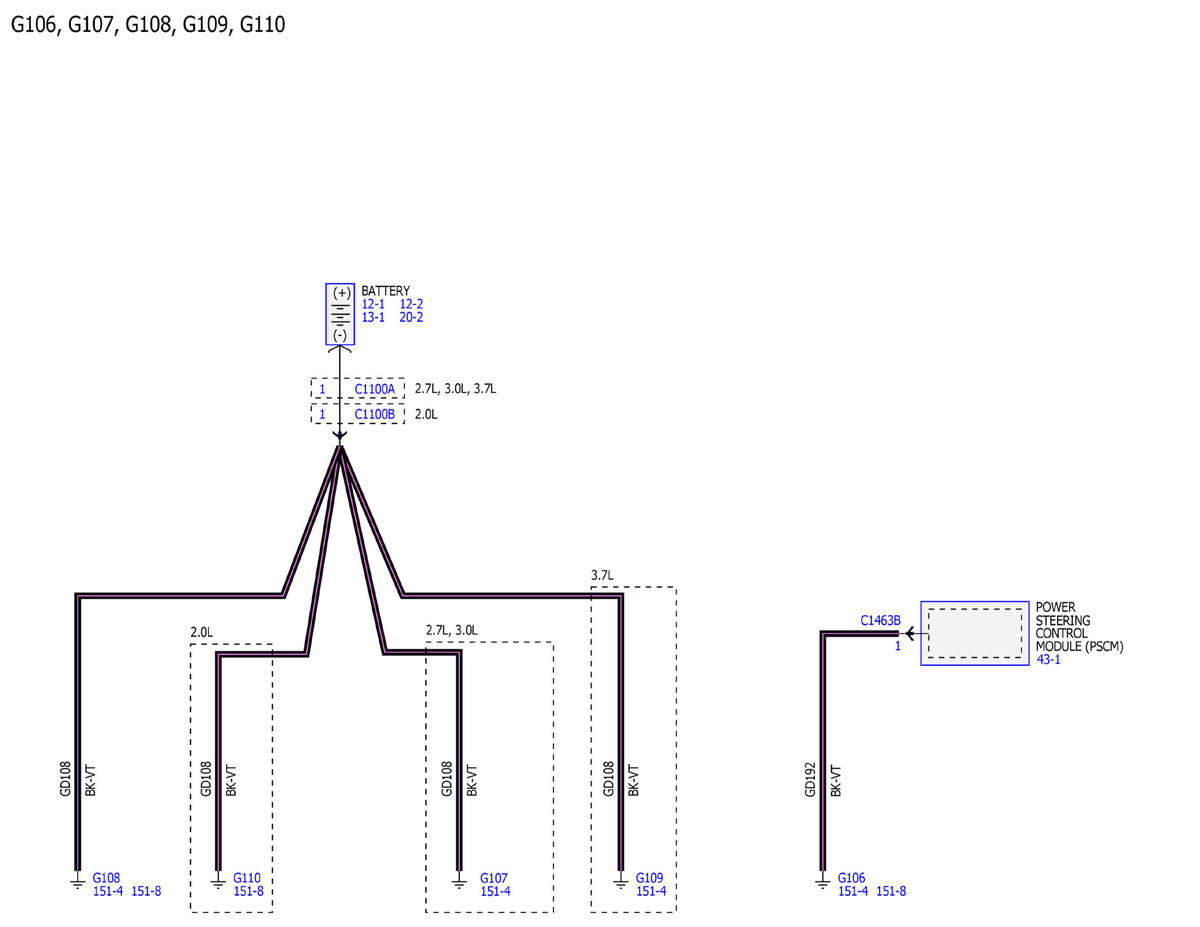

Fig 13: Ground Distribution Wiring Diagram - G106, G107, G108, G109, G110

GFDWR66395

Courtesy of FORD MOTOR COMPANY

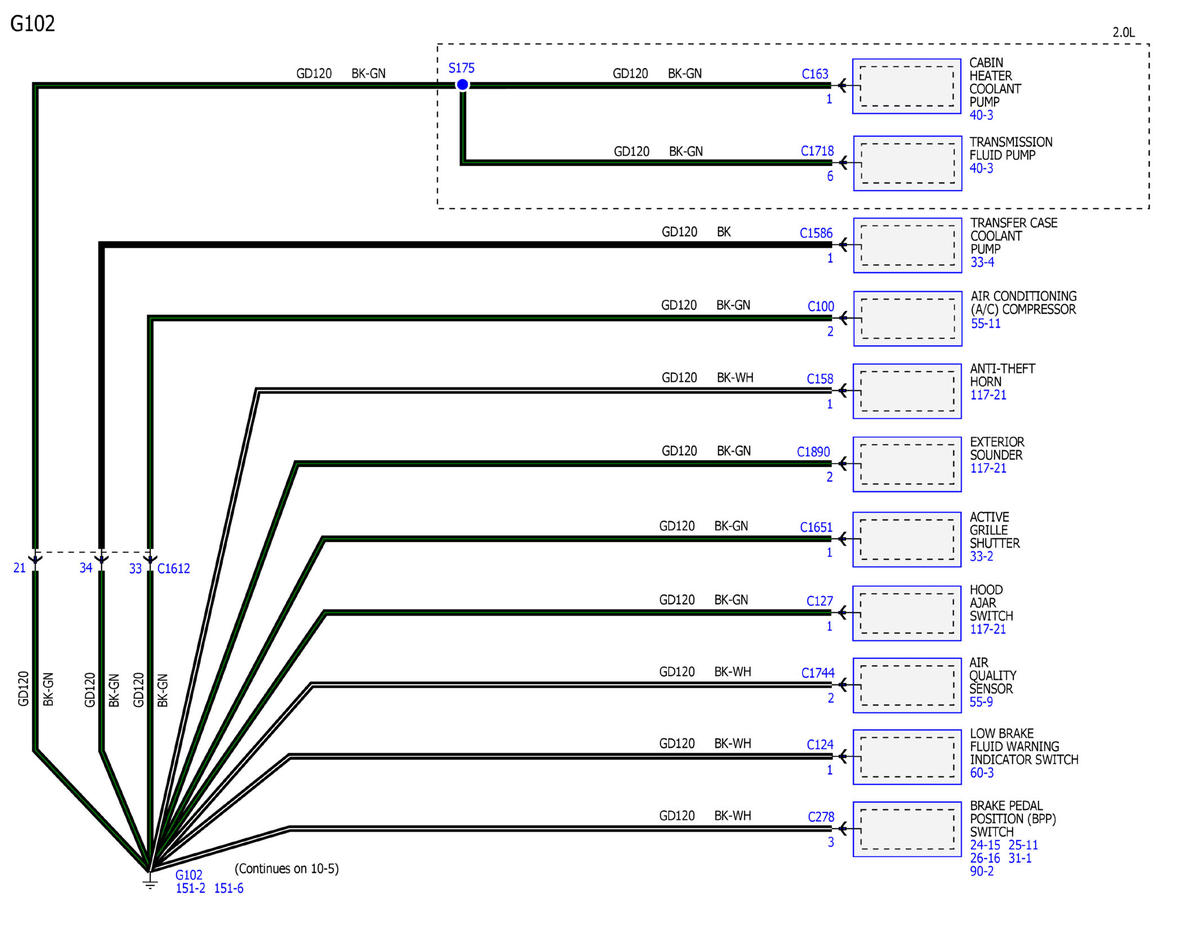

Fig 14: Ground Distribution Wiring Diagram - G102

GFDWR66396

Courtesy of FORD MOTOR COMPANY

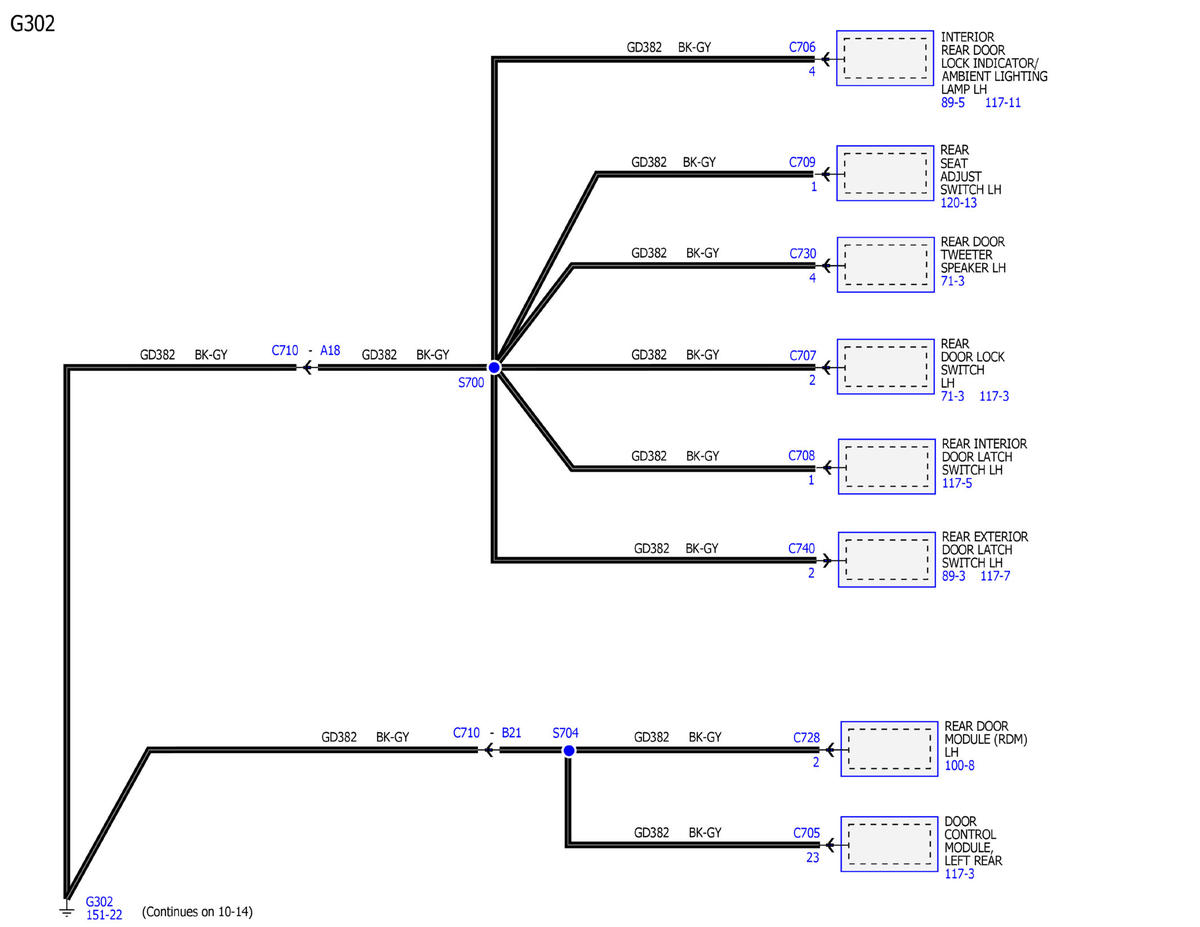

Fig 15: Ground Distribution Wiring Diagram - G302

GFDWR66397

Courtesy of FORD MOTOR COMPANY

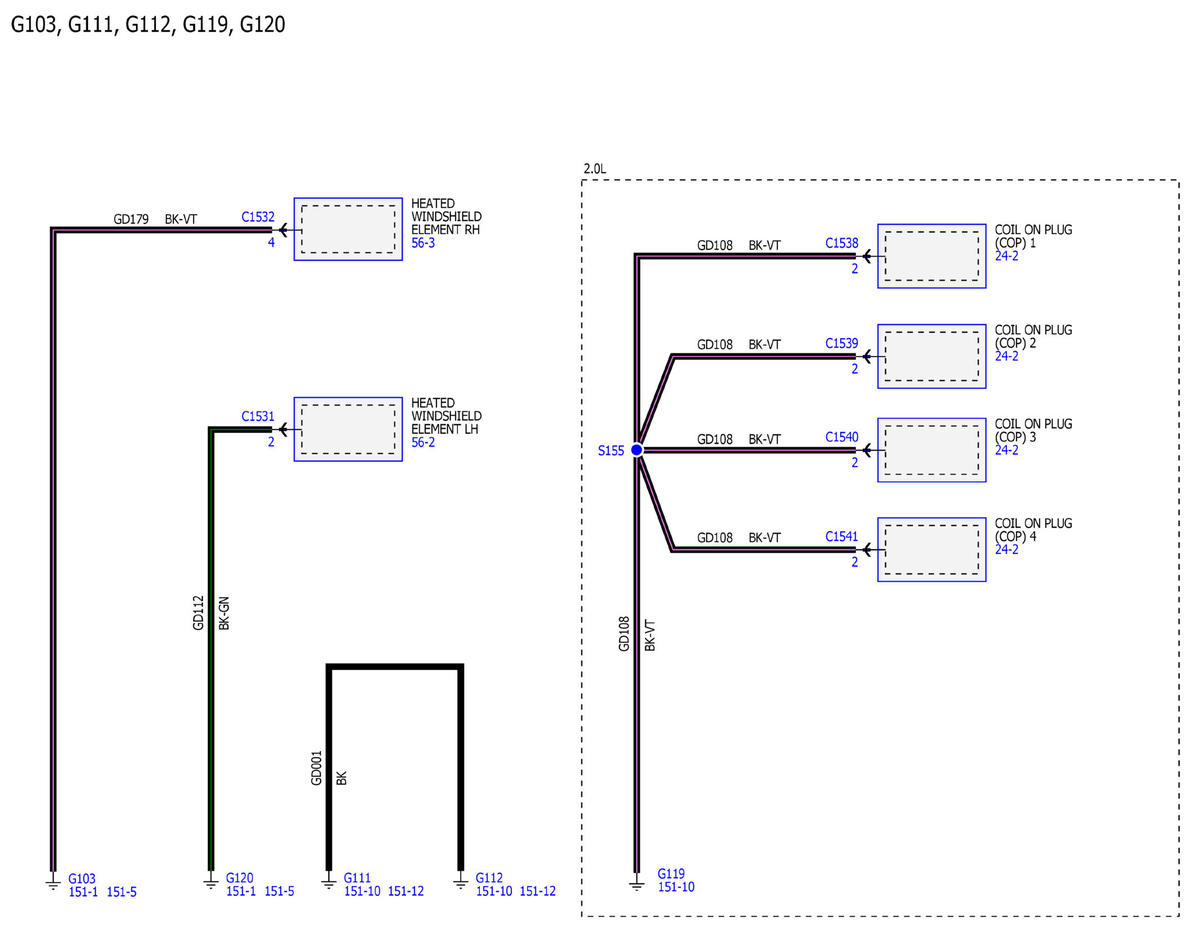

Fig 16: Ground Distribution Wiring Diagram - G103, G111, G112, G119, G120

GFDWR66398

Courtesy of FORD MOTOR COMPANY

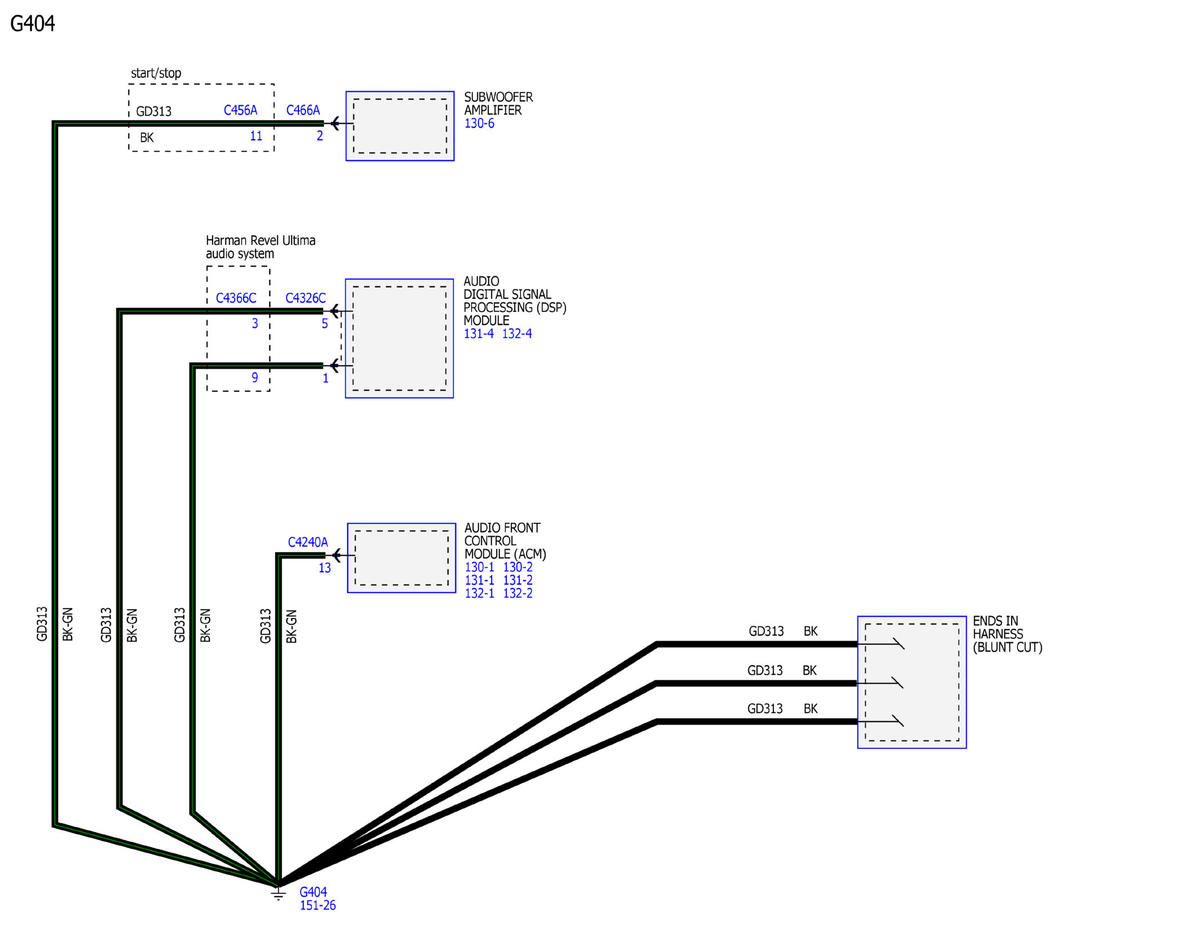

Fig 17: Ground Distribution Wiring Diagram - G404

GFDWR66399

Courtesy of FORD MOTOR COMPANY

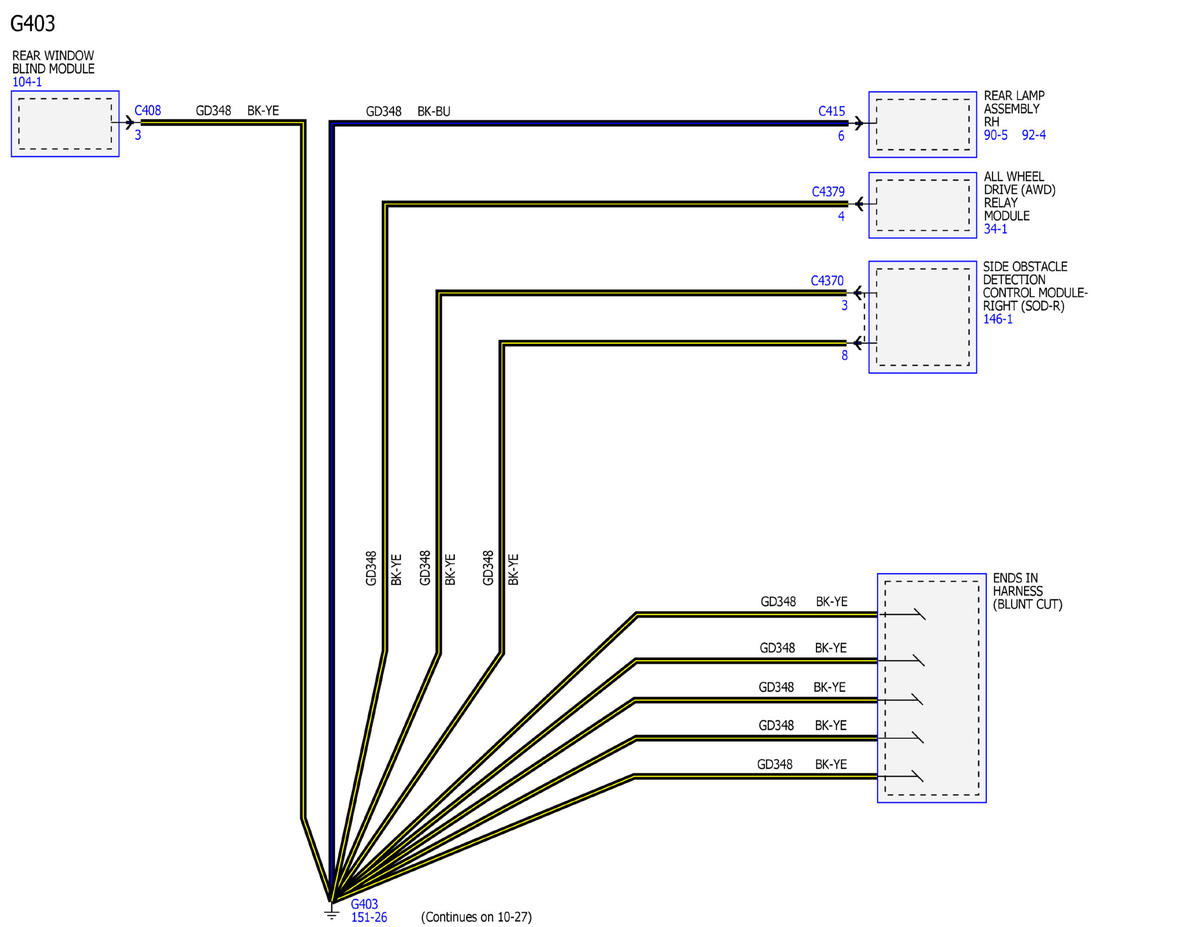

Fig 18: Ground Distribution Wiring Diagram - G403

GFDWR66400

Courtesy of FORD MOTOR COMPANY

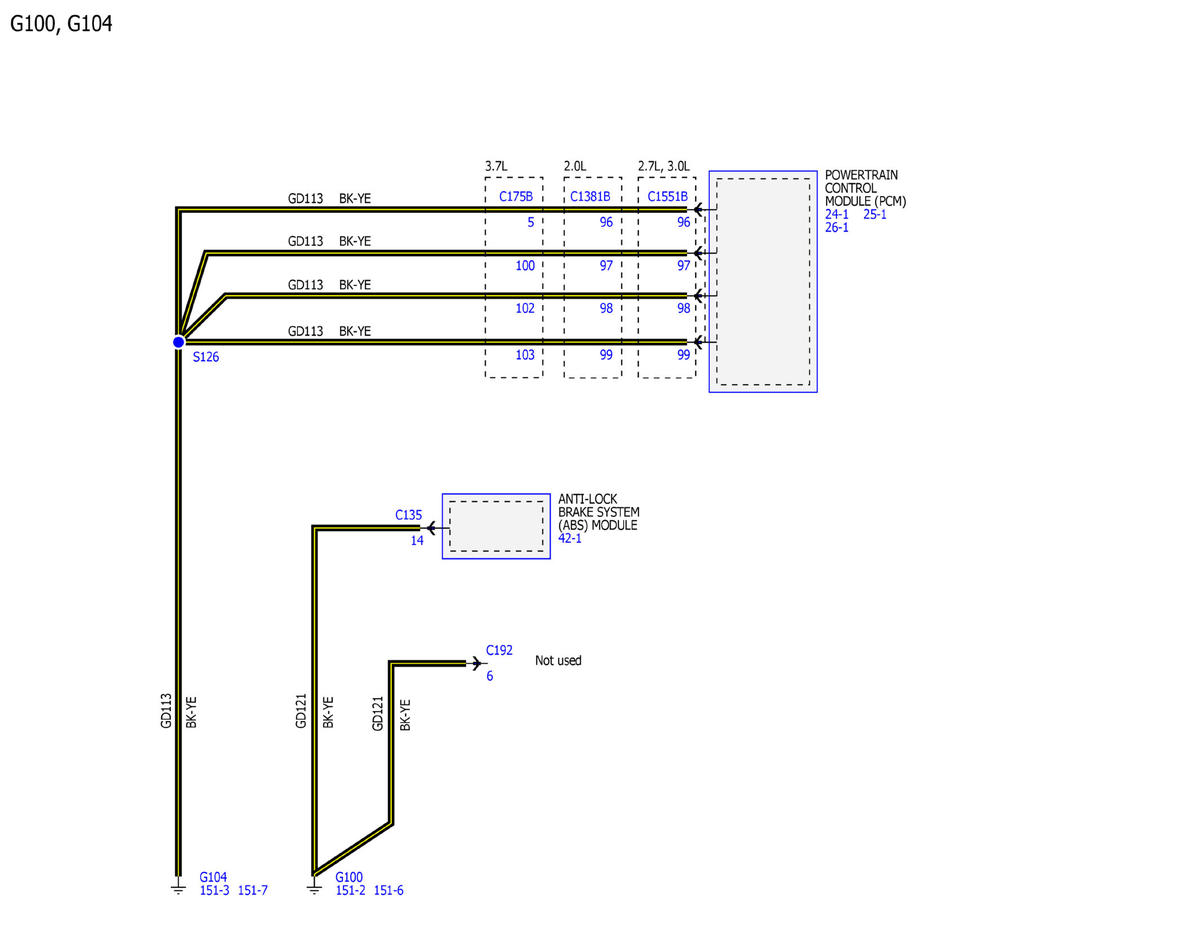

Fig 19: Ground Distribution Wiring Diagram - G100, G104

GFDWR66401

Courtesy of FORD MOTOR COMPANY

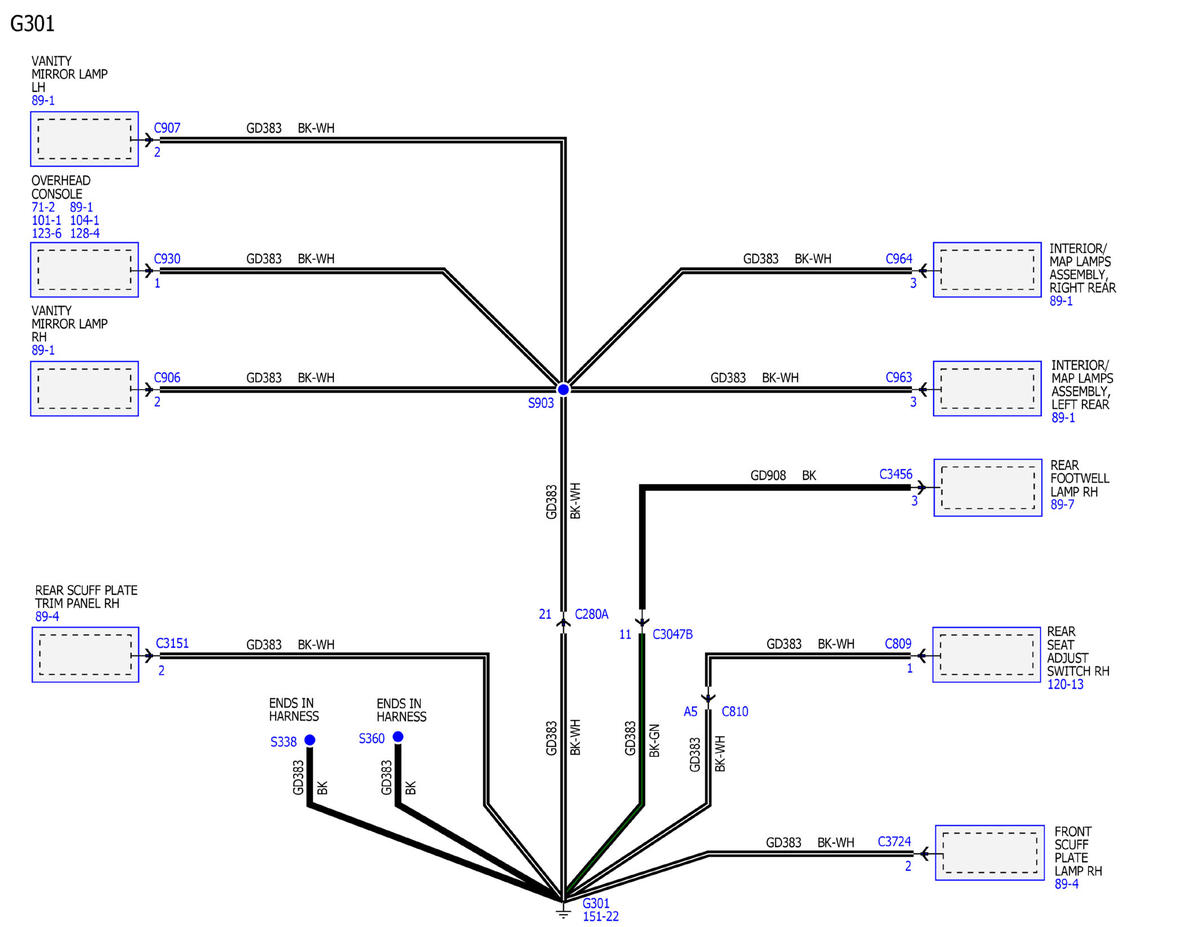

Fig 20: Ground Distribution Wiring Diagram - G301

GFDWR66402

Courtesy of FORD MOTOR COMPANY

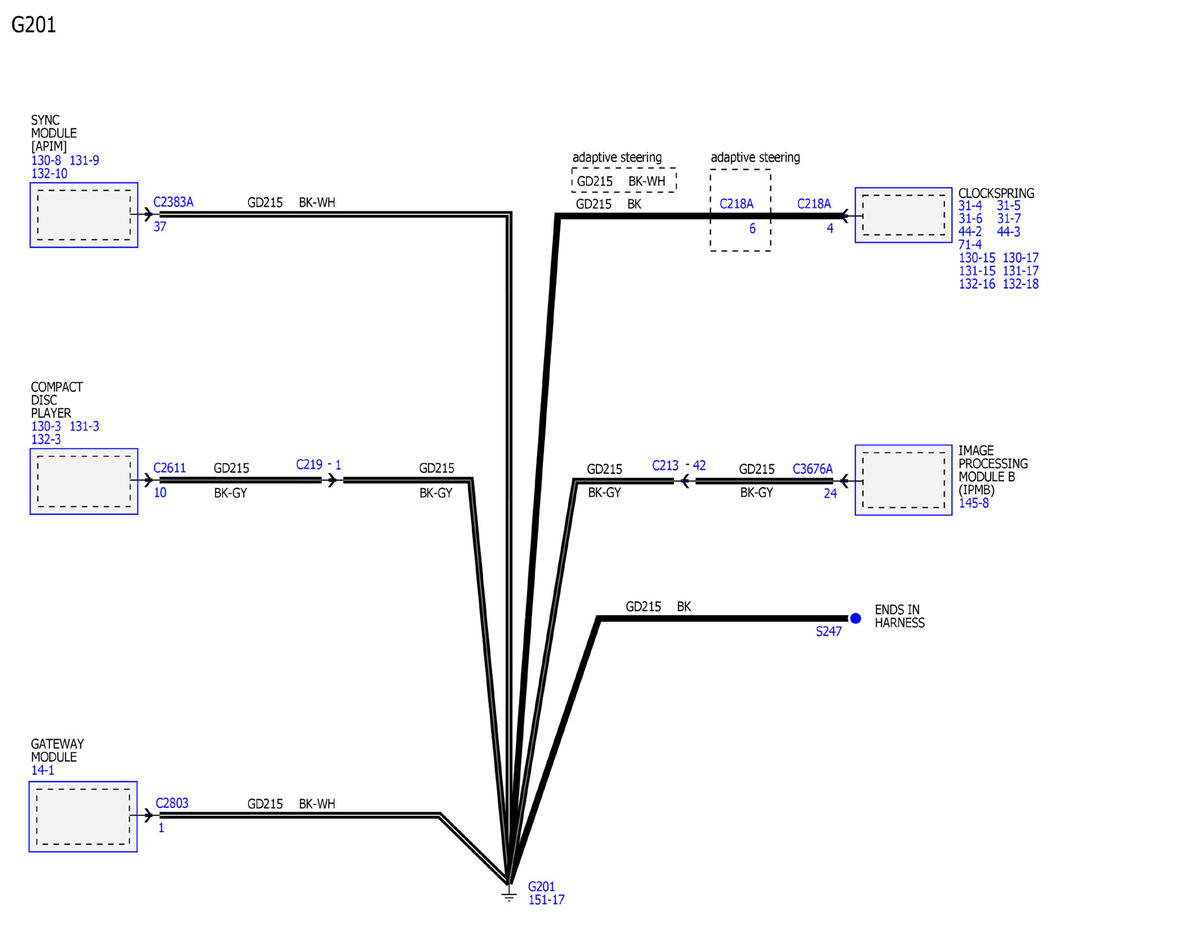

Fig 21: Ground Distribution Wiring Diagram - G201

GFDWR66403

Courtesy of FORD MOTOR COMPANY

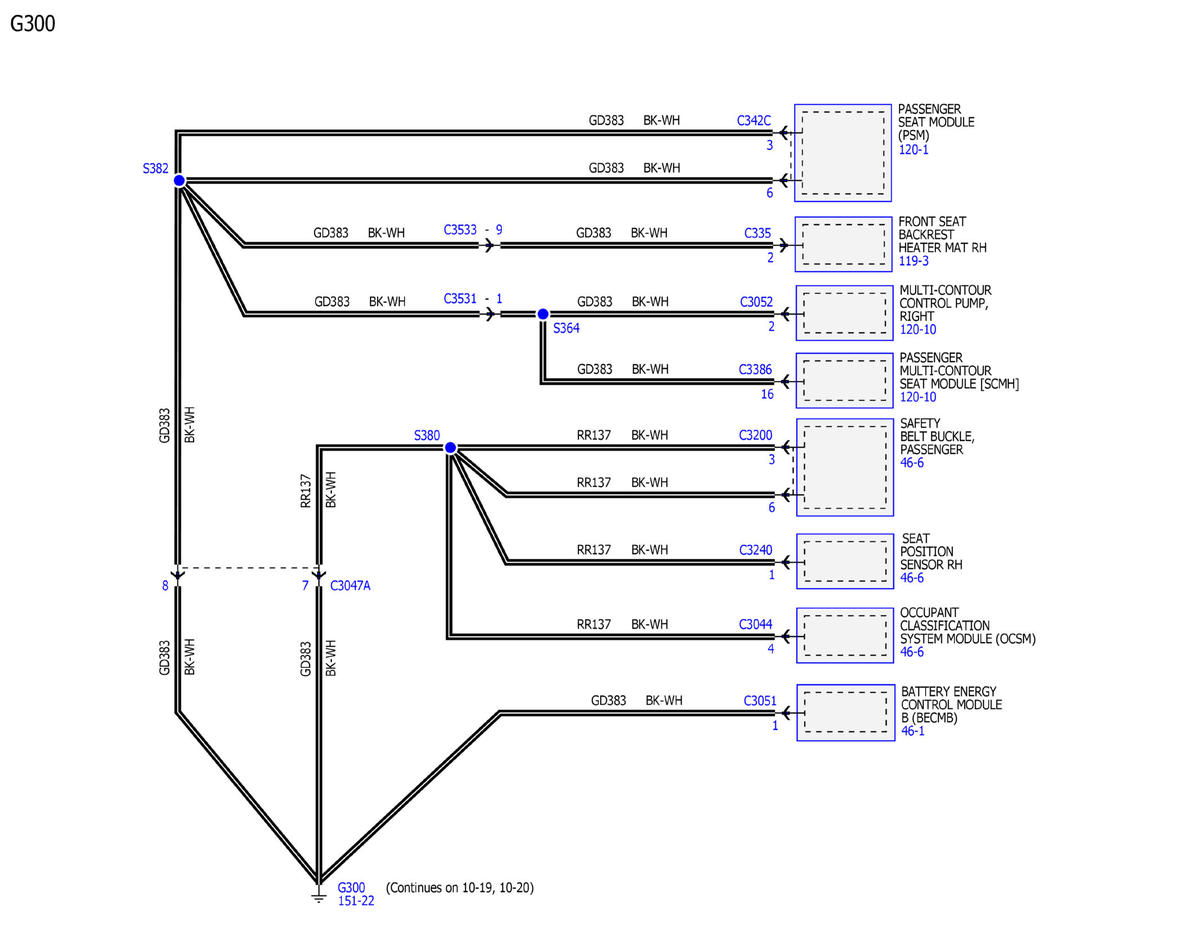

Fig 22: Ground Distribution Wiring Diagram - G300

GFDWR66404

Courtesy of FORD MOTOR COMPANY

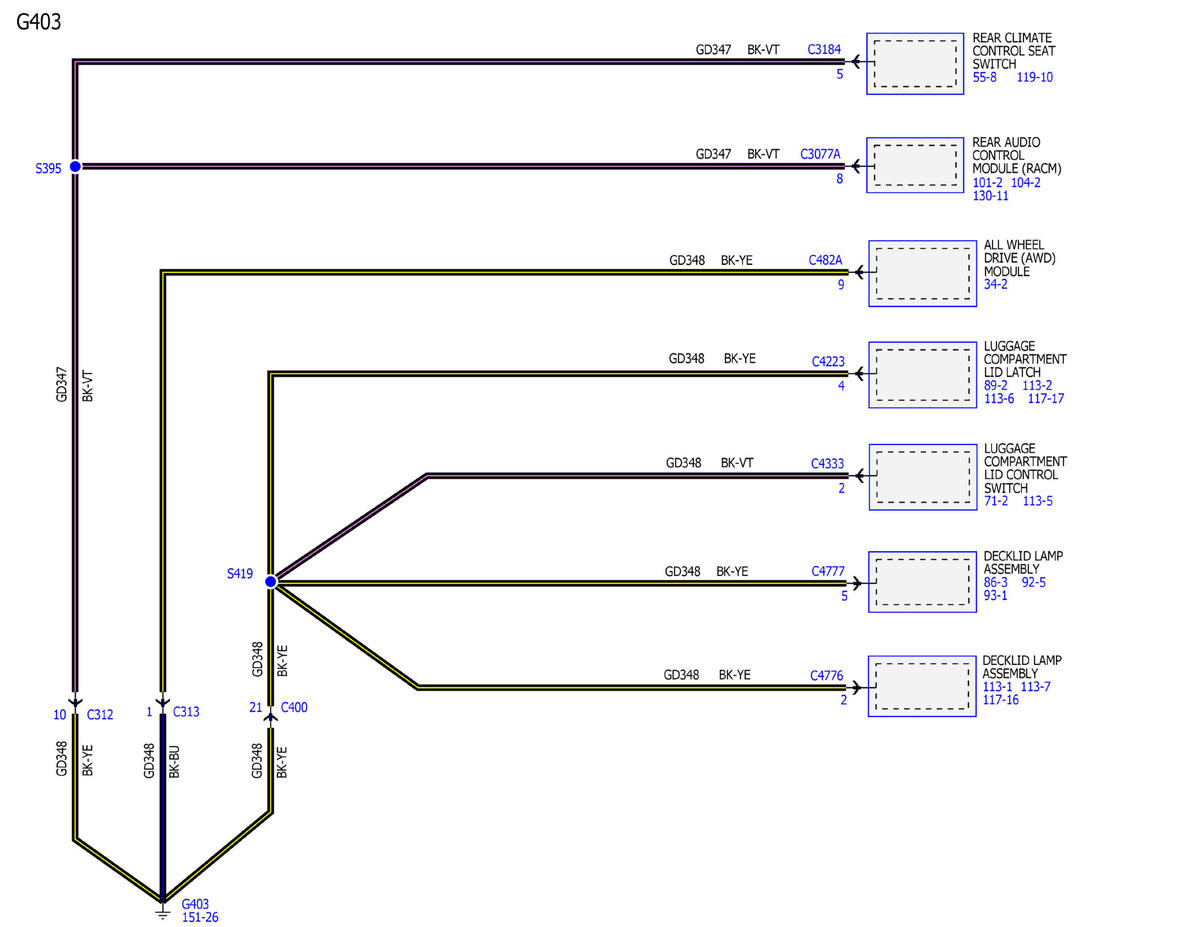

Fig 23: Ground Distribution Wiring Diagram - G403

GFDWR66405

Courtesy of FORD MOTOR COMPANY

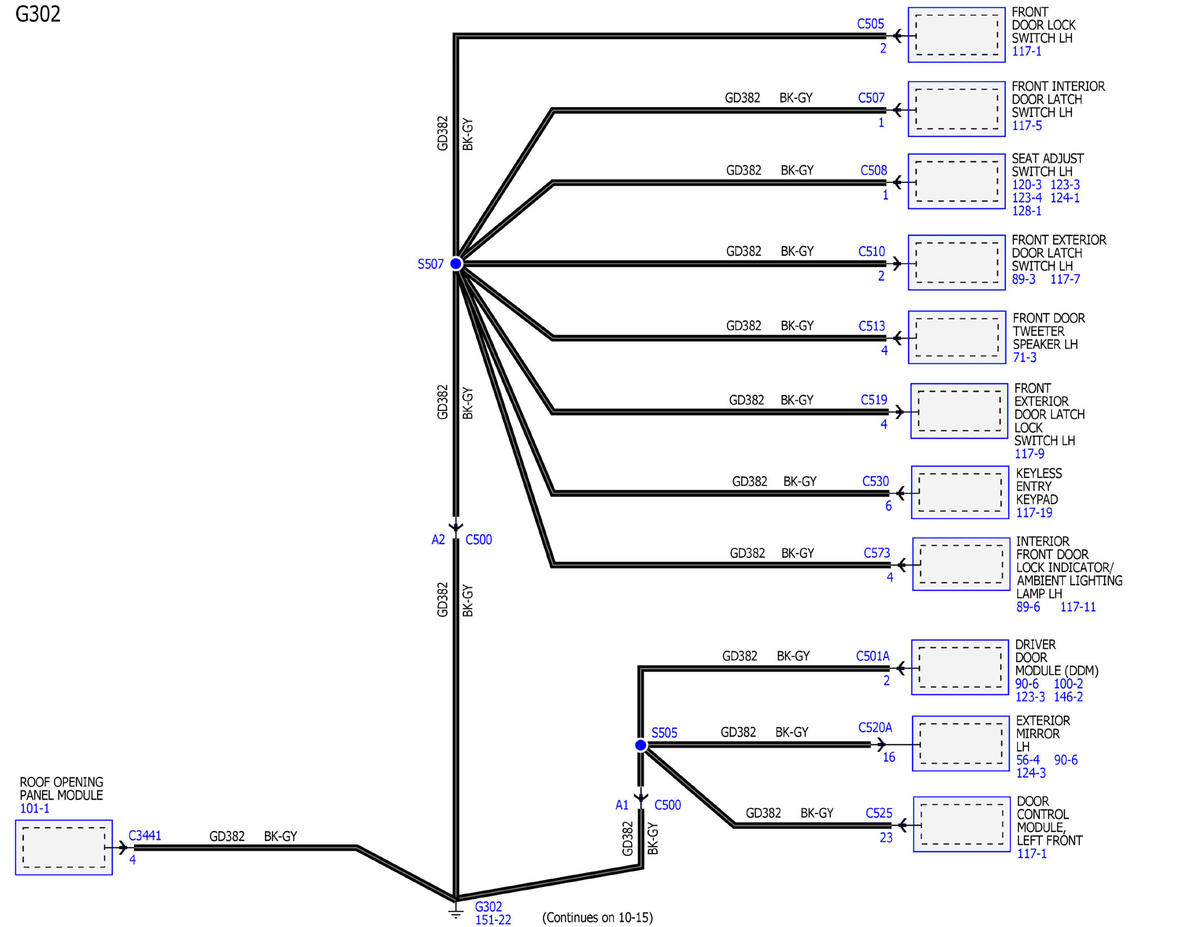

Fig 24: Ground Distribution Wiring Diagram - G302

GFDWR66406

Courtesy of FORD MOTOR COMPANY

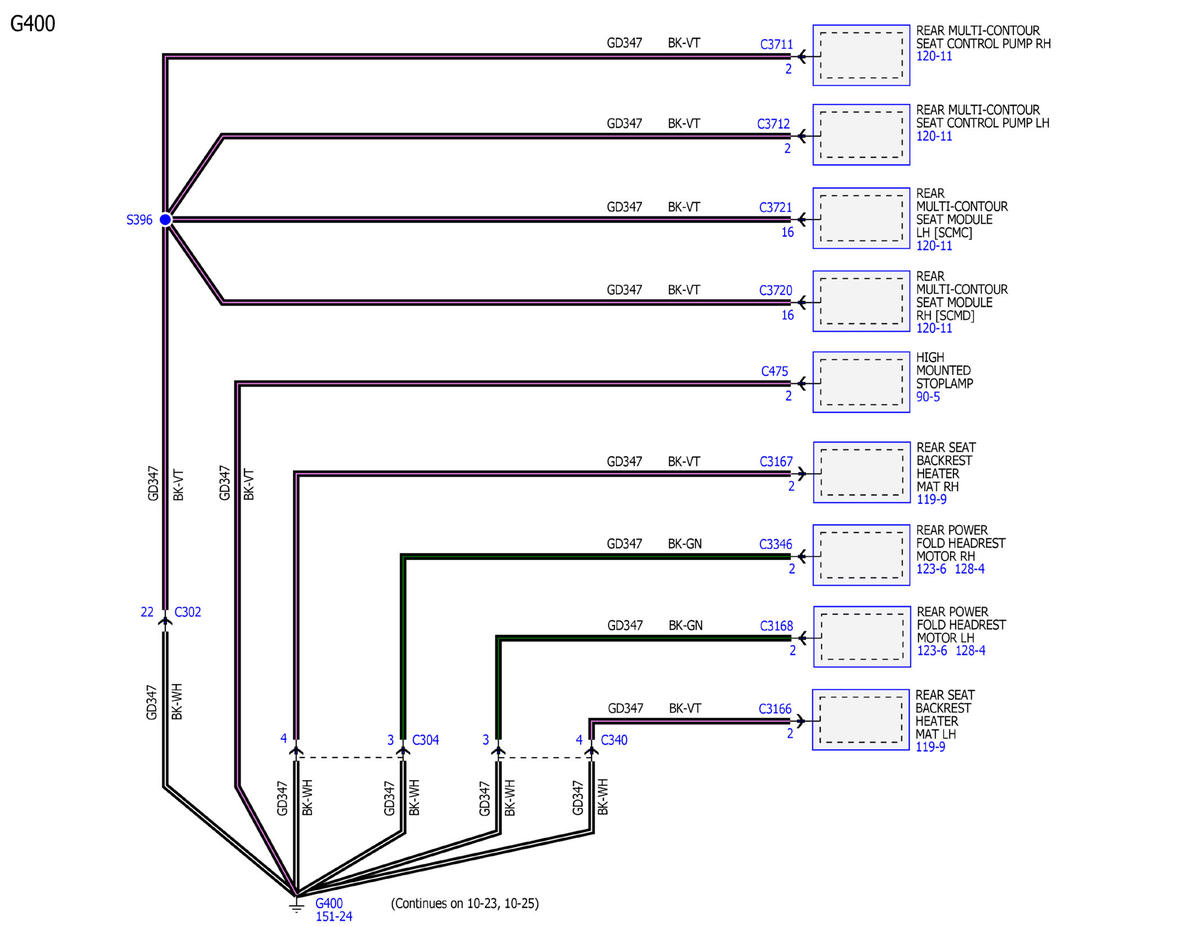

Fig 25: Ground Distribution Wiring Diagram - G400

GFDWR66407

Courtesy of FORD MOTOR COMPANY

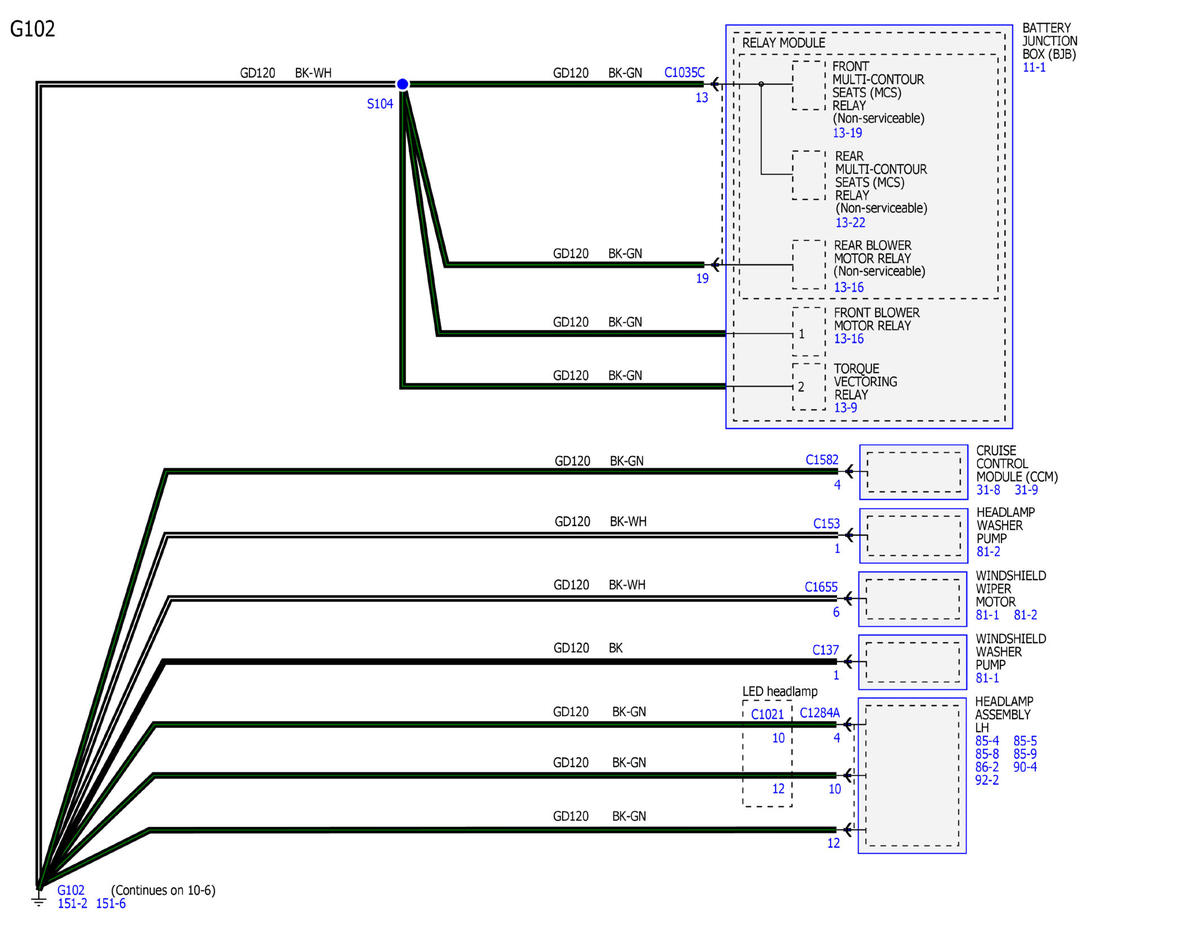

Fig 26: Ground Distribution Wiring Diagram - G102

GFDWR66408

Courtesy of FORD MOTOR COMPANY

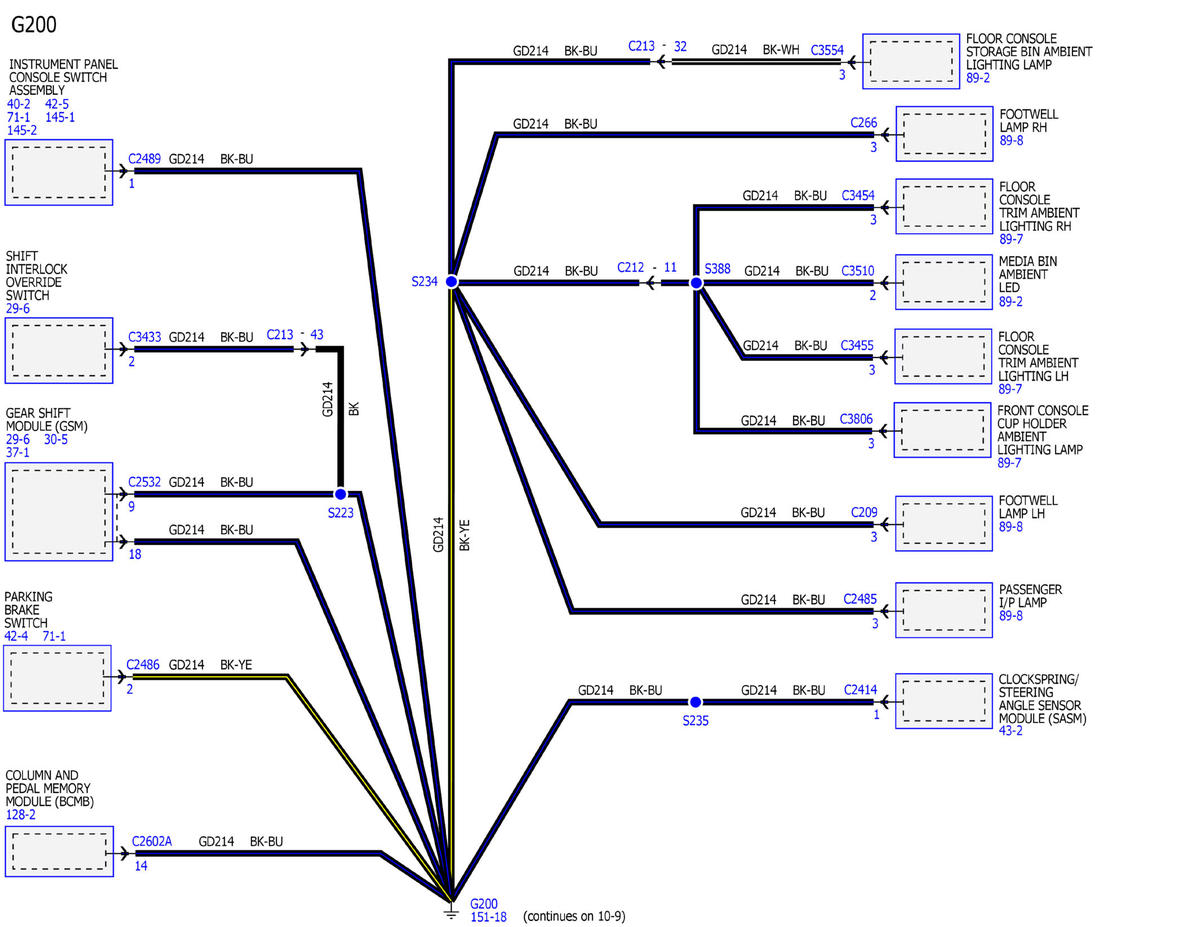

Fig 27: Ground Distribution Wiring Diagram - G200

GFDWR66409

Courtesy of FORD MOTOR COMPANY
