OEM Electrical Wiring Diagram Introduction: Introduction

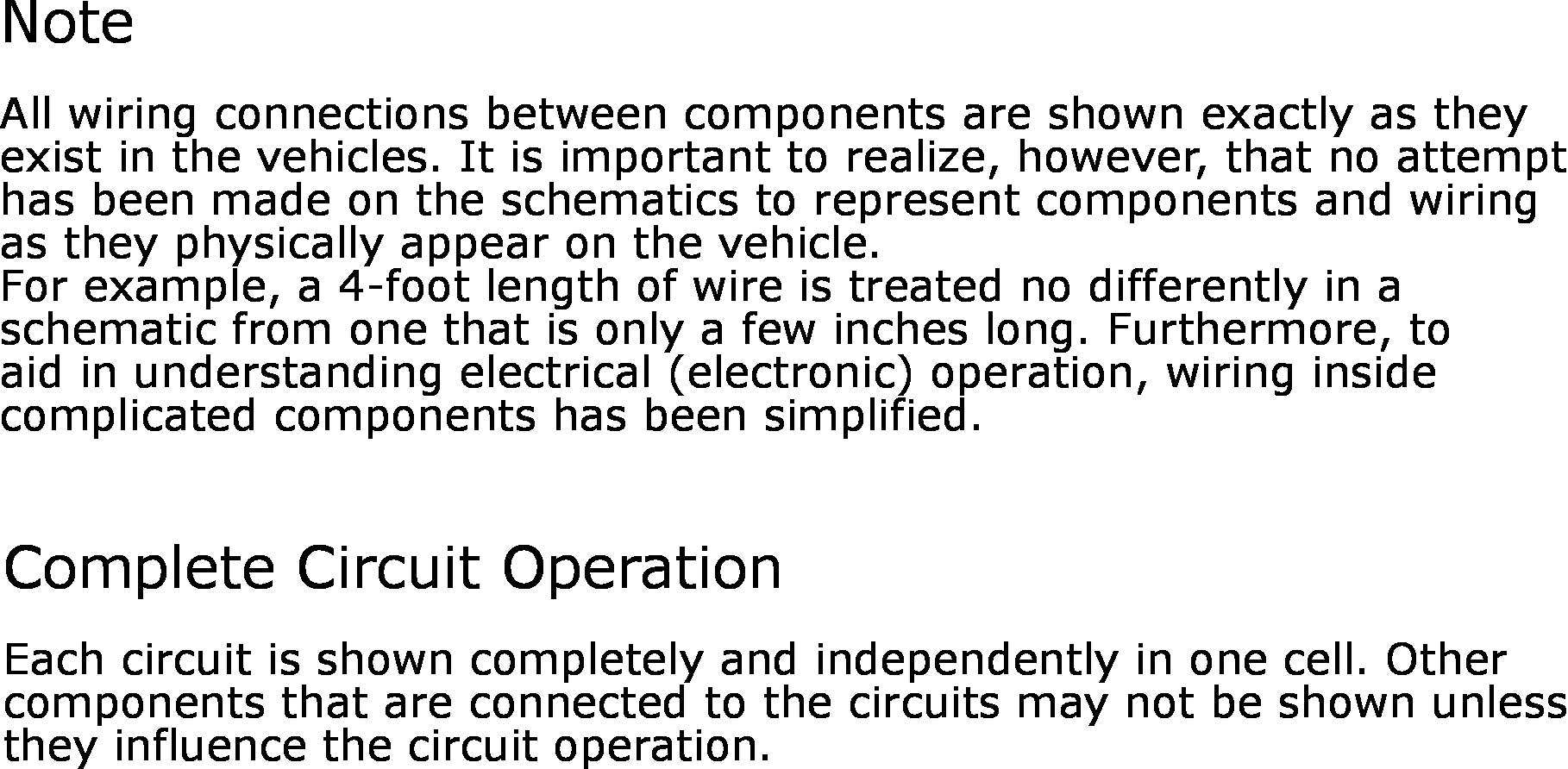

GFDW59927Courtesy of FORD MOTOR COMPANY

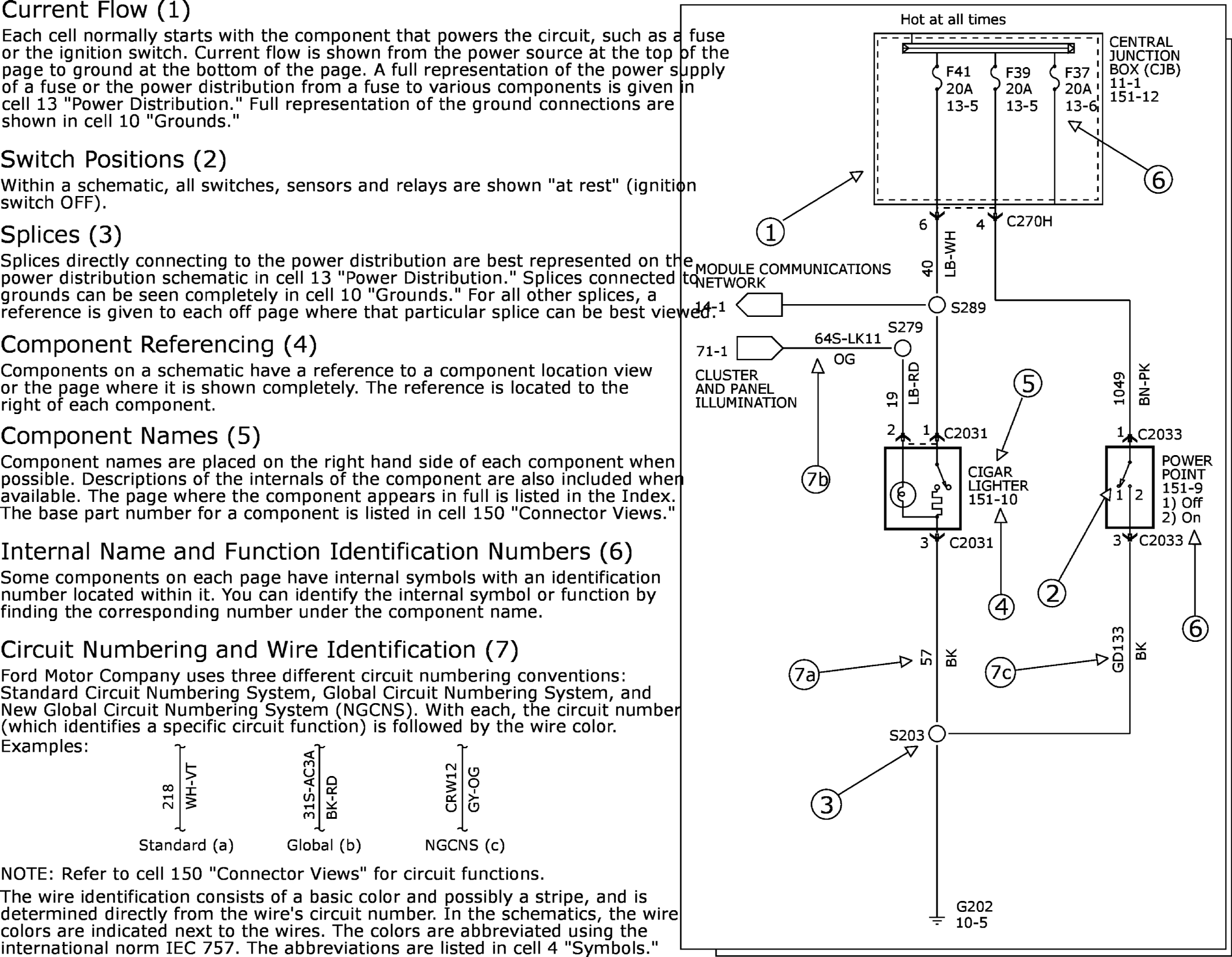

GFDW59928Courtesy of FORD MOTOR COMPANY

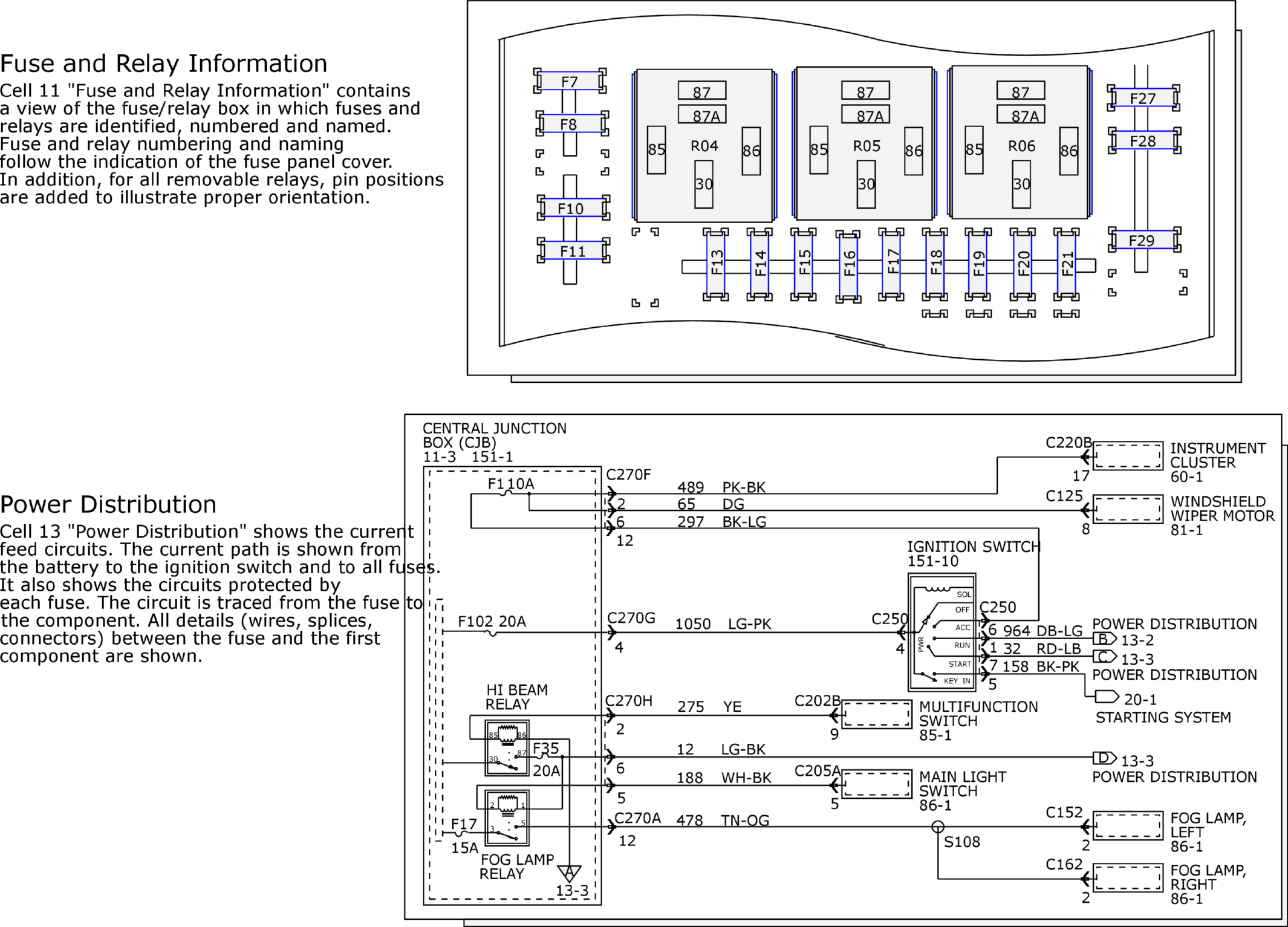

GFDW59929Courtesy of FORD MOTOR COMPANY

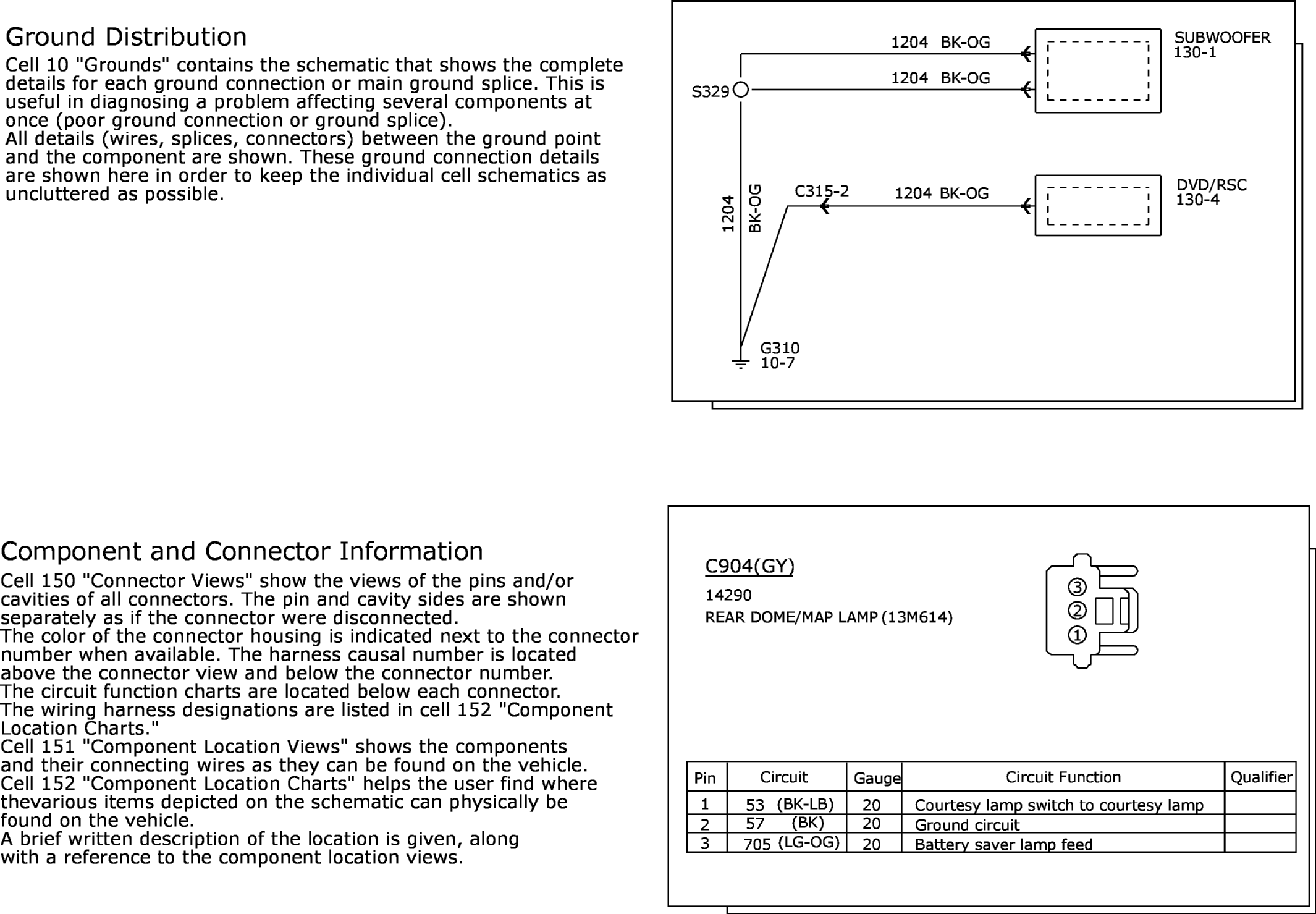

GFDW59930Courtesy of FORD MOTOR COMPANY

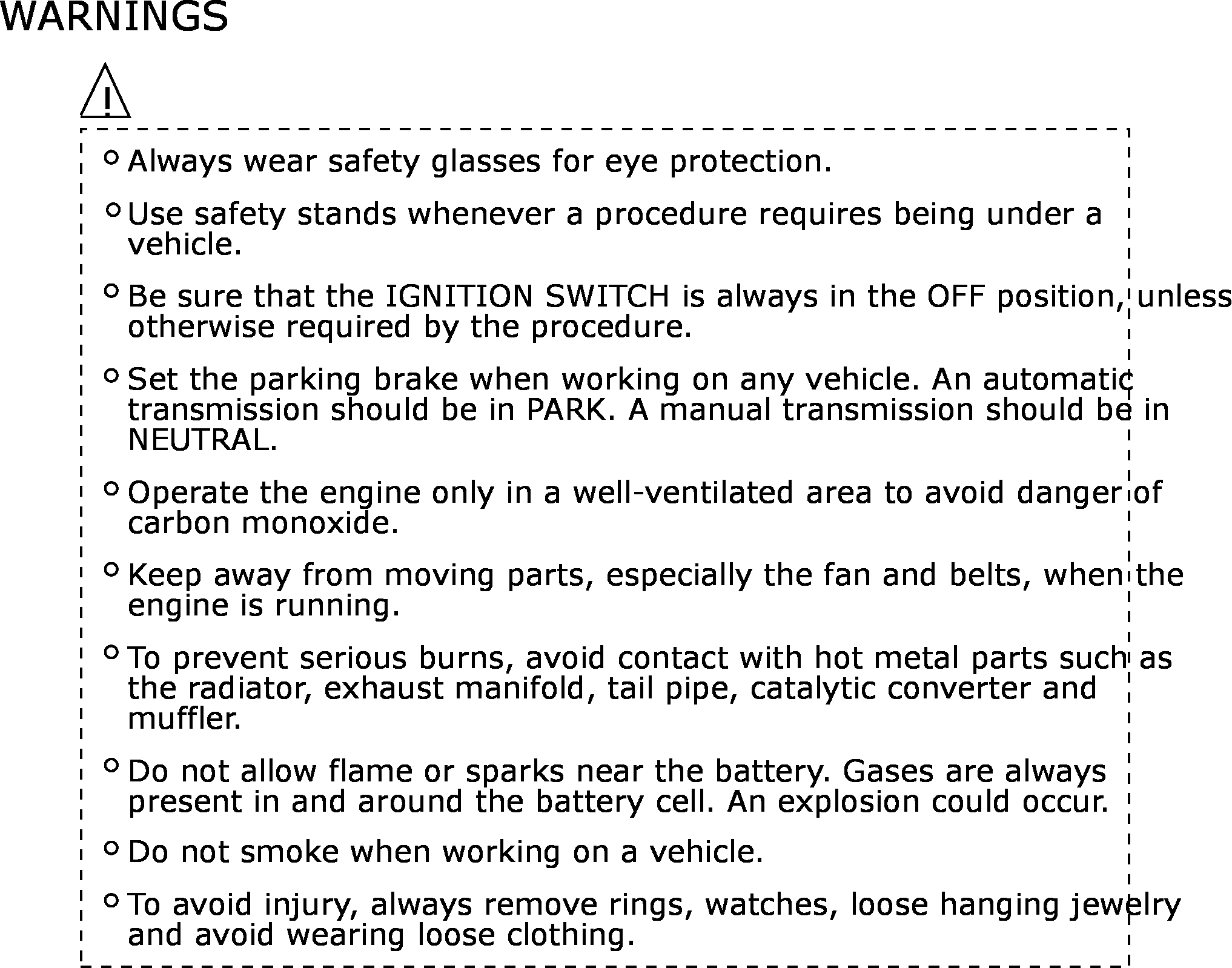

GFDW59931Courtesy of FORD MOTOR COMPANY
