Windshield Glass: Notes
Special Tool(s)
| Deluxe Windshield Removal Tool 164-R2450 or equivalent | |
| The Pumper 164-R2459 or equivalent |
Material
| Item | Specification |
| Dow Urethane Adhesive Betaseal™ Express | - |
| Dow Urethane One Step Glass Primer Betaprime™ 5500 / 5500A / 5500SA | - |
| Sika Urethane Adhesive Sika Tack ASAP | - |
| Sika Urethane Metal and Glass Primer Sika 206 G+P | - |
| Motorcraft ® Ultra-Clear Spray Glass Cleaner ZC-23 | ESR-M14P5-A |

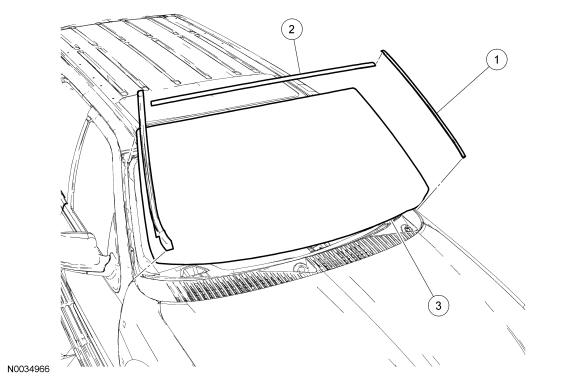

| Item | Part Number | Description |
|---|---|---|
| 1 | 51692 | Windshield side moulding (2 required) |
| 2 | 03110 | Windshield top weatherstrip |
| 3 | 03100 | Windshield glass |
