Fuse And Relay Location

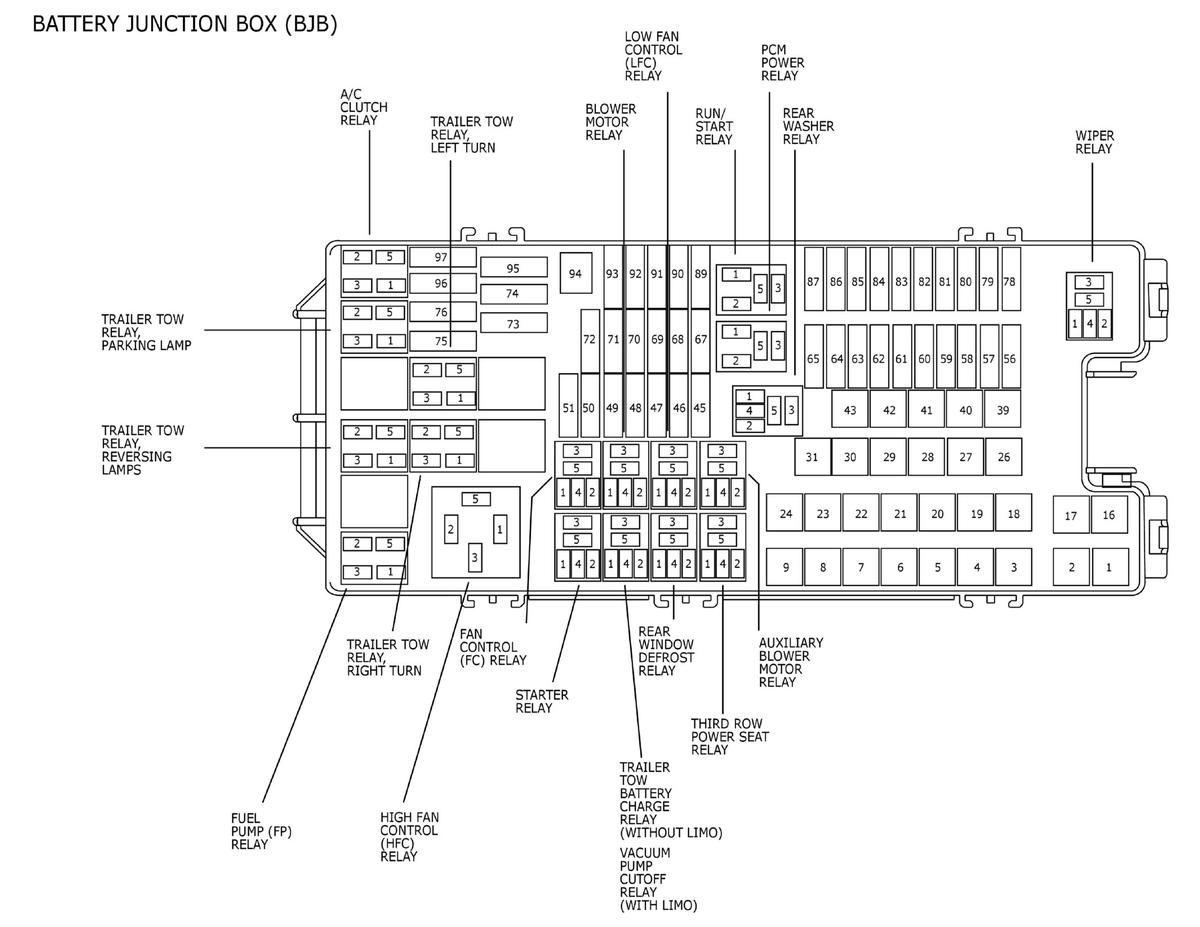

Fig 1: Battery Junction Box (BJB) Component Location
GFDW91874Courtesy of FORD MOTOR COMPANY

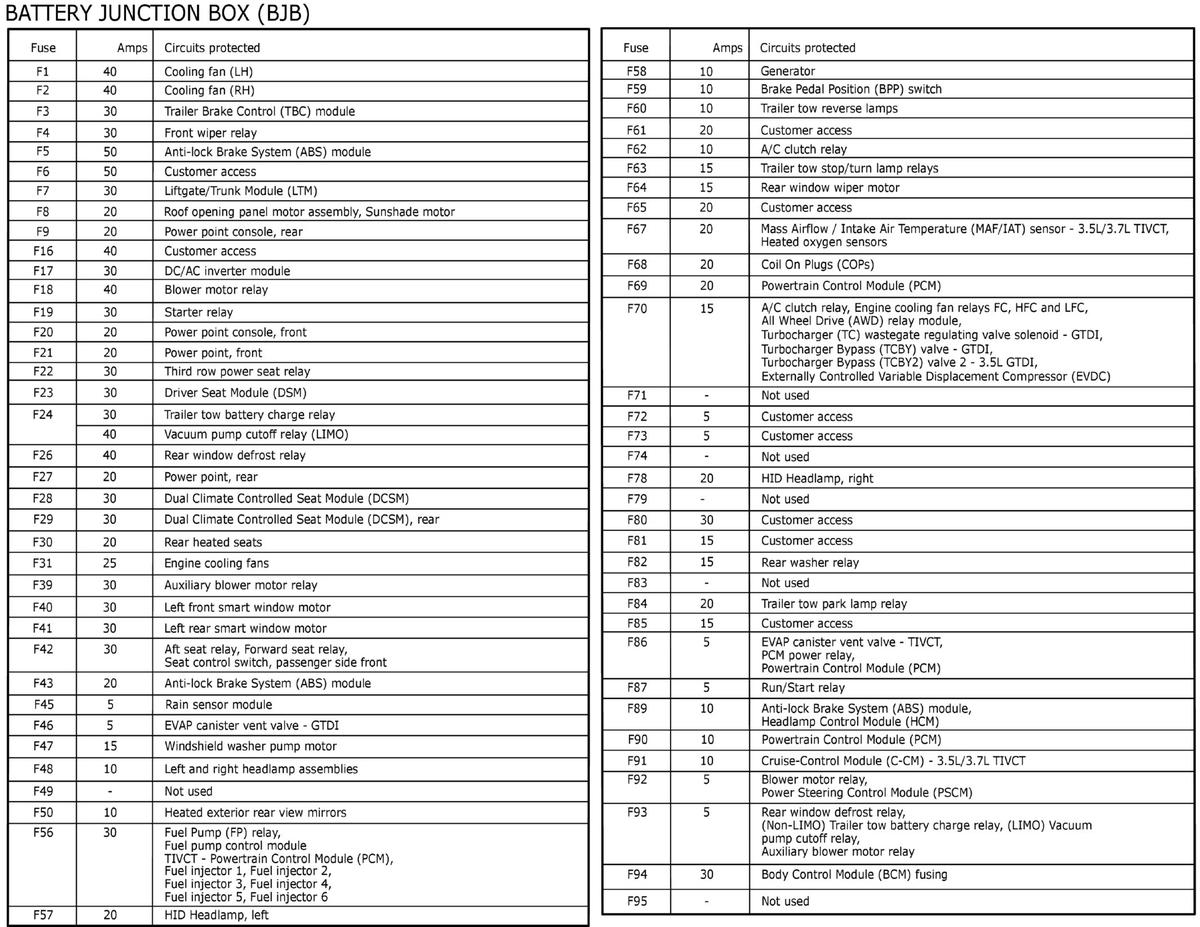

Fig 2: Battery Junction Box (BJB) Component Location Legend
GFDW91875Courtesy of FORD MOTOR COMPANY

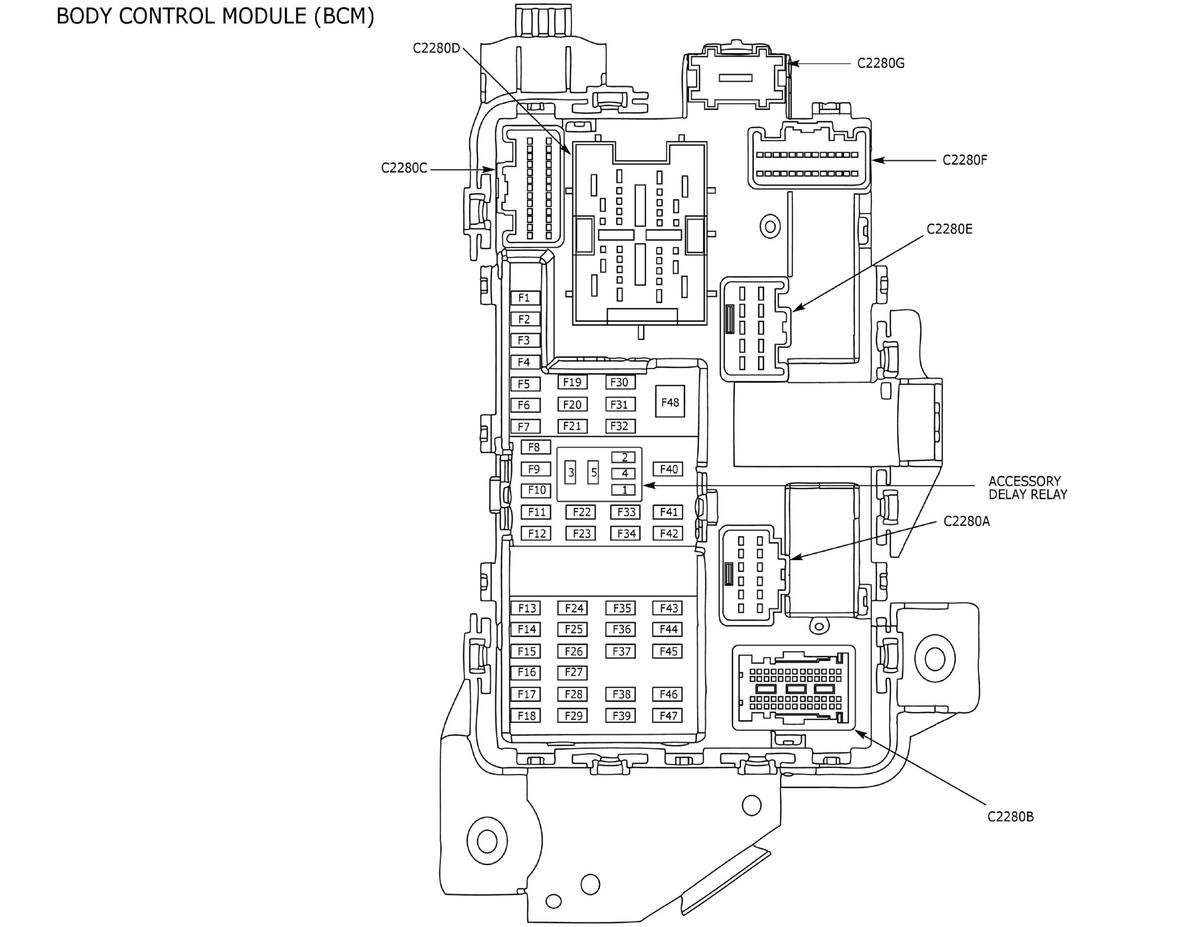

Fig 3: Body Control Module (BCM)Component Location
GFDW91876Courtesy of FORD MOTOR COMPANY

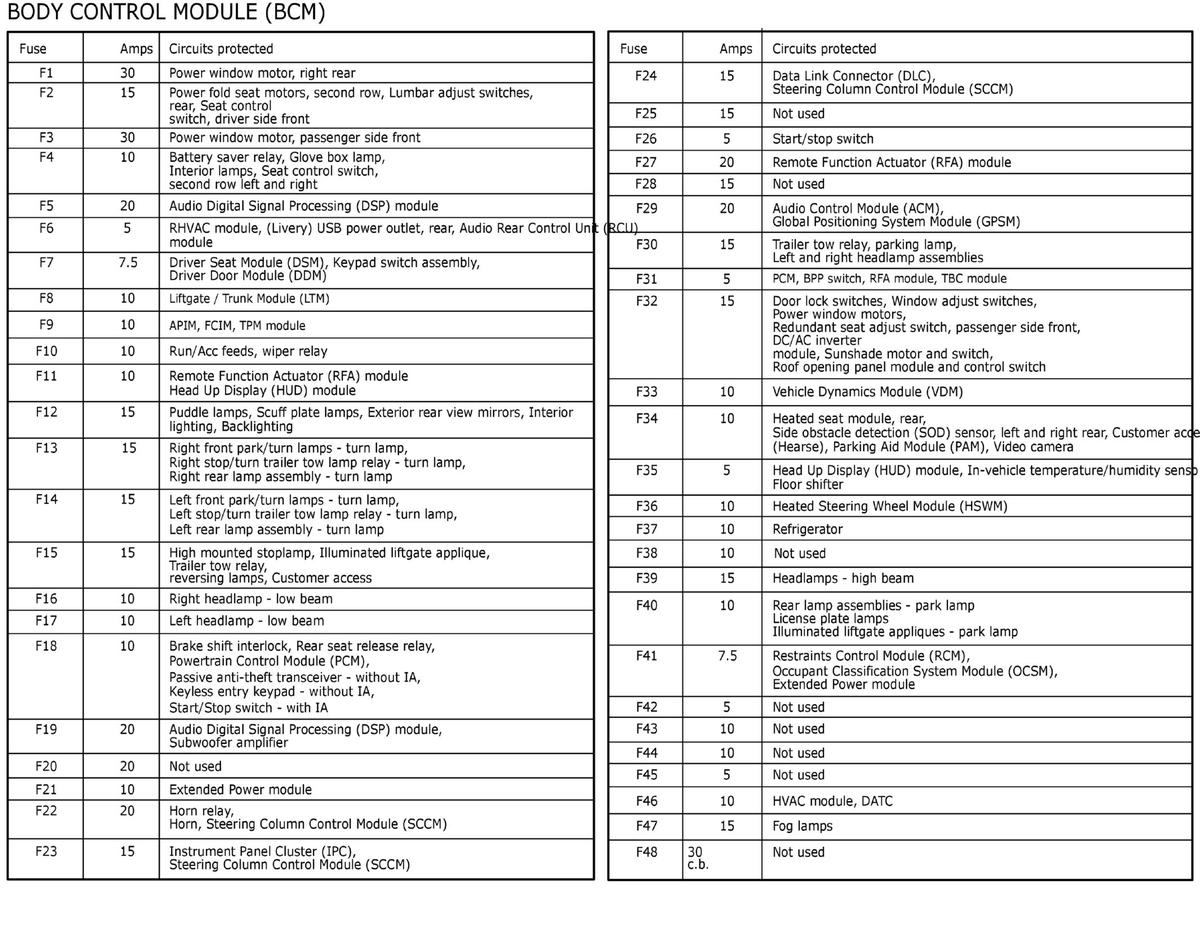

Fig 4: Body Control Module (BCM) Component Location Legend
GFDW91877Courtesy of FORD MOTOR COMPANY

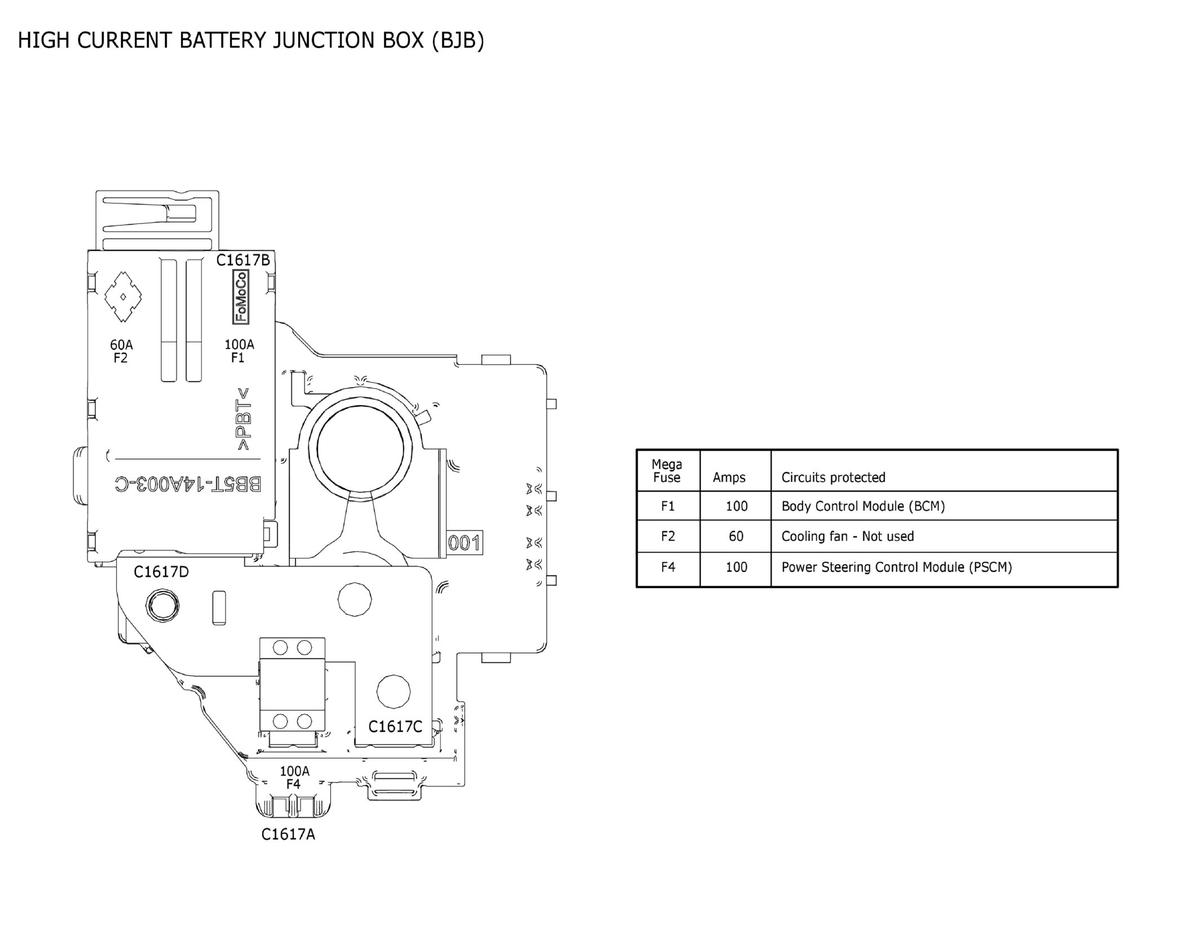

Fig 5: High Current Battery Junction Box Component Location & Legend
GFDW91878Courtesy of FORD MOTOR COMPANY
