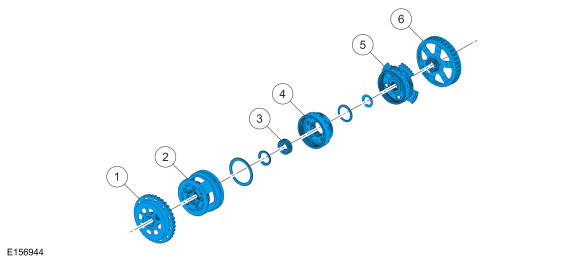

Planetary Gearset Exploded View
| Item | Description |
|---|---|
| 1 | Front planetary sun gear and shell assembly |
| 2 | Front planetary carrier/rear planetary ring gear assembly |
| 3 | Gear - center planetary sun |
| 4 | Center planetary carrier/front ring gear assembly |
| 5 | Rear planetary carrier/center ring gear assembly |
| 6 | Rear planetary sun gear and shell assembly |
