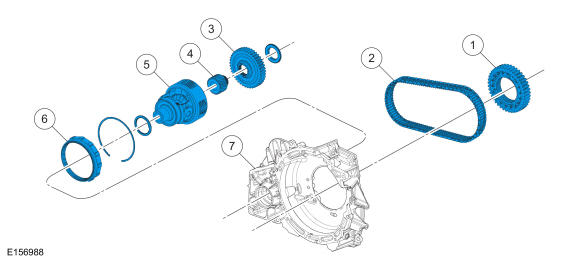

Final Drive Component Exploded View

GFD228803Courtesy of FORD MOTOR COMPANY
Item  Description
1 Drive chain drive sprocket
2 Drive chain
3 Drive chain driven sprocket
4 Final drive planetary sun gear
5 Differential assembly
6 Final drive planetary ring gear
7 Torque converter housing
