Integrated Wheel End (IWE): Installation
- 2.
Install the IWE onto the halfshaft outboard end making sure the Integrated Wheel End(IWE) splines line up to the outboard halfshaft splines.
NOTE:
Do not dislodge the Integrated Wheel End (IWE) seal spring when installing the IWE on halfshaft outboard end or component damage may occur.
- 3.
Once clearance is available, install the halfshaft outboard end into the wheel knuckle hub bearing.
NOTE:
Allow the wheel knuckle to swing outward while keeping the halfshaft pushed inward.
- 6.
Position the front brake flexible hose bracket and install the bolt.- Tighten to 12 Nm (106 lb-in).
- 8.
Attach the wheel speed sensor retainers and install the wheel speed sensor harness bracket bolt.- To install, tighten to 12 Nm (106 lb-in).
- 11.

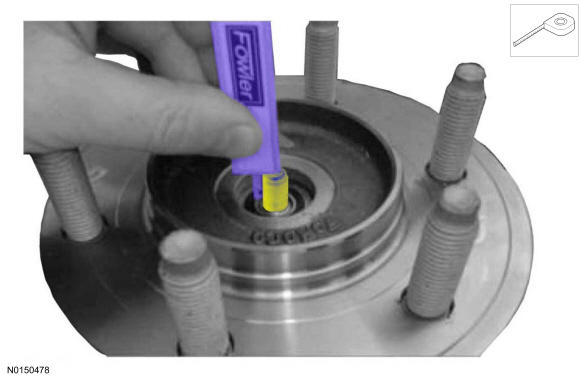

Measure the CV shaft threaded end to the inner bearing race.
NOTE:
Measure the depth of the CV Shaft threaded end to the inner bearing race (shown in illustration). The minimum depth is 15.5 mm (0.61 in). If the depth is less than 15.5 mm (0.61 in) rotate the CV shaft to clear a binding condition between the IWE and CV splines. Installing the axle nut and tightening without the proper depth of protrusion will result in damage to the IWE.
- 12.
Install the new axle nut.- Tighten to 40 Nm (30 lb-ft).
NOTE:
Verify the spline engagement by checking for spline lash before installing the axle nut or component damage may occur.
- 14.
Remove the brake disc. Refer to Front Disc Brake .
