Transfer Case Rear Output Shaft Seal: Notes

SPECIAL TOOL(S)

GFD33410Courtesy of FORD MOTOR COMPANY
 Installer, Input Shaft Oil Seal 308-249 (T96T-7127-A)

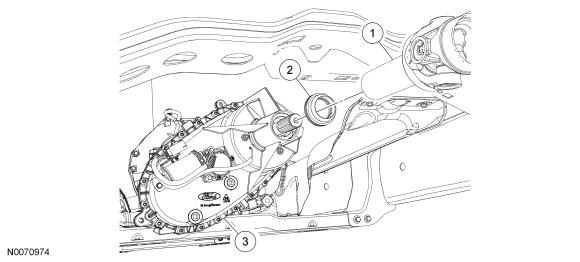

GFD33411Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 4602 Driveshaft
2 7B215 Rear output shaft seal
3 7A195 Transfer case
