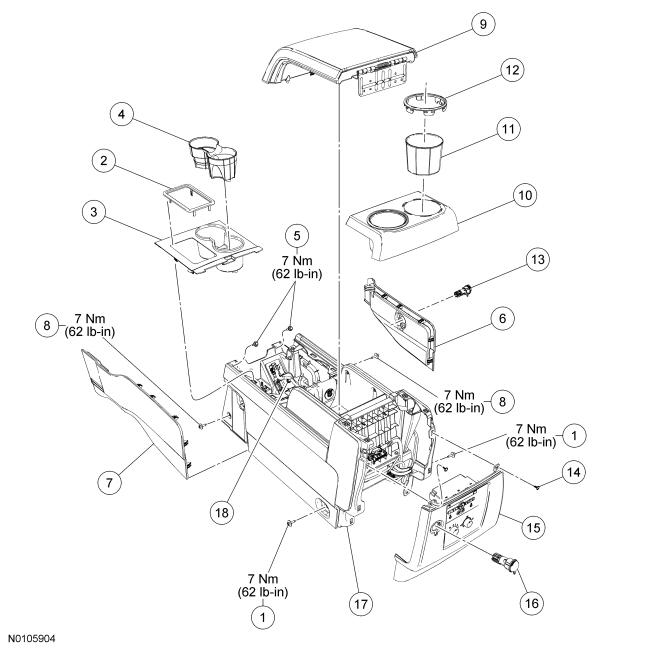

Console - Front, Floor: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
| Item | Part Number | Description |
|---|---|---|
| 1 | W710806 | Front floor console rear bolt (2 required) |
| 2 | 78045K08 | Selector lever trim ring |
| 3 | 78044J76 | Front floor console finish panel |
| 4 | 78046B94 | Front cup holder insert |
| 5 | N807151 | Front floor console front screws (2 required) |
| 6 | 04608A | Front floor console side cover RH |
| 7 | 04608B | Front floor console side cover LH |
| 8 | W710806 | Front floor console front bolt (2 required) |
| 9 | 78045G82 | Front floor console storage compartment door |
| 10 | 78047A44 | Rear cup holder |
| 11 | 78046B94 | Rear cup holder insert |
| 12 | 78047A44 | Rear cup holder trim ring |
| 13 | 19N236 | Front floor console front auxiliary power point |
| 14 | W707658 | Front floor console rear panel screw (2 required) |
| 15 | 78045A12 | Front floor console rear panel |
| 16 | 19G247 | Front floor console rear auxiliary power point |
| 17 | 78045A06 | Front floor console |
| 18 | 14B079 | Bulkhead electrical connector |
