Component Testing: Relays

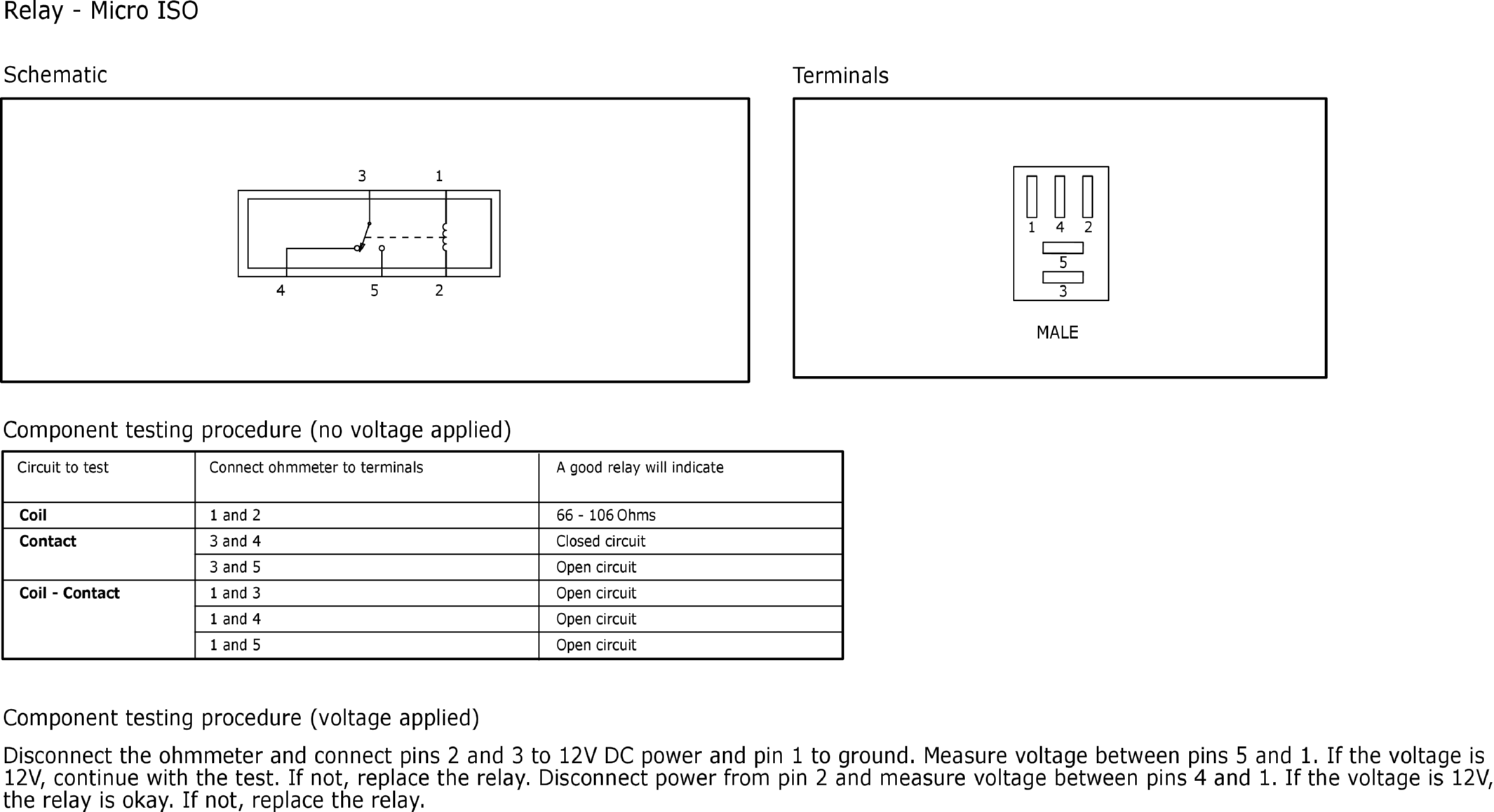

Fig 1: Relay - Micro ISO
GFDW36140Courtesy of FORD MOTOR COMPANY

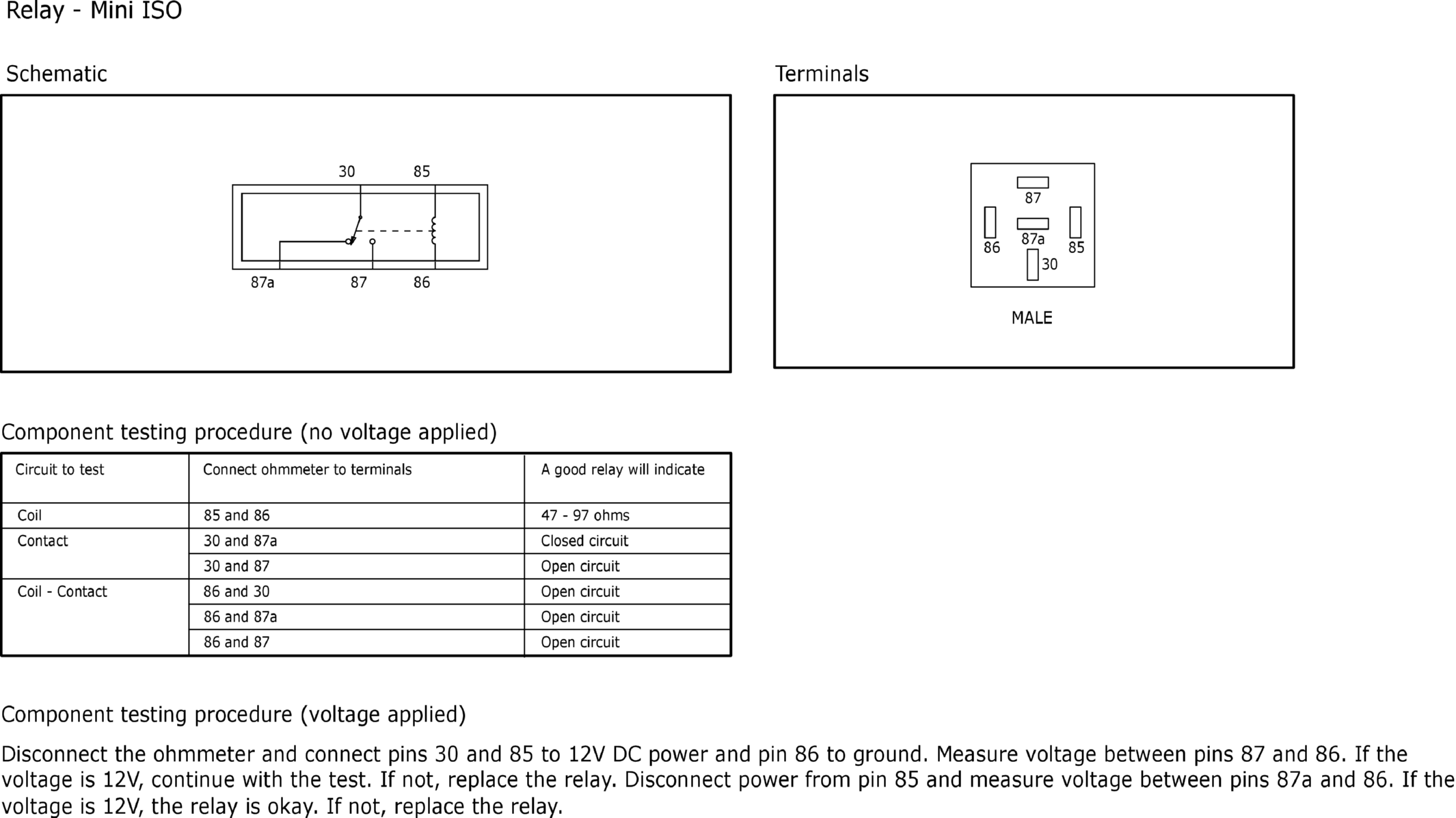

Fig 2: Relay - Mini ISO
GFDW36141Courtesy of FORD MOTOR COMPANY

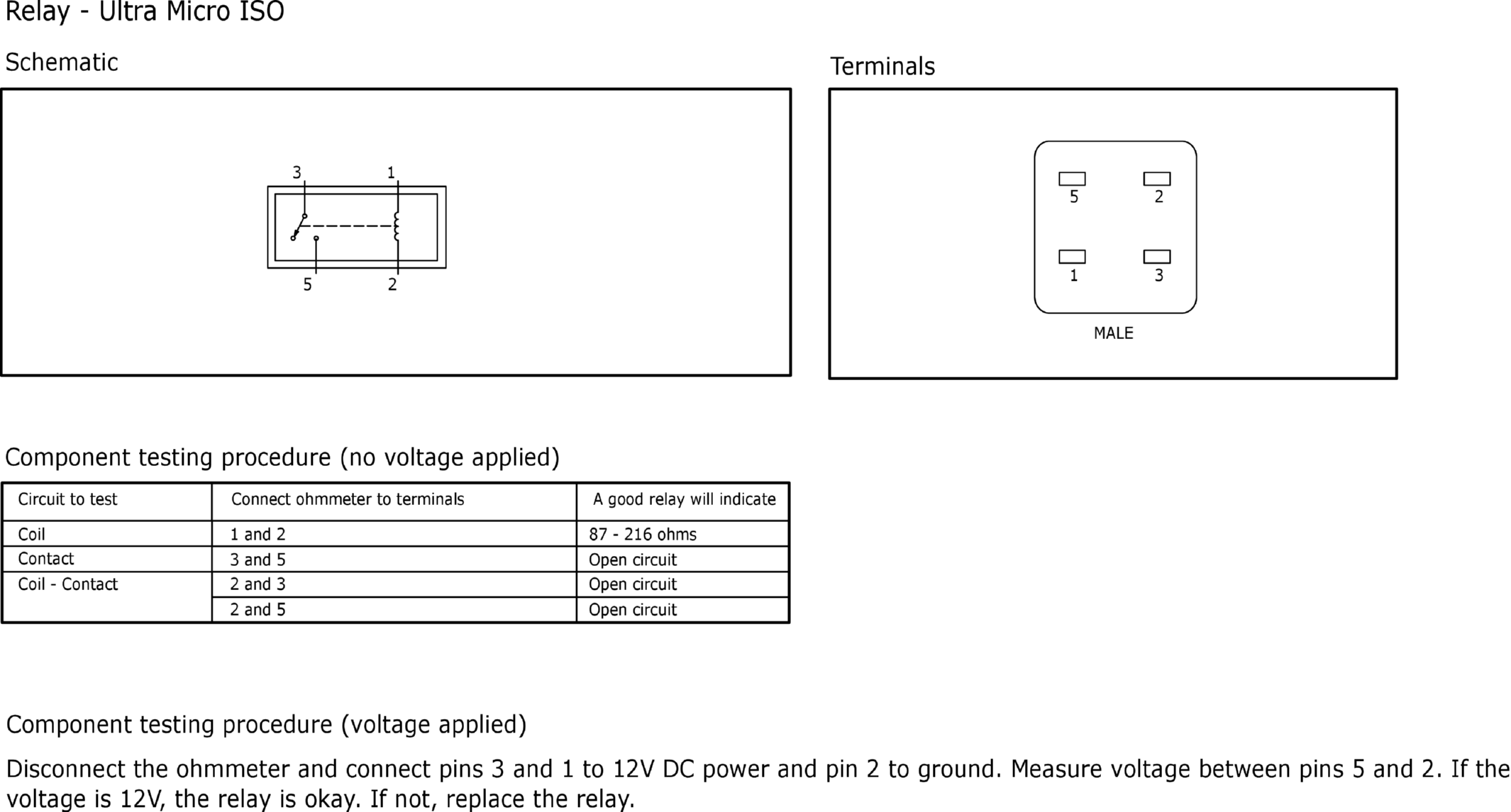

Fig 3: Relay - Ultra Micro ISO
GFDW36142Courtesy of FORD MOTOR COMPANY
