Engine Front Cover: Notes

Special Tool(s)

Courtesy of FORD MOTOR COMPANY	3 Jaw Puller 303-D121 or equivalent
Courtesy of FORD MOTOR COMPANY	Alignment Pins 307-399
Courtesy of FORD MOTOR COMPANY	Installer, Front Cover Oil Seal 303-335 (T88T-6701-A)
Courtesy of FORD MOTOR COMPANY	Installer, Front Crankshaft Seal 303-1251
Courtesy of FORD MOTOR COMPANY	Remover, Oil Seal 303-409 (T92C-6700CH)
Courtesy of FORD MOTOR COMPANY	Replacer, Crankshaft Vibration Damper 303-102 (T74P-6312-B)
Courtesy of FORD MOTOR COMPANY	Strap Wrench 303-D055 (D85L-6000-A) or equivalent
Courtesy of FORD MOTOR COMPANY	Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool

Material

Item	Specification
Motorcraft ® High Performance Engine RTV Silicone TA-357	WSE-M4G323-A6
Motorcraft ® Metal Surface Prep ZC-31-B	-
Motorcraft ® SAE 5W-20 Premium Synthetic Blend Motor Oil (US); Motorcraft ® SAE 5W-20 Super Premium Motor Oil (Canada) XO-5W20-QSP (US); CXO-5W20-LSP12 (Canada)	WSS-M2C945-A
Motorcraft ® Silicone Gasket Remover ZC-30-A	-

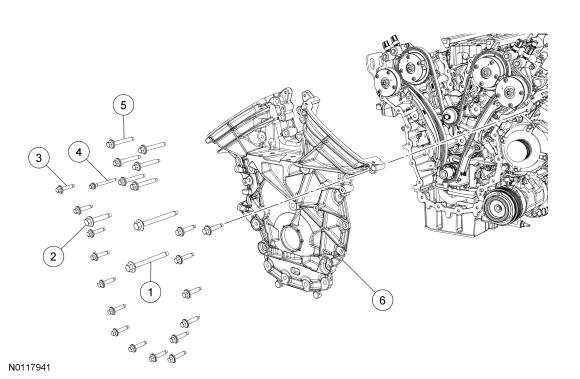

GFD96861

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	W714821	Engine front cover bolt (2 required)
2	W714822	Engine front cover bolt
3	W503297	Engine front cover bolt (16 required)
4	W503285	Engine front cover bolt
5	W503301	Engine front cover bolt (6 required)
6	6019	Engine front cover
