Component Location Views

GFDW35030Courtesy of FORD MOTOR COMPANY

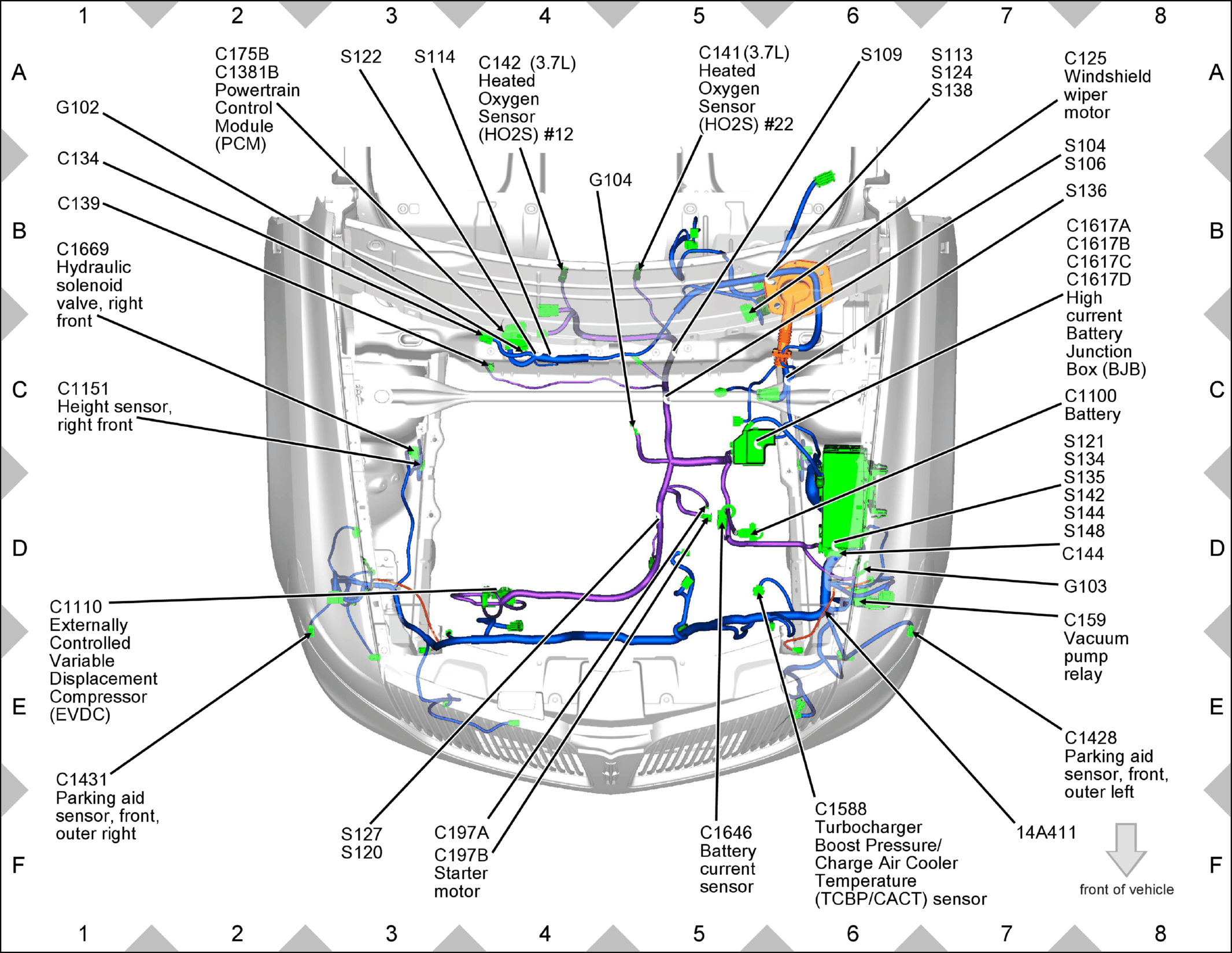

GFDW35031Courtesy of FORD MOTOR COMPANY
GFDW35032Courtesy of FORD MOTOR COMPANY

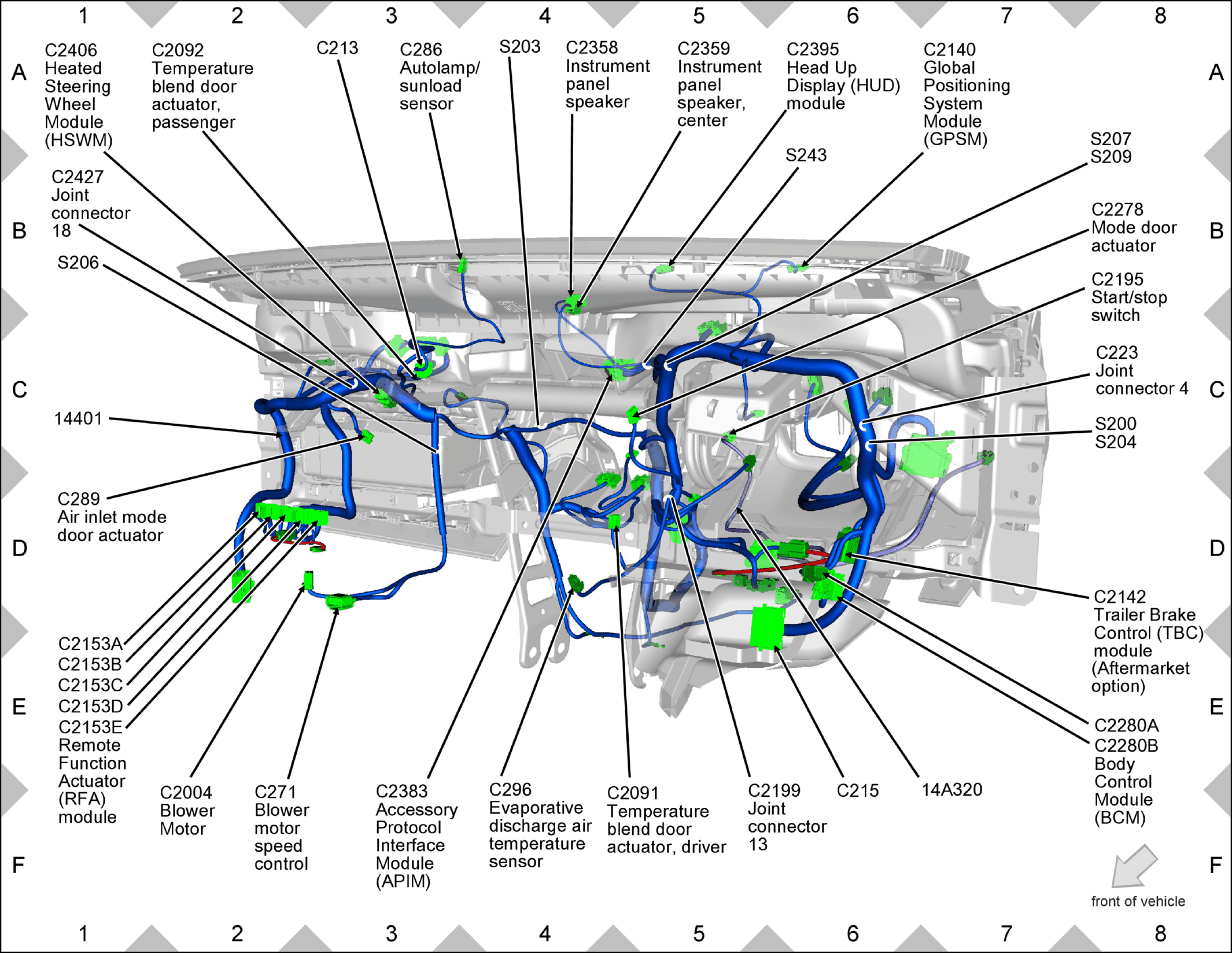

GFDW35033Courtesy of FORD MOTOR COMPANY

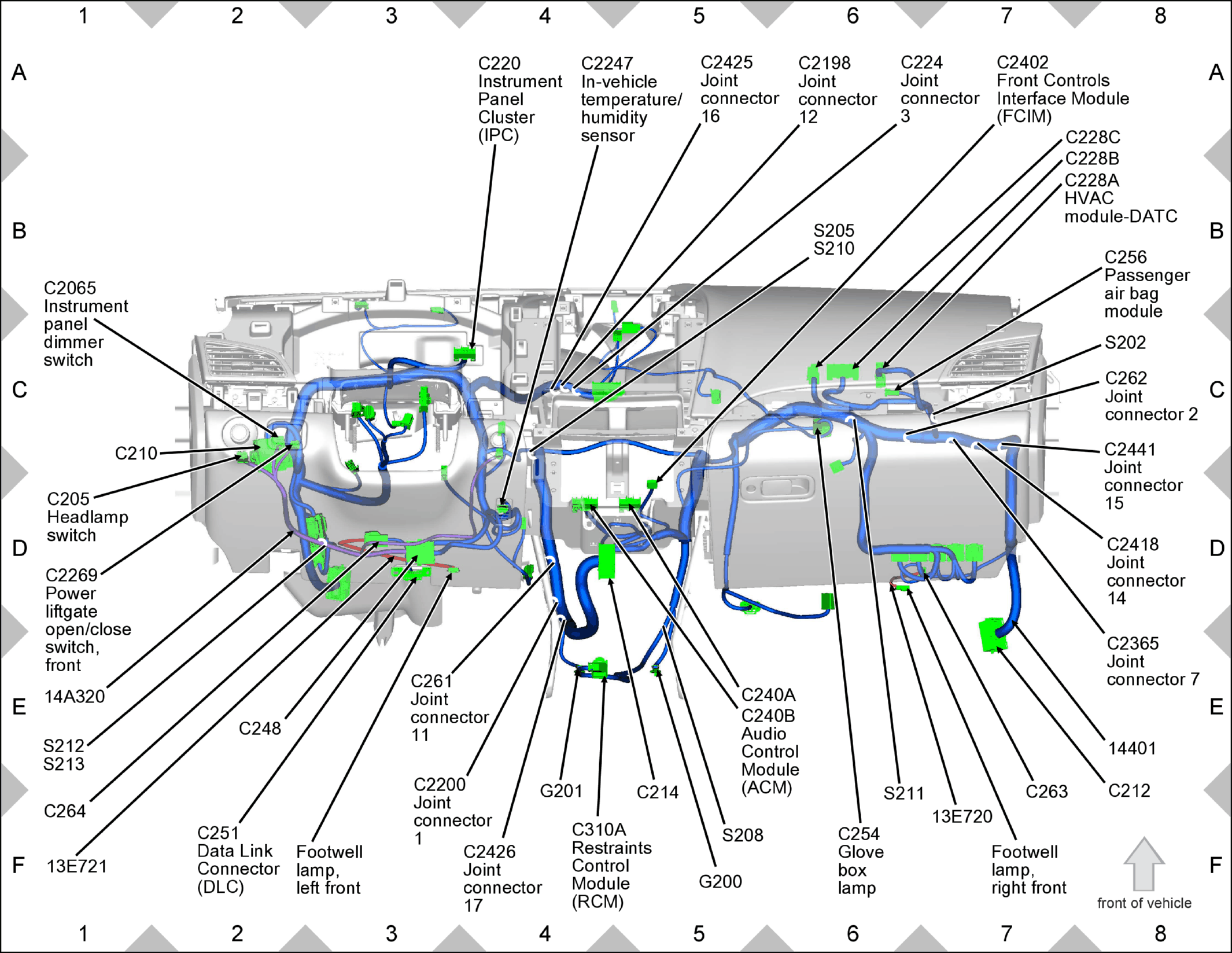

GFDW35034Courtesy of FORD MOTOR COMPANY
GFDW35035Courtesy of FORD MOTOR COMPANY
GFDW35036Courtesy of FORD MOTOR COMPANY
GFDW35037Courtesy of FORD MOTOR COMPANY

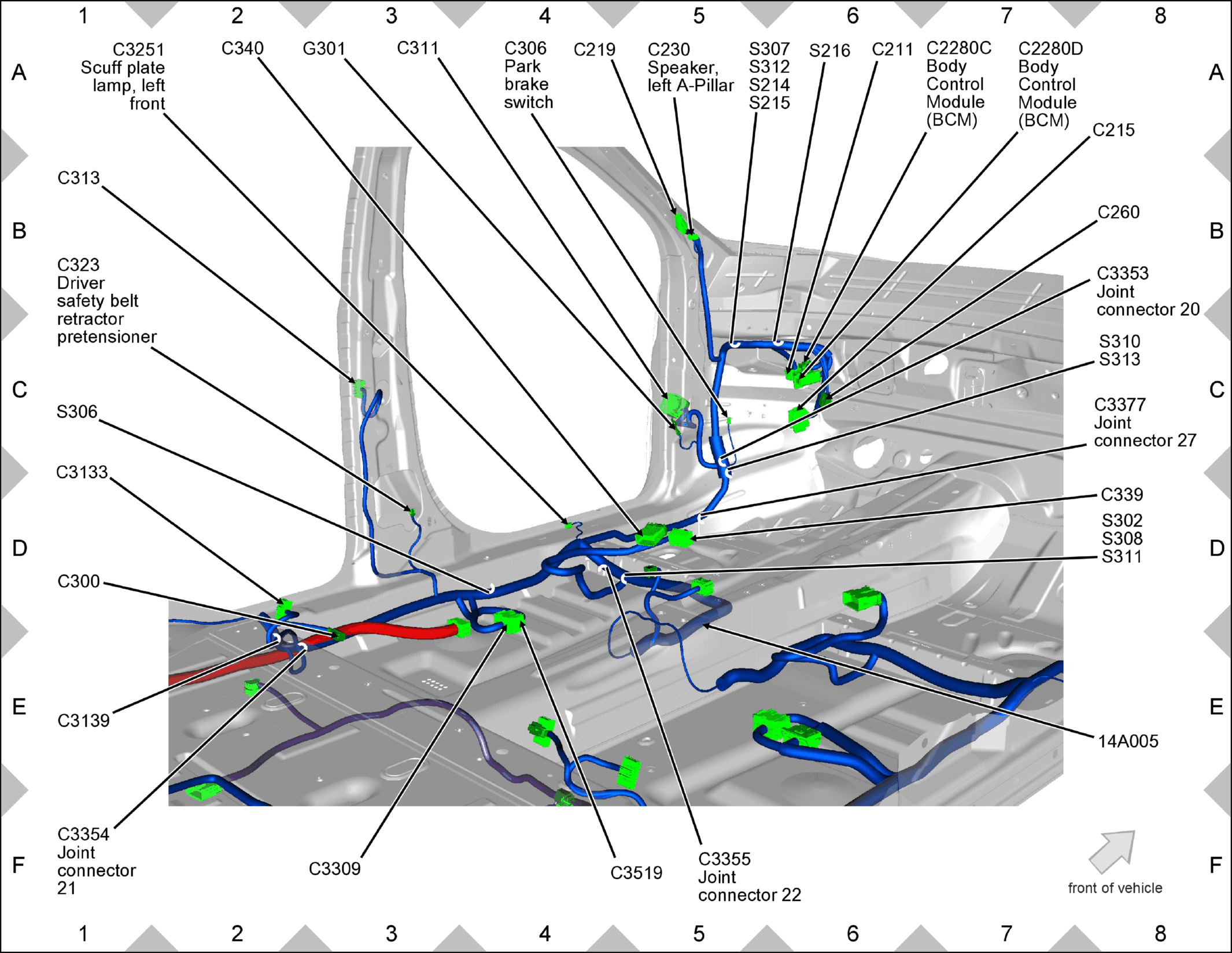

GFDW35038Courtesy of FORD MOTOR COMPANY
GFDW35039Courtesy of FORD MOTOR COMPANY
GFDW35040Courtesy of FORD MOTOR COMPANY

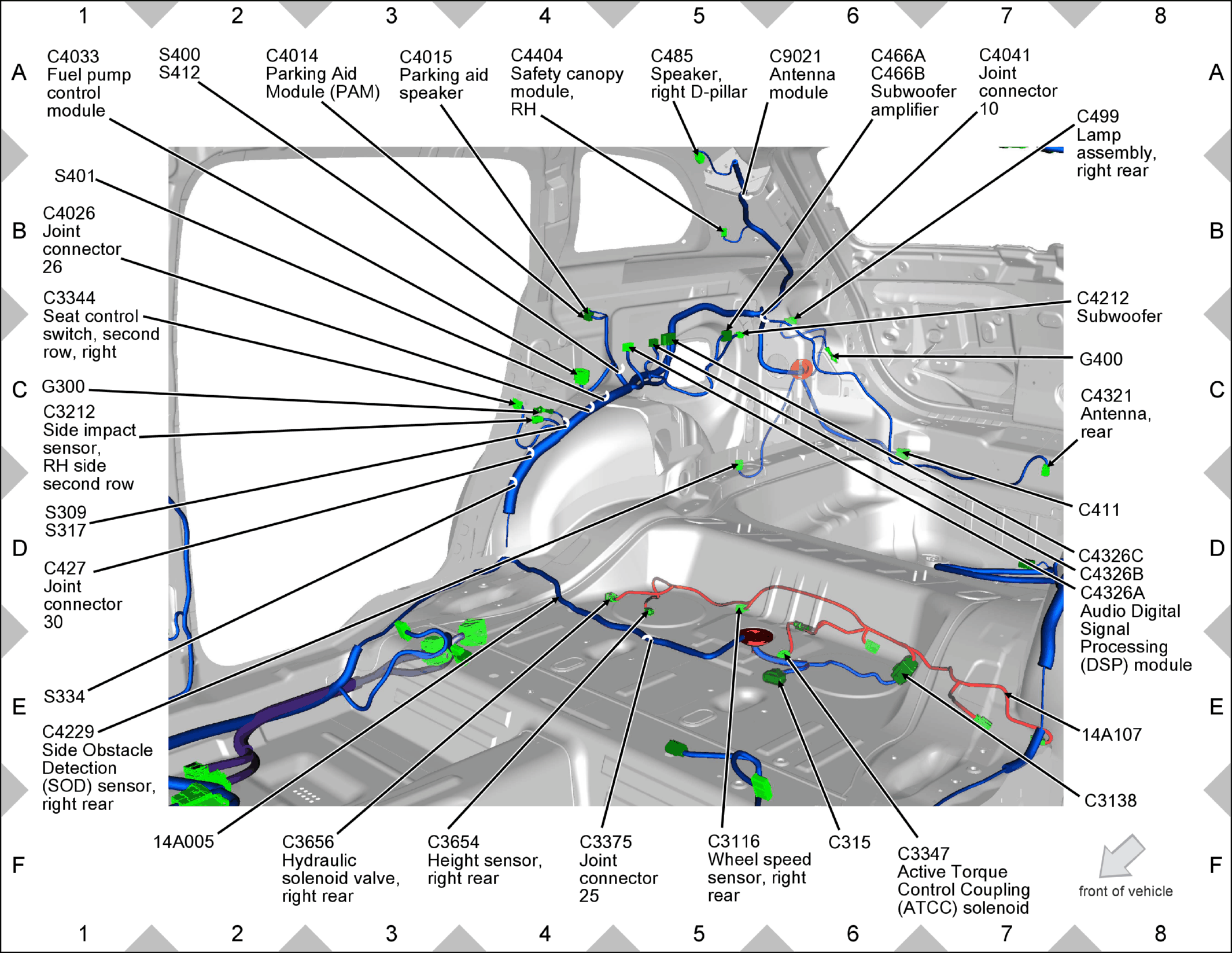

GFDW35041Courtesy of FORD MOTOR COMPANY
GFDW35042Courtesy of FORD MOTOR COMPANY
GFDW35043Courtesy of FORD MOTOR COMPANY
GFDW35044Courtesy of FORD MOTOR COMPANY
GFDW35045Courtesy of FORD MOTOR COMPANY
GFDW35046Courtesy of FORD MOTOR COMPANY
GFDW35047Courtesy of FORD MOTOR COMPANY
GFDW35048Courtesy of FORD MOTOR COMPANY
GFDW35049Courtesy of FORD MOTOR COMPANY
GFDW35050Courtesy of FORD MOTOR COMPANY
GFDW35051Courtesy of FORD MOTOR COMPANY
GFDW35052Courtesy of FORD MOTOR COMPANY
GFDW35053Courtesy of FORD MOTOR COMPANY
GFDW35054Courtesy of FORD MOTOR COMPANY
GFDW35055Courtesy of FORD MOTOR COMPANY
GFDW35056Courtesy of FORD MOTOR COMPANY
GFDW35057Courtesy of FORD MOTOR COMPANY

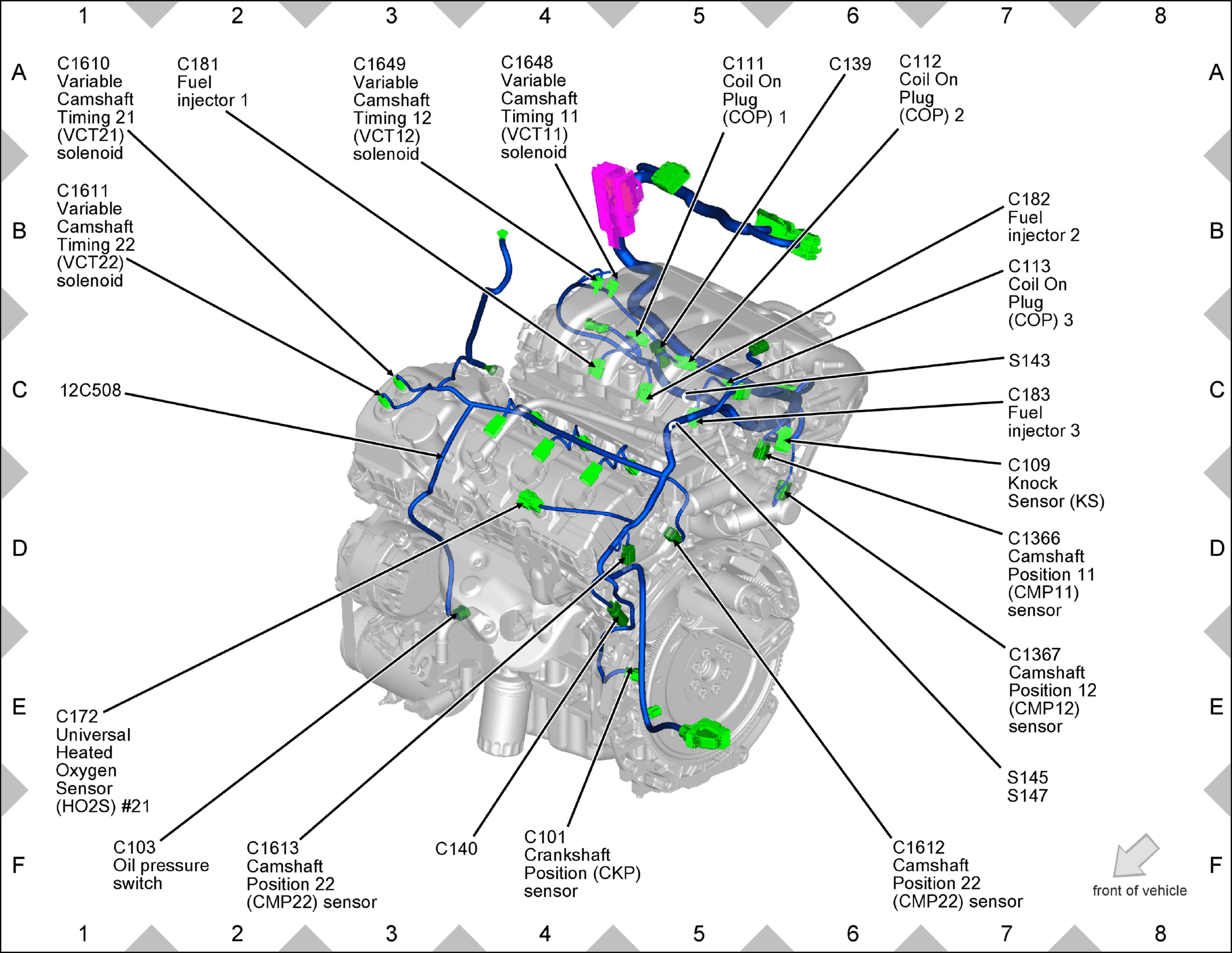

GFDW35058Courtesy of FORD MOTOR COMPANY

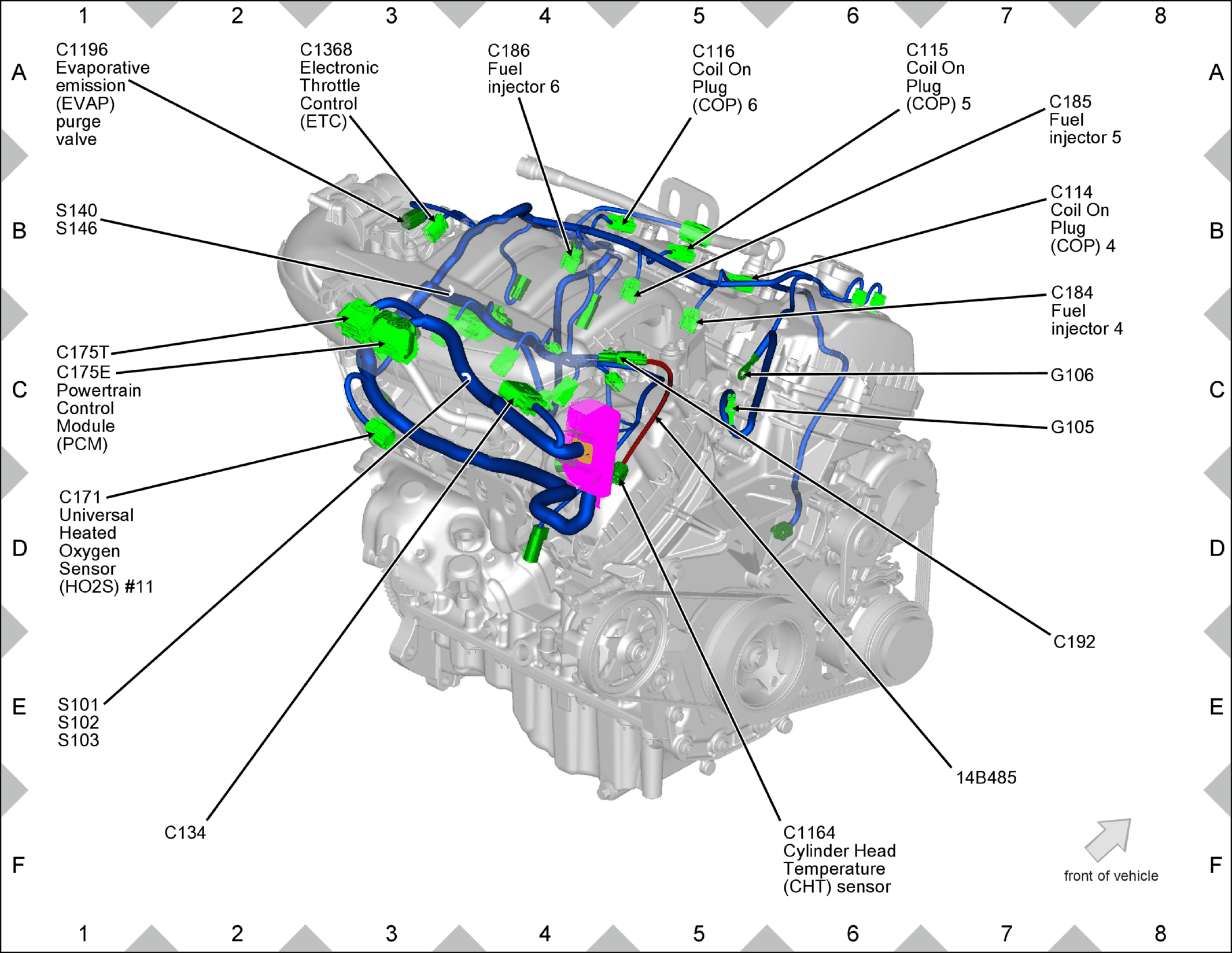

GFDW35059Courtesy of FORD MOTOR COMPANY
GFDW35060Courtesy of FORD MOTOR COMPANY
