Transmission Fluid Cooler Tubes: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

SPECIAL TOOL DESCRIPTION

Disconnect Tool, Transmission Cooler Line
307-569

MATERIAL SPECIFICATION

Item	Specification
Motorcraft® MERCON® LV Automatic Transmission Fluid XT-10-QLVC	MERCON® LV

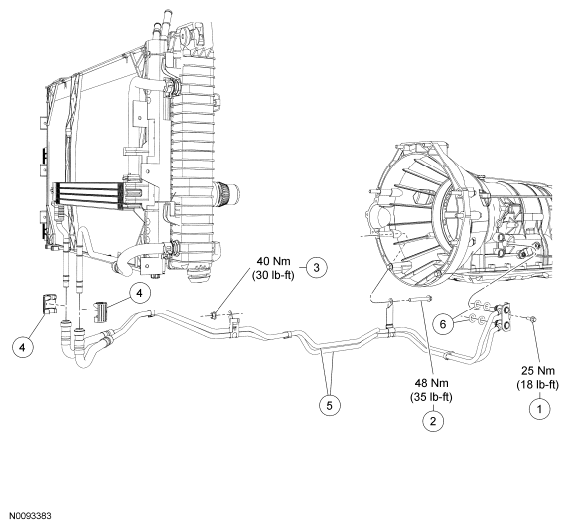

Fig 1: Transmission Fluid Cooler Tubes Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	N605905-S439	Transmission fluid cooler tube bracket bolt
2	-	Transmission fluid cooler tube bracket bolt at transmission
3	W707014-S441	Transmission fluid cooler tube bracket nut
4	7Z465	Transmission fluid cooler tube secondary latches
5	7R081	Transmission fluid cooler inlet and outlet tubes
6	7J227	Transmission fluid cooler O-rings (4 required)
