Axle Assembly: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

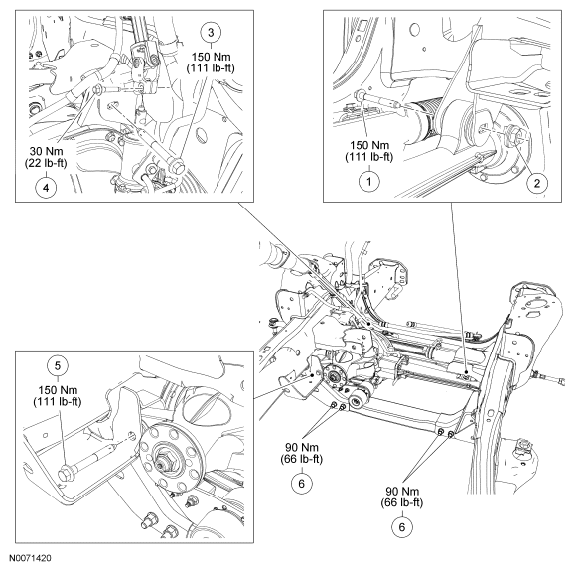

| Item | Part Number | Description |
|---|---|---|
| 1 | W712724 | Axle tube bushing bolt |
| 2 | W712723 | Axle tube bushing flagnut |
| 3 | W712724 | Rear axle housing bushing bolt |
| 4 | N808684 | Steering column coupler bolt |
| 5 | W712743 | Front axle housing bushing support bolt |
| 6 | 636893 | Crossmember nuts (4 required) |
