Module Communications Network

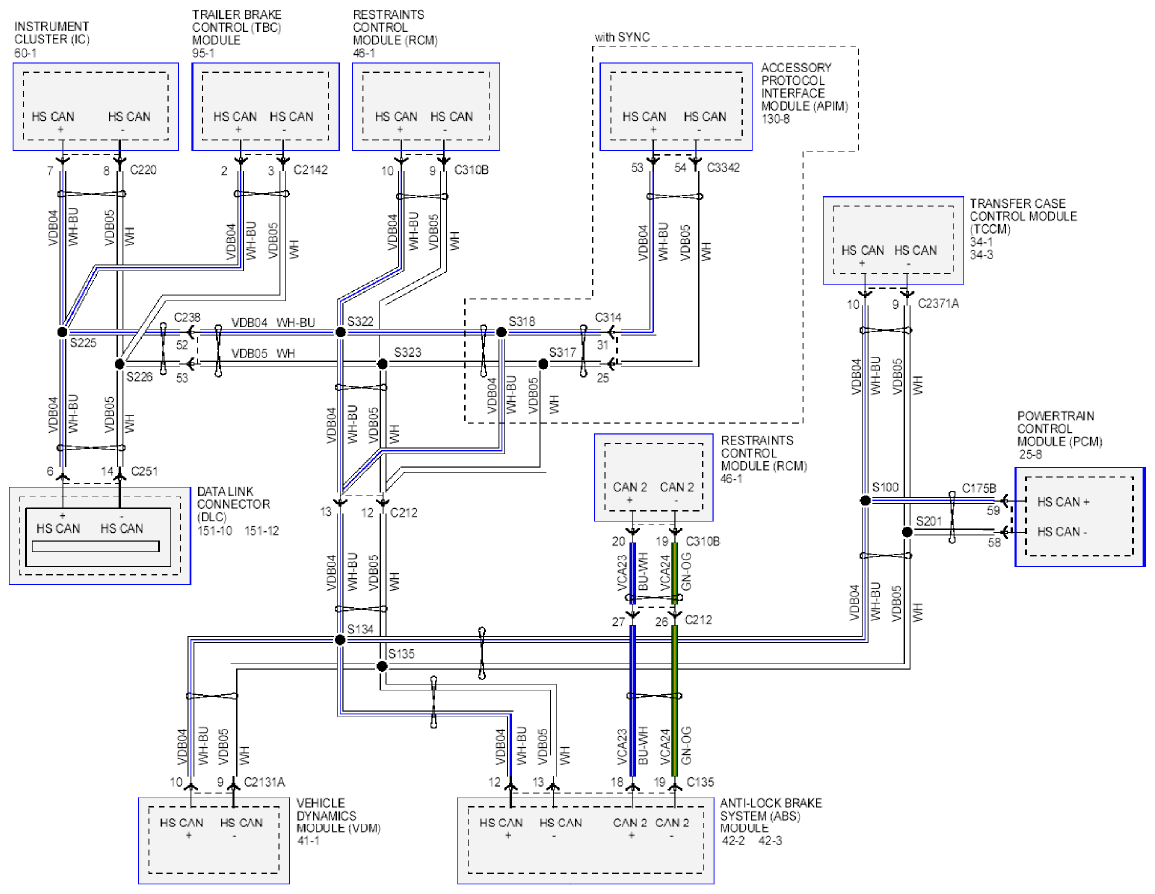

Fig 1: Module Communications Network System - Wiring Diagram (1 Of 5)

Courtesy of FORD MOTOR CO.

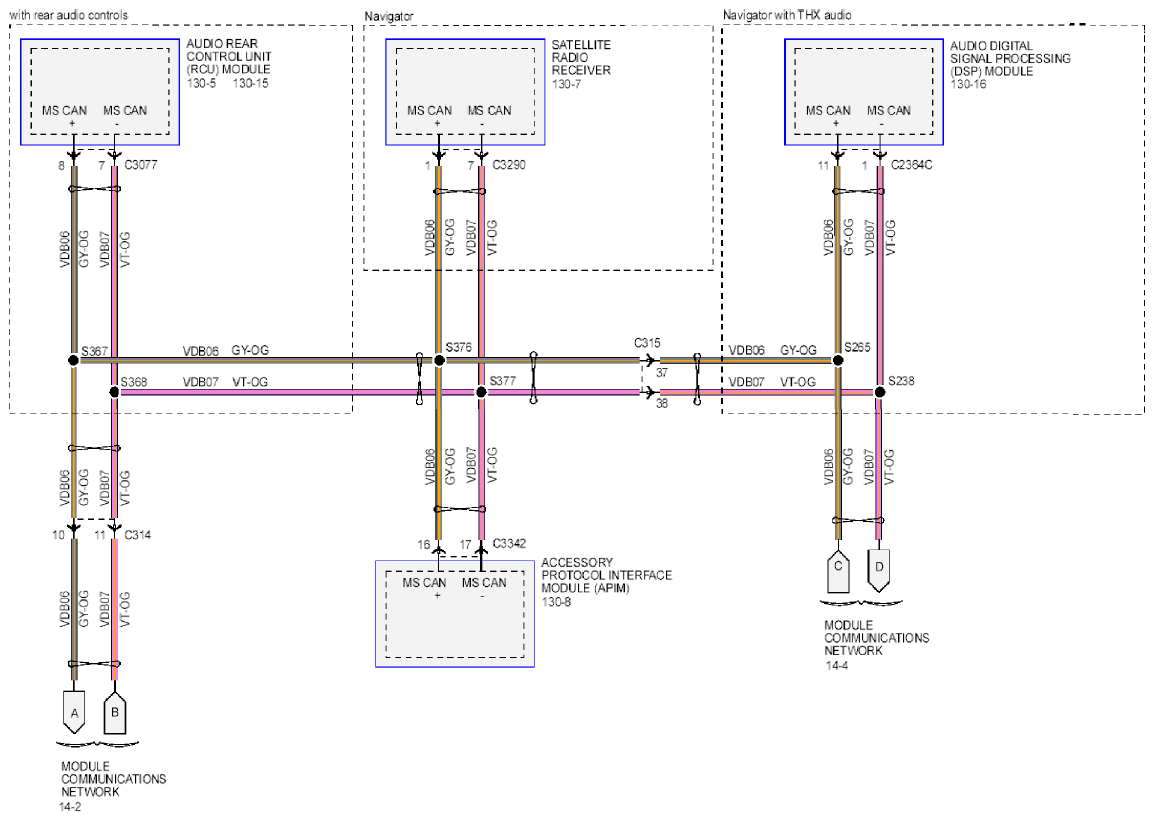

Fig 2: Module Communications Network System - Wiring Diagram (2 Of 5)

Courtesy of FORD MOTOR CO.

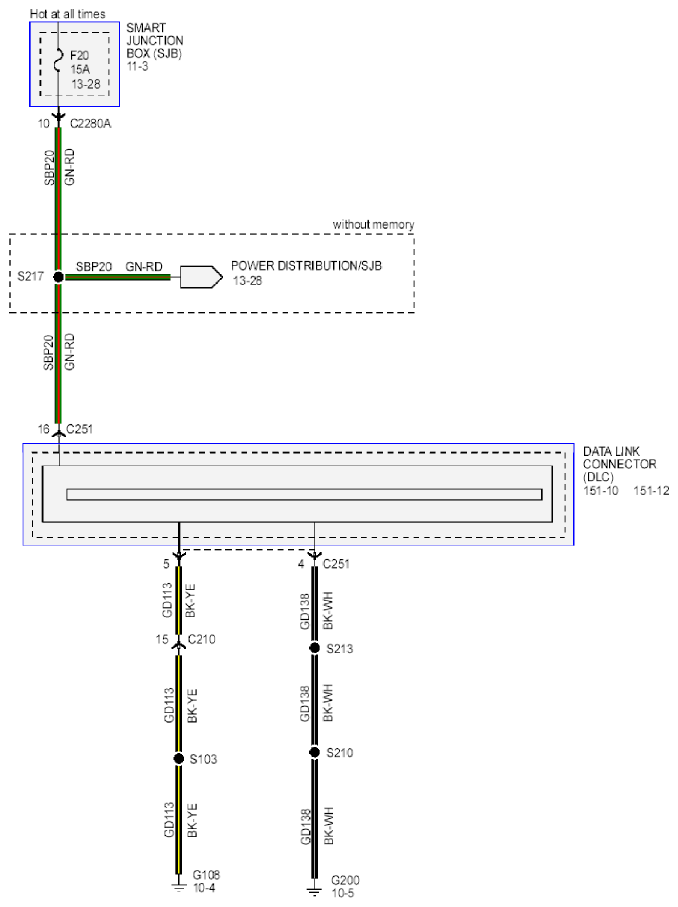

Fig 3: Module Communications Network System - Wiring Diagram (3 Of 5)

Courtesy of FORD MOTOR CO.

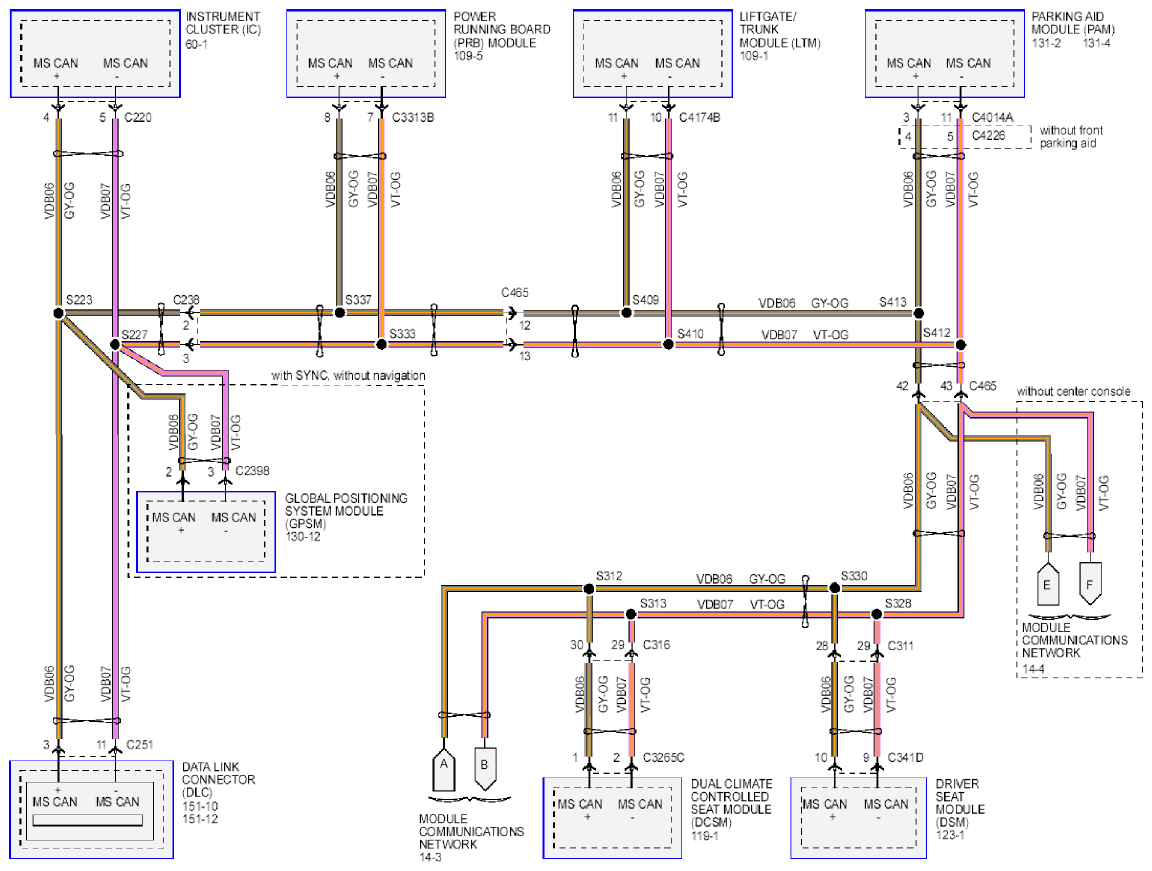

Fig 4: Module Communications Network System - Wiring Diagram (4 Of 5)

Courtesy of FORD MOTOR CO.

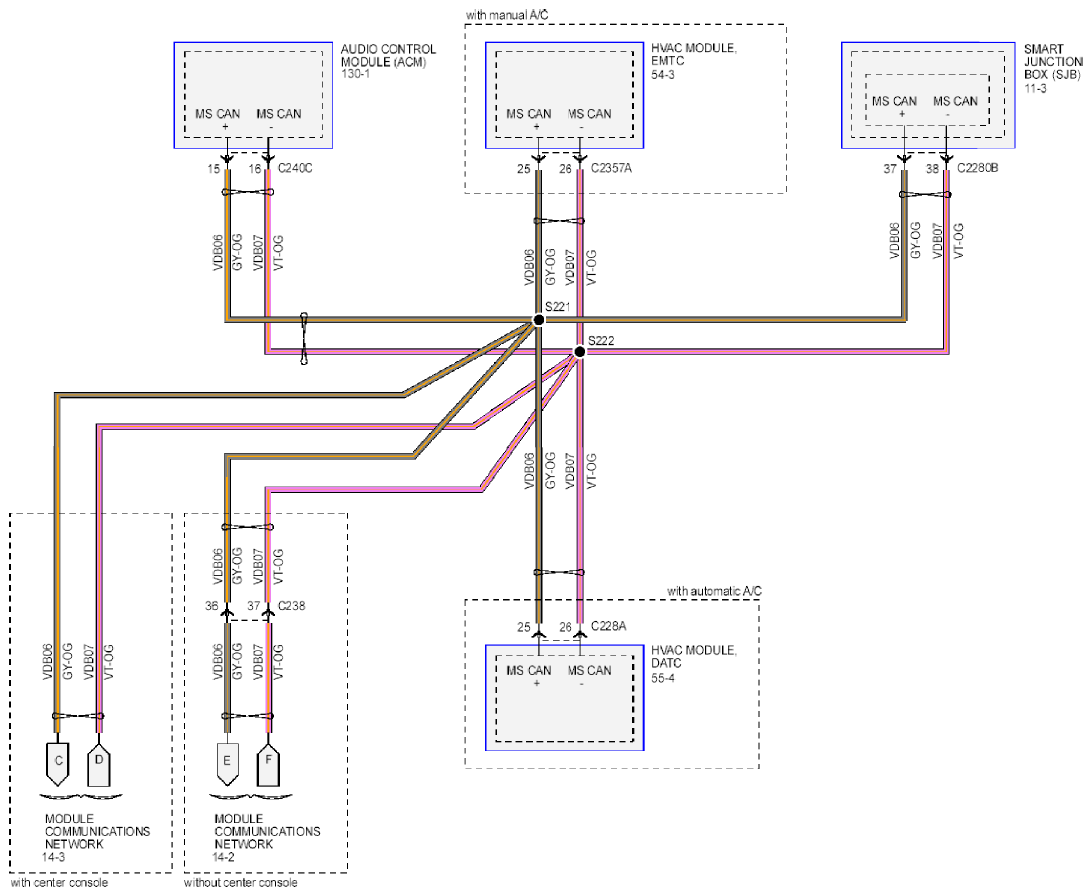

Fig 5: Module Communications Network System - Wiring Diagram (5 Of 5)

Courtesy of FORD MOTOR CO.
