Broken Wire Strands In Harness

  1. = Wiring harness tape
  2. = Wiring strand
  3. = Broken strands intermittent signal
  4. = Circuit insulation

Remove the tape and flex/feel each circuit for a reduction in diameter at break.

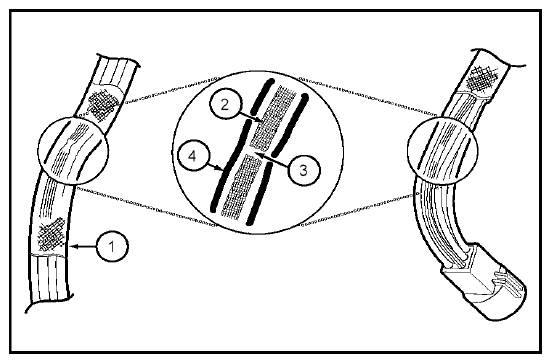

Fig 1: Identifying Broken Wire Strands In Harness
G08734498Courtesy of FORD MOTOR CO.
