Home >> Lincoln >> 2013 >> Navigator Base, RWD >> Repair and Diagnosis (Single Page) >> Electrical >> Body Electrical >> OEM Wiring Diagrams >> Power Distribution/SJB >> Notes

Power Distribution/SJB: Notes

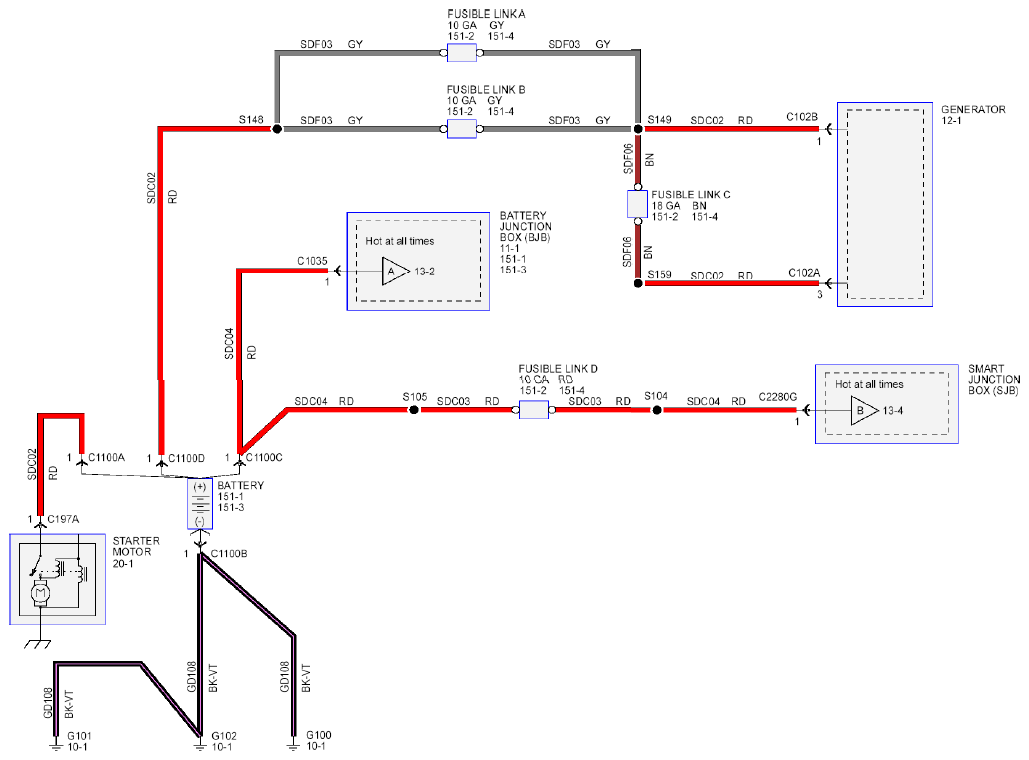

Fig 1: Power Distribution Wiring Diagram

G08734532

Courtesy of FORD MOTOR CO.
