Audio System_Navigation: Notes

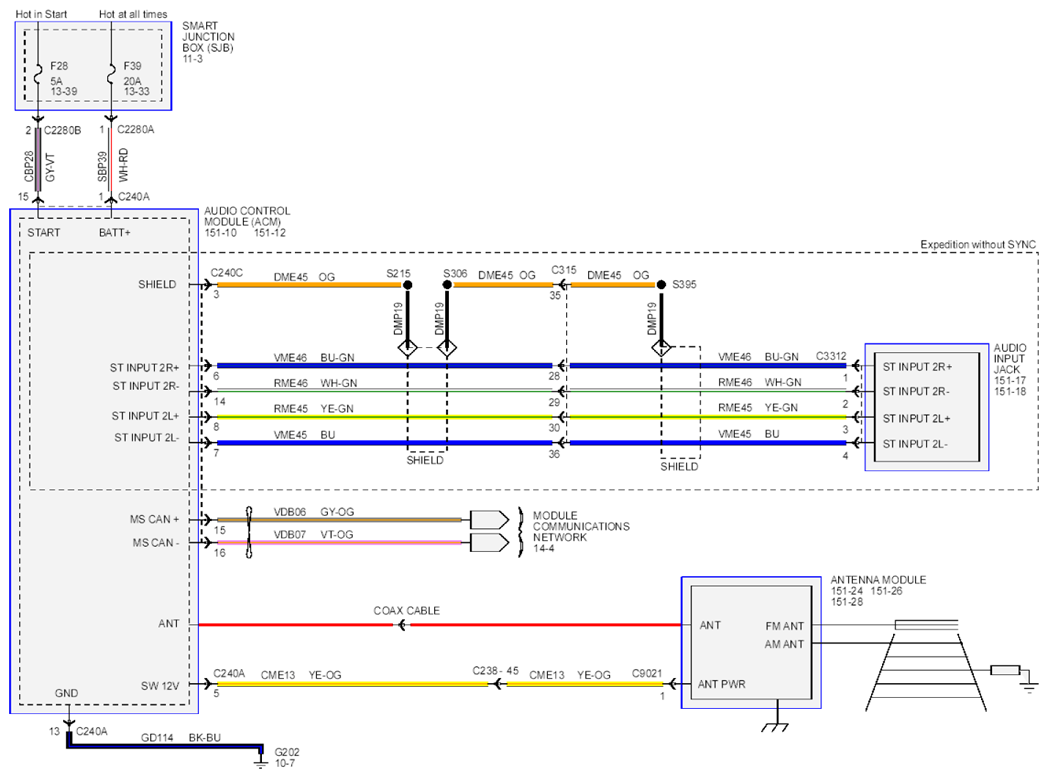

Fig 1: Audio System And Navigation Circuit Diagram (View 1 Of 27)

G07900620

Courtesy of FORD MOTOR CO.
