Side Air Bag Module: Notes

NOTE: Driver seat shown in the illustration, passenger similar.

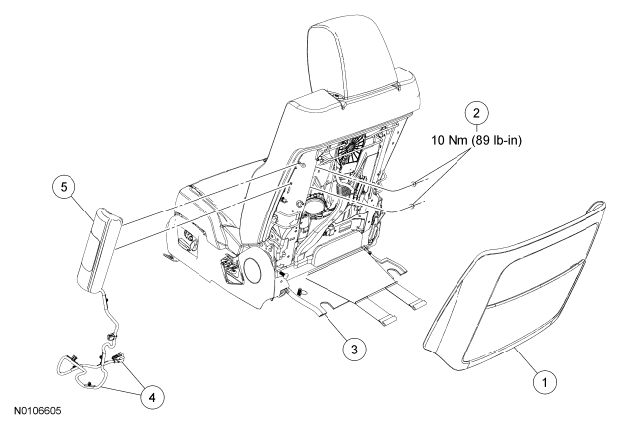

Fig 1: Side Air Bag Module Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	611A08	Backrest panel
2	W520111	Side air bag module nuts (2 required)
3	644K64	Carpet flap toe-kick
4	-	Side air bag module electrical connector (part of 611D11)
5	611D11	Side air bag module
