Safety Canopy Module: Notes
NOTE:

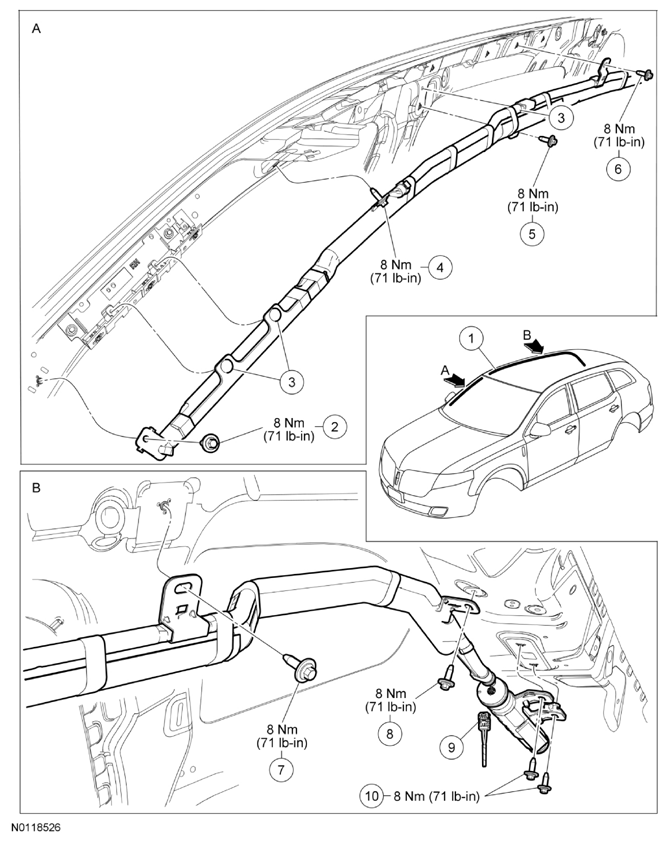

RH shown in the illustration, LH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 042D94 RH/042D95 LH | Safety Canopy® module |
| 2 | W713437 | Safety Canopy® module front tether bolt |
| 3 | - | Pin-type retainers (part of 042D94 RH/042D95 LH) |
| 4 | - | Safety Canopy® module A-pillar bolt (part of 042D94 RH/042D95 LH) |
| 5 | W713437 | Safety Canopy® module B-pillar bolt |
| 6 | W713437 | Safety Canopy® module middle bolt |
| 7 | W713437 | Safety Canopy® module C-pillar bolt |
| 8 | W713437 | Safety Canopy® module D-pillar bolt |
| 9 | - | Electrical connector (part of 14A005) |
| 10 | W713437 | Safety Canopy® module canister bolts |
