Driver Air Bag Module: Notes

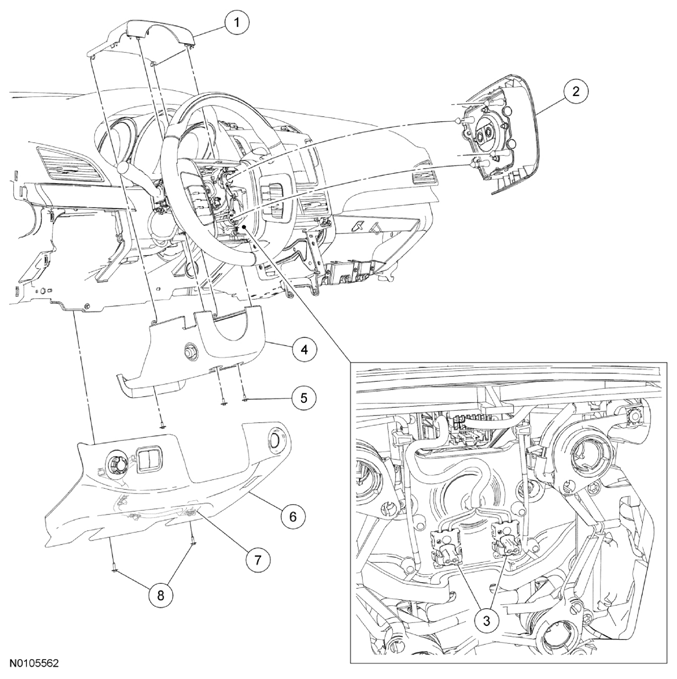

Fig 1: Exploded View Of Driver Air Bag Module
G08011245Courtesy of FORD MOTOR CO.
Item Part Number Description
1 3530 Upper steering column shroud
2 043B13 Driver air bag module
3 - Driver air bag module electrical connectors (part of 14A664)
4 3533 Lower steering column shroud (and power tilt switch)
5 N706731 Lower steering column shroud screw (3 required)
6 04459 Steering column opening trim panel
7 - Electrical connector (to 14401)
8 N808453 Steering column opening trim panel bolts (2 required)
