OEM Ground Distribution: Grounds: G400

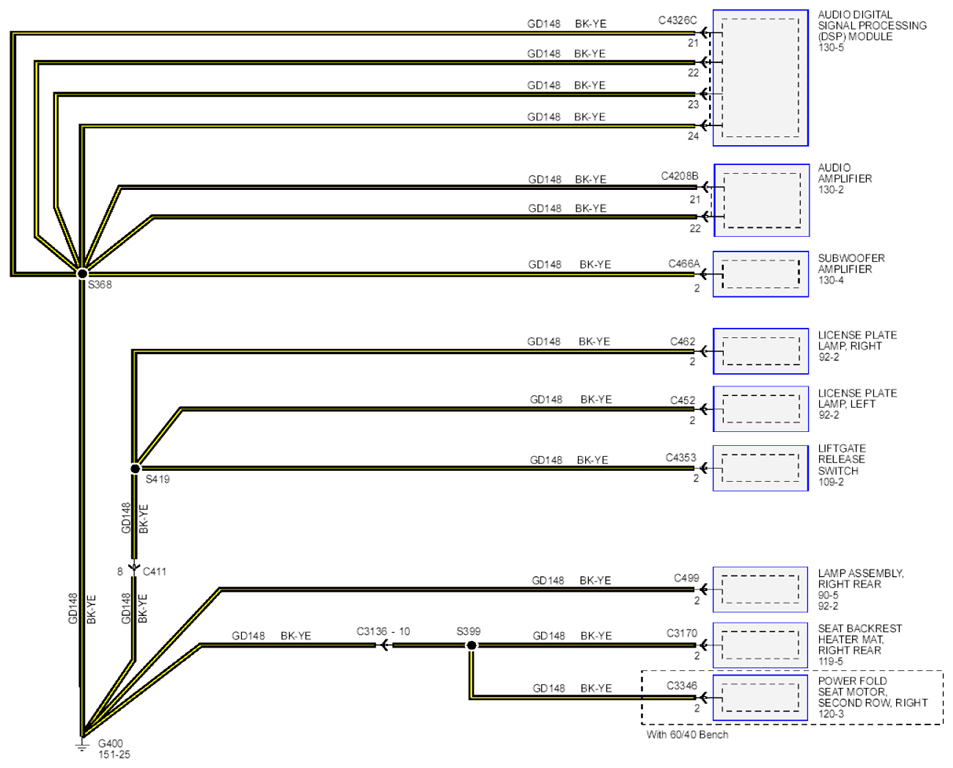

Fig 1: Grounds Circuit Diagram - G400

G07920953

Courtesy of FORD MOTOR CO.
