OEM Ground Distribution: Grounds: G100

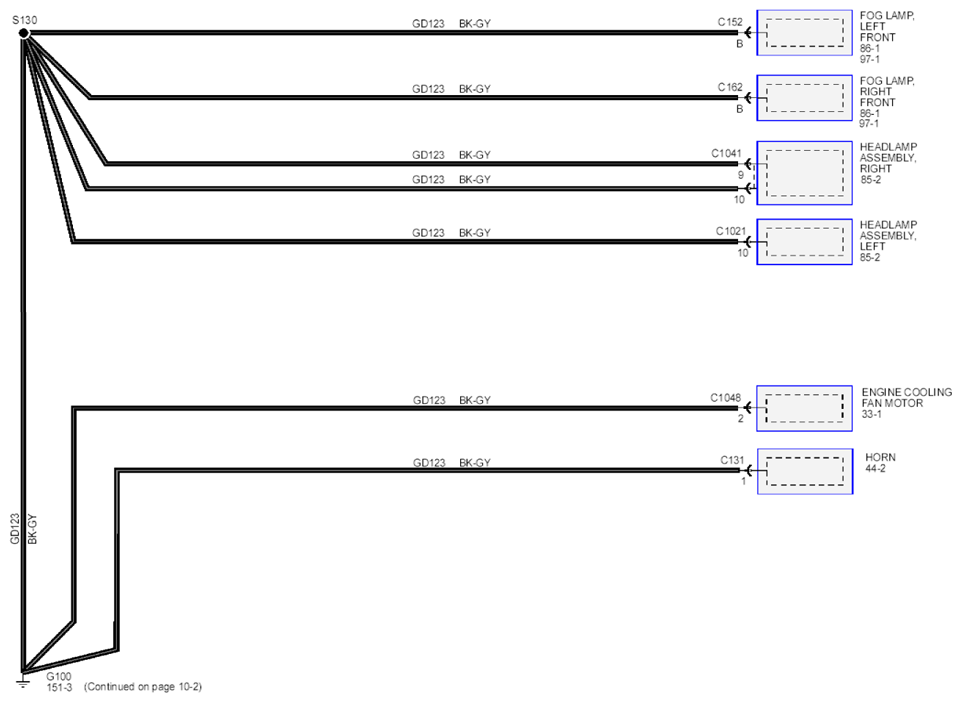

Fig 1: Grounds Circuit Diagram - G100

G07920943

Courtesy of FORD MOTOR CO.
