Audio System_Navigation: Notes

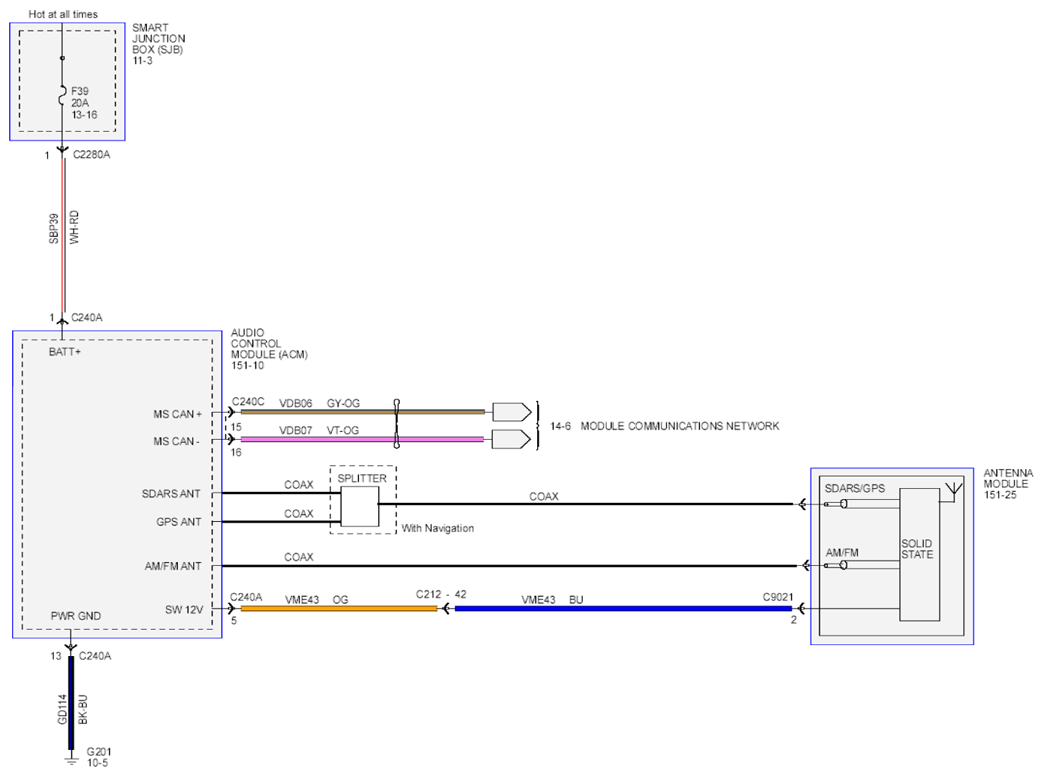

Fig 1: Audio System_Navigation Circuit Diagram

G07921115

Courtesy of FORD MOTOR CO.
