Side Air Bag Module: Notes
NOTE:

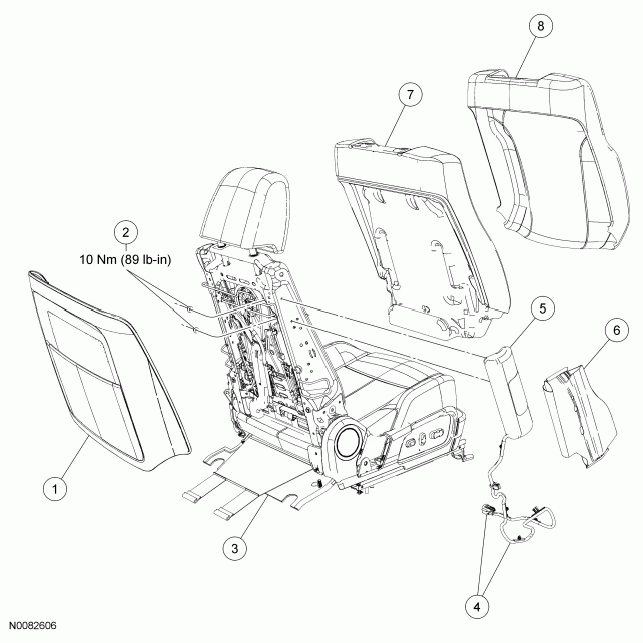

Passenger seat shown in illustration, driver similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 611A08 | Backrest panel |
| 2 | W520111 | Side air bag module-to-backrest frame nuts (2 required) |
| 3 | - | Rear cover |
| 4 | - | Side air bag module wiring harness (part of 611D10) |
| 5 | 611D10 | Side air bag module |
| 6 | - | Side air bag module deployment chute |
| 7 | 64810 | Backrest foam pad |
| 8 | 64416 | Backrest trim cover |
