Safety Canopy Module: Notes
NOTE:

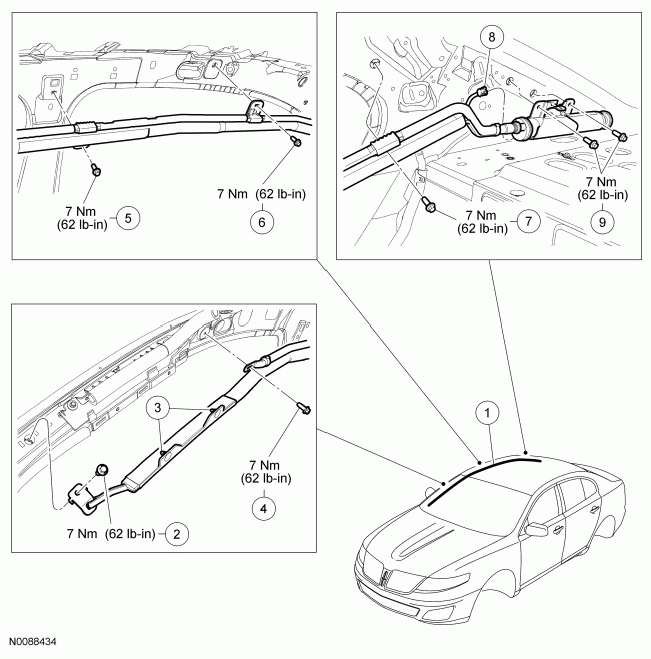

RH shown in illustration, LH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 042D94 RH/042D95 LH | Safety Canopy® module |
| 2 | - | Safety Canopy® module tether bracket bolt (part of 042D94 RH/042D95 LH) |
| 3 | - | Pin-type retainers (part of 042D94/042D95) (2 required) |
| 4 | - | Safety Canopy® module A-pillar bolt (part of 042D94 RH/042D95 LH) |
| 5 | - | Safety Canopy® module middle bolt (part of 042D94 RH/042D95 LH) |
| 6 | - | Safety Canopy® module middle bolt (part of 042D94 RH/042D95 LH) |
| 7 | - | Safety Canopy® module C-pillar bolt (part of 042D94 RH/042D95 LH) |
| 8 | - | Safety Canopy® module electrical connector (part of 14A005) |
| 9 | - | Safety Canopy® module C-pillar bolts (part of 042D94 RH/042D95 LH) |
