Home >> Lincoln >> 2012 >> MKS Base, AWD >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Supplemental Restraint System >> Removal And Installation >> Passenger Air Bag Module >> Notes

Passenger Air Bag Module: Notes

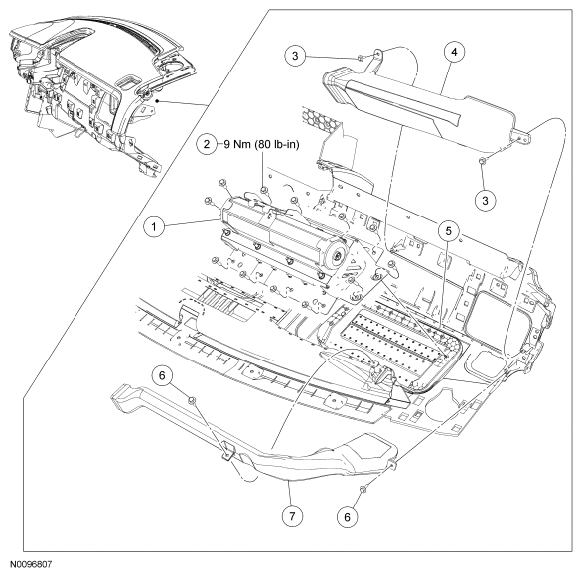

Fig 1: Passenger Air Bag Module Replacement Components With Torque Specifications
G06078492Courtesy of FORD MOTOR CO.
Item Part Number Description
1 044A74 Passenger air bag module
2 W705583 Passenger air bag module screw (12 required)
3 W707607 Air duct screws (2 required)
4 19B680E Air duct
5 - Passenger air bag module deployment door
6 W707607 Air duct screws
7 19E630B Air duct
