OEM Ground Distribution: Grounds: G101

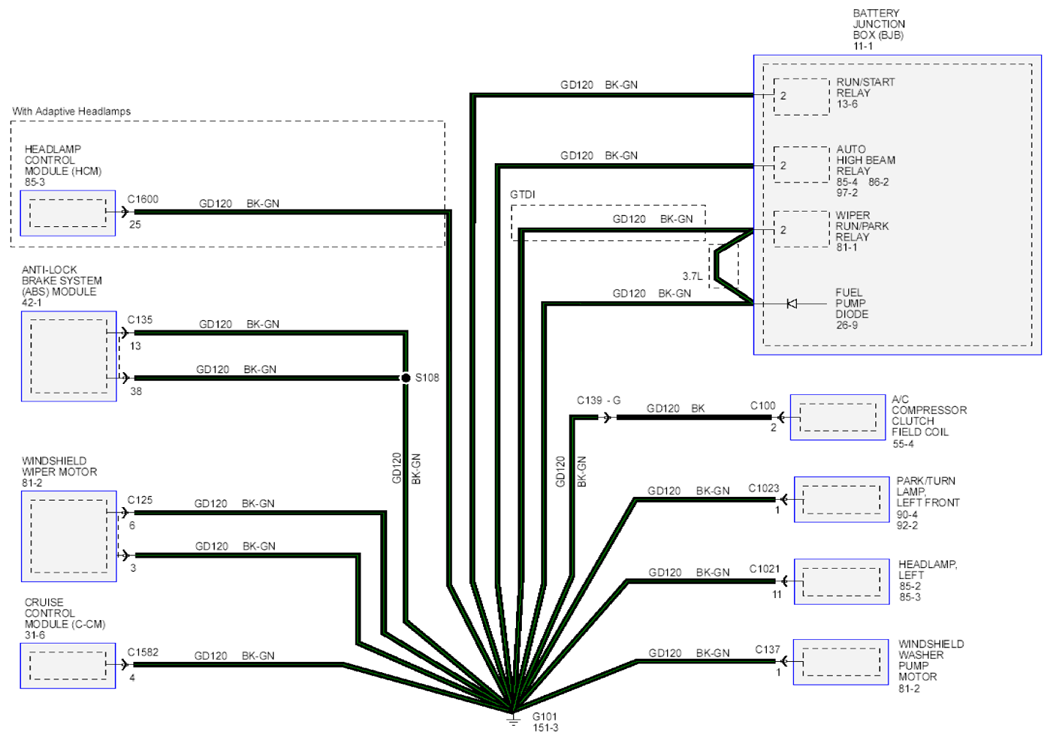

Fig 1: Grounds Circuit Diagram - G101

G07919489

Courtesy of FORD MOTOR CO.
