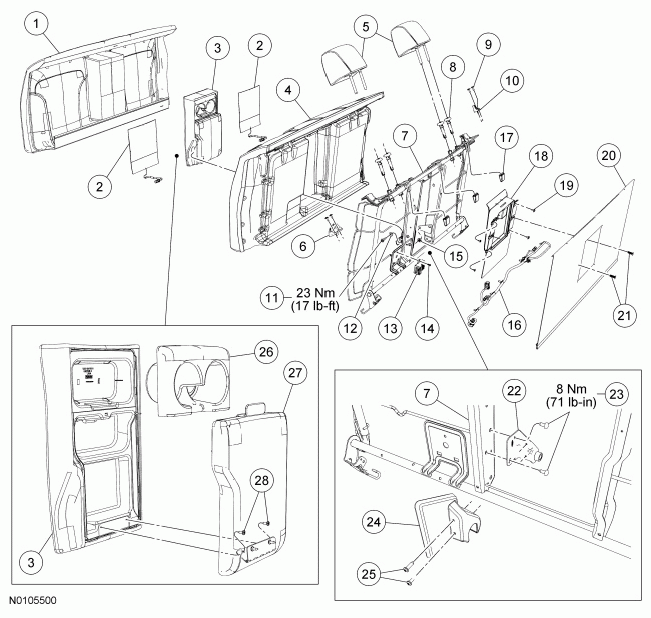

| 1 |
66600 |
Backrest trim cover |
| 2 |
14D696 |
RH and LH backrest heater mats |
| 3 |
67112 |
Armrest assembly |
| 4 |
66800 |
Backrest foam pad |
| 5 |
611A08 |
RH and LH head restraints |
| 6 |
613D11 |
LH safety belt guide |
| 7 |
613A38 |
Backrest frame |
| 8 |
610A18 |
Head restraint guide sleeve (4 required) |
| 9 |
W505021 |
Safety belt guide screw (4 required) |
| 10 |
613D10 |
RH safety belt guide |
| 11 |
605C12 |
Armrest bolt |
| 12 |
45068 |
Wave washer |
| 13 |
14C724 |
Heated seat module |
| 14 |
W710752 |
Scrivet |
| 15 |
264A50 |
Armrest grommet |
| 16 |
19K315 |
Wire harness |
| 17 |
613G36 |
Backrest frame upper retainer cover (3 required) |
| 18 |
668B10 |
Door panel |
| 19 |
W711206 |
Door panel screw (4 required) |
| 20 |
- |
Close-out trim cover (part of 66600) |
| 21 |
N811404 |
Pin-type retainers |
| 22 |
67121 |
Armrest bracket |
| 23 |
W504756 |
Armrest bracket screws |
| 24 |
67202 |
Armrest bracket cover |
| 25 |
W710836 |
Armrest bracket cover screws |
| 26 |
13562 |
Cup holder |
| 27 |
06024 |
Armrest cover |
| 28 |
W790065 |
Armrest hinge screws (2 required) |
