Restraints Control Module (RCM): Notes

WARNING: This page is about a different car, the 2008 Mercury Milan, 2008 Lincoln MKZ, and 2008 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools

Illustration	Tool Name	Tool Number
Courtesy of FORD MOTOR CO.	Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS)	software with appropriate hardware, or equivalent scan tool

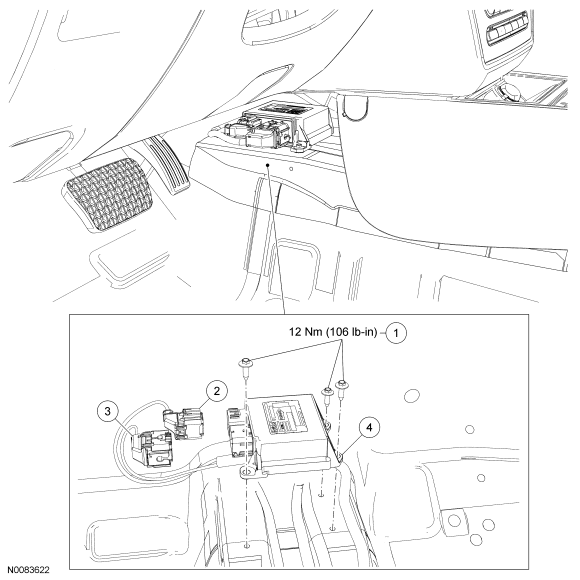

Fig 1: Exploded View Of Restraints Control Module (RCM) With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W707722	Restraints Control Module (RCM) bolts (3 required)
2	-	RCM small connector (part of 14A005)
3	-	RCM large connector (part of 14A005)
4	14B321	RCM
