Safety Belt Buckle - Rear: Notes

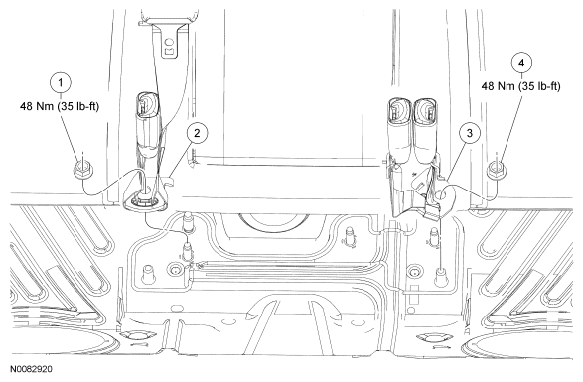

Fig 1: Safety Belt Buckle Replacement Components With Torque Specifications -- Rear
G06077720Courtesy of FORD
ITEM DESCRIPTION

Item Part Number Description
1 N800937 Center safety belt retractor and RH buckle assembly anchor nut
2 - RH buckle assembly (part of 600A38)
3 60044 LH and center safety belt buckle assembly
4 N800937 LH and center safety belt buckle assembly nut
